Black Micro ATX tower with walnut wood front panel and tempered glass side panel

DIYPC

DIYPC DIY-mATX06-Wood Micro ATX PC case

SKU CH-Q3BT-F0GRQ MPN DIY-mATX06-Wood

Micro ATX tower with walnut front panel, tempered glass side, four pre-installed PWM fans and top 360 mm radiator support

  • TypeMicro ATX Tower
  • ColorBlack
  • Case MaterialSteel / Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityITX / Micro ATX

Options mATX06-Wood (Black)

  • Walnut wood front panel adds a natural, elegant look to any workspace
  • Four 120 mm PWM fans pre-installed at front and rear deliver strong airflow out of the box
  • Top mount supports up to 360 mm radiator for liquid-cooling builds
  • Fits graphics cards up to 402 mm long and CPU coolers up to 174 mm tall

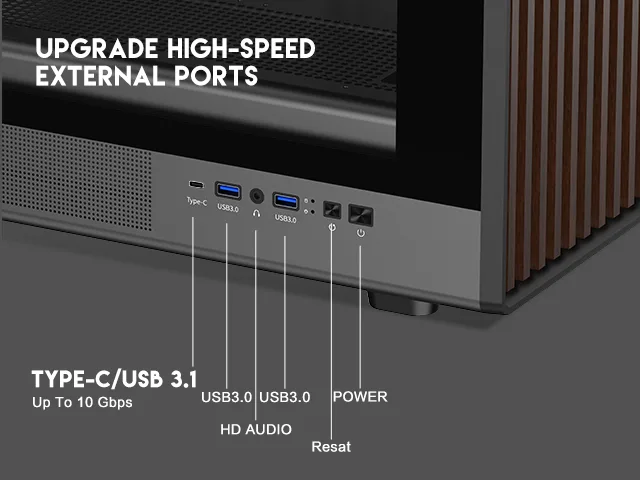

  • Bottom-mounted USB 3.0 and Type-C ports give fast, convenient front I/O access

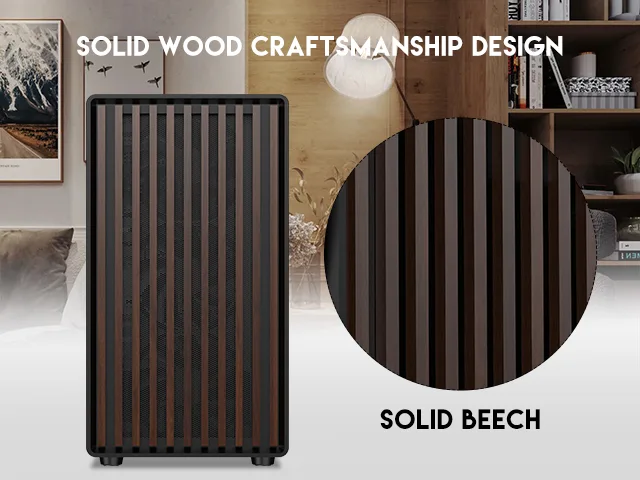

Walnut wood front panel

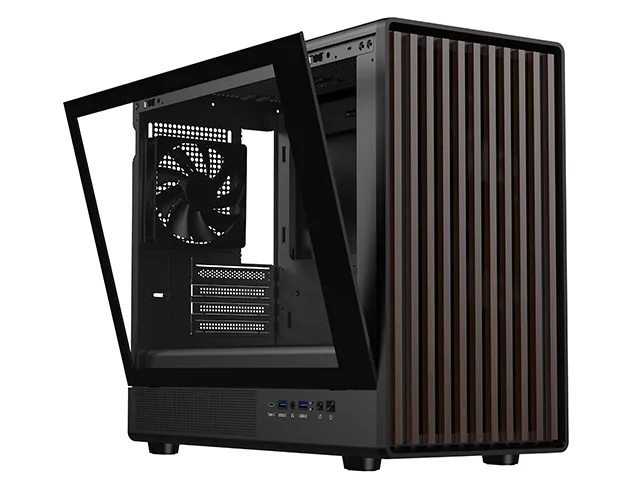

The DIYPC DIY-mATX06-Wood is a Micro ATX tower case built from steel and tempered glass with a walnut wood front panel. It suits builders who want a natural wood accent in a modern workspace or gaming setup. The case ships without a power supply and uses a bottom-mounted PSU layout.

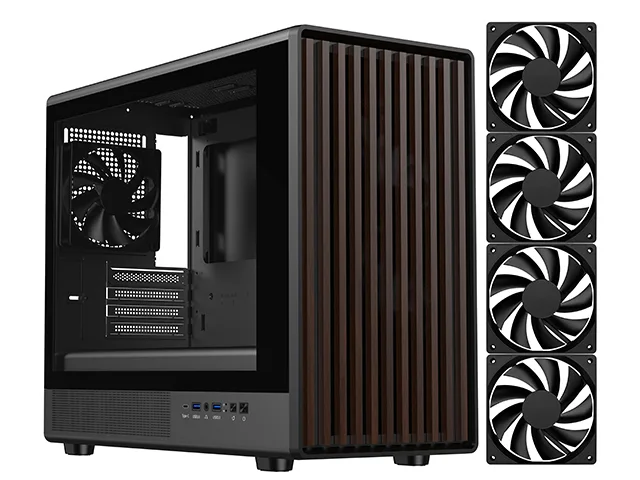

Four pre-installed PWM fans

Four 120 mm black PWM fans come fitted — three at the front and one at the rear — giving immediate airflow out of the box. A magnetic dust filter on the top panel simplifies cleaning. The I/O ports sit on the bottom edge and include USB 3.0 and USB Type C for current high-speed devices.

402 mm GPU clearance

Graphics cards up to 402 mm long fit inside, while CPU coolers up to 174 mm tall are supported. The top panel accepts radiators up to 360 mm for liquid cooling. Storage options include two 3.5-inch bays, one 2.5-inch bay and four expansion slots.

Highlights

  • Walnut wood front panel adds a natural, elegant look to any workspace
  • Four 120 mm PWM fans pre-installed at front and rear deliver strong airflow out of the box
  • Top mount supports up to 360 mm radiator for liquid-cooling builds
  • Fits graphics cards up to 402 mm long and CPU coolers up to 174 mm tall
  • Bottom-mounted USB 3.0 and Type-C ports give fast, convenient front I/O access

Specifications

BrandDIYPC
ModelDIY-mATX06-Wood
TypeMicro ATX Tower
ColorBlack
Case MaterialSteel / Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityITX / Micro ATX

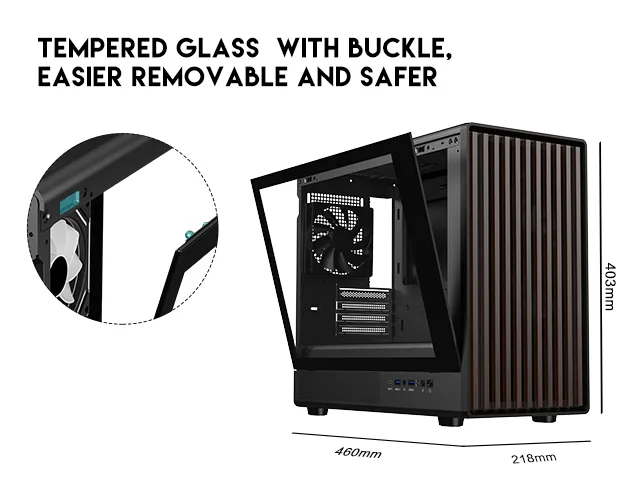

Side Panel1 x Side Tempered Glass Panel
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays1
Expansion Slots4
Fan OptionsFront: 3 x 120mm Black PWM Fan (Pre-Installed)
Top: 3 x 120mm or 2 x 140mm fan (Optional)
Rear: 1 x 120mm Black PWM Fan (Pre-Installed)
Pre-installed FansFront - 3 x 120mm / Rear - 1 x 120mm
Radiator OptionsTop - Up to 360mm
Max GPU Length402 mm
Max CPU Cooler Height174 mm
Max PSU Length240 mm
FeaturesDIY-mATX06-Wood front panel is crafted with high quality walnut wood. The natural and elegant wood element is perfectly integrated into the modern workspace. It has side tempered glass panel, w/top mesh design allows optimized air flow. Crafted from steel, tempered glass and wood to blend into any home design. The DIY-mATX06-Wood has bigger interior space to accommodate and improve cooling performance (can support up to 402mm x GPU and 360mm radiator x top). It supports up to 240mm long full ATX power supply to run the most power hungry system.
Advanced cable management design - rout
Shipping weight6.59 kg
Package size540 × 451 × 279 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What front-panel USB ports does the DIY-mATX06-Wood provide, and what speed does the USB 3.0 connection actually deliver?

The case has bottom-mounted USB 3.0 and USB Type-C ports. USB 3.0 caps at 5 Gb/s in practice, limited by the motherboard header and cable quality.

How much clearance do I have for a graphics card and CPU cooler in this Micro ATX tower?

The chassis fits GPUs up to 402 mm long and CPU coolers up to 174 mm tall, measured from the motherboard tray to the side glass.

Which screws or standoffs do I need to mount a Micro ATX board, and what step do builders often miss?

Use the pre-installed standoffs marked for Micro ATX; the common mistake is leaving the extra ATX standoffs in place, which can short the board.
