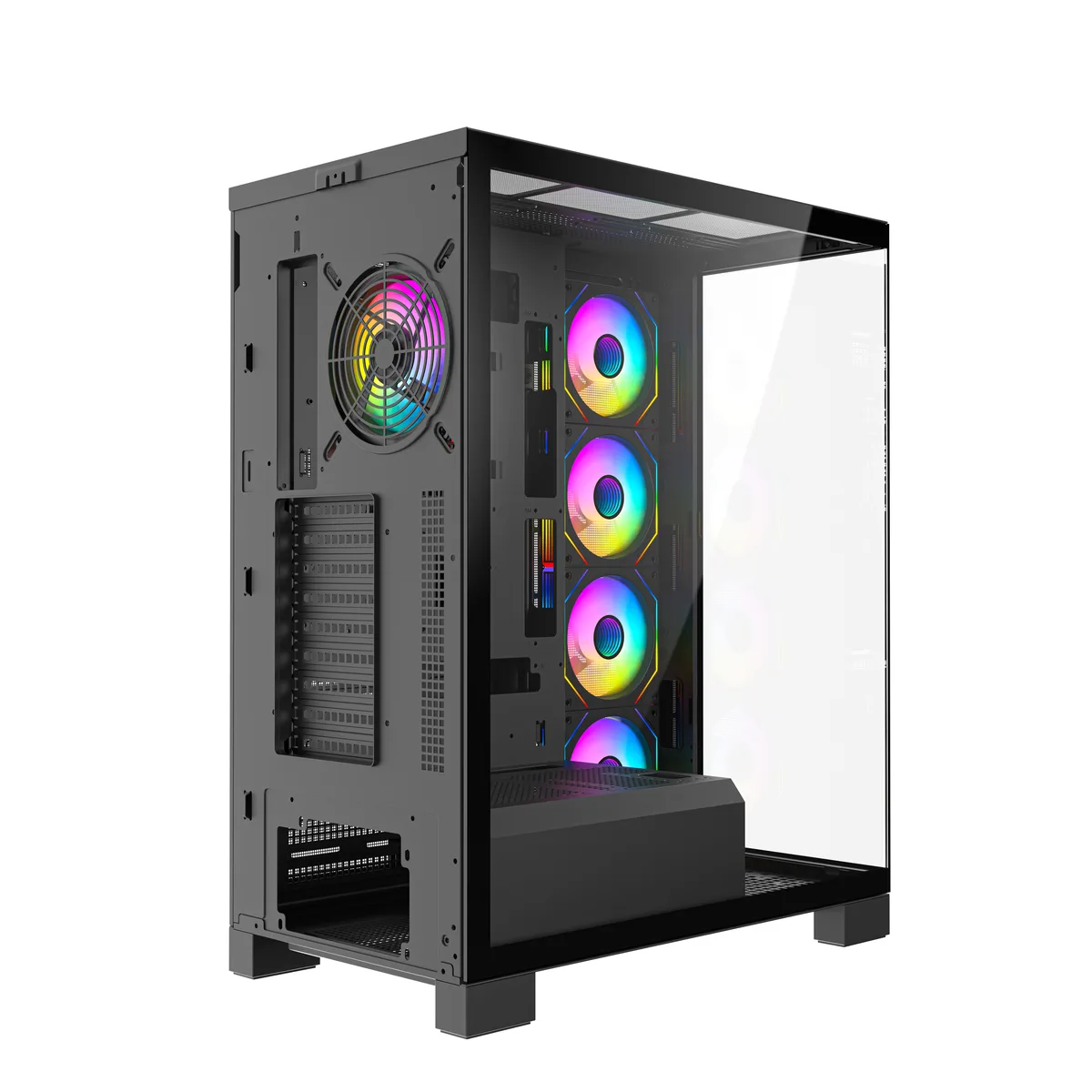

Black full-tower ATX case with tempered-glass side panel and pre-installed ARGB fans visible through the glass

DIYPC

DIYPC Vanguard-F2-Pro Black ATX Full Tower PC Case

SKU CH-76NB-AVJXM MPN Vanguard-F2-Pro

Black ATX full-tower case with tempered-glass panels, five pre-installed 120 mm ARGB PWM fans, front USB 3.0 and Type-C ports, and room for 480 mm side or 360 mm top radiators

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel / Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / ITX / Micro ATX

Options Vanguard-F2-Pro

  • Supports ATX, Micro ATX and ITX motherboards including BTF back-plug designs
  • Five pre-installed 120 mm ARGB PWM fans on the motherboard side plus one rear 140 mm ARGB PWM fan for immediate airflow
  • Motherboard-side radiator support up to 480 mm and top radiator support up to 360 mm for liquid cooling
  • ARGB lighting controlled by a manual button or motherboard 5 V addressable header with included PWM hub
  • Tool-free removal of front, top, left and right panels speeds up builds and maintenance

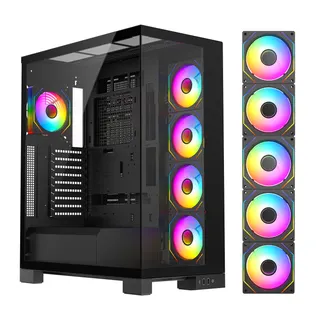

Full-tower ATX case with pre-installed ARGB fans

The DIYPC Vanguard-F2-Pro is a black steel and tempered-glass full tower that accepts ATX, Micro-ATX and ITX motherboards, including back-plug designs. Five ARGB PWM fans are factory fitted — four on the motherboard side and one at the rear — giving immediate airflow and lighting without extra purchases. Tool-free panel removal on four sides speeds assembly and maintenance.

420 mm maximum graphics-card length

The interior clears graphics cards up to 420 mm long, so buyers must verify their chosen GPU fits within that limit before ordering. CPU coolers up to 180 mm tall and power supplies up to 250 mm deep are also supported. Radiator mounts allow a 480 mm unit on the motherboard side and a 360 mm unit at the top for custom liquid cooling.

Included ARGB hub and front Type-C port

An addressable-RGB hub with PWM control is bundled, letting the builder sync all lighting through a 5 V motherboard header or use the case button for standalone effects. The top I/O panel supplies two USB 3.0 ports, one USB Type-C port and HD audio jacks for modern peripherals. Three 3.5-inch and three 2.5-inch drive bays provide storage flexibility.

Highlights

  • Supports ATX, Micro ATX and ITX motherboards including BTF back-plug designs
  • Five pre-installed 120 mm ARGB PWM fans on the motherboard side plus one rear 140 mm ARGB PWM fan for immediate airflow
  • Motherboard-side radiator support up to 480 mm and top radiator support up to 360 mm for liquid cooling
  • ARGB lighting controlled by a manual button or motherboard 5 V addressable header with included PWM hub
  • Tool-free removal of front, top, left and right panels speeds up builds and maintenance

Specifications

BrandDIYPC
ModelVanguard-F2-Pro
TypeATX Full Tower
ColorBlack
Case MaterialSteel / Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / ITX / Micro ATX
Side Panelyes
LEDARGB
Internal 3.5" Drive Bays3
Internal 2.5" Drive Bays3
Expansion Slots9
Front Ports2 x USB 3.0 / 1 x Type C / Audio In & Out (HD)
Fan OptionsMB side - 4 x 120mm ARGB PWM Fans (Pre-installed)
Top: 3 x 120mm or 3 x 140mm Fans (Optional)
Rear: 1 x 140mm ARGB PWM Fan (Pre-Installed)
PSU Chamber : 2 x 120mm Fan (Optional)
Fan-HDD rack: 1 x 120mm (Optional)
Radiator OptionsMB side can fit up to 480mm , top support 360mm water cooling radiator
Max GPU Length420 mm
Max CPU Cooler Height180 mm
Max PSU Length250 mm
Dimensions18" Depth x 10.32" Width x 22.7" Height
Weight16lbs
Shipping weight14.15 kg
Package size622 × 564 × 345 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 420 mm maximum GPU length translate when the motherboard-side fans are already installed?

The 420 mm limit is measured with the four pre-installed 120 mm ARGB PWM fans on the motherboard side in place, so any graphics card up to that length will fit without removing them.

What does the single front USB Type-C port actually deliver in terms of data speed?

The front Type-C port is wired to the motherboard's USB 3.0 header, so it operates at up to 5 Gbps rather than the higher speeds of USB 3.1 Gen 2 or USB 3.2.

What clearance does the 180 mm CPU cooler height limit leave for a top-mounted 360 mm radiator?

The 180 mm CPU cooler limit applies to air coolers; a 360 mm radiator mounts in the top panel instead of the CPU socket area, so the two measurements do not conflict.
