Small rectangular mSATA circuit board with gold edge connector and black components, 30 by 50 millimetres

Dogfish Technology

Dogfish Technology mSATA 128GB 3D NAND internal SSD

SKU CH-6B0R-QZRVA

An mSATA internal SSD with 128GB capacity, up to 550MB/s read and 400MB/s write speeds, 3D NAND flash, and a 1,000,000-hour MTBF for notebooks and ultrabooks

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity128GB
  • Memory Components2D NAND
  • InterfaceMini-SATA (mSATA)
  • Up to 550 MB/s sequential read for fast boot and app loading
  • Up to 400 MB/s sequential write for quick file saves

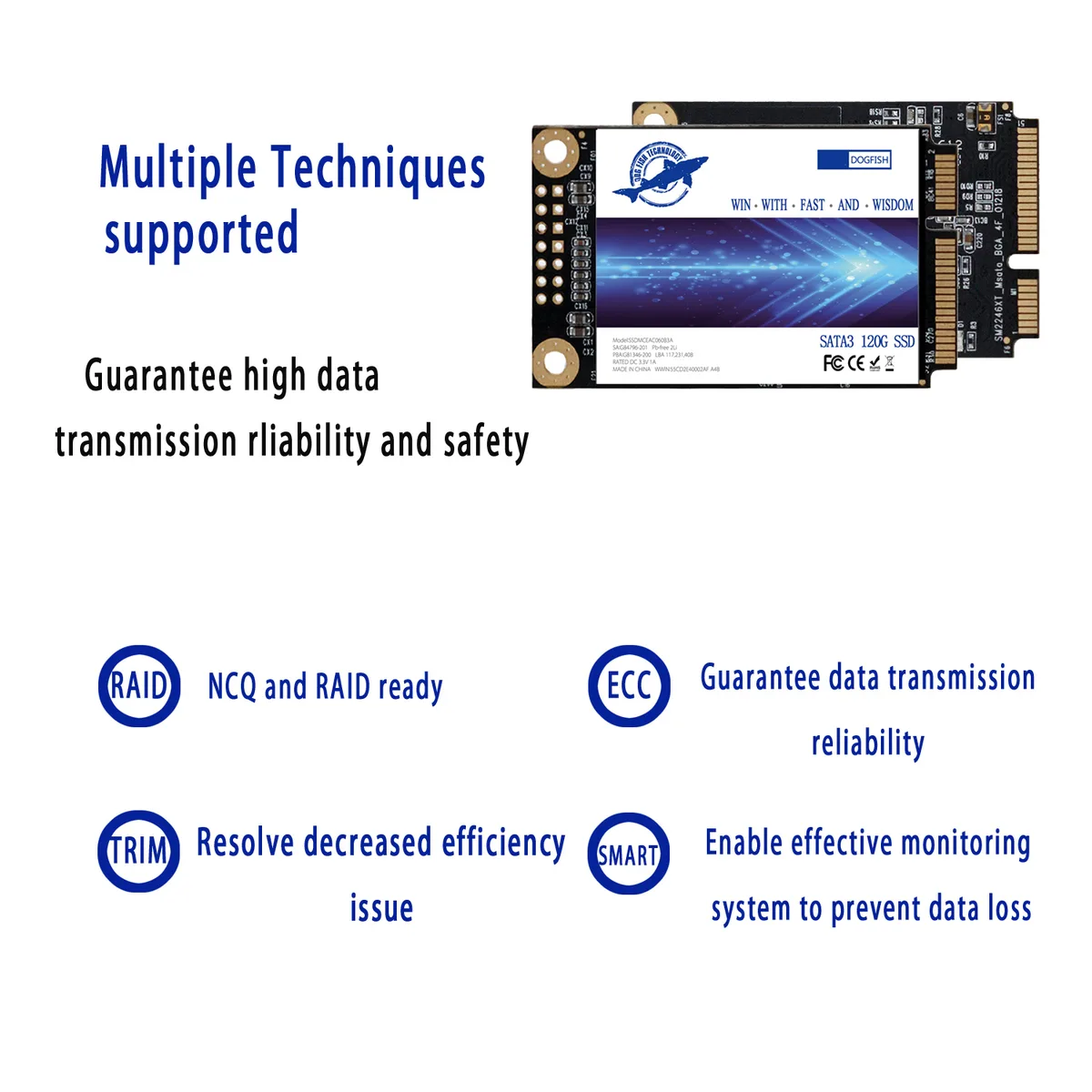

  • 3D NAND flash with ECC and bad-block management protects data integrity
  • DevSleep ultra-low power state extends battery life in notebooks and tablets
  • Compact mSATA form factor, 30 mm × 50.88 mm × 1 mm, weighs 25 g

mSATA 128GB Internal SSD

This Dogfish Technology drive uses the mSATA form factor and a SATA interface to add 128GB of solid-state storage. It fits notebooks, tablets and ultrabooks that have a Mini-SATA slot. The 2D NAND flash memory provides a reliable upgrade for older systems that cannot accept larger 2.5-inch drives.

Suits legacy mSATA slots.

Buyers with a free Mini-SATA connector in a laptop or compact device can install this drive directly. Systems that only offer M.2 keyed slots or standard 2.5-inch bays will need a different form factor. The thin 1mm profile helps it slide into tight spaces where thicker modules cannot fit.

SATA interface with up to 550MB/s sequential read

The SATA III 6Gb/s link delivers maximum sequential read speeds of 550MB/s and write speeds of 400MB/s. These figures determine whether the drive can meet the throughput needs of a specific older platform. Support for DevSleep, TRIM and NCQ helps maintain consistent operation over the 1,000,000-hour MTBF rating.

Highlights

  • Up to 550 MB/s sequential read for fast boot and app loading
  • Up to 400 MB/s sequential write for quick file saves
  • 3D NAND flash with ECC and bad-block management protects data integrity
  • DevSleep ultra-low power state extends battery life in notebooks and tablets
  • Compact mSATA form factor, 30 mm × 50.88 mm × 1 mm, weighs 25 g

Specifications

BrandDogfish
SeriesSSDNOW dogfish 128g
ModelDOGFISH SSD 128GB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity128GB
Memory Components2D NAND
InterfaceMini-SATA (mSATA)
Max Sequential ReadUP TO 500MBps
Max Sequential WriteUP TO 300MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height1mm
Width30mm
Depth50.88mm
Weight25g

Questions about this item

How can I confirm the Dogfish mSATA 128GB SSD is running at its rated 500MB/s read speed after installation?

Use a benchmark tool such as CrystalDiskMark to measure sequential read performance; a healthy drive on a SATA III port should approach 500MB/s.

What comes in the box with the Dogfish mSATA 128GB drive and what extra parts are needed?

The package contains only the 128GB mSATA module; you must supply a compatible mSATA slot and, if required, a mounting screw.

Which capacity version of this Dogfish mSATA line should I choose for a light-use ultrabook?

The 128GB model provides 128GB of 2D NAND storage and fits the 30mm x 50.88mm mSATA slot found in many ultrabooks.
