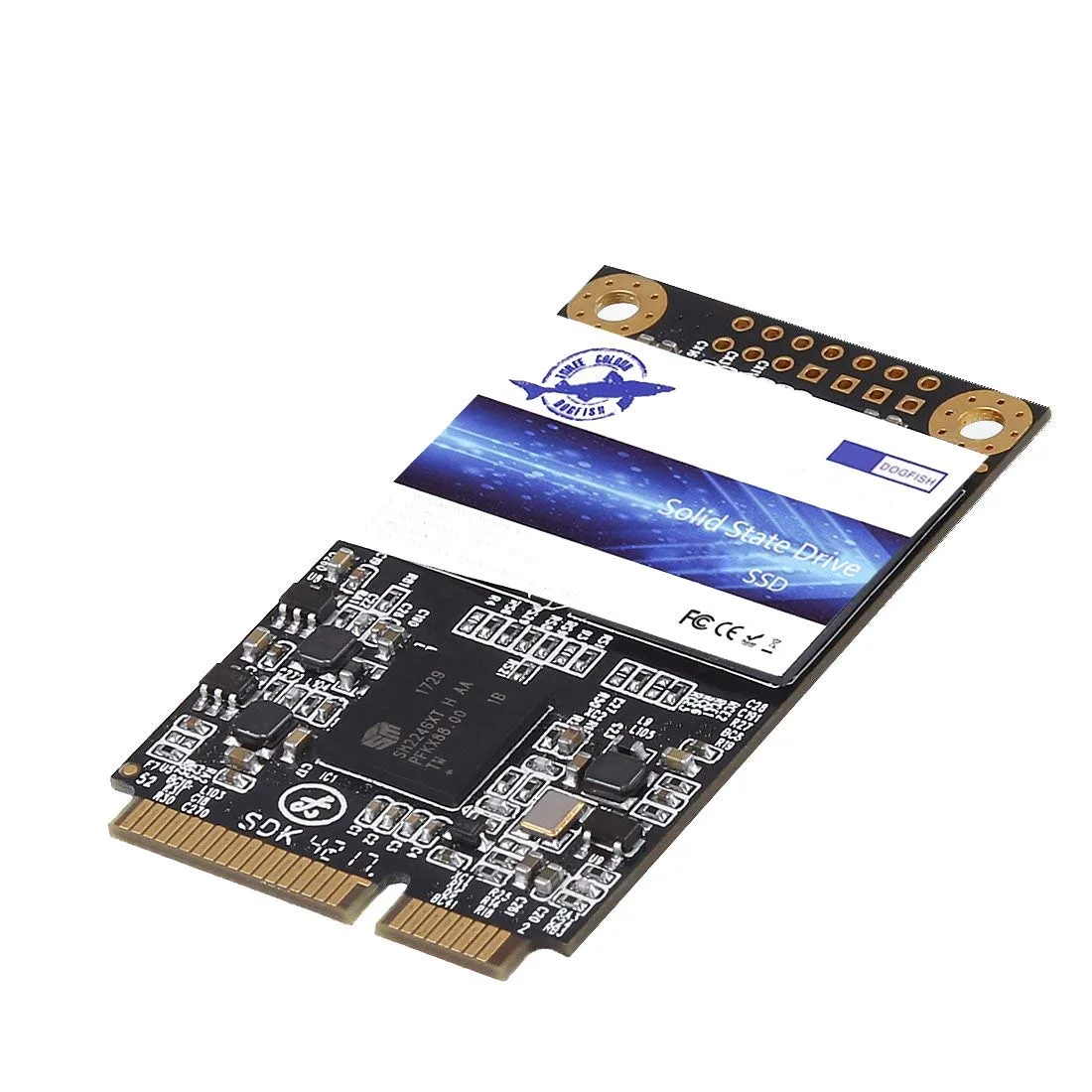

Small rectangular mSATA circuit board with black components and gold edge connector, 30 by 50 millimetres

Dogfish Technology

Dogfish Technology THREE COLOUR mSATA 1TB internal SSD

SKU CH-WSAP-E242R

A 1 TB mSATA solid-state drive with 3D NAND, SATA III interface and sequential speeds up to 580 MB/s read and 530 MB/s write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity1TB
  • Memory Components3D NAND
  • InterfaceSATA III
  • mSATA form factor fits space-constrained laptops and desktops
  • 1 TB capacity stores large media libraries and applications
  • Sequential read up to 580 MB/s speeds up boot and load times
  • Sequential write up to 530 MB/s accelerates file saves and transfers
  • 3D NAND with ECC and bad-block management protects data integrity

Compact mSATA storage for laptops

The Dogfish Technology THREE COLOUR mSATA 1TB internal SSD fits the mSATA form factor and connects through a SATA III interface. It provides one terabyte of capacity using 3D NAND flash and an SMI controller. The drive targets users who need to upgrade older laptops or small-form-factor desktops that only accept mSATA modules.

Built-in data-protection features

On-board ECC, bad-block management and an averaging algorithm correct errors and spread wear across the 3D NAND cells. Support for DevSleep, SMART, TRIM and NCQ commands lets the host system reduce power draw and maintain consistent performance over time. These firmware functions operate without extra software installation.

Limited by the SATA III interface

The SATA III link caps sequential throughput at 6 Gb/s, so the drive reaches up to 580 MBps read and 530 MBps write. It cannot exceed the bandwidth of the SATA bus, unlike PCIe-based alternatives. Operating temperature ranges from 0 °C to 75 °C, and storage temperature spans -45 °C to 85 °C.

Highlights

  • mSATA form factor fits space-constrained laptops and desktops
  • 1 TB capacity stores large media libraries and applications
  • Sequential read up to 580 MB/s speeds up boot and load times
  • Sequential write up to 530 MB/s accelerates file saves and transfers
  • 3D NAND with ECC and bad-block management protects data integrity

Specifications

BrandTHREE COLOUR DOGFISH
SeriesmSATA-1TB
ModelmSATA-1TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity1TB
Memory Components3D NAND
InterfaceSATA III
ControllerSMI
Max Sequential ReadUp to 580 MBps
Max Sequential WriteUp to 530 MBps
MTBF1,000,000 hours
Operating Temperature0°C ~ +75°C
Storage Temperature-45°C ~ +85°C
Operating Humidity0% ~ 95%
Height30mm
Width50mm
Depth1mm
Weight0.05g

Questions about this item

How long is the rated mean time between failures for the 1TB mSATA drive?

The drive carries an MTBF rating of 1,000,000 hours, indicating the expected reliability over its service life.

What sequential write speed will the SATA III interface cap at during heavy workloads?

The SATA III interface limits sustained sequential writes to 530 MBps, which is the drive's maximum rated write throughput.

How much heat does the 1TB mSATA SSD produce when running continuously?

With no moving parts, the drive generates minimal heat and operates within a 0°C to 75°C range during all-day use.
