Dream Machines
Dream Machines RX5090-16NA27 gaming laptop
A 16.0-inch 300 Hz mini-LED gaming laptop with an Intel Core Ultra 9 275HX, RTX 5090 GPU at 175 W TGP, 32 GB DDR5 5600 memory and a 2 TB PCIe Gen 4 SSD.
- Resolution2560 x 1600
- Screen Size16.0"
- TouchscreenNon-Touch Screen
- Wide Screen SupportYes
- Display TypeWQXGA
- PanelMini LED
- 300 Hz Mini-LED display renders motion smoothly at 2560×1600
- 175 W RTX 5090 GPU delivers high frame rates with 24 GB video memory
- 24-core Ultra 9 275HX at 5.4 GHz handles heavy workloads across 8P+16E cores
- External Dream Waterfall liquid cooling cuts temperatures by 15°C for sustained speed
- 32 GB DDR5 5600 MHz dual-channel memory supports multitasking up to 64 GB capacity
Intel Core Ultra 9 275HX and RTX 5090 laptop
The Dream Machines RX5090-16NA27 is a 16.0-inch gaming laptop built around an Intel Core Ultra 9 275HX processor with 24 cores and a 5.4 GHz turbo frequency. It pairs that CPU with a GeForce RTX 5090 Laptop GPU running at 175W TGP and 24 GB of video memory. The system includes 32 GB of DDR5 5600 MHz RAM in two SO-DIMM slots and a 2 TB PCIe Gen 4 x4 SSD.
Competitive gamers and content creators needing

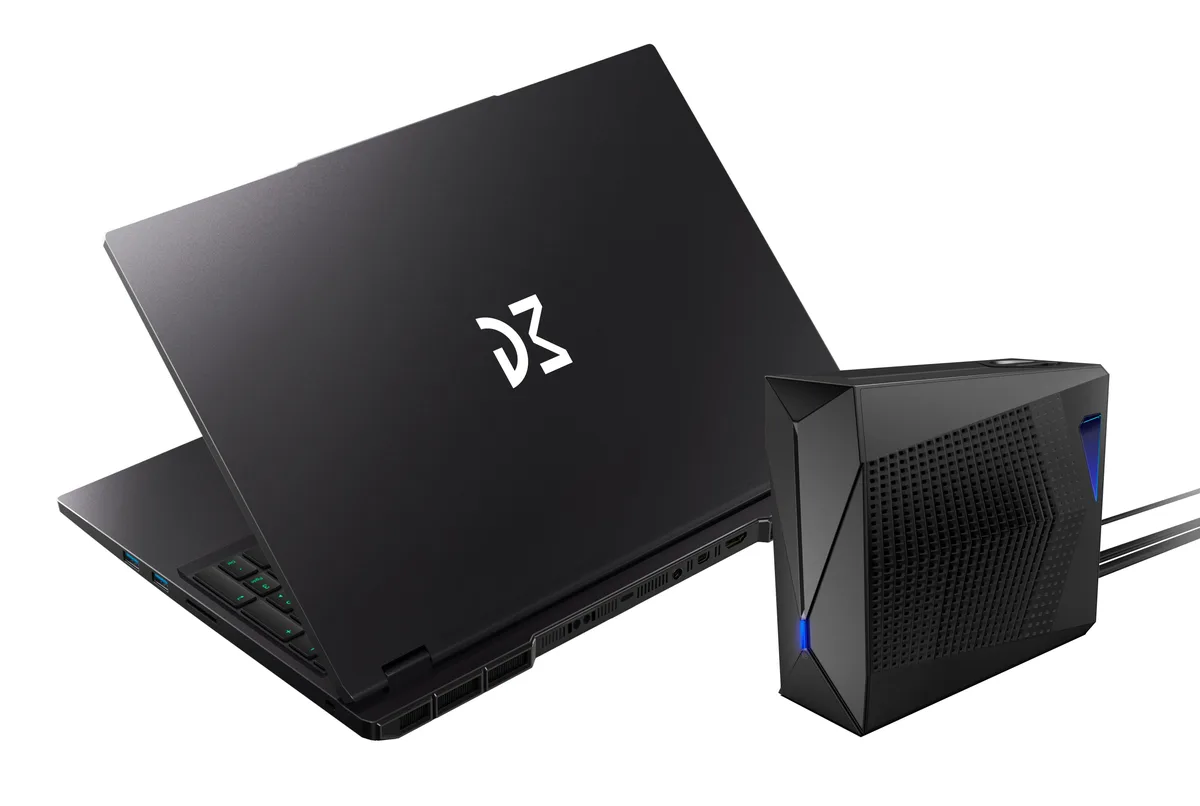

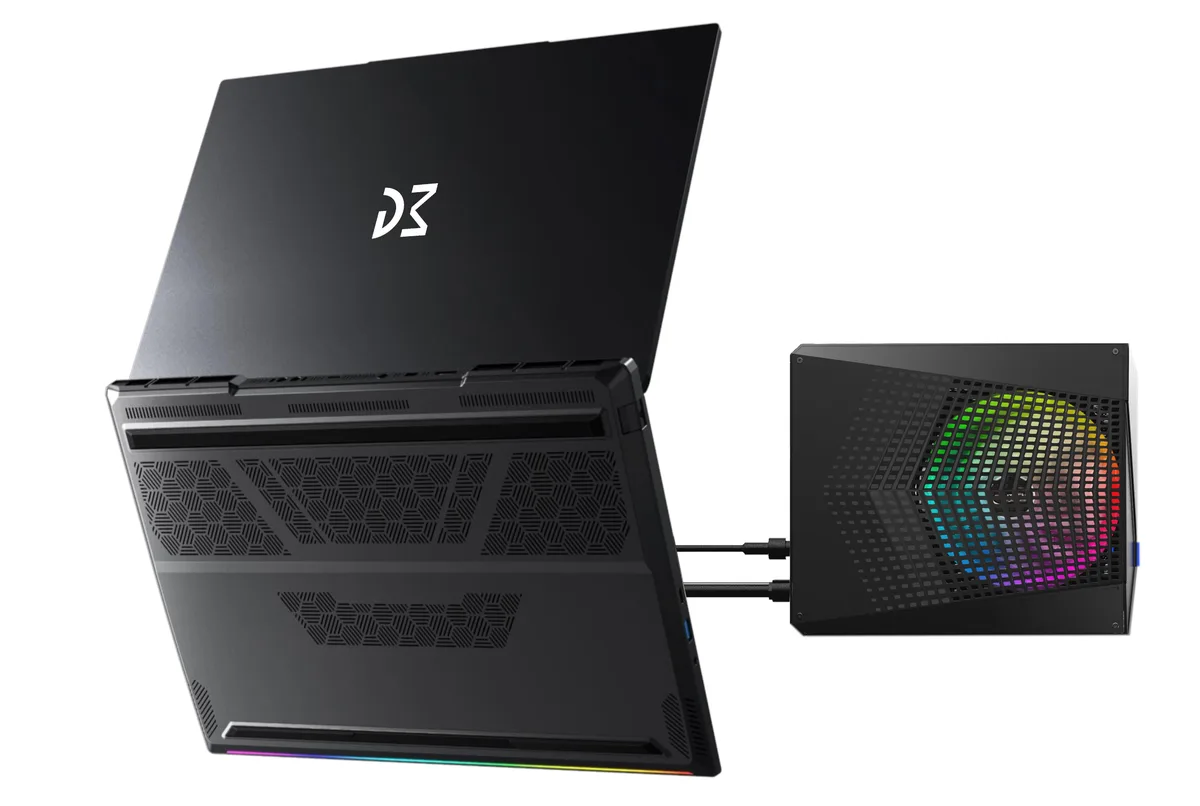

The 300 Hz mini-LED panel with 100% sRGB coverage and HDR1000 support suits esports players and colour-critical work. The external Dream Waterfall liquid cooling box cuts temperatures by up to 15°C to stop throttling during long sessions. Buyers who cannot accommodate an external cooling module or who need a fully self-contained notebook should consider other models.
300 Hz mini-LED WQXGA display with HDR1000
The 16.0-inch screen delivers a 2560 x 1600 resolution at 300 Hz using a mini-LED backlight that reaches HDR1000 brightness and covers 100% sRGB. This panel specification is the primary factor that determines whether the visual experience matches fast-paced gaming and HDR content requirements.
Highlights
- 300 Hz Mini-LED display renders motion smoothly at 2560×1600
- 175 W RTX 5090 GPU delivers high frame rates with 24 GB video memory
- 24-core Ultra 9 275HX at 5.4 GHz handles heavy workloads across 8P+16E cores
- External Dream Waterfall liquid cooling cuts temperatures by 15°C for sustained speed
- 32 GB DDR5 5600 MHz dual-channel memory supports multitasking up to 64 GB capacity
Specifications
| Resolution | 2560 x 1600 |
|---|---|
| Screen Size | 16.0" |
| Touchscreen | Non-Touch Screen |
| Wide Screen Support | Yes |
| Display Type | WQXGA |
| Panel | Mini LED |
| Bezel Design | Thin |
| Refresh Rate | 300 Hz |
| Color Gamut | 100% sRGB |
| Display Features | mini-LED/DCI-P3/HDR1000 |
| GPU/VPU | GeForce RTX 5090 Laptop GPU |
| Graphic Type | Dedicated Card |
| Video Memory | 24 GB |
| Processor Name | Intel Core Ultra 9 275HX |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Number of Cores | 24-core (8P+16E) Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | 5.4 Ghz |
| CPU L3 Cache | 36 MB |
| Optical Drive | No |
| Release Year | 2025 |
| Color | Black |
| Operating System | Windows 11 Hone Trial |
| CPU | Intel Core Ultra 9 275HX |
| Screen | 18” |
| Memory | 32GB DDR5 |
| Storage | 2 TB |
| Graphics Card | NVIDIA® GeForce RTX™ 5080 Laptop GPU |
| Communication | LAN and WLAN |
| AI Features | AI Ready |
| Battery Life | 4cells 80Wh |
| Dimensions (W x D x H) | 402 (W) x 320 (D) x 28 (H) mm |
| Weight | 6 - 6.9 lbs. |
| Memory Speed | DDR5 5600 |
| Memory Spec | 8 GB x 2 |
| Memory Type | 4 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 64 GB |
| SSD | 2TB PCIe |
| HDD | No |
| Storage Spec | 2 x M.2 2280 PCIE Gen5 x 4 |
| WiFi Generation | Wi-Fi 6E |
| LAN | 10/100/1000Mbps |
| WLAN | 802.11ax Wireless LAN |
| Service | Wi-Fi Only |
| Bluetooth | Yes |
| NFC Supported | No |
| Brand | Dream Machines |
| Series | RX5090 |
| Model | RX5090-16NA27 |
| Part Number | RX5090-16XX02 |
| Optical Drive Type | No |
| USB | 3 x USB 3.1 Gen 2 Type-A |
| Thunderbolt | 1 x Thunderbolt 4 |
| Video Port | 1 x HDMI |
| HDMI | 1 x HDMI 2.1 |
| Ethernet | 1 x RJ-45 (2.5Gbps) |
| Other port | 1 x Mini Display Port DP2.1a (80Gbps) |
| Audio Ports | 1x Headphone/Microphone combo jack (3.5mm) |
| Audio | High Definition (HD) Audio |
| Speaker | Stereo Speakers,2W x2,optimized with Nahimic Audio |
| Virtual Reality Ready | Yes |
| Touchpad | Buttonless glass surface multi-touch touchpad |
| Keyboard | Full size with Keyboard light |
| Backlit Keyboard | Backlit |
| Webcam | 1080p FHD |
| Card Reader | 3-in-1 |
| Style | Standard |
| Type | Gaming |
| Usage | Gaming |
| AC Adapter/Charger | 420-watt AC Adapter |
| Battery | 2-cell Lithium Polymer |
| Package Content | Laptop/AC-Adapter/Liquid Cooling Box |
Questions about this item
Will the 32 GB of DDR5 memory be enough for modern games, or should I plan an upgrade?
The laptop ships with 32 GB of DDR5 5600 MHz in two SO-DIMM slots and supports a maximum of 64 GB, so you can add another 32 GB later if workloads demand it.
Does the external Dream Waterfall liquid cooler need a separate power brick or any special port on the laptop?
The cooling box houses its own radiator, fan, pump and reservoir in a single tower and connects through magnetic self-sealing connectors, so no extra cables or laptop ports are required for the loop.
What does the 175 W TGP figure mean for actual GPU performance?
It indicates the RTX 5090 Laptop GPU is allowed to draw up to 175 W, which is the highest power envelope offered for this chip and enables sustained boost clocks in heavy 3D loads.
