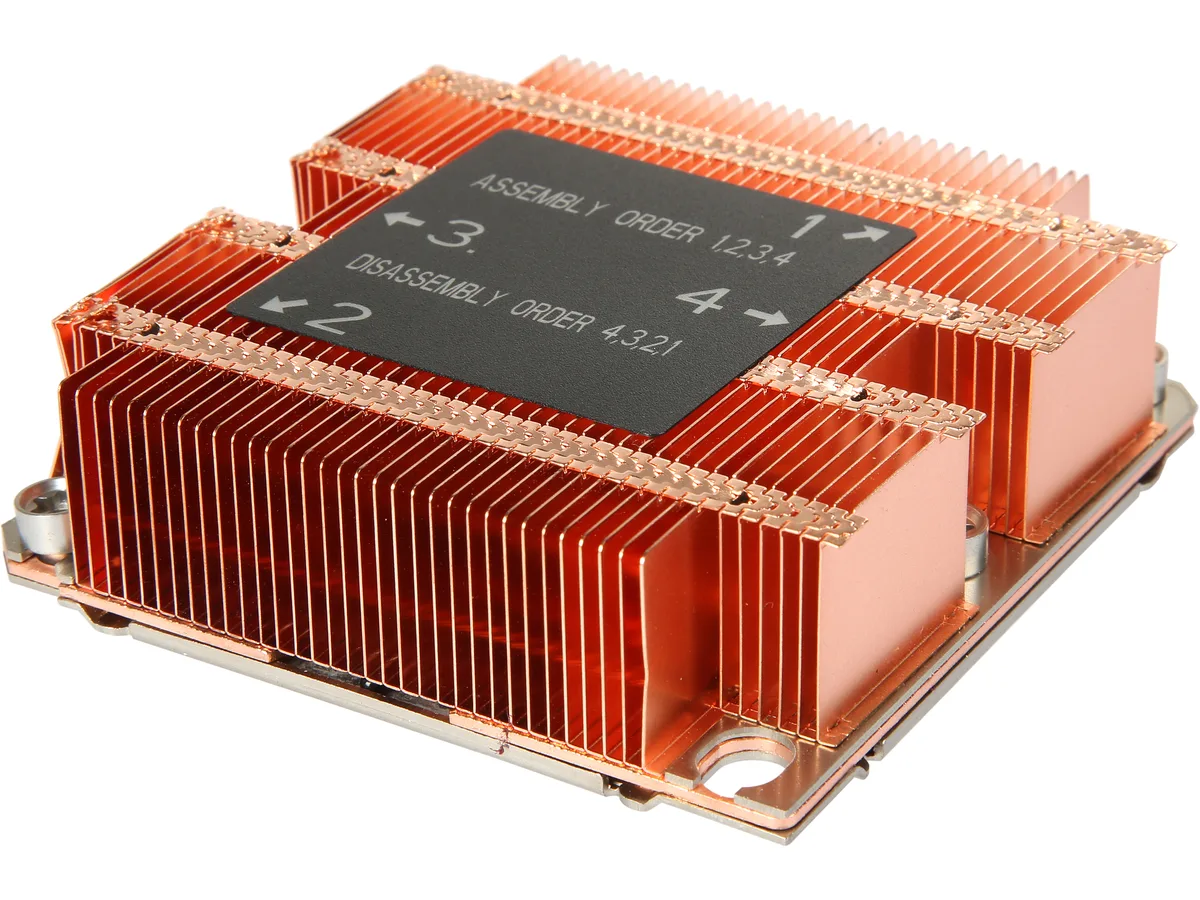

Square copper stacked-fin heatsink with vapor chamber base, 90 mm by 90 mm by 27 mm, 420 g

Dynatron

Dynatron B6 CPU cooler 27 mm 420 g

SKU CH-6YH0-BNWWZ MPN B6

Copper heatsink with vapor chamber base fits 1U servers and includes pre-applied Shin-Etsu 7762 thermal grease

  • TypeHeatsinks only
  • Heatsink MaterialCopper1100 Stacked Fin Heatsink with Vapor Chamber Base
  • Max CPU Cooler Height27 mm
  • Heatsink Dimensions90.00 x 90.00 x 27.00 mm
  • Weight420g
  • FeaturesSolution: 1U Server and Up Thermal Grease : Shin-Etsu 7762 P
  • Low-profile 27 mm height fits tight 1U server chassis
  • Copper1100 stacked-fin design with vapor chamber base spreads heat efficiently
  • Pre-applied Shin-Etsu 7762 thermal grease saves installation time
  • Light 420 g mass reduces mechanical stress on socket
  • Engineered for Xeon Platinum and Gold processors on FCLGA3647 square ILM

1U Copper Heatsink with Vapor Chamber

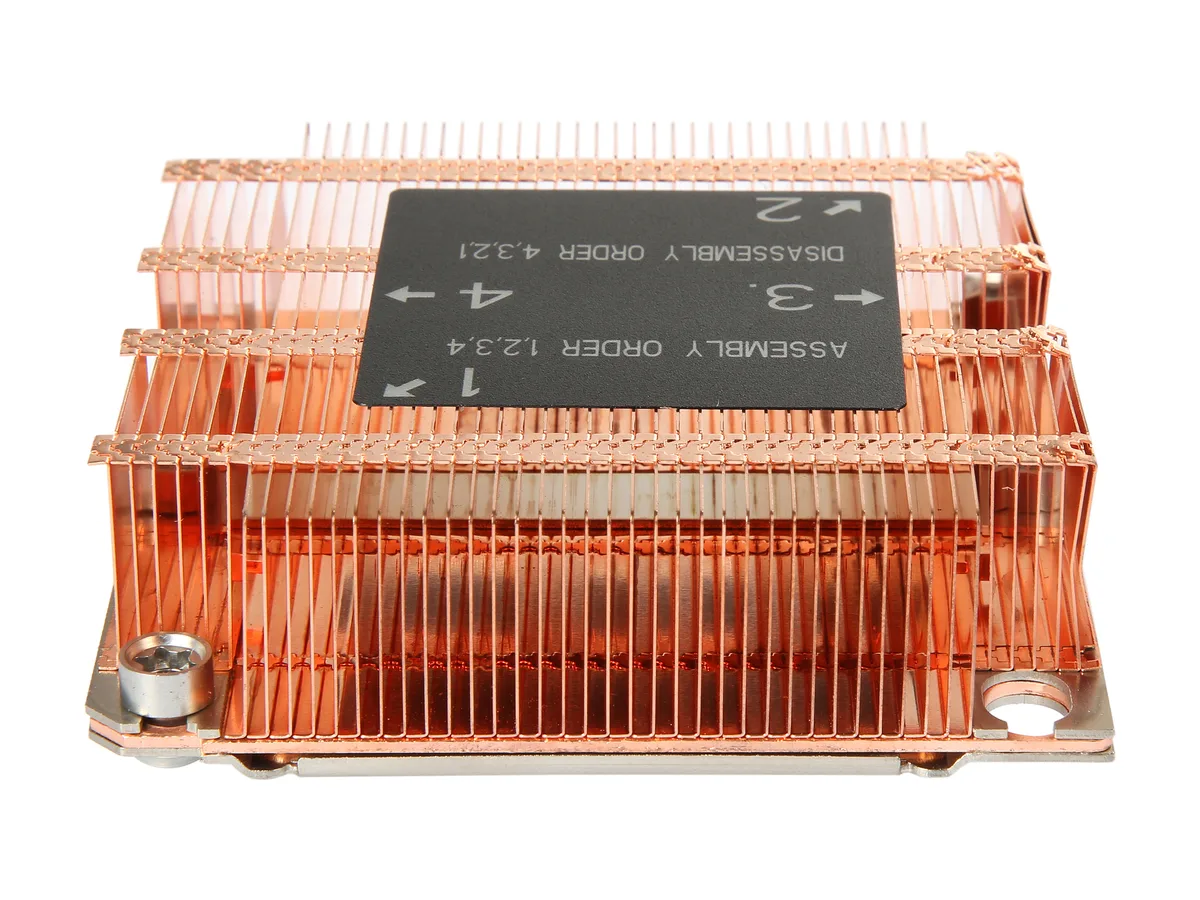

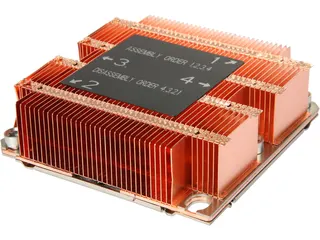

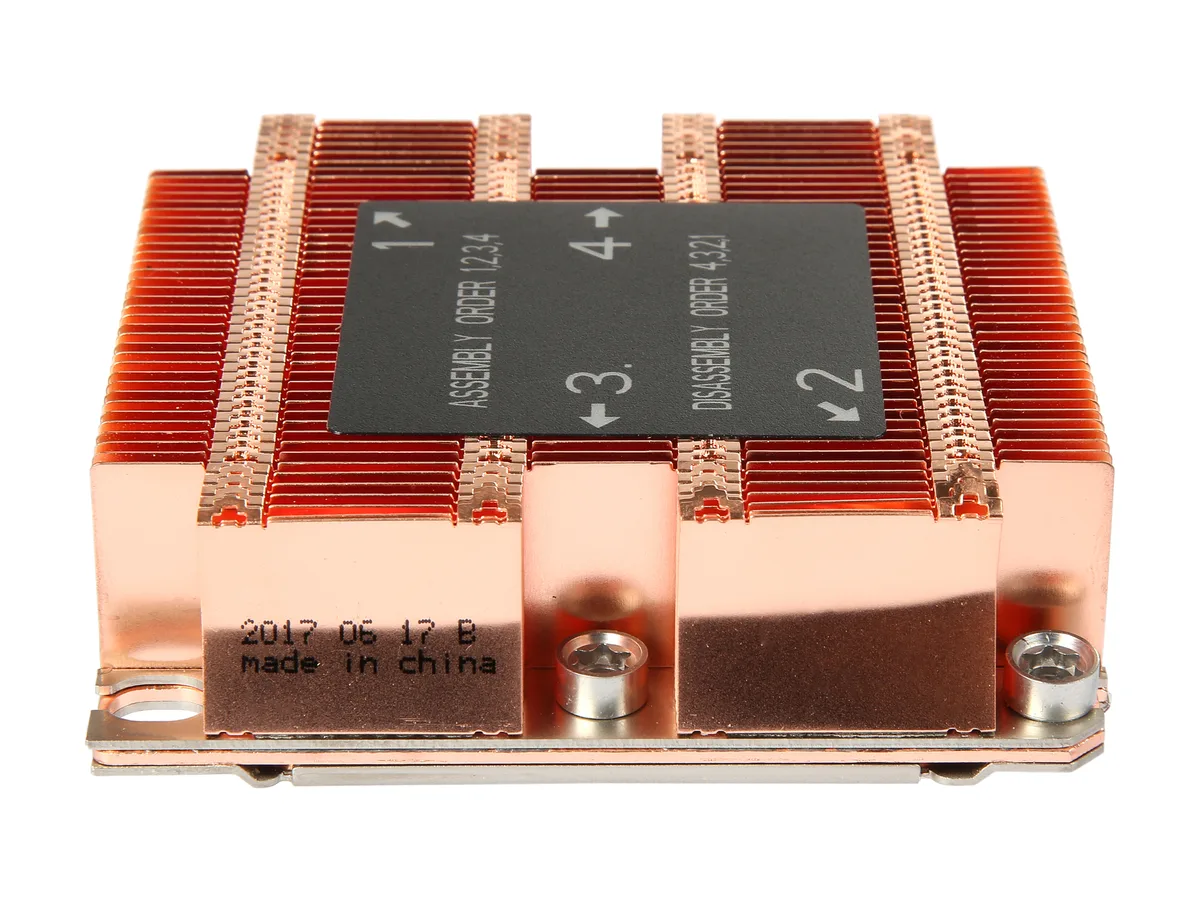

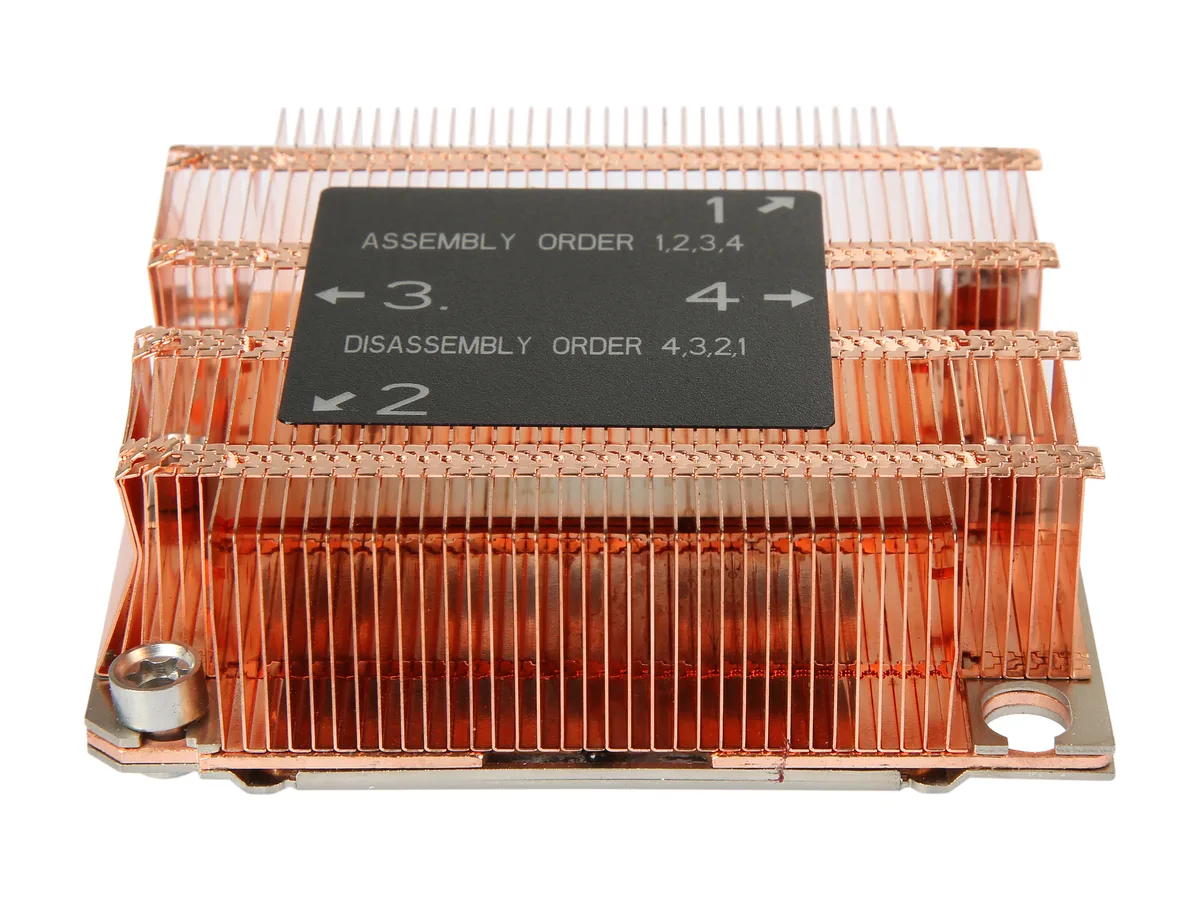

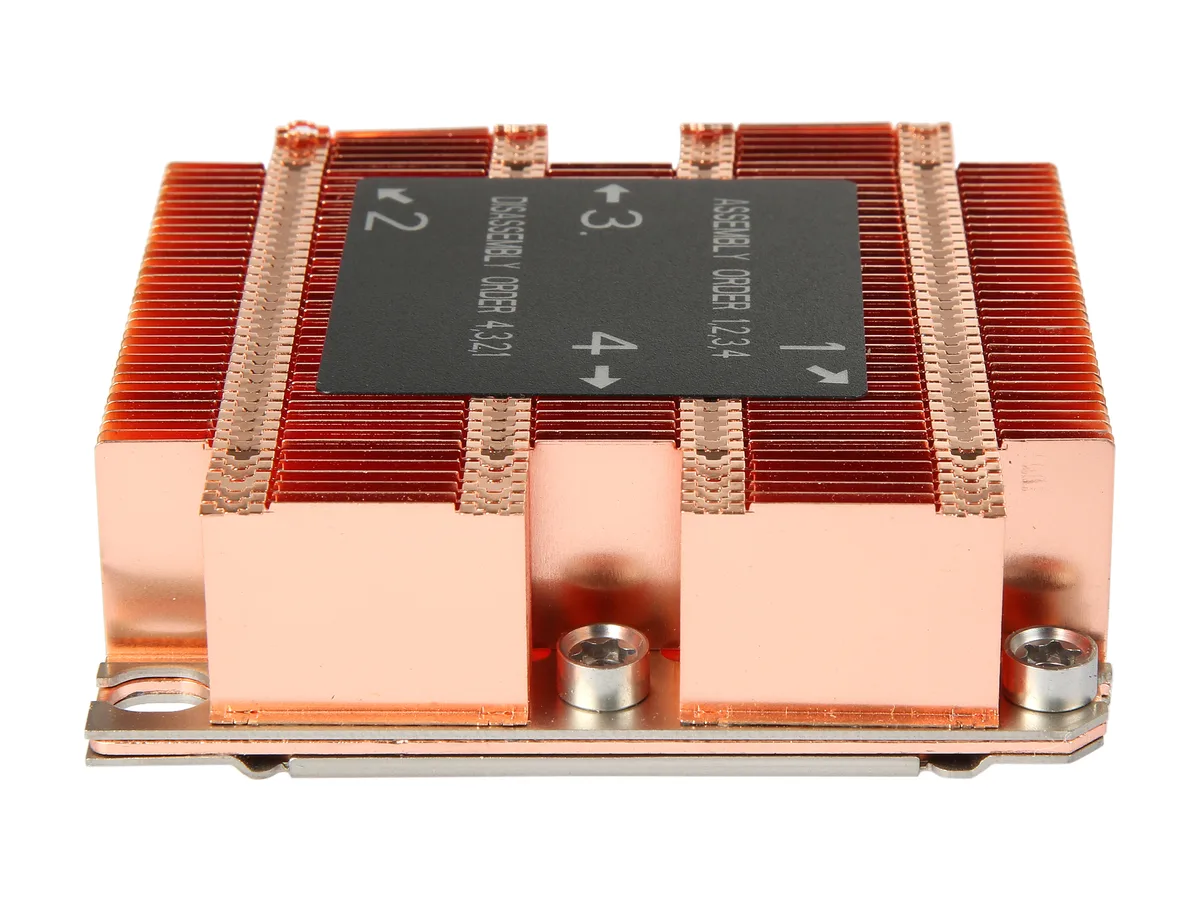

The Dynatron B6 is a 27 mm copper stacked-fin heatsink with an integrated vapor-chamber base. It weighs 420 g and measures 90.00 x 90.00 x 27.00 mm. The unit is built for Intel Xeon Platinum and Gold processors in a Socket FCLGA3647 square ILM. It ships with Shin-Etsu 7762 thermal grease pre-printed on the base.

Suited for 1U Server Builds

This cooler fits 1U server chassis and supports CPU power up to the rated limit. It is not intended for desktop sockets or tower cases that require taller coolers. Builders needing active airflow or larger radiator surfaces should consider alternative solutions. The passive design relies entirely on system airflow.

Pre-printed Shin-Etsu 7762 Grease

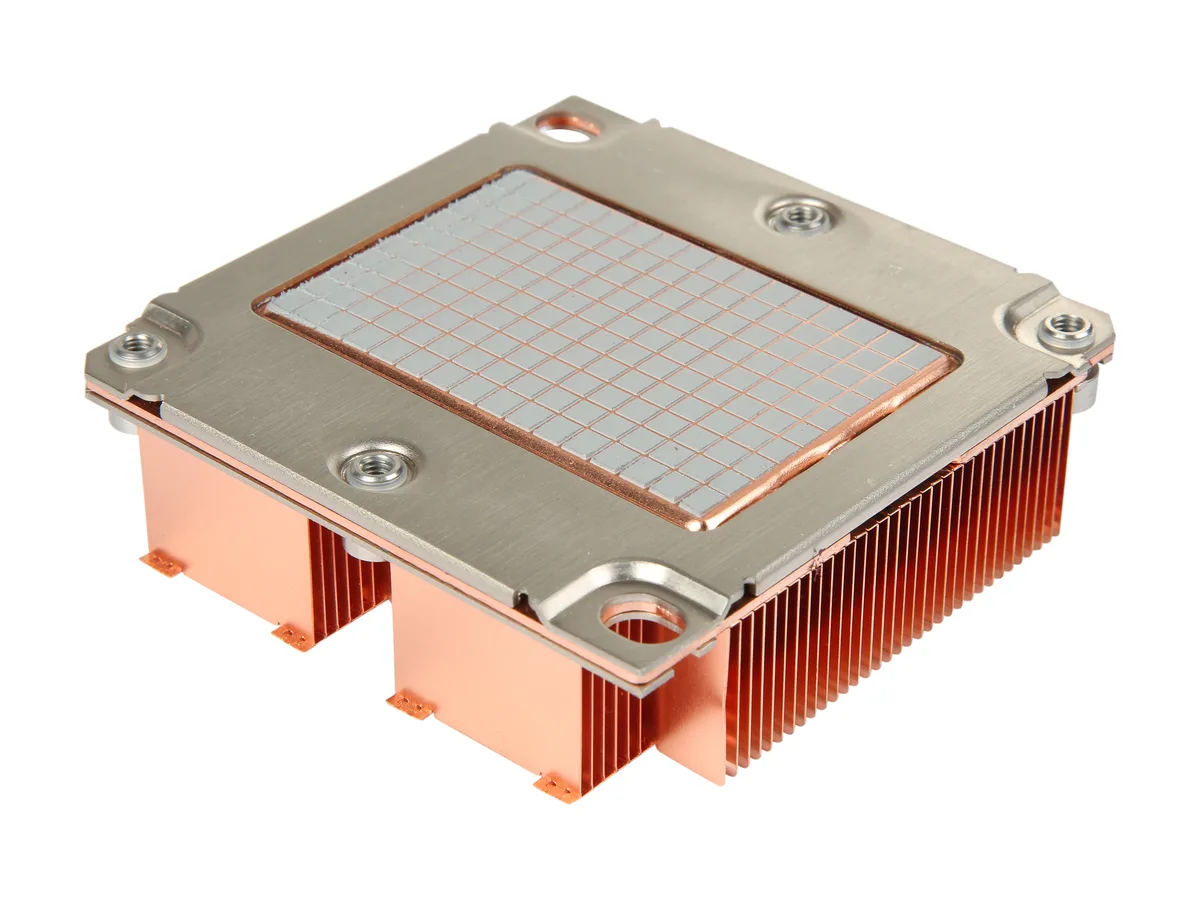

The factory-applied Shin-Etsu 7762 thermal compound eliminates the need for separate paste application. This reduces installation time and ensures consistent coverage across the vapor-chamber base. No additional mounting hardware or software utilities are included in the package.

Highlights

  • Low-profile 27 mm height fits tight 1U server chassis
  • Copper1100 stacked-fin design with vapor chamber base spreads heat efficiently
  • Pre-applied Shin-Etsu 7762 thermal grease saves installation time
  • Light 420 g mass reduces mechanical stress on socket
  • Engineered for Xeon Platinum and Gold processors on FCLGA3647 square ILM

Specifications

BrandDynatron
ModelB6
TypeHeatsinks only
Heatsink MaterialCopper1100 Stacked Fin Heatsink with Vapor Chamber Base
Max CPU Cooler Height27 mm
Heatsink Dimensions90.00 x 90.00 x 27.00 mm
Weight420g
FeaturesSolution: 1U Server and Up
Thermal Grease : Shin-Etsu 7762 Pre-printed
Shipping weight0.49 kg
Package size132 × 112 × 61 mm

Questions about this item

Does this cooler require a Square ILM mounting bracket on the motherboard?

Yes, the B6 is designed for Socket FCLGA3647 with a Square ILM, so the motherboard must already have that retention mechanism installed.

Will the 27 mm height clear standard 1U server chassis rails and airflow ducts?

The cooler stands 27 mm tall and is built for 1U server and up, so it fits within the typical 1U vertical clearance envelope.

How can I verify the Shin-Etsu 7762 thermal interface is making proper contact after installation?

Check that the pre-printed Shin-Etsu 7762 layer has spread evenly across the copper vapor-chamber base and that CPU temperatures remain stable under load.
