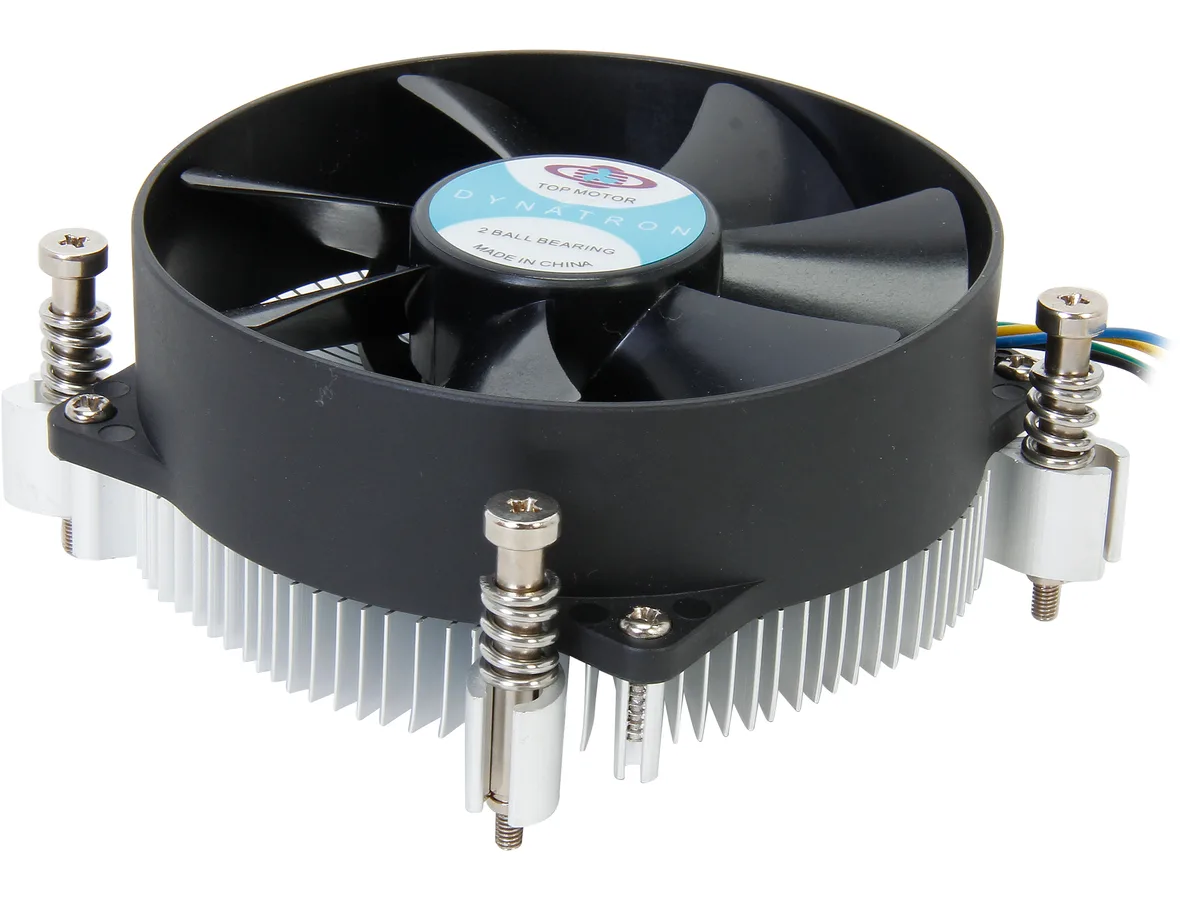

Silver aluminium heatsink with horizontal 92mm fan, low-profile 41mm height

Dynatron

Dynatron K5 92mm 2-Ball CPU Cooler Intel LGA 1156/1155/1151 41mm 77W

SKU CH-NYH7-D19QV MPN K5

A 41 mm low-profile aluminium cooler with a 92 mm dual-ball-bearing fan and pre-applied TIG830SP compound, handling Intel LGA 1156, 1155 and 1151 CPUs up to 77 W

  • TypeFan & Heatsinks
  • Fan Size92mm
  • CPU Socket CompatibilityIntel LGA 1156 / 1155 / 1151
  • Bearing Type2 Ball
  • RPM1000 RPM (0-20%) 1800 RPM (50%) 2500 RPM (100%)
  • Air Flow14.98 CFM (0-20%) 33.8 CFM (50%) 46.96 CFM (100%)
  • Low-profile 41 mm height fits tight cases
  • 2-ball bearing fan runs at 1000 RPM for quiet idle
  • PWM control scales airflow to 46.96 CFM at full speed
  • Pre-applied TIG830SP thermal compound speeds installation
  • Supports Intel LGA 1156 1155 1151 sockets up to 77 W

Low-profile 41 mm cooler for legacy Intel sockets

The Dynatron K5 is a 92 mm aluminium tower rated for CPUs up to 77 watts on LGA 1156, 1155 and 1151 platforms. Its 41 mm height suits slim chassis where standard coolers will not fit. A captive screw backplate and pre-applied TIG830SP compound simplify installation. Builders targeting newer sockets or higher TDPs should look elsewhere.

Three-speed 2-ball bearing fan curve

At 1000 RPM the fan moves 14.98 CFM at 14.7 dBA, rising to 33.8 CFM and 22.7 dBA at 1800 RPM, and 46.96 CFM at 29.8 dBA when driven to 2500 RPM. The 4-pin connector enables PWM control across the full range. Airflow above 46.96 CFM is not available from this unit.

Horizontal aluminium fin stack limits

The horizontal fin orientation and 41 mm profile restrict heat dissipation to the rated 77 watts. No heat pipes or vapour chambers are present to extend thermal capacity. The 92 x 25 mm fan frame leaves no room for a second fan. Systems exceeding this thermal envelope require a larger cooler.

Highlights

  • Low-profile 41 mm height fits tight cases
  • 2-ball bearing fan runs at 1000 RPM for quiet idle
  • PWM control scales airflow to 46.96 CFM at full speed
  • Pre-applied TIG830SP thermal compound speeds installation
  • Supports Intel LGA 1156 1155 1151 sockets up to 77 W

Specifications

BrandDynatron
ModelK5
TypeFan & Heatsinks
Fan Size92mm
CPU Socket CompatibilityIntel LGA 1156 / 1155 / 1151
Bearing Type2 Ball
RPM1000 RPM (0-20%)
1800 RPM (50%)
2500 RPM (100%)
Air Flow14.98 CFM (0-20%)
33.8 CFM (50%)
46.96 CFM (100%)
Noise Level14.7 dBA (0-20%)
22.7 dBA (50%)
29.8 dBA (100%)
Power Connector4 Pin
Heatsink MaterialAluminum
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height41 mm
Fan Dimensions92 x 25.0 mm
Weight200g
FeaturesSupport CPU Power up to 77 Watts
Screw fastener Captive Mounting Type
Interference-free mounting backplate is included
Pre-print thermal compound TIG830SP
RoHS Compliance
Shipping weight0.27 kg
Package size112 × 104 × 74 mm

Questions about this item

Will the 41 mm tall K5 fit inside my existing slim chassis that uses an LGA 1151 motherboard?

Yes, the cooler stands 41 mm high and supports LGA 1151, 1155 and 1156 sockets, so it clears most low-profile cases that accept that mounting pattern.

How can I confirm the 2-ball bearing fan is spinning at the correct 2500 RPM under full load?

Connect the 4-pin PWM header to the motherboard, then monitor fan speed in BIOS or a hardware utility; at 100 % duty cycle it should report 2500 RPM and 46.96 CFM airflow.

Does the box include the interference-free backplate and pre-applied TIG830SP thermal compound, or must I buy them separately?

Both are supplied — the captive screw backplate and pre-printed TIG830SP compound come in the package, so no extra purchase is needed for installation.
