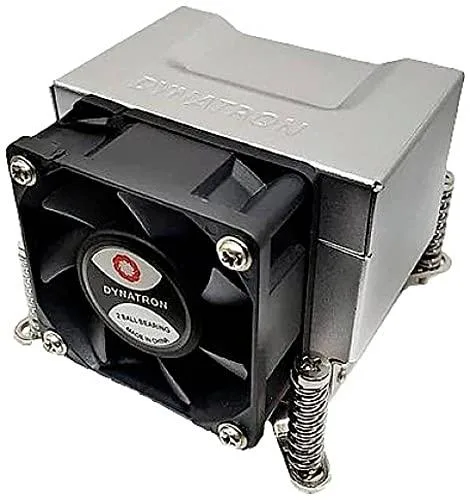

Compact silver aluminium fin stack with copper base and embedded heatpipes, small black PWM fan on top

Dynatron

Dynatron Q5 CPU cooler LGA 1700 125W TDP

SKU CH-R4K3-86H3W MPN Q5

Cools Intel LGA 1700 CPUs up to 125W with a copper-base heatsink, heatpipes, 60 mm PWM fan and pre-applied Shin-Etsu 7762 grease in a low-profile 3.6 x 3.3 x 2.6 in design

  • TypeFan & Heatsinks
  • Supports Intel Alder Lake-S Socket LGA 1700 processors
  • Copper base with aluminium fins and embedded heatpipes for efficient heat transfer
  • Handles up to 125W TDP for high-performance cooling
  • Pre-applied Shin-Etsu 7762 thermal grease simplifies installation
  • Compact 3.6" x 3.3" x 2.6" design fits 2U servers and up

LGA 1700 125 W air cooler

The Dynatron Q5 is a compact active cooler built for Intel Alder Lake-S processors on socket LGA 1700. A copper base transfers heat into aluminium fins with embedded heatpipes while a 60 mm PWM fan manages airflow. Pre-applied Shin-Etsu 7762 thermal grease simplifies installation for system builders and integrators.

Upgrade from stock coolers

This cooler replaces basic Intel boxed coolers when thermal headroom is required for sustained workloads. The jump is worth it for 2U server deployments or workstations where the stock solution cannot maintain temperatures under continuous 125 W loads. Builders needing higher dissipation or larger form factors should look elsewhere.

125 W capacity in a 2U profile

The Q5 comfortably handles processors rated up to 125 W TDP within the 3.6 x 3.3 x 2.6 inch footprint suited to 2U and taller chassis. PWM control adjusts fan speed to match thermal demand. It runs out of headroom with overclocked CPUs or multi-core loads that exceed the rated dissipation limit.

Highlights

  • Supports Intel Alder Lake-S Socket LGA 1700 processors
  • Copper base with aluminium fins and embedded heatpipes for efficient heat transfer
  • Handles up to 125W TDP for high-performance cooling
  • Pre-applied Shin-Etsu 7762 thermal grease simplifies installation
  • Compact 3.6" x 3.3" x 2.6" design fits 2U servers and up

Specifications

TypeFan & Heatsinks
Shipping weight0.59 kg
Package size114 × 102 × 89 mm

Questions about this item

What are the exact dimensions of the Q5 cooler in inches?

The cooler measures 3.6 inches wide by 3.3 inches deep by 2.6 inches tall, so verify your chassis clearance before ordering.

How do I mount the Q5 on an LGA 1700 socket?

Align the copper base with the CPU, secure the supplied retention brackets using the LGA 1700 mounting holes, then connect the 4-pin PWM fan header to the motherboard.

Does the pre-applied Shin-Etsu 7762 grease need replacing later?

The factory-applied Shin-Etsu 7762 paste is rated for long-term use; replace it only if you remove the cooler or after several years of continuous operation.
