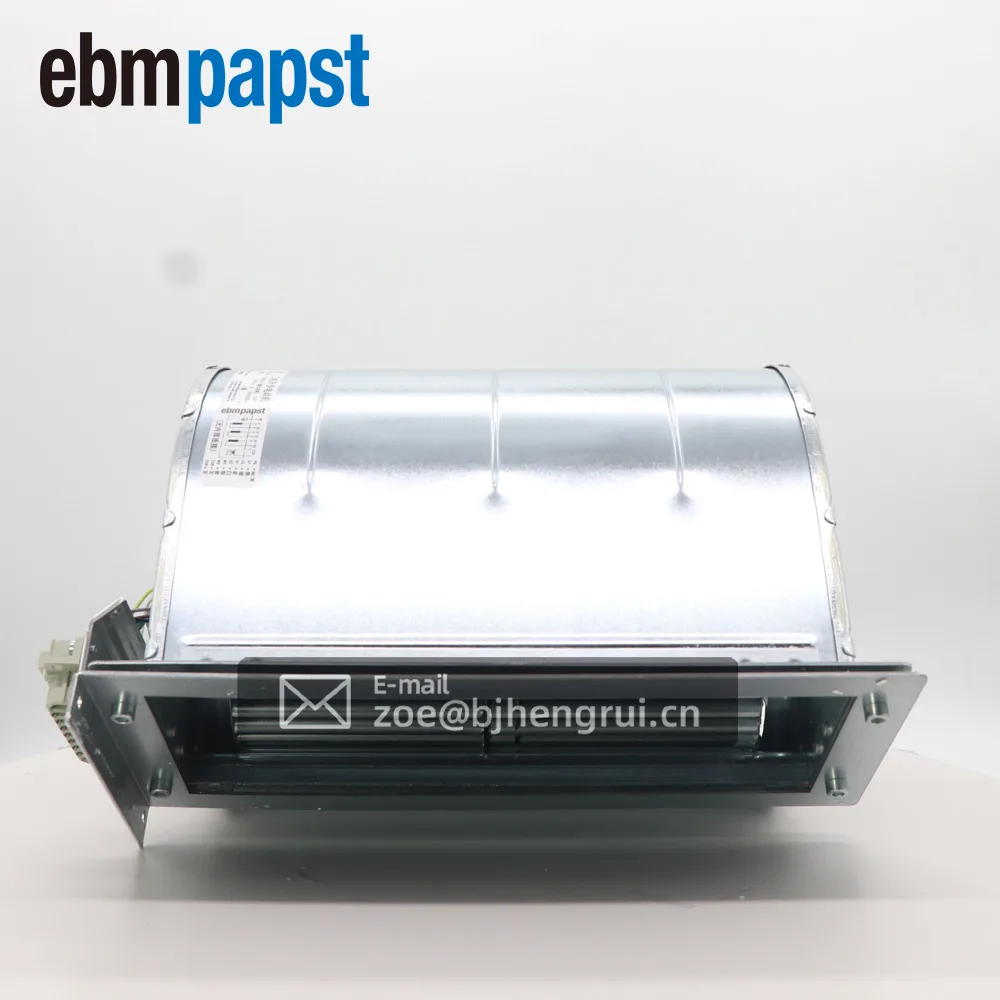

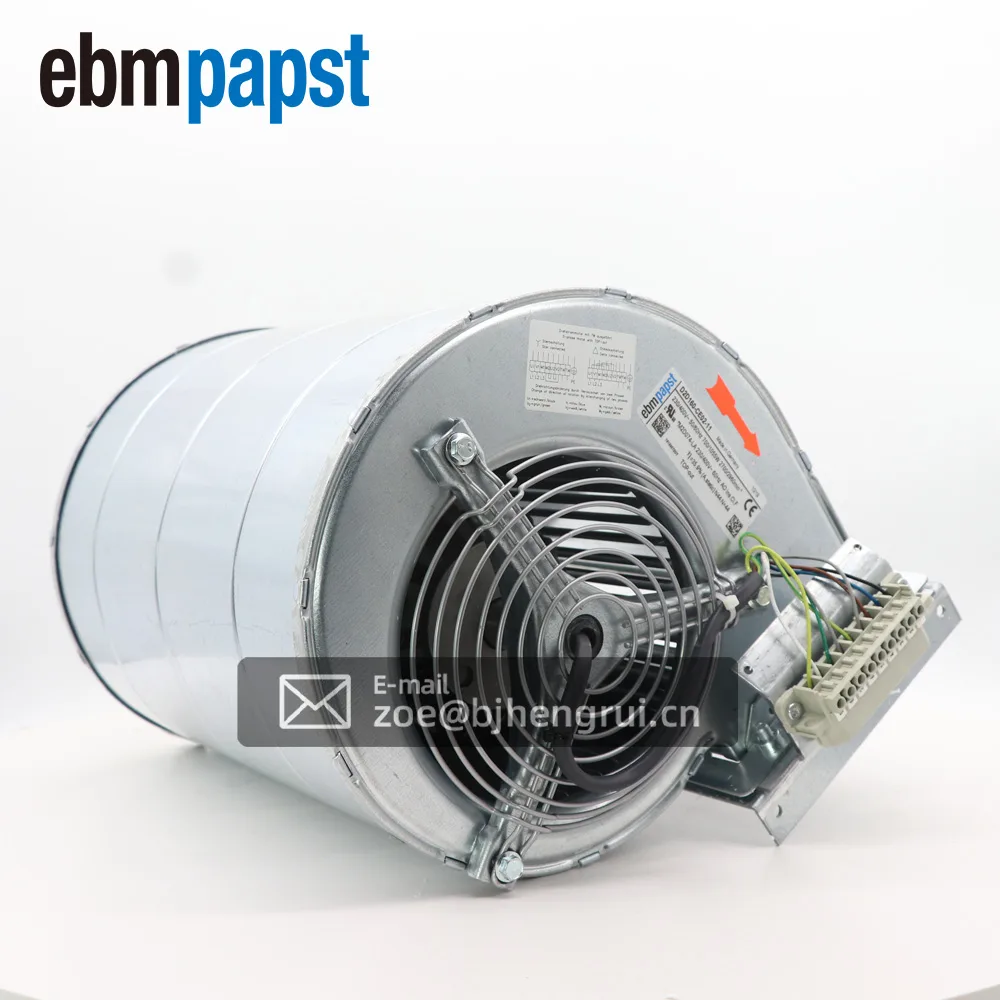

Industrial AC centrifugal fan, grey coated grille, black rotor, metal housing, 160 mm size, 11.1 kg

Ebm-Papst

Ebm-Papst D2D160-CE02-11 230/400V 2700RPM 700/1055W industrial cooling fan

SKU CH-ZP3G-N4JS5 MPN D2D160-CE02-11

Three-phase AC centrifugal fan runs at 2700 RPM on 230/400 V, delivering 700 W with IP00 protection and thermal overload safeguard

  • TypeAC centrifugal fan
  • Motor RPM2700/2960 RPM
  • Motor TypeM2D074-LA
  • Voltage230VAC/400VAC
  • Hz50Hz/60Hz
  • Phase3~
  • Delivers 1055 W peak cooling power at 480 V 60 Hz
  • Spins at 2960 RPM for high-pressure airflow in tight spaces
  • Withstands 90 °C ambient at 50 Hz for harsh environments
  • Thermal overload protector cuts power before motor damage occurs
  • Galvanised steel housing and IP00 rating suit open-frame industrial builds

Industrial AC Centrifugal Fan

The Ebm-Papst D2D160-CE02-11 is a three-phase AC centrifugal blower built for industrial cooling and inverter applications. It operates at 230 VAC or 400 VAC across 50 Hz and 60 Hz supplies, delivering speeds of 2700 min-1 and 2960 min-1 with power inputs of 700 W and 1055 W respectively. The unit weighs 11.1 kg and features a 160 mm sheet-steel impeller housed in hot-galvanised steel with a grey plastic-coated guard grille.

Suited For Three-Phase Industrial Systems

This fan suits installations that can provide three-phase power at the listed voltages and frequencies, and that require the stated airflow performance at up to 560 Pa back pressure. It is not for single-phase supplies, for DC-only systems, or for applications needing a different voltage, speed curve, or mounting footprint than the 160 mm metal construction provides. Buyers without three-phase infrastructure should look at alternative products.

Check Voltage, Phase And Clearance Before Ordering

Verify that your supply matches 230/400 VAC three-phase at 50/60 Hz and that the starter can handle starting currents up to 9.6 A. Confirm the 160 mm size fits the duct or enclosure and that the IP 00 rating is acceptable for the environment, as the open rotor has no condensate discharge holes. Ensure the ambient temperature range of -40 °C to +90 °C covers the operating conditions and that protective earth can be connected for protection class I.

Highlights

  • Delivers 1055 W peak cooling power at 480 V 60 Hz
  • Spins at 2960 RPM for high-pressure airflow in tight spaces
  • Withstands 90 °C ambient at 50 Hz for harsh environments
  • Thermal overload protector cuts power before motor damage occurs
  • Galvanised steel housing and IP00 rating suit open-frame industrial builds

Specifications

TypeAC centrifugal fan
Brandebmpapst
ModelD2D160-CE02-11
Motor RPM2700/2960 RPM
Motor TypeM2D074-LA
Voltage230VAC/400VAC
Hz50Hz/60Hz
Phase3~
MaterialMetal

Questions about this item

What three-phase supply do I need for the 230 V or 400 V windings?

The motor runs on 3-phase 230 VAC at 50 Hz drawing 1.9 A, 230 VAC at 60 Hz drawing 2.82 A, 440 VAC at 50 Hz drawing 1.1 A, or 480 VAC at 60 Hz drawing 1.63 A.

Will the 160 mm impeller fit the same mounting holes as my old D2D160 unit?

The housing is sheet steel hot-galvanised with the same 160 mm size and any mounting position, so existing bolt patterns for this frame should align.

How do I confirm the thermal overload protector is functioning after wiring?

The TOP leads are brought out to the plug; measure continuity across them — closed below 80 °C motor temperature, open above — and verify the fan runs at 2700 min⁻¹ on 230 V 50 Hz.
