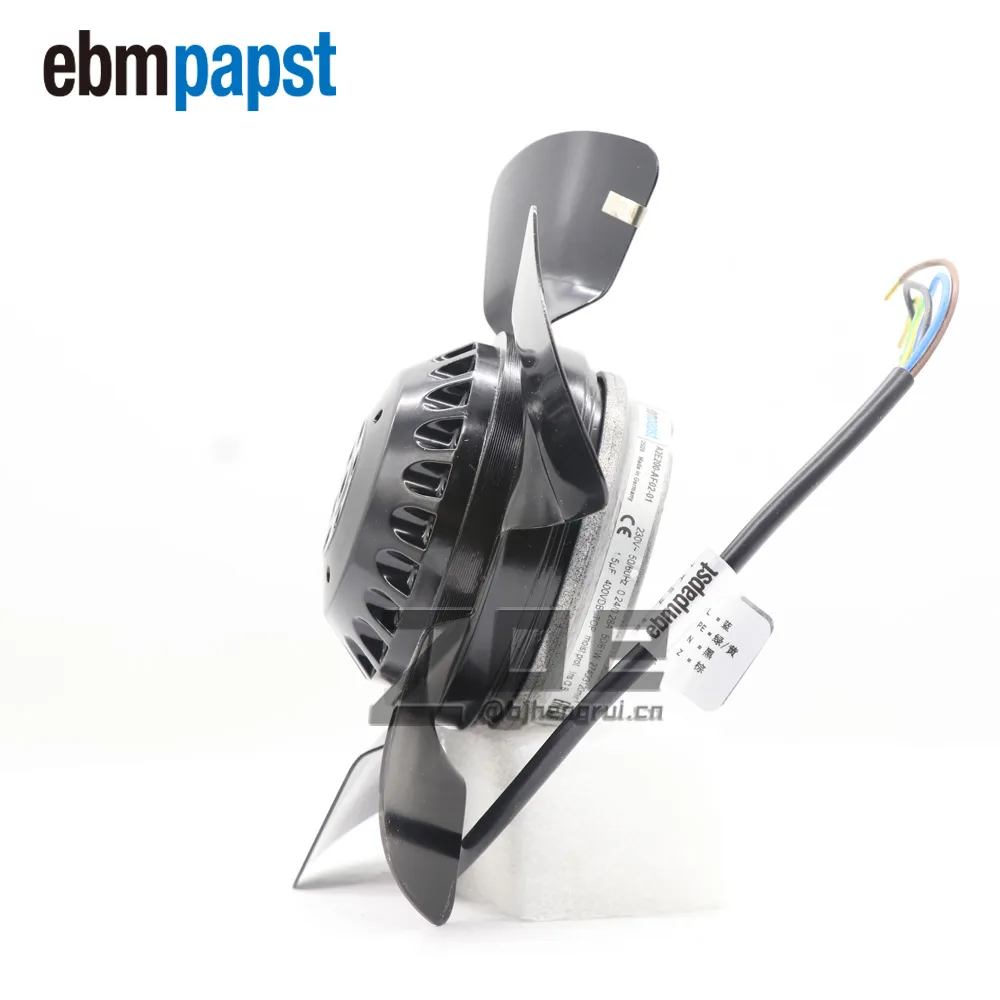

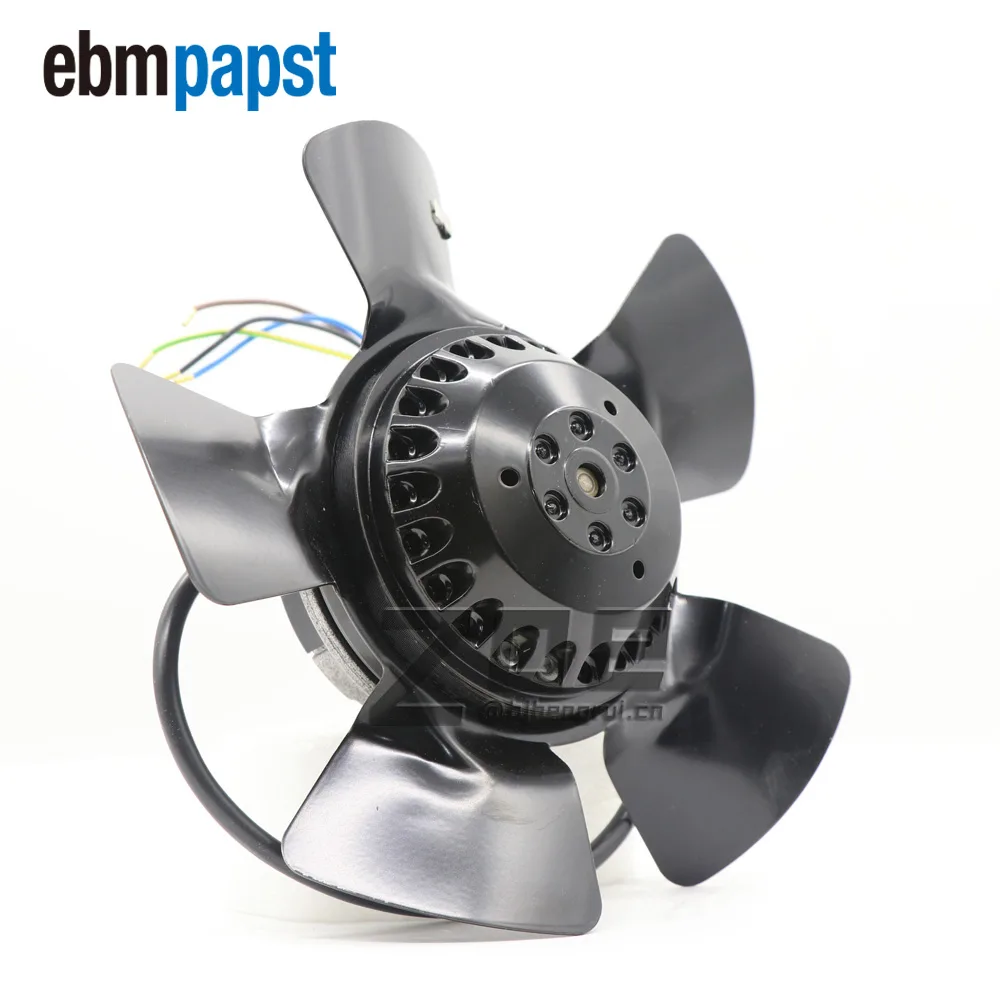

Black steel axial fan with flange mount, 195 mm diameter, 200 mm deep, 450 mm cable

Ebm-Papst

Ebm-Papst DV4650-470 230V 61W 436CFM flange-mount industrial cooling fan

SKU CH-M2Y0-B3JS0 MPN DV4650-470

230 V AC axial fan with flange mount delivers 436 CFM airflow at 61 W power draw

  • Air Flow436 CFM
  • Voltage230V
  • Hz50Hz/60Hz
  • Amps0.24A/0.28A
  • Materialmetal
  • Mount TypeFlange Mount
  • High airflow of 436 CFM for effective cooling
  • 230 V AC supply suits industrial mains power
  • IP44 rating protects against dust and splashes
  • Compact 195 mm diameter fits tight enclosures
  • Steel housing with flange mount ensures secure installation

Industrial flange-mount axial fan

The Ebm-Papst DV4650-470 is a 230 V AC axial fan built for industrial cooling duties. Its flange-mount steel housing and IP44 protection suit equipment enclosures, HVAC units and machinery that demand durable airflow. RoHS compliance confirms restricted-substance adherence for regulated markets.

436 CFM airflow at 61 W power draw

At 50 Hz the fan delivers 435.55 CFM while drawing 0.24 A and 50 W; at 60 Hz output rises to 488.52 CFM at 0.28 A and 61 W. Speed shifts from 2740 RPM to 3120 RPM across the frequency range, giving clear headroom for ducted systems but no speed-control provision in the base unit.

Flange mounting with 450 mm leads

The 195 mm diameter impeller sits in a 200 mm square frame, 73 mm deep, with integral mounting flanges for direct bolting to ductwork or panel cut-outs. A 450 mm cable tail simplifies wiring inside cabinets, while the all-metal construction resists vibration and high ambient temperatures without additional framing.

Highlights

  • High airflow of 436 CFM for effective cooling
  • 230 V AC supply suits industrial mains power
  • IP44 rating protects against dust and splashes
  • Compact 195 mm diameter fits tight enclosures
  • Steel housing with flange mount ensures secure installation

Specifications

Brandebmpapst
ModelA2E200-AF02-01
Air Flow436 CFM
Voltage230V
Hz50Hz/60Hz
Amps0.24A/0.28A
Materialmetal
Mount TypeFlange Mount
Fan TypeAxial

Questions about this item

Will the 230 V 61 W DV4650-470 run on my existing 50 Hz or 60 Hz mains supply?

Yes, the fan is rated for both 50 Hz and 60 Hz at 230 V, drawing 0.24 A at 50 Hz and 0.28 A at 60 Hz, so it works on standard mains without modification.

How can I verify the DV4650-470 is delivering its rated 436 CFM after installation?

Measure the airflow with a calibrated anemometer at the outlet; at 230 V and 50 Hz the fan should reach 2740 RPM and produce 436 CFM, while at 60 Hz it runs at 3120 RPM for 488.52 CFM.

Does the DV4650-470 include mounting hardware or a power cord, or must I source them separately?

The package contains only the fan unit with its 450 mm lead wires; flange mounting bolts, nuts and any mains connector are not included and must be purchased separately.
