eshinreal
eshinreal XIC PE5162 PCIe 5.0 x16 to 4-Port M.2 NVMe Adapter
Adds four M.2 NVMe SSDs to a PCIe 5.0 x16 slot with dedicated x4 bandwidth per drive
- TypePCI Express to M.2 Card
- Four M.2 NVMe drives on one card
- Each drive gets dedicated PCIe 5.0 x4 bandwidth
- Works with PCIe Gen5, Gen4 and Gen3 motherboards
- Supports 2260, 2280 and 22110 form factors
- Includes low-profile bracket for compact chassis
Four-Port M.2 NVMe Adapter

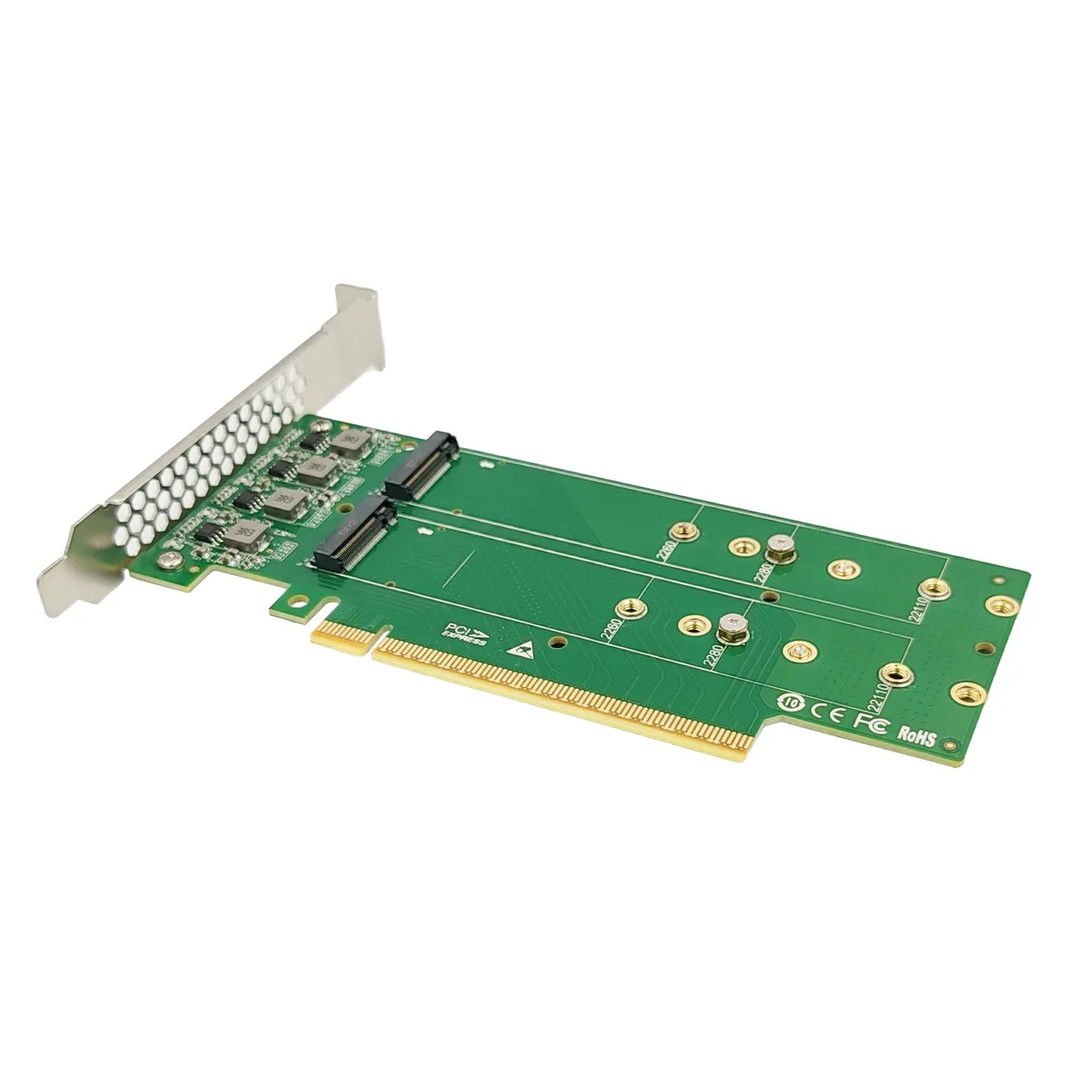

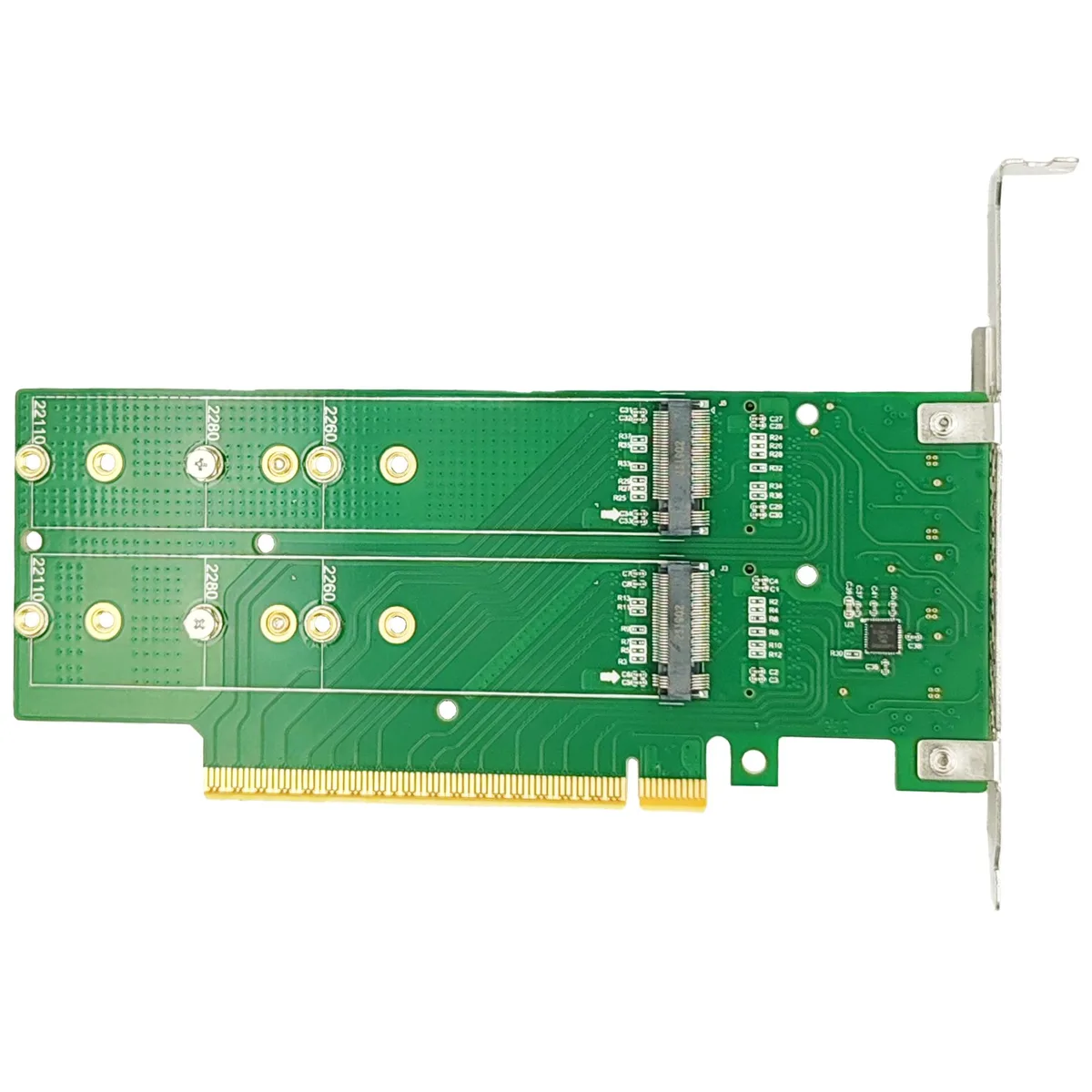

The eshinreal XIC PE5162 installs in a PCIe 5.0 x16 slot and provides four M-key connectors for M.2 NVMe SSDs. Each drive receives a dedicated PCIe 5.0 x4 link. The card accepts 2260, 2280 and 22110 form factors. It targets workstations that need high-density local storage without occupying multiple expansion slots.
Verify Motherboard Bifurcation Support
Your motherboard BIOS must expose PCIe bifurcation for the x16 slot so the single link can be split into four x4 lanes. Without that setting the adapter will not present all four drives to the operating system. Confirm the option exists in your firmware before ordering. Also ensure a physical x16 slot is electrically wired for the full 16 lanes.
Low-Profile Bracket for Dense Builds
A low-profile bracket is included, allowing the card to fit in slim chassis or multi-GPU configurations where full-height cards would interfere. Four M.2 sockets are mounted directly on the PCB so drives sit parallel to the motherboard, simplifying cable-free installation. Thermal performance will depend on case airflow and any aftermarket heatsinks you add.
Highlights
- Four M.2 NVMe drives on one card
- Each drive gets dedicated PCIe 5.0 x4 bandwidth
- Works with PCIe Gen5, Gen4 and Gen3 motherboards
- Supports 2260, 2280 and 22110 form factors
- Includes low-profile bracket for compact chassis
Specifications
| Brand | eShinreal |
|---|---|
| Series | Add on Card |
| Model | XIC PE5162 |
| Type | PCI Express to M.2 Card |
Questions about this item
Does the box include any M.2 mounting hardware or heatsinks?
The card provides four M.2 M-key slots for NVMe SSDs; mounting screws and any cooling solutions must be purchased separately.
Which M.2 form factors does the XIC PE5162 accept?
Each slot supports 2260, 2280 and 22110 length drives, so choose the capacity you need within those sizes.
What throughput can I expect from a Samsung 9100 drive installed in this adapter?
Testing shows one or two Samsung 9100 SSDs reach full PCIe 5.0 x4 speed; with four drives the result depends on the motherboard bifurcation setup.
