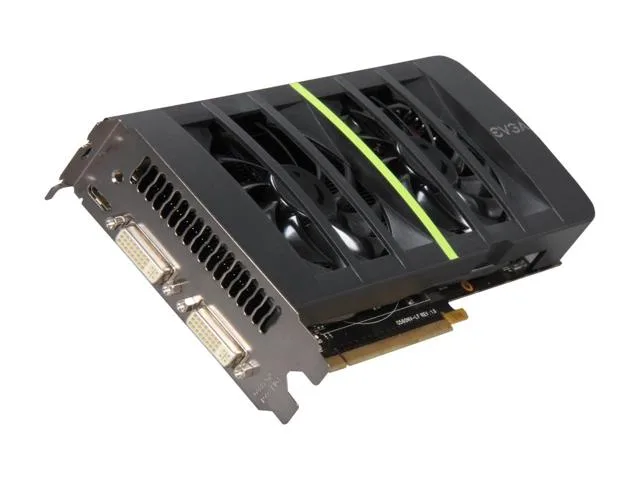

EVGA GeForce GTX 560 Ti graphics card with dual-slot cooler, two DVI ports and one mini HDMI port

EVGA

EVGA 01G-P3-1567-KR GeForce GTX 560 Ti 1GB graphics card

SKU CH-9JXT-HH4FQ

GeForce GTX 560 Ti graphics card with 1GB GDDR5 memory, 384 CUDA cores, 900 MHz core clock, 1800 MHz boost clock, PCI Express 2.0 x16 interface, dual DVI and mini HDMI outputs supporting 2560 x 1600

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 500 Series
  • GPUGeForce GTX 560 Ti (Fermi)
  • Core Clock900 MHz
  • Boost Clock1800 MHz
  • 1GB GDDR5 memory on a 256-bit bus feeds high-resolution textures
  • 384 CUDA cores accelerate parallel workloads and PhysX effects
  • Core clock at 900 MHz with boost to 1800 MHz drives frame rates
  • Dual DVI plus mini HDMI connect up to 2560 x 1600 displays
  • PCI Express 2.0 x16 interface and SLI ready for multi-GPU scaling

EVGA GeForce GTX 560 Ti 1GB Fermi GPU

The EVGA 01G-P3-1567-KR is a GeForce GTX 560 Ti graphics card built on the NVIDIA Fermi architecture. It targets enthusiasts building or upgrading a PCI Express 2.0 system who want DirectX 11 class performance. The card ships with 1GB of GDDR5 memory across a 256-bit interface and 384 CUDA cores for compute and gaming workloads.

PCI Express 2.0 x16 interface limits bandwidth

The board connects through a PCI Express 2.0 x16 slot, which caps theoretical throughput at the 2.0 specification ceiling. This ceiling restricts maximum data transfer between the GPU and the rest of the platform compared to later 3.0 or 4.0 implementations. The 256-bit memory bus and 4212 MHz effective clock operate within this host-link constraint. SLI support is available for multi-GPU scaling on compatible motherboards.

Dual-slot cooler fits standard ATX cases

Installation follows the usual full-height PCIe add-in card procedure: align the bracket, seat the connector firmly, and attach supplementary PCIe power cables from the supply. The dual DVI and single mini HDMI outputs require appropriate cables or adapters for modern displays. Driver installation via NVIDIA channels enables CUDA, PhysX, PureVideo HD and 3D Vision features. Verify case length clearance and power connector availability before purchase.

Highlights

  • 1GB GDDR5 memory on a 256-bit bus feeds high-resolution textures
  • 384 CUDA cores accelerate parallel workloads and PhysX effects
  • Core clock at 900 MHz with boost to 1800 MHz drives frame rates
  • Dual DVI plus mini HDMI connect up to 2560 x 1600 displays
  • PCI Express 2.0 x16 interface and SLI ready for multi-GPU scaling

Specifications

BrandEVGA
Model01G-P3-1567-KR
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 500 Series
GPUGeForce GTX 560 Ti (Fermi)
Core Clock900 MHz
Boost Clock1800 MHz
CUDA Cores384
Effective Memory Clock4212 MHz
Memory Size1GB
Memory Interface256-Bit
Memory TypeGDDR5
DirectXDirectX 11
OpenGLOpenGL 4.1
HDMI1 x mini HDMI
DVI2 x DVI
RAMDAC400MHz
Max Resolution2560 x 1600
3D VISION Game ReadyYes
SLI SupportSLI Ready
CoolerWith Fan
Dual-Link DVI SupportedYes
HDCP ReadyYes
Slot Width2 Slots

Questions about this item

Should I choose the 1GB 256-bit GDDR5 version of the GTX 560 Ti?

The 1GB 256-bit GDDR5 frame buffer matches the GPU's 384 CUDA cores and 4212 MHz effective memory clock, giving balanced bandwidth for 1080p gaming.

What does the 1800 MHz boost clock deliver in actual use?

The 1800 MHz boost clock drives the 384 CUDA cores at higher frequency under load, raising shader throughput for DirectX 11 titles.

How does the PCI Express 2.0 x16 interface limit performance?

PCI Express 2.0 x16 caps host-to-GPU bandwidth at roughly 8 GB/s, which is sufficient for the 1GB GDDR5 buffer and 384 CUDA cores at 1080p.
