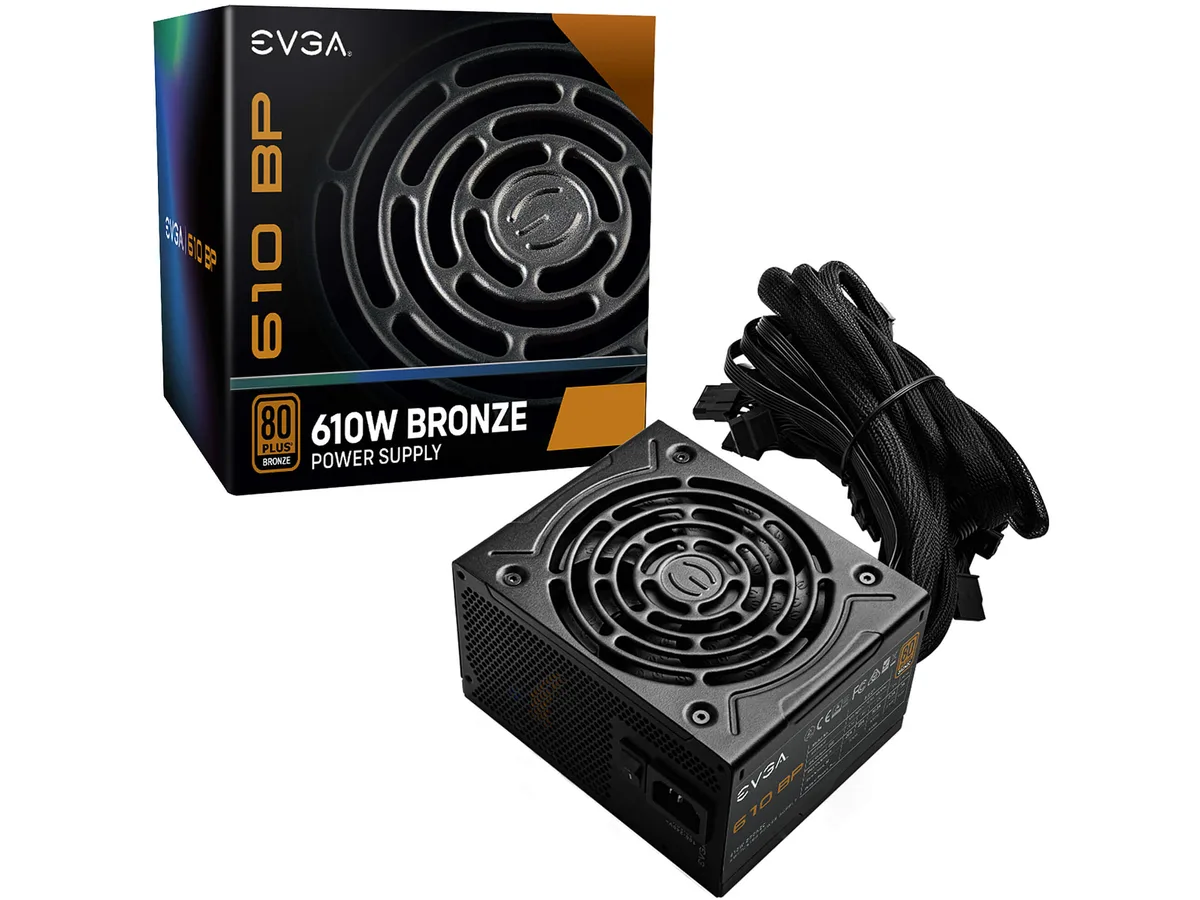

Rectangular black ATX power supply with side fan grille and fixed cable bundle

EVGA

EVGA 100-BP-0610-K1 610 W power supply

SKU CH-PPNK-4067V MPN 100-BP-0610-K1

A 610 W ATX supply with 80 PLUS Bronze efficiency, a single 12 V rail, two PCIe 6+2-pin connectors and six SATA power leads in a 120 mm non-modular chassis

  • TypeATX12V / EPS12V
  • Maximum Power610 W
  • Fans1 x 115mm Hydraulic Bearing
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • Delivers 610 W for stable system operation
  • 80 PLUS Bronze certification confirms 85% typical efficiency
  • Single 12 V rail with DC-DC converter improves 3.3 V and 5 V stability
  • 115 mm hydraulic bearing fan keeps temperatures low and noise down
  • Compact 120 mm depth fits space-restricted cases

Compact 120 mm ATX unit

The EVGA BP series 610 W power supply fits standard ATX cases while measuring only 120 mm in length. It delivers a single 12 V rail backed by a DC-DC converter for stable 3.3 V and 5 V output. The unit carries 80 PLUS Bronze certification with 85 % typical efficiency. A 115 mm hydraulic-bearing fan handles cooling.

Steady output under continuous load

Active power factor correction maintains a clean draw across the 100 to 240 V input range. The single 12 V rail design avoids cross-loading issues during sustained demand. Protection circuits cover over voltage, under voltage, over current, over power, short circuit and over temperature events. Efficiency stays at or above the Bronze threshold during prolonged operation.

Fixed-cable installation notes

Non-modular cabling means all leads are permanently attached; plan routing before mounting the 120 mm chassis. The bundle includes a 20+4 pin main connector, two 6+2 pin PCIe plugs and six SATA power connectors. Verify case clearance for the 115 mm fan profile and ensure the fixed cable lengths reach your motherboard and drive positions.

Highlights

  • Delivers 610 W for stable system operation
  • 80 PLUS Bronze certification confirms 85% typical efficiency
  • Single 12 V rail with DC-DC converter improves 3.3 V and 5 V stability
  • 115 mm hydraulic bearing fan keeps temperatures low and noise down
  • Compact 120 mm depth fits space-restricted cases

Specifications

BrandEVGA
SeriesBP Series
Model100-BP-0610-K1
TypeATX12V / EPS12V
Maximum Power610 W
Fans1 x 115mm Hydraulic Bearing
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
SLIYes
Haswell SupportYes
CrossFireYes
Max PSU Length120 mm
ModularNon-Modular
Efficiency85%
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10 - 5 A

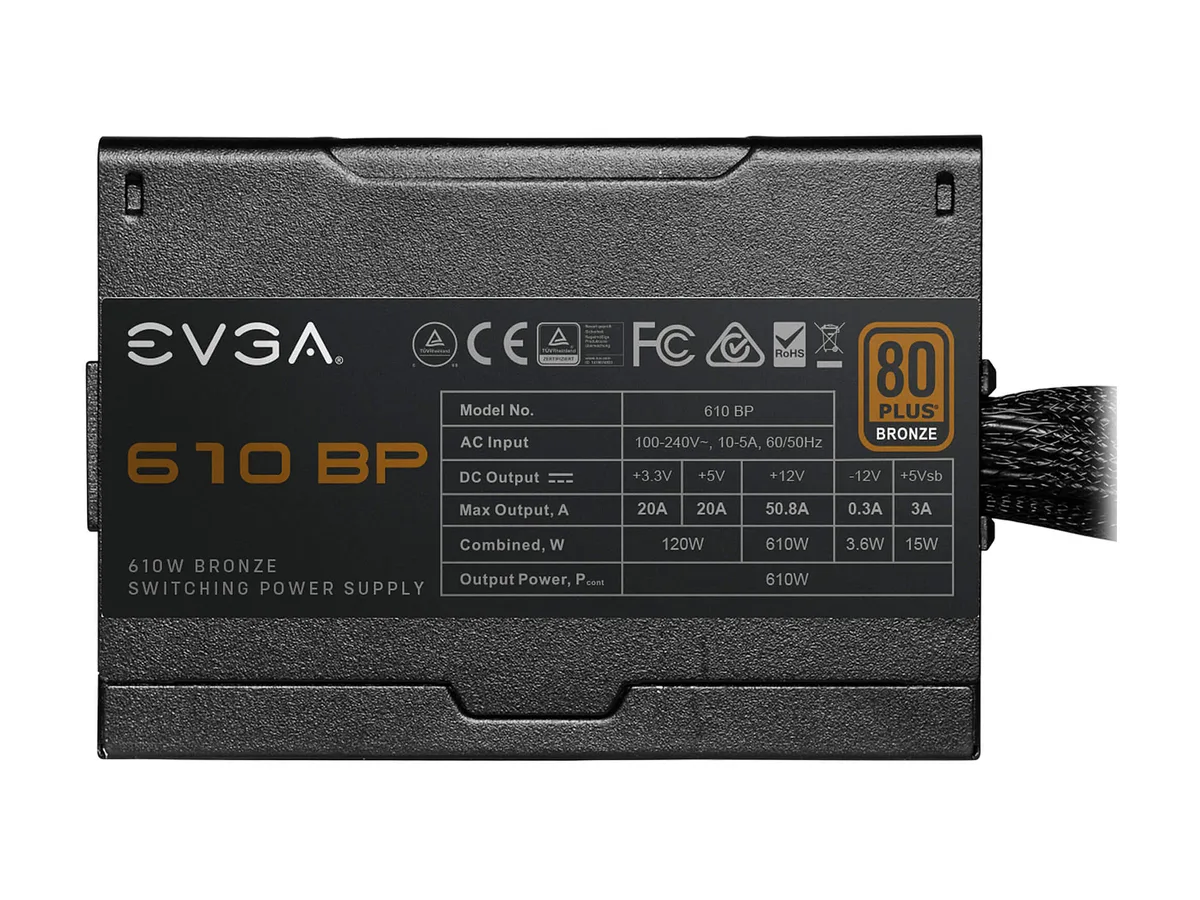

Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , +5Vsb@3A
MTBF100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Connectors1 x 24pin (20+4)
1 x 8pin (4+4) EPS (CPU)
2 x 8pin (6+2) PCIe
6 x SATA
3 x Four-Pin Peripheral
1 x Floppy
Features80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Active Power Factor Correction
DC-DC Converter improves 3.3V/5V stability

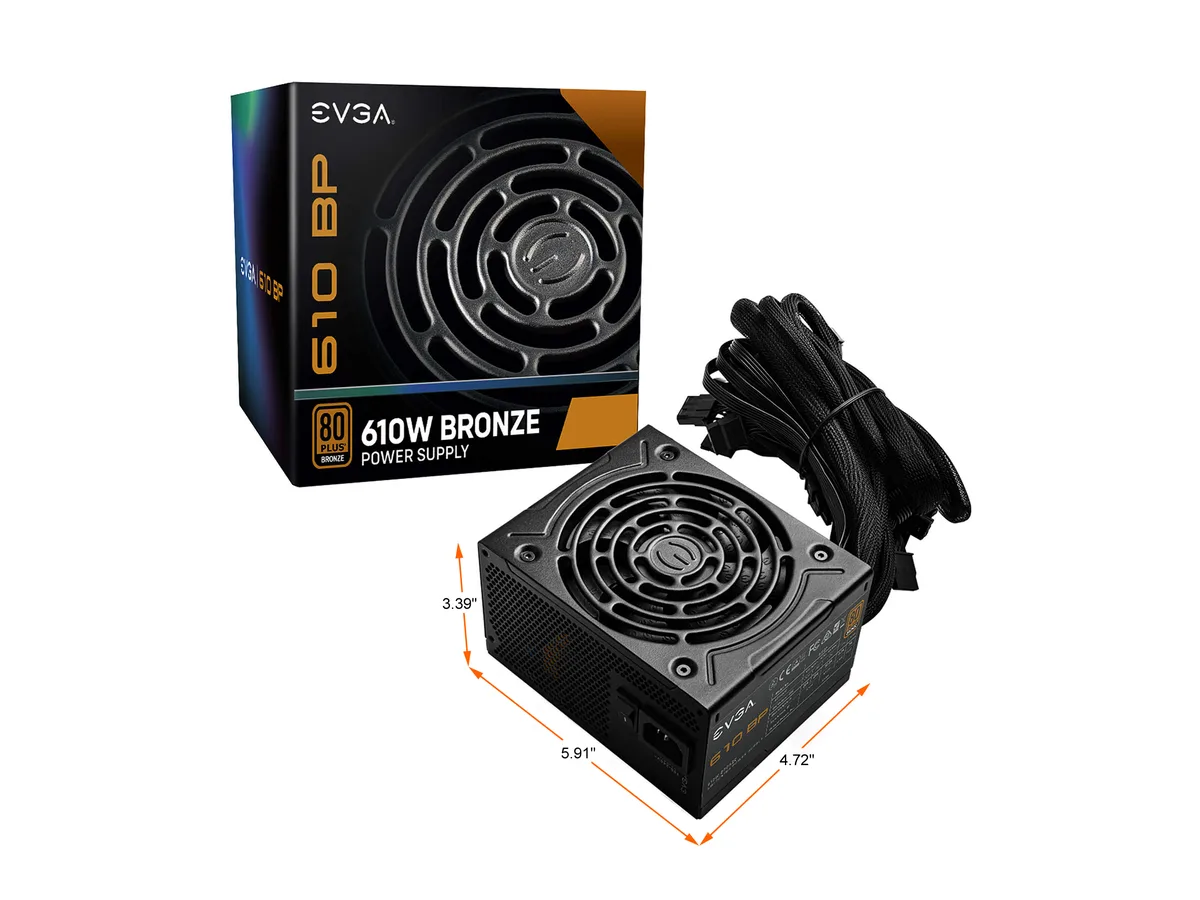

Dimensions3.39" x 5.91" x 4.72"
Weight3.80 lbs.
Shipping weight1.72 kg
Package size188 × 166 × 157 mm

Questions about this item

Will the 120 mm length fit a compact ATX case?

The unit measures 120 mm long, so it fits any ATX chassis with at least that much clear PSU depth.

Can the two 6+2-pin PCIe connectors power a modern mid-range graphics card?

Yes, they provide up to two 8-pin feeds from the single 12 V rail, which covers most mid-range GPUs.

Does the non-modular design leave unused cables inside the case?

All cables are fixed; you will need to route or tie off any connectors your build does not use.
