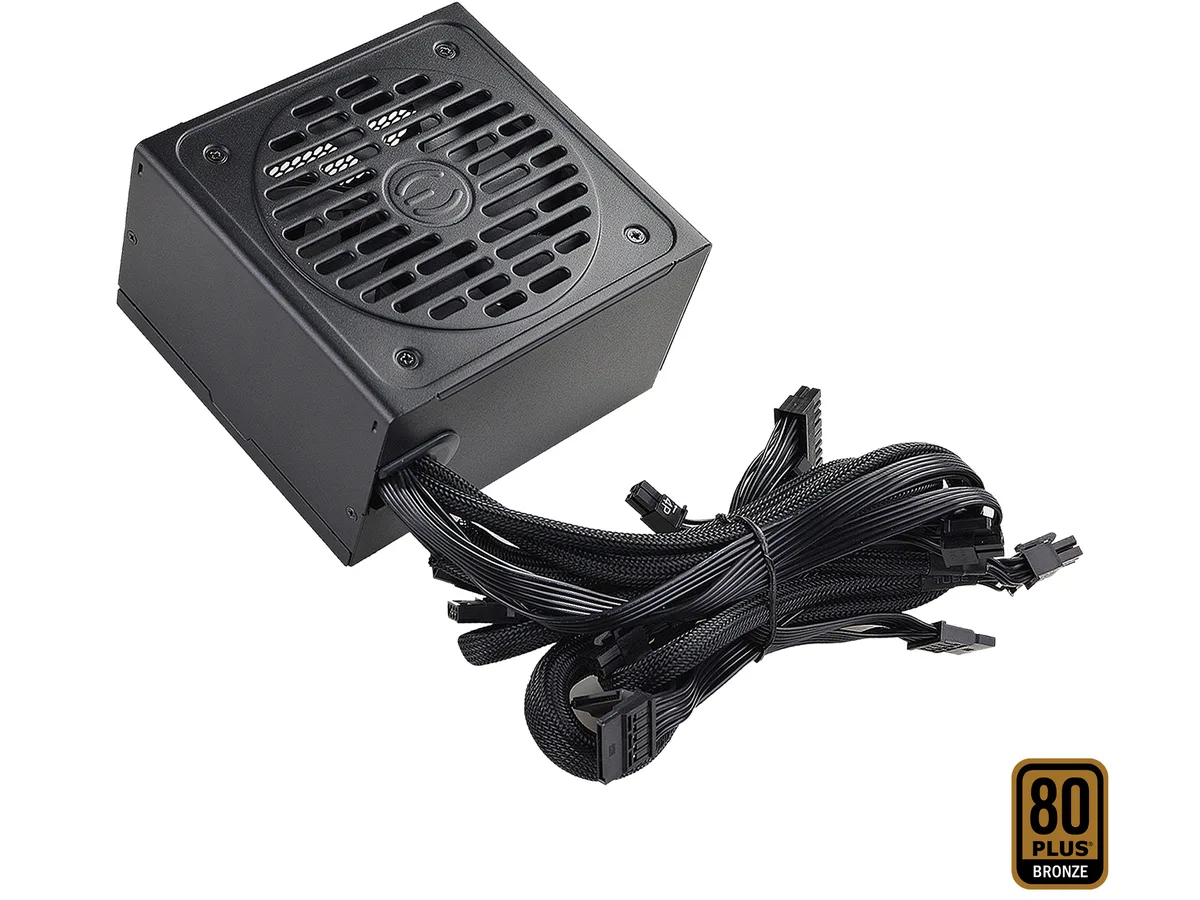

Rectangular metal PSU with matte black finish, 120 mm fan grille, and fixed cable bundle visible

EVGA

EVGA 100-BV-0450-K1 450 W ATX12V / EPS12V power supply

SKU CH-YSRD-WS7GC MPN 100-BV-0450-K1

A 450 W ATX12V / EPS12V unit with 80 PLUS Bronze efficiency, a single +12 V rail, active PFC and four SATA power connectors

  • TypeATX12V / EPS12V
  • Maximum Power450 W
  • Fans1 x 120mm Sleeve Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options BV Series (450W)

  • BV Series (450W)
  • BQ Series (600W)

Struck-through versions exist but are not stocked here.

  • 80 PLUS Bronze certification delivers up to 85% efficiency under typical loads
  • Single +12V rail rated at 35A provides stable power for modern components
  • 450W continuous output at 40°C ensures reliable performance without peak ratings
  • Active PFC with 100-240V input supports worldwide voltage ranges automatically
  • Heavy-duty protections including OVP and UVP safeguard connected hardware

Power Delivery for Entry Builds

The EVGA BV Series 100-BV-0450-K1 delivers 450 W of continuous power from a single +12 V rail rated at 35 A. It meets ATX12V and EPS12V standards and carries 80 PLUS Bronze certification with up to 85 % typical efficiency. Active PFC handles 100 to 240 V input at 50 to 60 Hz.

Suitability and Limits

This unit suits basic desktop builds and modest GPU upgrades needing two 6+2-pin PCIe connectors. Systems requiring higher wattage, multiple GPUs or server-grade redundancy should look at larger capacities. The 120 mm sleeve-bearing fan runs quietly under typical loads.

Included Connections

The fixed cable set provides a 24-pin main connector, two 6+2-pin PCIe leads and four SATA power plugs for drives. Heavy-duty protections include OVP, UVP, OCP, OPP, SCP and OTP. MTBF is rated at 100,000 hours at 40 °C ambient.

Highlights

  • 80 PLUS Bronze certification delivers up to 85% efficiency under typical loads
  • Single +12V rail rated at 35A provides stable power for modern components
  • 450W continuous output at 40°C ensures reliable performance without peak ratings
  • Active PFC with 100-240V input supports worldwide voltage ranges automatically
  • Heavy-duty protections including OVP and UVP safeguard connected hardware

Specifications

BrandEVGA
SeriesBV Series
Model100-BV-0450-K1
TypeATX12V / EPS12V
Maximum Power450 W
Fans1 x 120mm Sleeve Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector4
Haswell SupportYes
EfficiencyUp to 85% Efficiency
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50 - 60 Hz
Input Current8/4A
Output+3.3V@20A, +5V@20A, +12V@35A, +5Vsb@3A, [email protected]
MTBF100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Connectors1 x 24 Pin ATX
1 x 8 Pin (4+4) EPS (CPU)
2 x 8 Pin (6+2) PCIE
4 x SATA
3 x Four-Pin Peripheral
1 x Floppy
FeaturesThen EVGA 450 BV Power Supply is here. Designed with enthusiast needs in mind, EVGA ppower supplies are the best choice to power next generation enthusiast computers. Combining 450W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the 450 BV power supply is what you need to take your system to the next level.
Quiet and Intelligent Auto Fan for near-silent operation
80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Pr
Dimensions3.39" x 5.91" x 5.51"
Weight4.00 lbs.

Questions about this item

Will this unit fit a standard ATX case and connect to a modern motherboard?

The power supply follows the ATX12V / EPS12V form factor with a 24-pin main connector, a 4+4-pin CPU connector, two 6+2-pin PCIe connectors and four SATA power connectors for drives.

What does the 80 PLUS Bronze rating mean for daily power use?

The unit is certified to reach at least 85% efficiency at typical loads, so less electricity is wasted as heat and the fan can run more quietly.

Is the +12V rail strong enough for a dedicated graphics card?

A single +12V rail rated at 35A delivers up to 420W on the 12V line, which is the rail that feeds the GPU and CPU.
