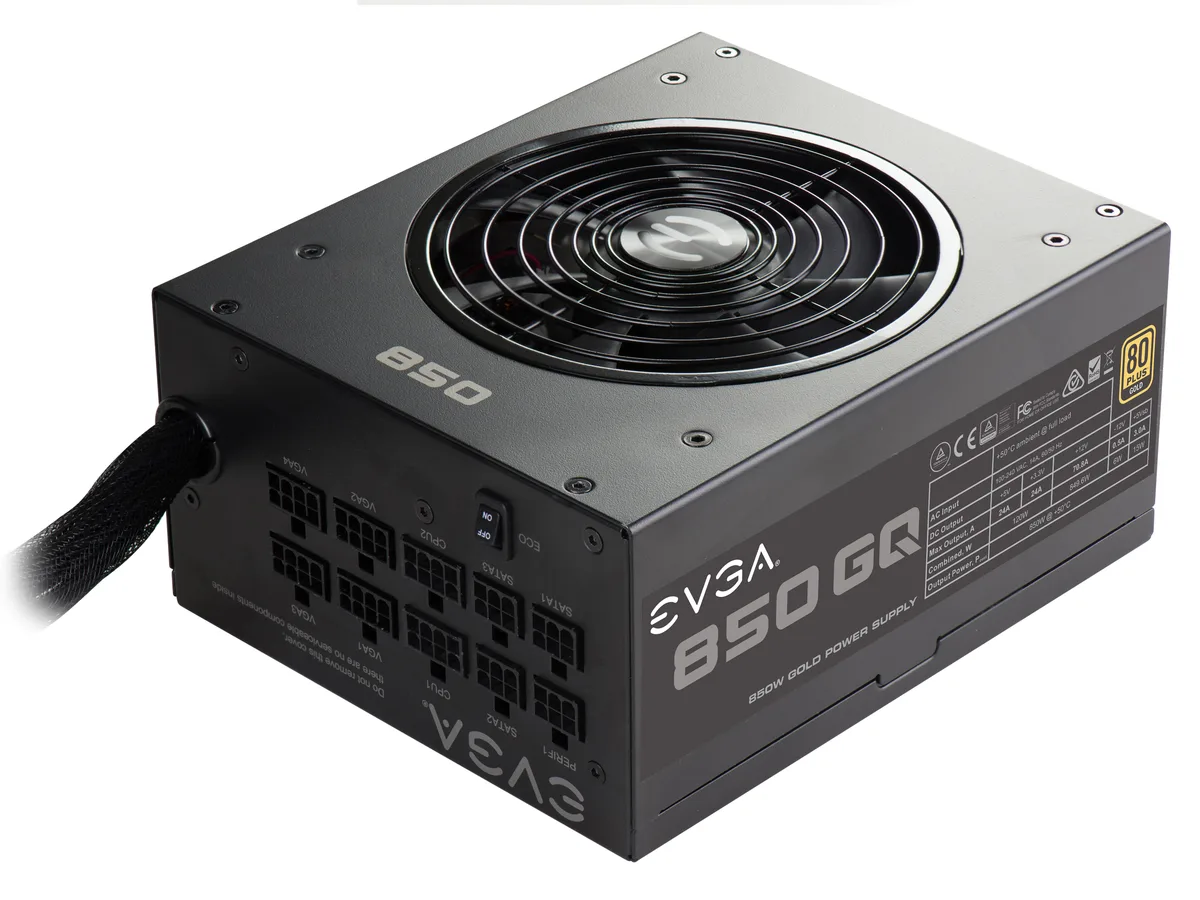

Black rectangular ATX power supply unit with 135mm fan grille, semi-modular cable sockets, matte finish, EVGA branding visible

EVGA

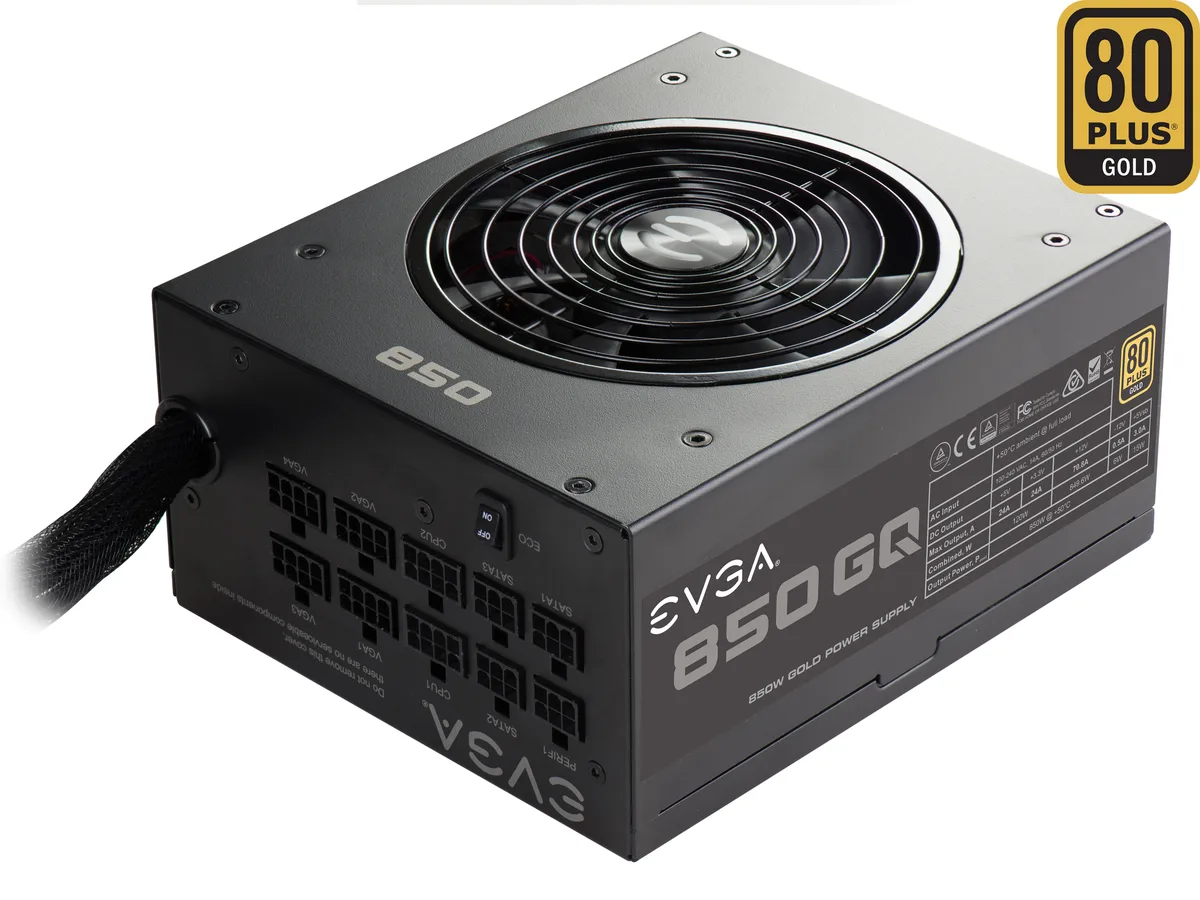

EVGA 210-GQ-0850-V1 850W 80+ Gold Semi-Modular Power Supply

SKU CH-WG42-YJ8QM MPN 210-GQ-0850-V1

850 W semi-modular ATX supply with 80 PLUS Gold efficiency, 135 mm fluid-dynamic fan and ECO mode for silent low-load operation

  • TypeATX12V / EPS12V
  • Maximum Power850 W
  • Fans1 x 135mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options ATX 80+ Gold (850W)

  • 80 PLUS Gold certification delivers 90% efficiency at 115V and 92% at 220-240V
  • 135mm Fluid Dynamic Bearing fan runs silently with EVGA ECO mode stopping it at low loads
  • 100% Japanese capacitors provide long-term reliability for continuous operation
  • Semi-modular cabling reduces clutter and improves case airflow by using only needed cables
  • Single +12V rail supplies up to 70.8A for stable power to high-end components

850 W Gold semi-modular ATX power supply

The EVGA 850 GQ delivers 850 W of continuous power through a single +12 V rail rated at 70.8 A. It uses a semi-modular cable layout so only the essential 24-pin motherboard connector is fixed; all peripheral cables can be added as needed. The unit carries 80 PLUS Gold certification with typical efficiency of 90% at 115 VAC and 92% at 220-240 VAC.

180 mm depth limits case compatibility

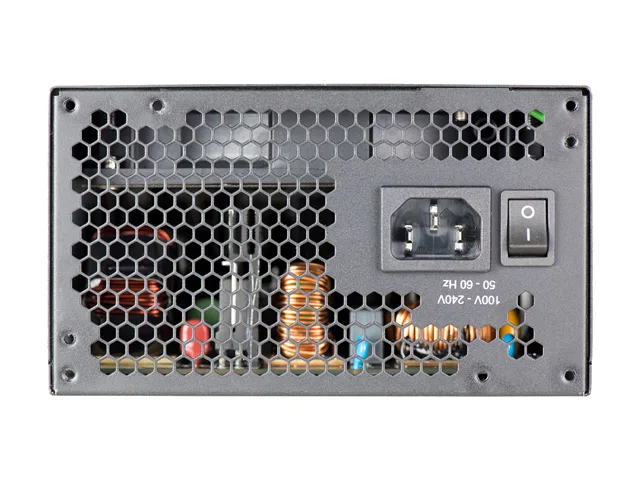

At 180 mm long the power supply fits most mid-tower and full-tower chassis but may not suit compact cases designed for shorter units. Active PFC accepts a universal input range of 100-240 V at 50/60 Hz so the same unit works worldwide without a voltage switch. Over-voltage protection is built in to guard connected components.

135 mm fluid-dynamic fan with ECO mode

A 135 mm fluid-dynamic bearing fan provides cooling and stays completely stationary until internal temperatures reach a defined threshold. EVGA ECO Intelligent Thermal Control keeps the supply silent at low to medium loads while 100% Japanese capacitors support long-term reliability. Eight 6+2-pin PCIe connectors and nine SATA power connectors cover multi-GPU and storage configurations.

Highlights

  • 80 PLUS Gold certification delivers 90% efficiency at 115V and 92% at 220-240V
  • 135mm Fluid Dynamic Bearing fan runs silently with EVGA ECO mode stopping it at low loads
  • 100% Japanese capacitors provide long-term reliability for continuous operation
  • Semi-modular cabling reduces clutter and improves case airflow by using only needed cables
  • Single +12V rail supplies up to 70.8A for stable power to high-end components

Specifications

BrandEVGA
Series850 GQ
Model210-GQ-0850-V1
TypeATX12V / EPS12V
Maximum Power850 W
Fans1 x 135mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector9
SLINo
CrossFireNo
Max PSU Length180 mm
ModularSemi-Modular
Efficiency90% (115 VAC) / 92% (220 VAC - 240 VAC) or Higher Typical
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current14 A

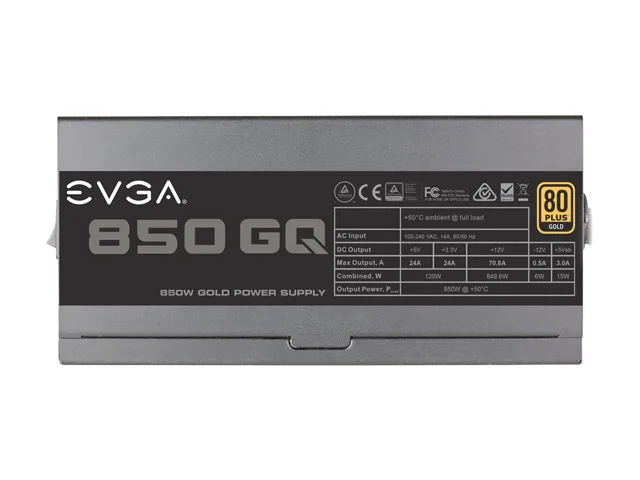

Output+3.3V@24A, +5V@24A, [email protected] , +5VSB@3A, [email protected]
MTBF>100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement

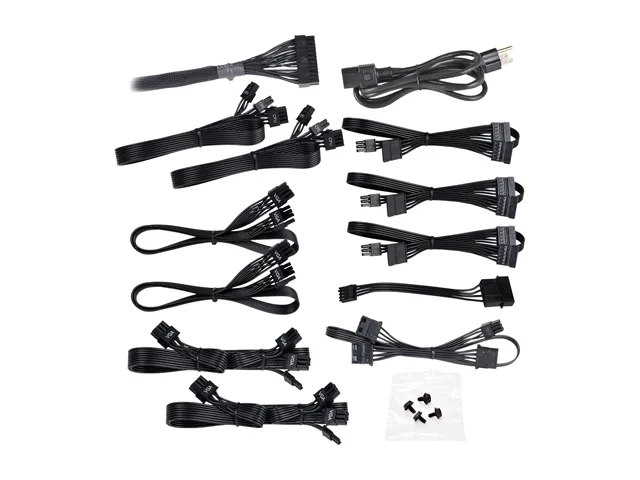

Connectors1 x 24-Pin ATX
2 x 8-Pin (4+4) EPS (CPU)
8 x 8-Pin (6+2) PCIE
9 x SATA
3 x FourPin Peripheral
2 x Floppy
Features80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
NVIDIA SLI & AMD Crossfire Ready
Modular Design to reduce clutter and improve airflow
100% Japanese Capacitors ensure long-term reliability
Active Clamp +DC to DC design for efficient operation
EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
Whisper Silent with 135mm Fluid Dynamic Bearing Fan
Active Power Factor Correction (PFC)
Heavyduty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current P
Dimensions3.35" x 5.91" x 7.00"
Weight6.00 lbs.
Shipping weight3.49 kg
Package size328 × 216 × 122 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which capacity should I pick for this EVGA 850 GQ series?

This model delivers 850 W maximum power on a single +12 V rail rated for 70.8 A, so select it when your build’s peak load fits within that ceiling.

What does the 80 PLUS Gold rating mean once the unit is installed?

It guarantees at least 90 % efficiency at 115 VAC and 92 % efficiency at 220–240 VAC under typical loads, reducing waste heat and lowering electricity draw.

How does the semi-modular design and fixed 24-pin connector affect cable routing?

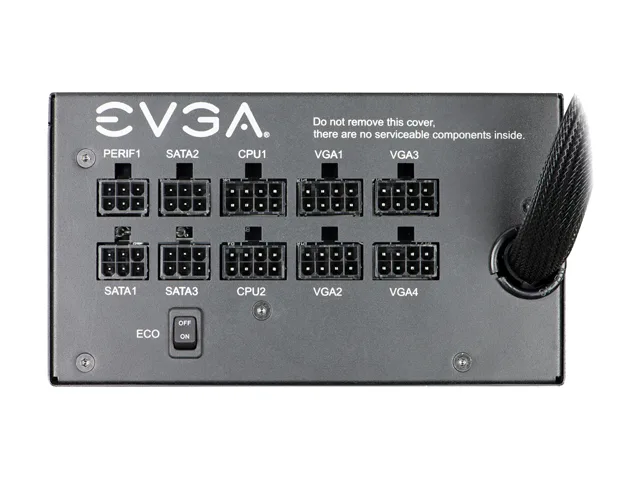

The 24-pin main cable is fixed; the eight 6+2-pin PCIe and nine SATA cables are detachable, letting you connect only what the build needs.
