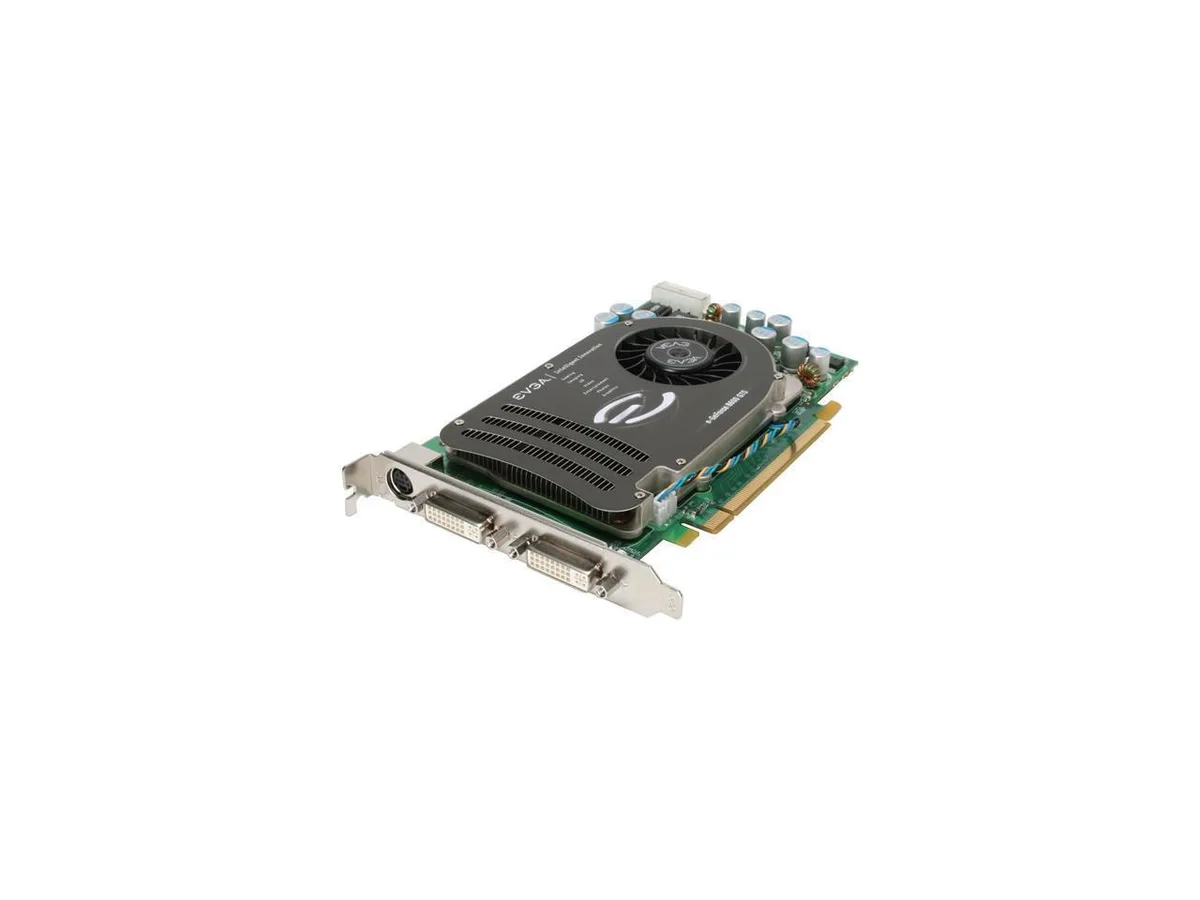

EVGA GeForce 8600 GTS graphics card with dual DVI ports and a metal bracket

EVGA

EVGA GeForce 8600 GTS 512-P2-N773-AR graphics card

SKU CH-W9Y1-TTQTN

Mid-range DirectX 10 GPU with 32 CUDA cores, 512 MB GDDR3 on a 128-bit bus, 675 MHz core, dual DVI and HDTV output

  • InterfacePCI Express x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce 8600 GTS
  • Core Clock675 MHz
  • CUDA Cores32
  • Effective Memory Clock2000MHz (effective)
  • DirectX 10 support for modern graphics APIs
  • 512 MB GDDR3 memory on 128-bit bus
  • 32 CUDA cores enable parallel computing tasks
  • Dual DVI outputs drive two digital displays
  • PCI Express x16 interface provides full bandwidth

EVGA GeForce 8600 GTS 512MB GDDR3

The EVGA GeForce 8600 GTS is a DirectX 10 graphics card built on the NVIDIA GPU with 32 CUDA cores. It ships with 512MB of GDDR3 memory across a 128-bit interface and a 675 MHz core clock. The board uses a PCI Express x16 slot and provides two DVI outputs plus HDTV, S-Video and composite connections. Maximum digital resolution reaches 2560 x 1600.

Upgrade from DirectX 9 or integrated graphics

This card replaces older DirectX 9 parts or motherboard graphics when you need Shader Model 4.0 support and hardware video decode for high-definition playback. The jump is worth it for systems that require 2560 x 1600 output or CUDA-enabled applications without moving to a higher power envelope. RoHS compliance ensures the board meets current substance restrictions.

Fits a single PCI Express x16 slot with dual DVI

Installation needs one PCI Express x16 lane and a case bracket for the two DVI ports and TV-out cluster. The 128-bit memory bus and 512MB frame buffer leave motherboard memory untouched for other tasks. A 400 MHz RAMDAC drives analog outputs cleanly while the digital links handle modern flat-panel displays up to the rated resolution.

Highlights

  • DirectX 10 support for modern graphics APIs
  • 512 MB GDDR3 memory on 128-bit bus
  • 32 CUDA cores enable parallel computing tasks
  • Dual DVI outputs drive two digital displays
  • PCI Express x16 interface provides full bandwidth

Specifications

BrandEVGA
Model512-P2-N773-AR
InterfacePCI Express x16
Chipset ManufacturerNVIDIA
GPUGeForce 8600 GTS
Core Clock675 MHz
CUDA Cores32
Effective Memory Clock2000MHz (effective)
Memory Size512MB
Memory Interface128-Bit
Memory TypeGDDR3
DirectXDirectX 10
OpenGLOpenGL 2.0
DVI2 x DVI
TV-OutHDTV / S-Video / Composite Out
VIVONo
TunerNone
RAMDAC400MHz
Max Resolution2560 x 1600
RoHS CompliantYes
SLI SupportSLI Ready
CoolerSingle Fan
System RequirementsMinimum of a 400 Watt power supply.
(Minimum recommended power supply with +12 Volt current rating of 22 Amp Amps.)
Minimum 450 Watt for SLI mode system.
(Minimum recommended power supply with +12 Volt current rating of 24 Amp Amps.)
An available 6 pin PCI-E power connector (hard drive power dongle to PCI-E 6 pin adapter included with card)
Power Connector4-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
FeaturesNVIDIA Quantum Effects physics processing technology
NVIDIA PureVideo technology

Questions about this item

Does the card fit a standard PCI Express x16 slot?

Yes, it uses a PCI Express x16 interface and occupies a single expansion slot.

What is the common mistake when connecting the DVI cables?

Users sometimes plug the monitor into the motherboard video port instead of the card's two DVI outputs.

When should the thermal paste on the GPU be replaced?

Replace the paste if core temperatures rise above normal after several years of use.
