Black dual-slot graphics card with single fan and metal backplate, three DisplayPort, one HDMI, one DVI output

EVGA

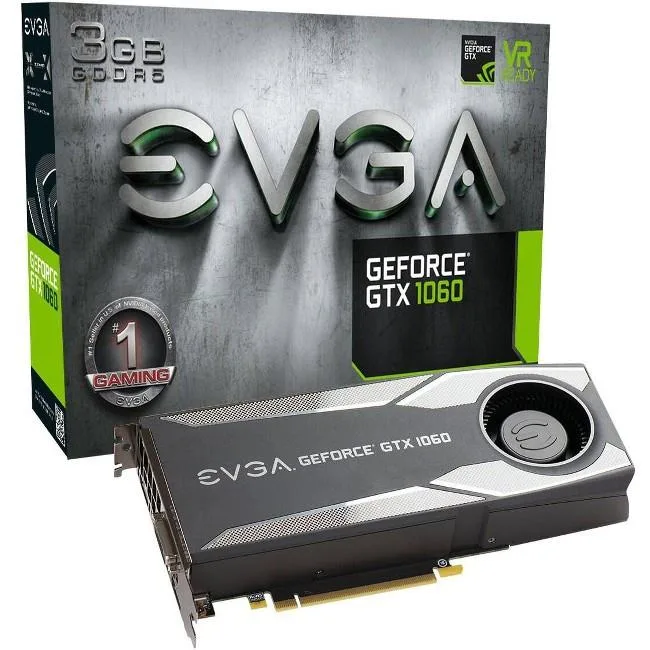

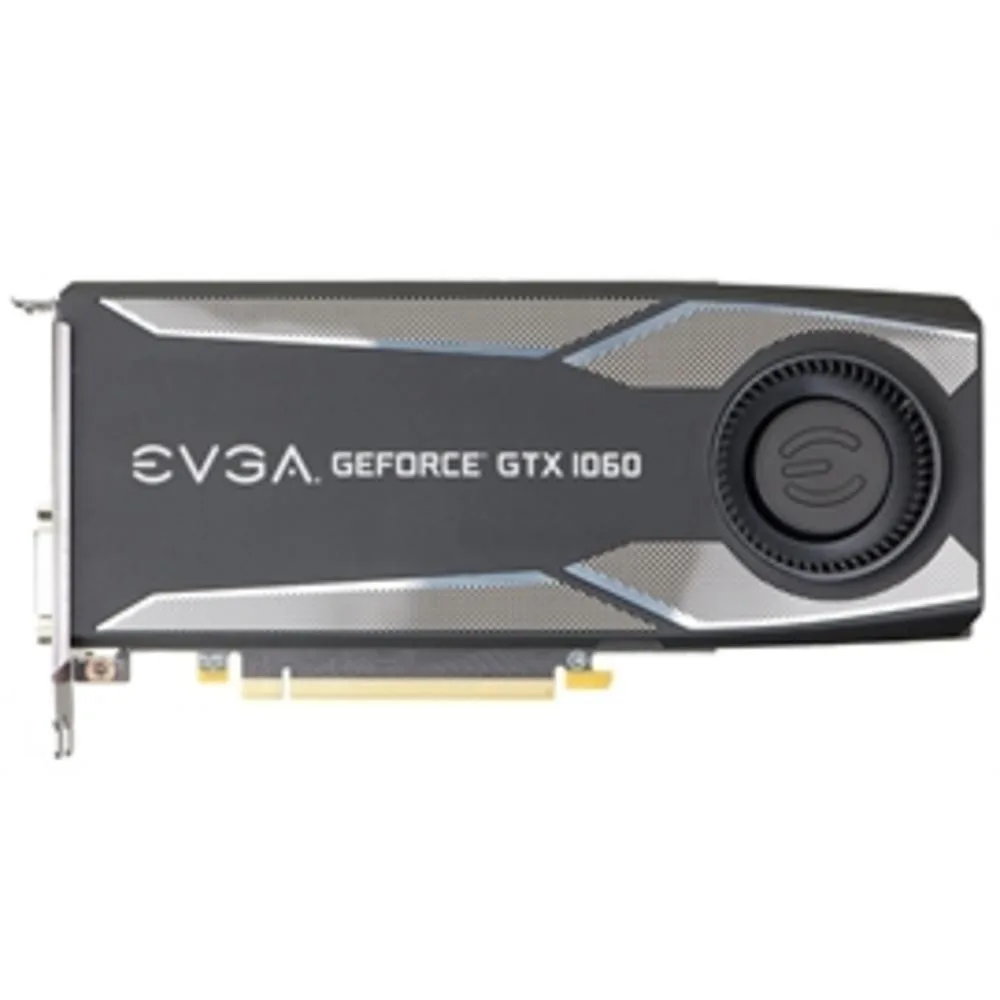

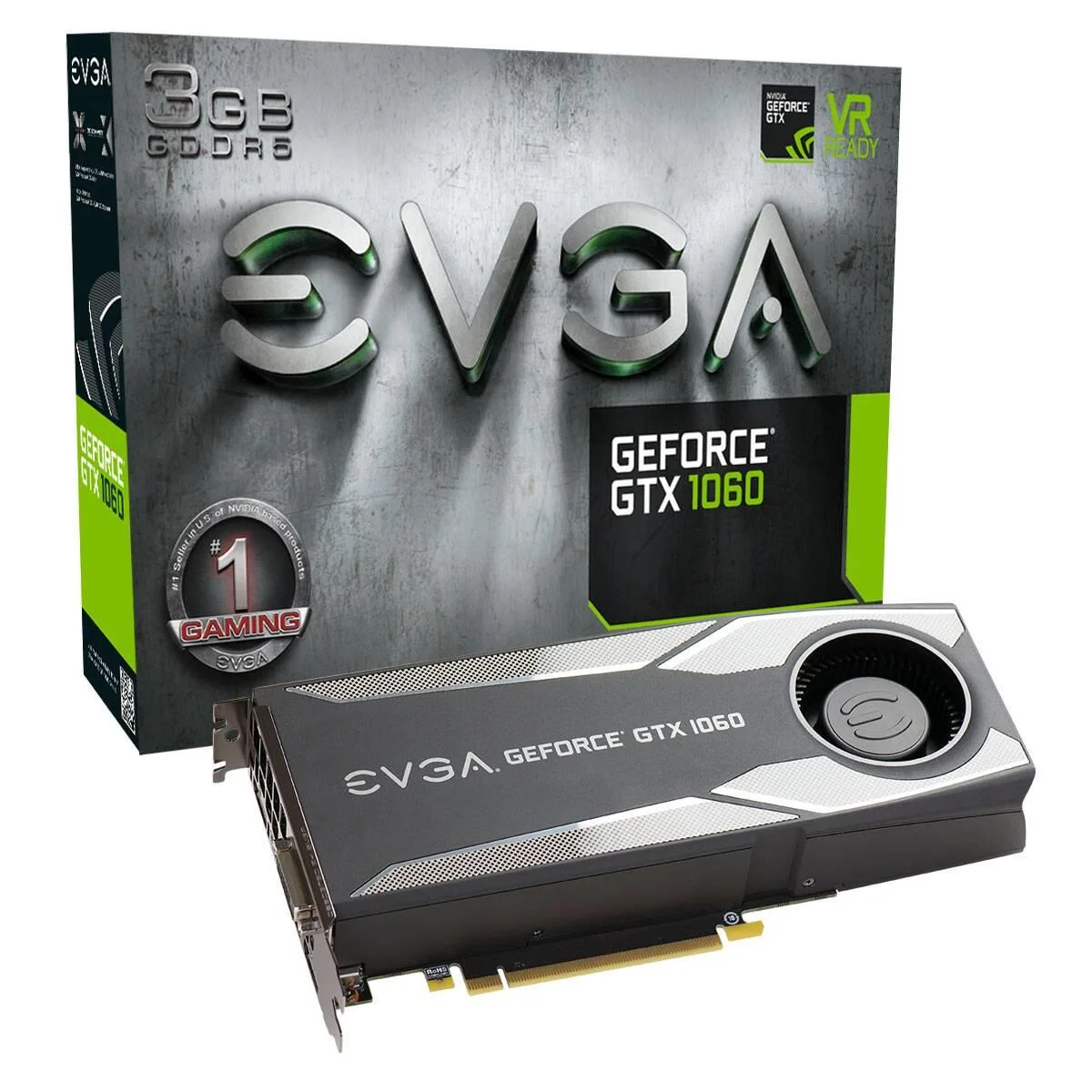

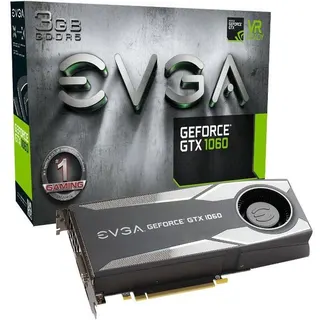

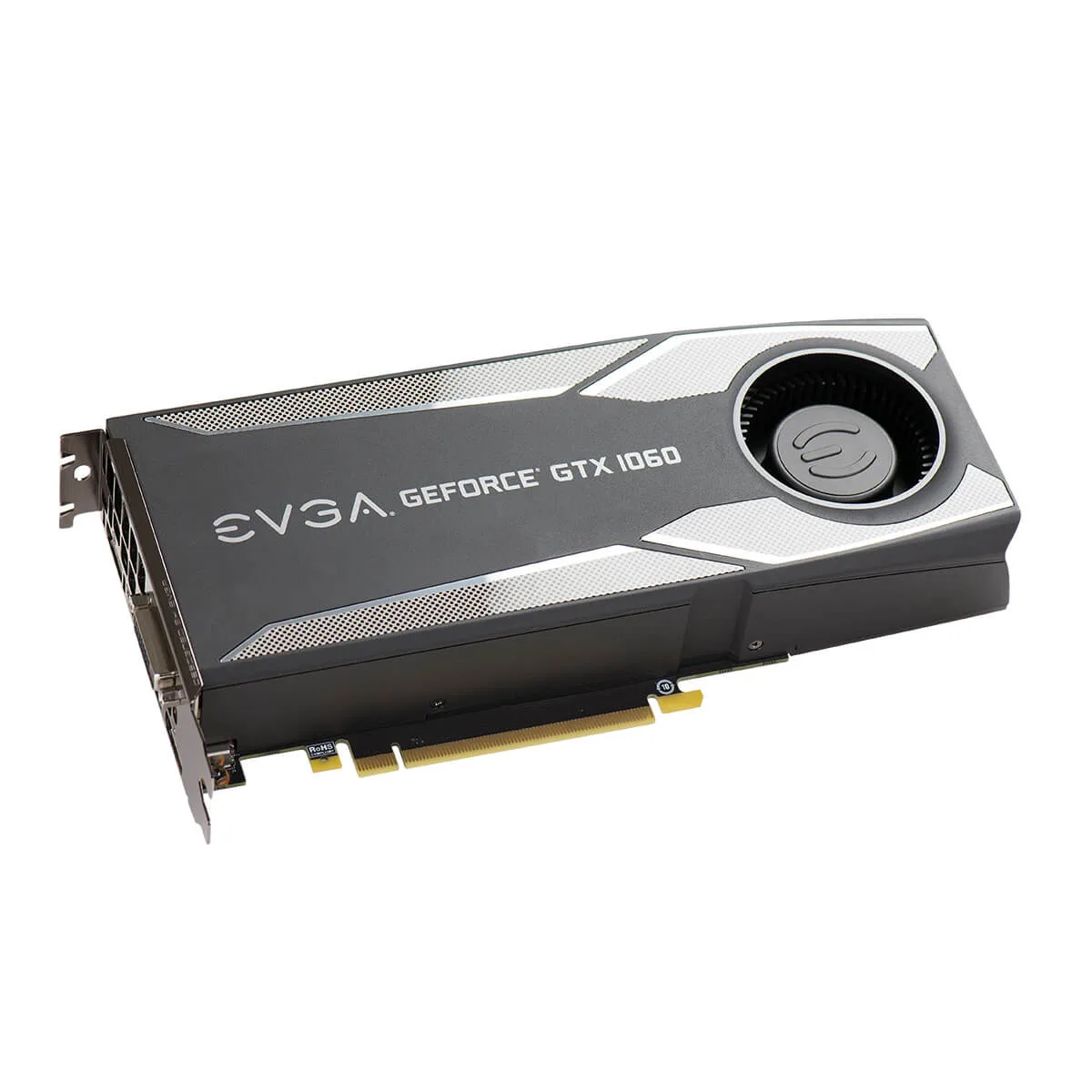

EVGA GeForce GTX 1060 03G-P4-5160-KR graphics card

SKU CH-70YA-7E507 MPN 03G-P4-5160-KR

3 GB GDDR5 graphics card with 1152 CUDA cores, 1506 MHz base and 1708 MHz boost clocks, plus HDMI 2.0b, three DisplayPort 1.4 and one DVI-D for four monitors

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060
  • Core Clock1506 MHz
  • Boost Clock1708 MHz
  • 3 GB GDDR5 memory on a 192-bit bus for smooth 1080p gaming
  • 1152 CUDA cores and 1708 MHz boost clock deliver strong frame rates
  • PCI Express 3.0 interface provides high bandwidth for modern motherboards
  • Four simultaneous displays via HDMI 2.0b, three DisplayPort 1.4 and DVI-D
  • DirectX 12 and OpenGL 4.5 support ensures compatibility with latest titles

3GB GTX 1060 for 1080p gaming

The EVGA GeForce GTX 1060 03G-P4-5160-KR is a graphics card built around the NVIDIA GeForce GTX 1060 GPU with 3GB of GDDR5 memory on a 192-bit interface. It delivers 1152 CUDA cores with a core clock of 1506 MHz and a boost clock of 1708 MHz. The card connects via a PCI Express 3.0 slot and supports DirectX 12 and OpenGL 4.5. It is suited for gamers targeting 1080p resolution in modern titles.

Thermals noise and power draw

The GTX 1060 architecture is rated for a modest thermal design power that allows the card to run cool under typical gaming loads. In normal use the single-fan cooler keeps temperatures in check without spinning aggressively, so acoustic output remains low. Power is drawn through a single 6-pin connector, which simplifies cabling and limits total system draw. The effective memory clock of 8008 MHz operates within the same efficient envelope.

Five outputs and dual-slot build

The card occupies two expansion slots and features a metal backplate that adds rigidity and protects the PCB. Outputs consist of one Dual-Link DVI-D, one HDMI 2.0b and three DisplayPort 1.4 connectors, enabling up to four simultaneous displays at a maximum resolution of 7680 x 4320. This layout covers legacy monitors and current high-refresh panels without adapters. The compact length fits most mid-tower cases.

Highlights

  • 3 GB GDDR5 memory on a 192-bit bus for smooth 1080p gaming
  • 1152 CUDA cores and 1708 MHz boost clock deliver strong frame rates
  • PCI Express 3.0 interface provides high bandwidth for modern motherboards
  • Four simultaneous displays via HDMI 2.0b, three DisplayPort 1.4 and DVI-D
  • DirectX 12 and OpenGL 4.5 support ensures compatibility with latest titles

Specifications

BrandEVGA
Model03G-P4-5160-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060
Core Clock1506 MHz
Boost Clock1708 MHz
CUDA Cores1152
Effective Memory Clock8008 MHz
Memory Size3GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerWith Fan
Operating Systems SupportedWindows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power120W
System Requirements400 Watts or greater power supply.
PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
Power Connector6-Pin
Dual-Link DVI SupportedYes
FeaturesNVIDIA GameStream Technology
NVIDIA G-SYNC Ready
OpenGL 4.5 Support
Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel
NVIDIA GPU Boost 3.0
Microsoft DirectX 12
Vulkan API
PCI Express 3.0
Max Digital Resolution - 7680x4320
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
Built for EVGA Precision XOC
Max GPU Length267 mm
Card Dimensions (L x H)10.50" x 4.38"
Slot Width2 Slots
Shipping weight1.04 kg
Package size330 × 241 × 76 mm

Questions about this item

How do I install the EVGA GeForce GTX 1060 into a PCI Express 3.0 slot and what step is often missed?

Align the card with the PCI Express 3.0 x16 slot, press firmly until the retention bracket clicks, then connect the required supplementary power cable from the PSU to the card's power connector; the missed step is forgetting that power cable.

What maintenance will the EVGA GeForce GTX 1060 with 1152 CUDA cores need over time?

Periodically remove dust from the heatsink and fan blades using compressed air to maintain airflow; thermal paste replacement is only necessary if temperatures rise unusually after years of service.

Which limit appears first on the 3GB 192-bit GDDR5 GTX 1060 during sustained heavy workloads?

The 3GB frame buffer fills before the 192-bit memory bus saturates, forcing texture compression or resolution scaling once VRAM is exhausted.
