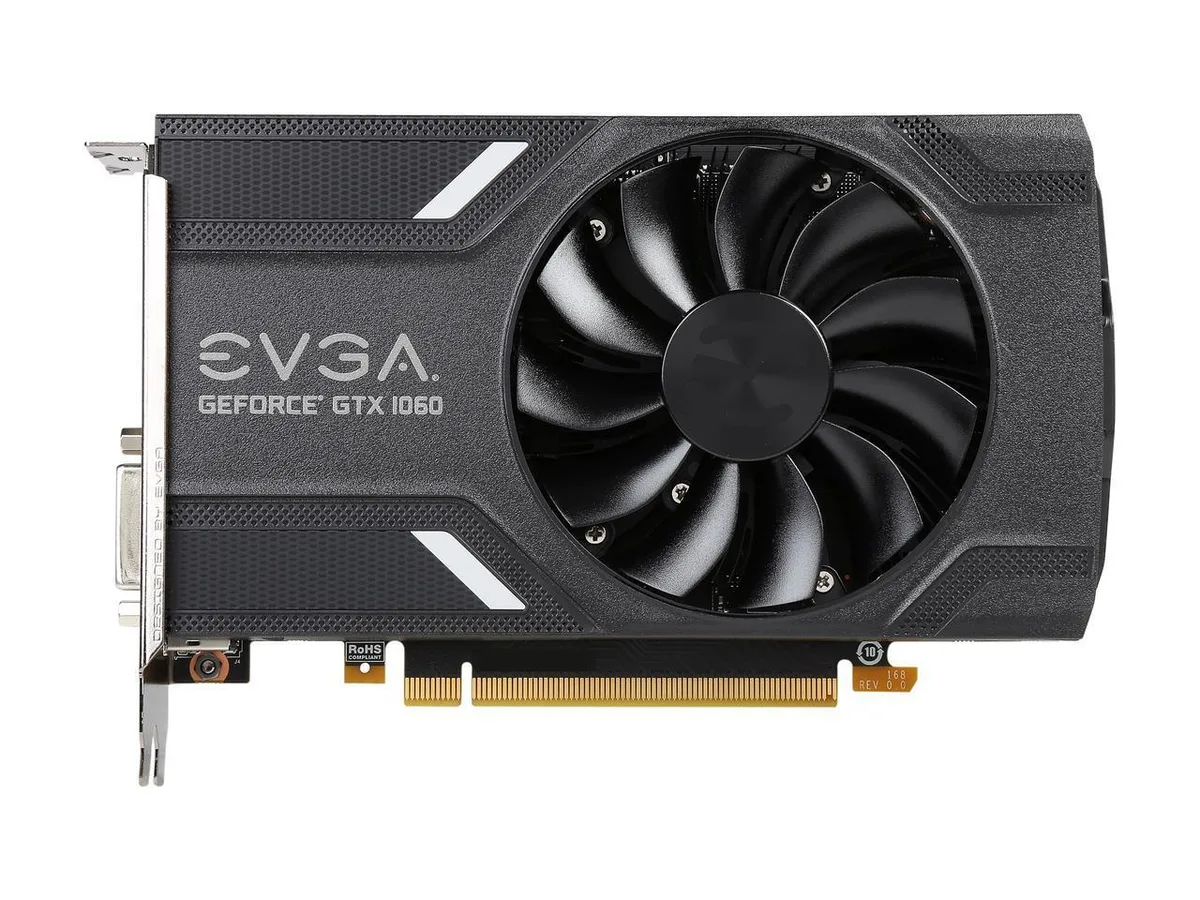

EVGA GeForce GTX 1060 graphics card with single fan cooler and metal backplate

EVGA

EVGA GeForce GTX 1060 6GB 06G-P4-6161-KR graphics card

SKU CH-2FJ7-RBENJ

Single-fan ACX 2.0 cooler fits 6.8 inches while delivering 1280 CUDA cores, 6GB GDDR5 at 8008 MHz, 1506/1708 MHz clocks and four-display output over HDMI 2.0b, triple DisplayPort 1.4 and DVI-D

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060
  • Core Clock1506 MHz
  • Boost Clock1708 MHz
  • 6GB GDDR5 memory and 192-bit bus deliver smooth 1080p gaming
  • Boost clock of 1708 MHz raises frame rates under load
  • Compact 6.8-inch length fits small-form-factor builds
  • Three DisplayPort 1.4 and one HDMI 2.0b drive four monitors
  • 1280 CUDA cores accelerate DirectX 12 and Vulkan workloads

Compact Gaming Card

The EVGA GeForce GTX 1060 6GB is a PCI Express 3.0 graphics card built on the NVIDIA Pascal architecture. It targets gamers and creators who need solid 1080p performance in a 6.8 inch form factor that fits small chassis. The 1280 CUDA cores and 6GB GDDR5 frame buffer handle modern titles and multi-monitor workloads.

Straightforward Upgrade

Installation follows the standard PCIe x16 slot procedure with a single 6-pin power connector and one rear bracket slot. The short length clears most drive cages, but the single-fan ACX 2.0 cooler exhausts heat into the case rather than out the back. Verify that your power supply delivers the required 6-pin lead and that case airflow can handle the thermal load.

Six Gigabytes Decides Suitability

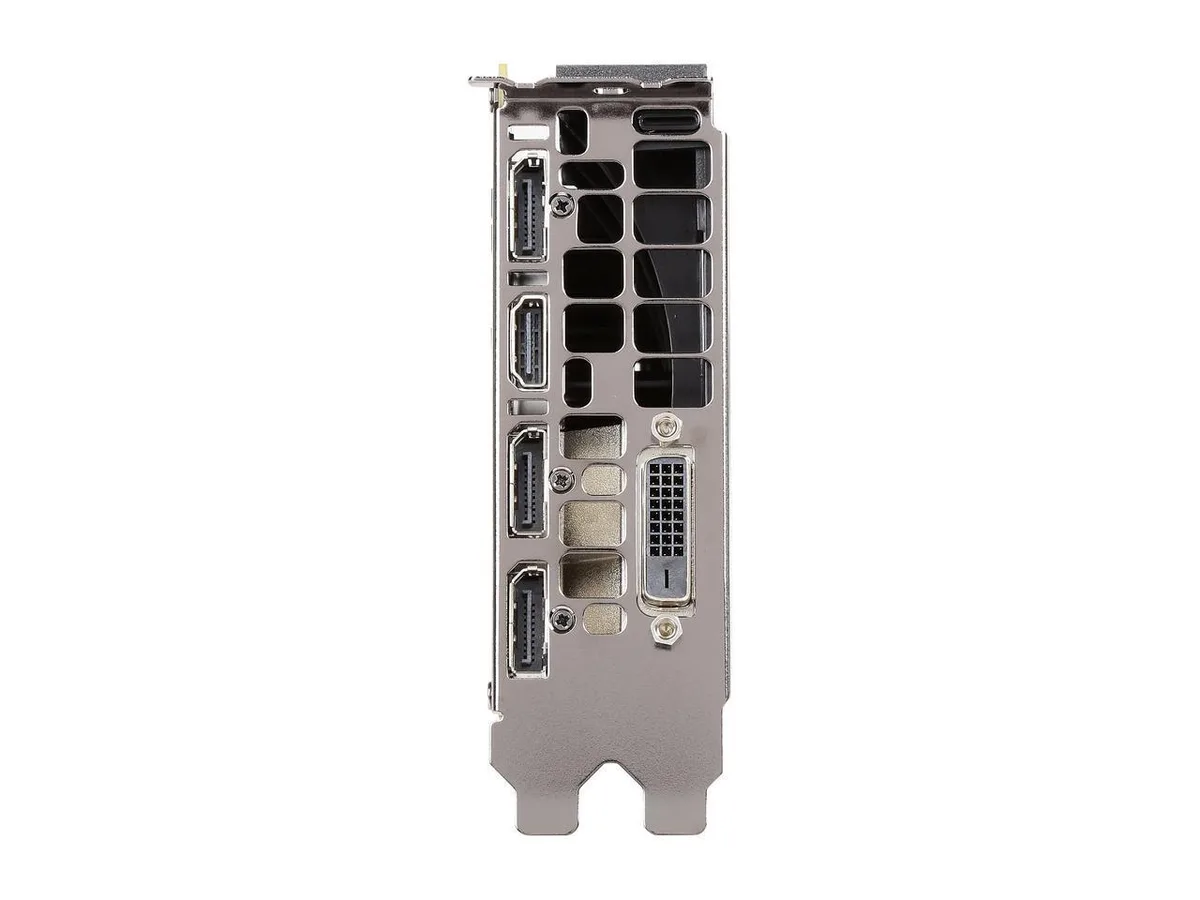

The 6GB 192-bit GDDR5 memory buffer is the specification that determines whether this card matches your workload. It supports DirectX 12, OpenGL 4.5 and Vulkan for current APIs, while the 8008 MHz effective clock and 192 GB/s bandwidth feed the 1280 cores. Outputs include one HDMI 2.0b, three DisplayPort 1.4 and one Dual-Link DVI-D for up to four displays at 7680 x 4320.

Highlights

  • 6GB GDDR5 memory and 192-bit bus deliver smooth 1080p gaming
  • Boost clock of 1708 MHz raises frame rates under load
  • Compact 6.8-inch length fits small-form-factor builds
  • Three DisplayPort 1.4 and one HDMI 2.0b drive four monitors
  • 1280 CUDA cores accelerate DirectX 12 and Vulkan workloads

Specifications

BrandEVGA
Model06G-P4-6161-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060
Core Clock1506 MHz
Boost Clock1708 MHz
CUDA Cores1280
Effective Memory Clock8008 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerSingle Fan
Operating Systems SupportedWindows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit, Windows Vista 32/64bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power120W
System Requirements400W or greater power supply. PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
Power Connector6-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
Max GPU Length173 mm
Card Dimensions (L x H)6.80" x 4.38"
Slot Width2 Slots

Questions about this item

How can I confirm the 1506 MHz base clock and 1708 MHz boost clock are running after I install the card?

Open EVGA Precision XOC or GPU-Z and watch the sensor tab; the core should sit at 1506 MHz at idle and climb to 1708 MHz under load, matching the specifications on the box.

What cables or adapters come with the 6.8-inch GTX 1060 and what must I source myself?

The card includes a single-fan ACX 2.0 cooler and the standard bracket; you will need to supply your own PCIe power cable from the PSU and any display cables for the HDMI 2.0b, three DisplayPort 1.4 or Dual-Link DVI-D ports.

Which version of the GTX 1060 should I pick if I want the 6 GB GDDR5 model with 1280 CUDA cores and a compact single-fan design?

The 06G-P4-6161-KR is the 6 GB 192-bit GDDR5 variant with 1280 CUDA cores, 1506/1708 MHz clocks and a 6.8-inch single-fan ACX 2.0 cooler — the only version in this lineup matching those exact specs.
