EVGA GeForce GTX 1060 6GB graphics card 06G-P4-5161-KR

EVGA GeForce GTX 1060 6GB graphics card

The EVGA GeForce GTX 1060 06G-P4-5161-KR is a desktop GPU built on the NVIDIA Pascal architecture. It delivers 1280 CUDA cores and a 6GB GDDR5 frame buffer for 1080p gaming and multi-monitor productivity. The card targets users who need reliable performance without moving to a higher power tier. Core and boost clocks sit at 1506 MHz and 1708 MHz respectively.

PCI Express 3.0 interface and display outputs

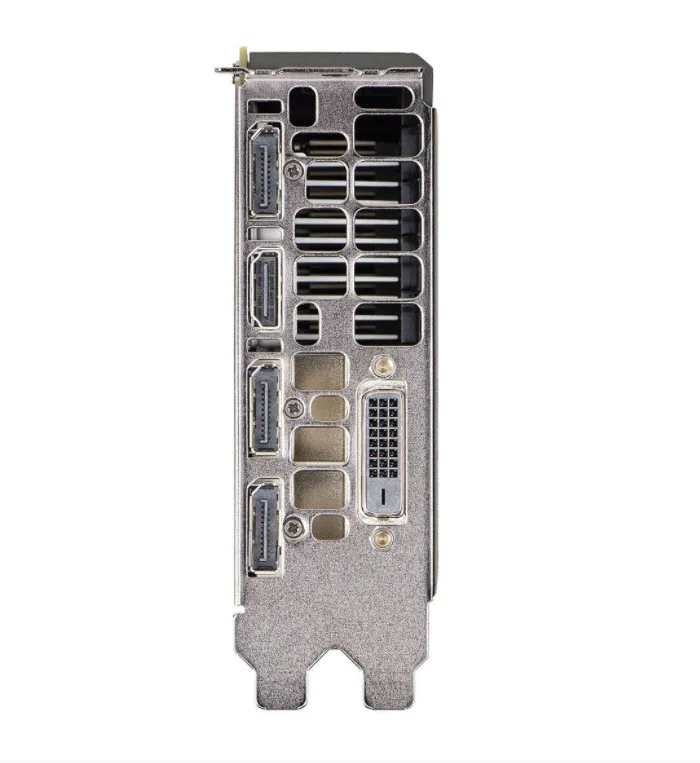

The board connects through a PCI Express 3.0 x16 slot and draws power from a single 6-pin connector. Video output includes one HDMI 2.0b, three DisplayPort 1.4 ports and one Dual-Link DVI-D. This combination drives up to four displays at a maximum digital resolution of 7680 x 4320. The 192-bit memory bus limits peak bandwidth to 192 GB/s at 8008 MHz effective clock.

6GB GDDR5 memory capacity

The 6GB GDDR5 buffer is the decisive specification for texture-heavy titles and high-resolution assets. It doubles the 3GB variant's capacity, reducing stutter when VRAM demand exceeds the smaller frame buffer. Buyers comparing 3GB and 6GB models should select this version for modern workloads. The 192-bit bus and 8008 MHz effective memory clock complete the memory subsystem.
