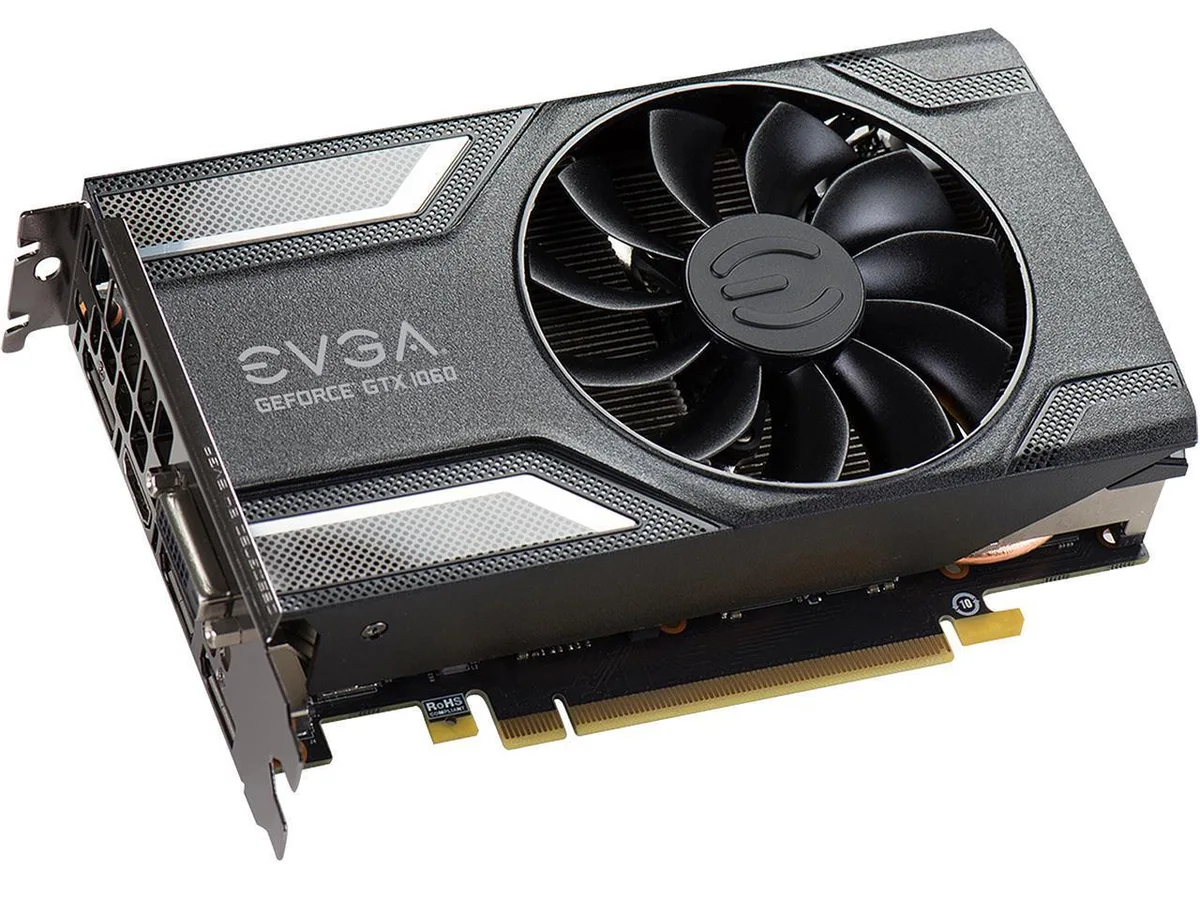

EVGA GeForce GTX 1060 SC Gaming graphics card with single-fan ACX 2.0 cooler

EVGA

EVGA GeForce GTX 1060 SC Gaming 3GB graphics card 03G-P4-6162-KR

SKU CH-K36S-TMW6Q

A 3 GB GDDR5 graphics card with 1152 CUDA cores, 1607 MHz base and 1835 MHz boost clocks, plus HDMI 2.0b, three DisplayPort 1.4 and Dual-Link DVI for up to four monitors

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060 SC Gaming
  • Core Clock1607 MHz
  • Boost Clock1835 MHz
  • Boost clock of 1835 MHz delivers strong 1080p frame rates
  • 1152 CUDA cores accelerate parallel workloads and gaming physics
  • 3 GB GDDR5 on a 192-bit bus provides 192 GB/s bandwidth
  • HDMI 2.0b plus three DisplayPort 1.4 outputs drive up to four displays
  • ACX 2.0 single-fan cooler keeps thermals in check under load

What the card is and who it serves

The EVGA GeForce GTX 1060 SC Gaming 3GB is a single-fan graphics card built around the NVIDIA Pascal architecture. It targets 1080p gamers and entry-level content creators who need modern API support without a dual-slot cooler. The ACX 2.0 cooler keeps the board compact for smaller chassis. It draws power through a standard PCI Express 3.0 slot and a single external connector.

The specification that decides fit

The 3GB GDDR5 frame buffer on a 192-bit bus delivers 192 GB/s bandwidth, which is the limiting factor for texture-heavy titles at higher settings. 1152 CUDA cores run at a 1607 MHz base clock and a 1835 MHz boost clock. DirectX 12, OpenGL 4.6 and Vulkan API support cover current game engines. The memory operates at 8008 MHz effective with a 0.28 ns cycle time.

How it fits into a build

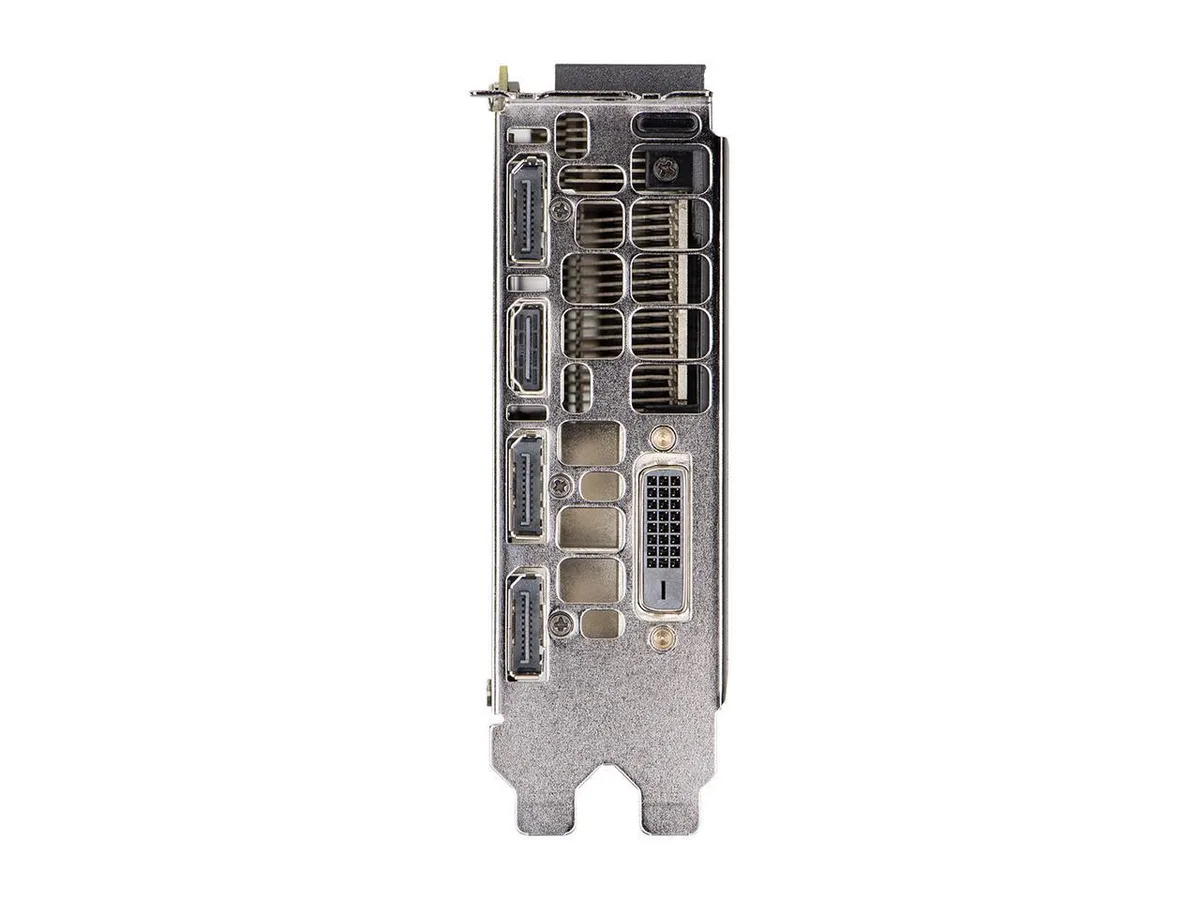

One HDMI 2.0b, three DisplayPort 1.4 and one Dual-Link DVI-D drive up to four monitors at a maximum digital resolution of 7680 x 4320. The single-slot bracket and short PCB leave room for adjacent expansion cards or tight cable routing. PCI Express 3.0 provides the system link, while NVIDIA GPU Boost 3.0 and EVGA Precision XOC handle dynamic clock management. VR Ready certification and Simultaneous Multi-Projection accelerate stereo rendering workloads.

Highlights

  • Boost clock of 1835 MHz delivers strong 1080p frame rates
  • 1152 CUDA cores accelerate parallel workloads and gaming physics
  • 3 GB GDDR5 on a 192-bit bus provides 192 GB/s bandwidth
  • HDMI 2.0b plus three DisplayPort 1.4 outputs drive up to four displays
  • ACX 2.0 single-fan cooler keeps thermals in check under load

Specifications

BrandEVGA
Model03G-P4-6162-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060 SC Gaming
Core Clock1607 MHz
Boost Clock1835 MHz
CUDA Cores1152
Effective Memory Clock8008 MHz
Memory Size3GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerSingle Fan
Operating Systems SupportedWindows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit ‍👉Check gaming pc with Windows 11 Pro
System RequirementsMinimum of a 400 Watts power supply An available 6-pin PCI-E power connector Total Power Draw: 120 Watts
Power Connector6-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
Max GPU Length173 mm
Card Dimensions (L x H)6.80" x 4.38"
Slot Width2 Slots

Questions about this item

How does the 1835 MHz boost clock behave once the card is installed?

The GPU will raise its core speed up to 1835 MHz when thermals and power headroom allow, then drop back to the 1607 MHz base clock under sustained heavy load.

What does the PCI Express 3.0 interface limit in practice?

The x16 slot provides up to 16 GB/s per direction, so the card’s 192 GB/s memory bandwidth stays on-board and the bus only carries commands and texture streams.

Will the single-fan ACX 2.0 cooler fit in a standard dual-slot case?

Yes, the bracket occupies two expansion slots and the shroud is built to standard ATX height and length for typical mid-tower clearance.
