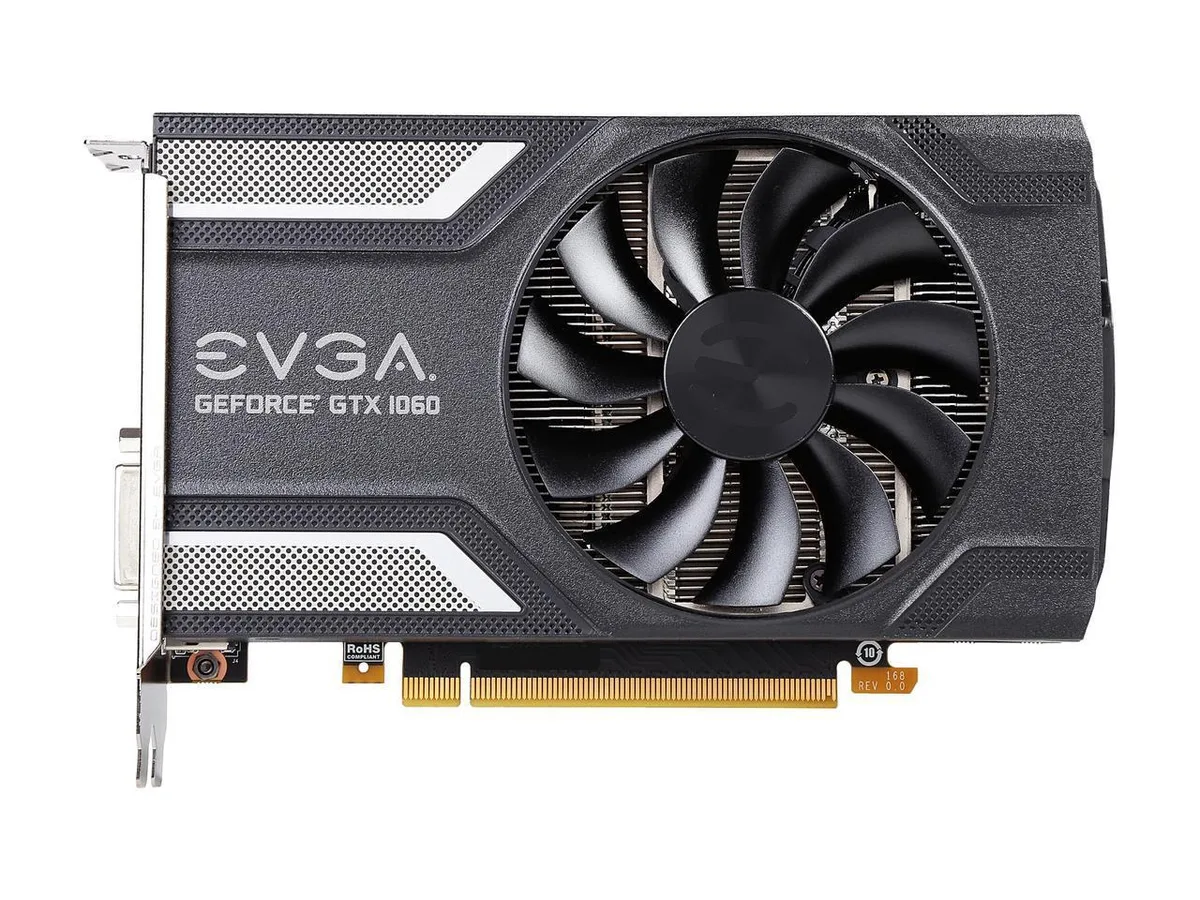

EVGA GeForce GTX 1060 SC GAMING graphics card with single-fan ACX 2.0 cooler in black and silver finish

EVGA

EVGA GeForce GTX 1060 SC GAMING ACX 2.0 6GB graphics card

SKU CH-HX9P-0SBJ2

Single-fan 6 GB GDDR5 card with 1280 CUDA cores, 1607 MHz base and 1835 MHz boost clocks, plus HDMI 2.0b, three DisplayPort 1.4 and DVI-D outputs for up to four monitors

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060
  • Core Clock1607 MHz
  • Boost Clock1835 MHz
  • 6 GB GDDR5 memory at 8008 MHz for smooth 1080p gaming
  • Boost clock reaches 1835 MHz for higher frame rates
  • 1280 CUDA cores accelerate rendering and compute tasks
  • Three DisplayPort 1.4, two HDMI 2.0b and one DVI-D drive four monitors
  • Compact 6.8-inch length fits small-form-factor builds

Compact 6.8 inch design

The EVGA GeForce GTX 1060 SC GAMING ACX 2.0 is a 6GB graphics card built on the NVIDIA Pascal architecture. It targets 1080p gamers and VR enthusiasts who need strong performance in a short form factor. The card measures only 6.8 inches long, making it suitable for small form factor builds. It connects via a standard PCI Express 3.0 x16 slot.

Factory overclock and output array

The SC edition raises the base clock to 1607 MHz and the boost clock to 1835 MHz over the reference design. Memory runs at 8008 MHz effective across a 192-bit bus, delivering 192 GB/s bandwidth. Outputs include two HDMI 2.0b ports, three DisplayPort 1.4 connectors and one dual-link DVI-D, supporting up to four simultaneous displays at a maximum digital resolution of 7680 x 4320. EVGA Precision XOC software is bundled for monitoring and overclocking control.

Simple two-slot installation

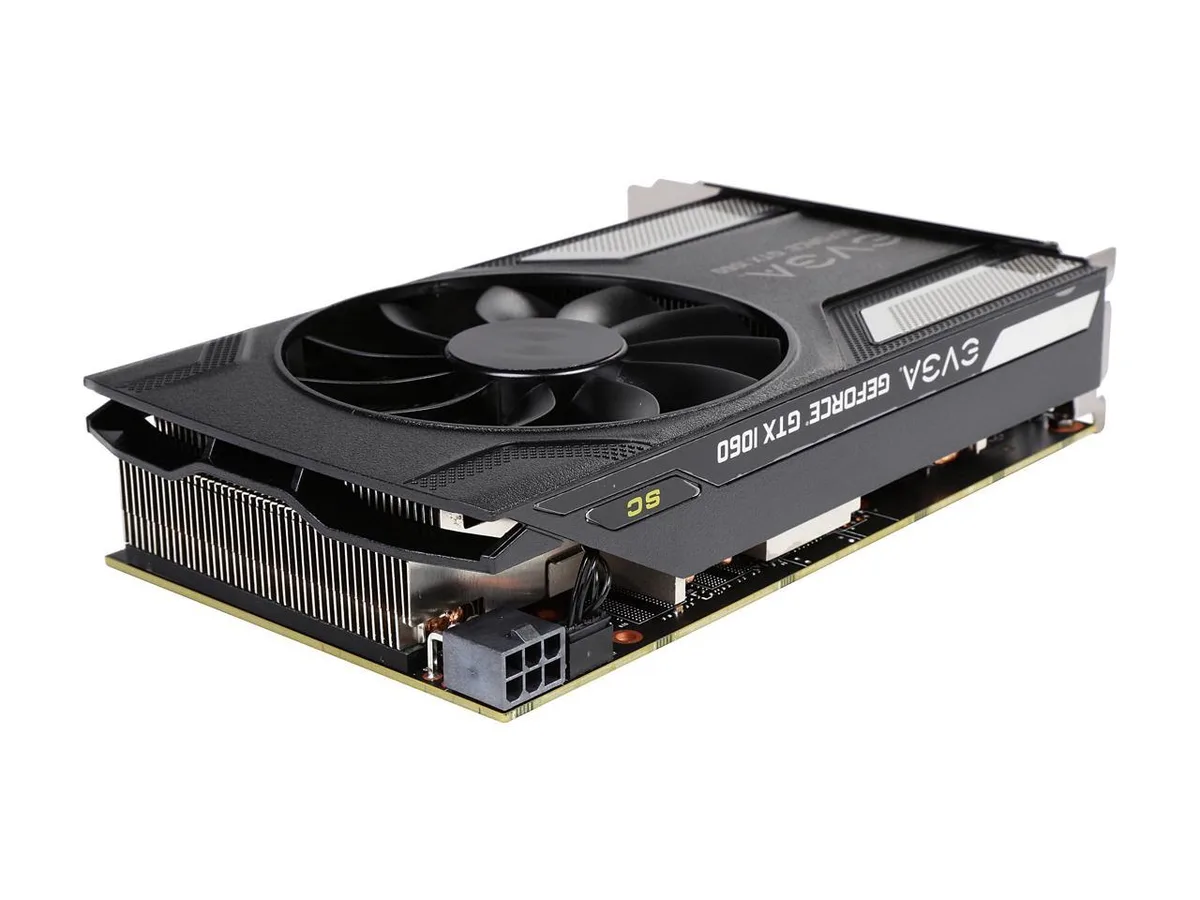

The dual-slot cooler uses a single fan under the ACX 2.0 shroud to exhaust heat into the case. A single 6-pin PCIe power connector is required, so most adequate power supplies handle it without adapters. Driver installation follows the standard NVIDIA GeForce Experience flow. The main issue builders encounter is restricted airflow in very tight chassis, which can raise temperatures under sustained load.

Highlights

  • 6 GB GDDR5 memory at 8008 MHz for smooth 1080p gaming
  • Boost clock reaches 1835 MHz for higher frame rates
  • 1280 CUDA cores accelerate rendering and compute tasks
  • Three DisplayPort 1.4, two HDMI 2.0b and one DVI-D drive four monitors
  • Compact 6.8-inch length fits small-form-factor builds

Specifications

BrandEVGA
Model06G-P4-6163-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060
Core Clock1607 MHz
Boost Clock1835 MHz
CUDA Cores1280
Effective Memory Clock8008 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI2 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerSingle Fan
Operating Systems SupportedWindows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit, Windows Vista 32/64bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power120W
System Requirements400W or greater power supply. PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
Power Connector6-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
FeaturesNVIDIA GameStream Technology NVIDIAG-SYNC Ready OpenGL 4.5 Support Simultaneous Multi-Projection VR Ready NVIDIA Ansel NVIDIA GPU Boost 3.0 Microsoft DirectX 12 Vulkan API PCI Express 3.0 Max Digital Resolution - 7680 x 4320 HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI Built for EVGA Precision XOC
Max GPU Length173 mm
Card Dimensions (L x H)6.80" x 4.38"
Slot Width2 Slots

Questions about this item

How often will the single ACX 2.0 fan need cleaning or replacement?

The single ACX 2.0 fan has no published service interval; dust it with compressed air when buildup appears and replace it only if bearing noise or vibration develops.

What thermal or power limit appears first during extended full-load sessions?

GPU Boost 3.0 targets the 1835 MHz boost clock until the card hits its power or temperature ceiling, whichever arrives first.

How loud and hot does the card get when running all day at 1835 MHz boost?

The single-fan ACX 2.0 cooler exhausts heat into the case; expect noticeable fan noise and rising GPU temperatures under continuous 1835 MHz operation.
