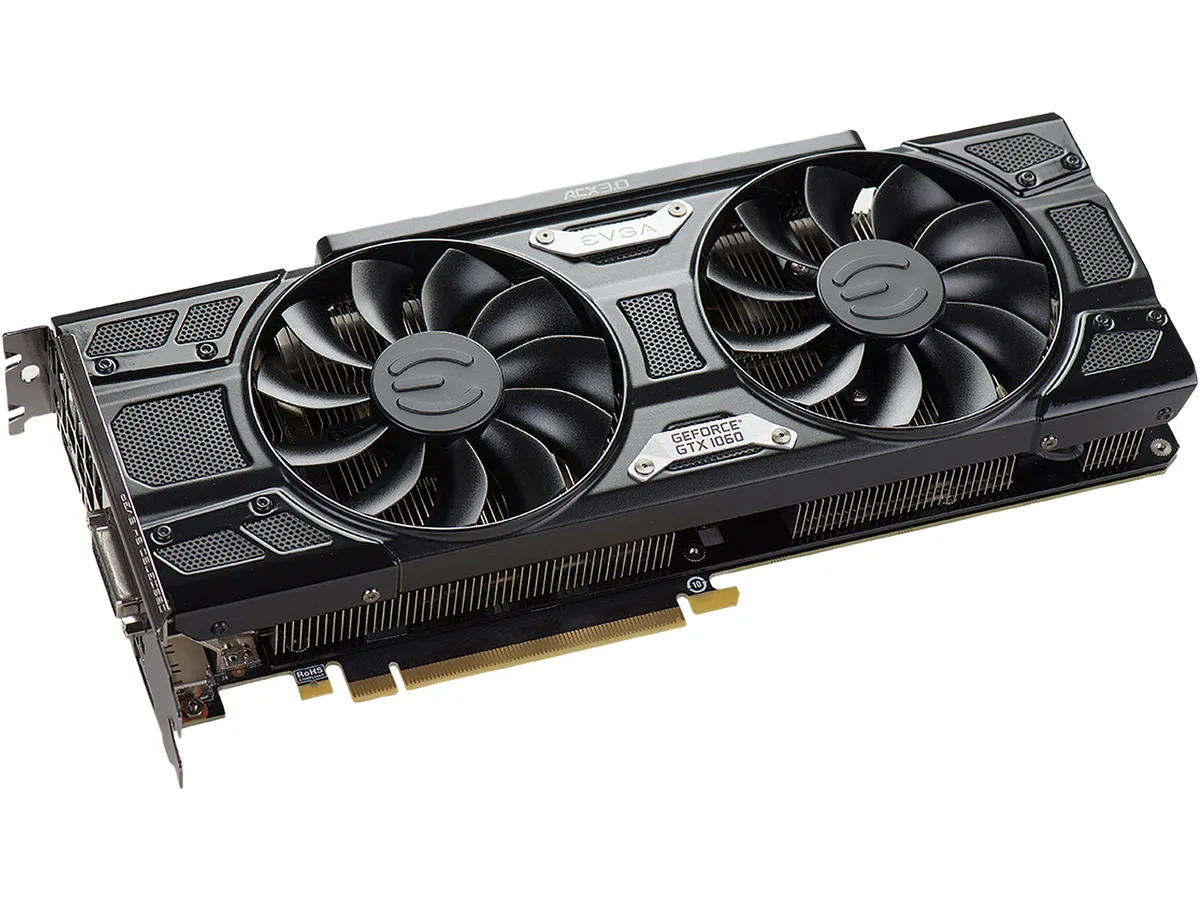

Compact dual-fan graphics card with black shroud and LED accent

EVGA

EVGA GeForce GTX 1060 SSC DT 06G-P4-6265-KR 6GB graphics card

SKU CH-02FQ-D49J2 MPN 06G-P4-6265-KR

6 GB GDDR5 graphics card with 1280 CUDA cores, boost clock of 1708 MHz, and HDMI 2.0b plus three DisplayPort 1.4 outputs for multi-monitor gaming

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060
  • Core Clock1506 MHz
  • Boost Clock1708 MHz

Option GTX 1060 SSC DT ACX 3.0

  • GTX 1060 ACX 2.0 Single
  • GTX 1060 ACX 3.0
  • GTX 1060 ACX Single
  • GTX 1060 FTW ACX 3.0
  • GTX 1060 FTW DT ACX 3.0
  • GTX 1060 FTW+ ACX 3.0
  • GTX 1060 FTW+ DT ACX 3.0
  • GTX 1060 SC ACX 2.0 Single
  • GTX 1060 SC ACX Single
  • GTX 1060 SSC ACX 3.0
  • GTX 1060 SSC ACX3.0
  • GTX 1060 SSC DT ACX 3.0

Struck-through versions exist but are not stocked here.

  • 6GB GDDR5 memory enables high-resolution textures
  • 1280 CUDA cores accelerate parallel workloads
  • Boost clock 1708 MHz lifts frame rates

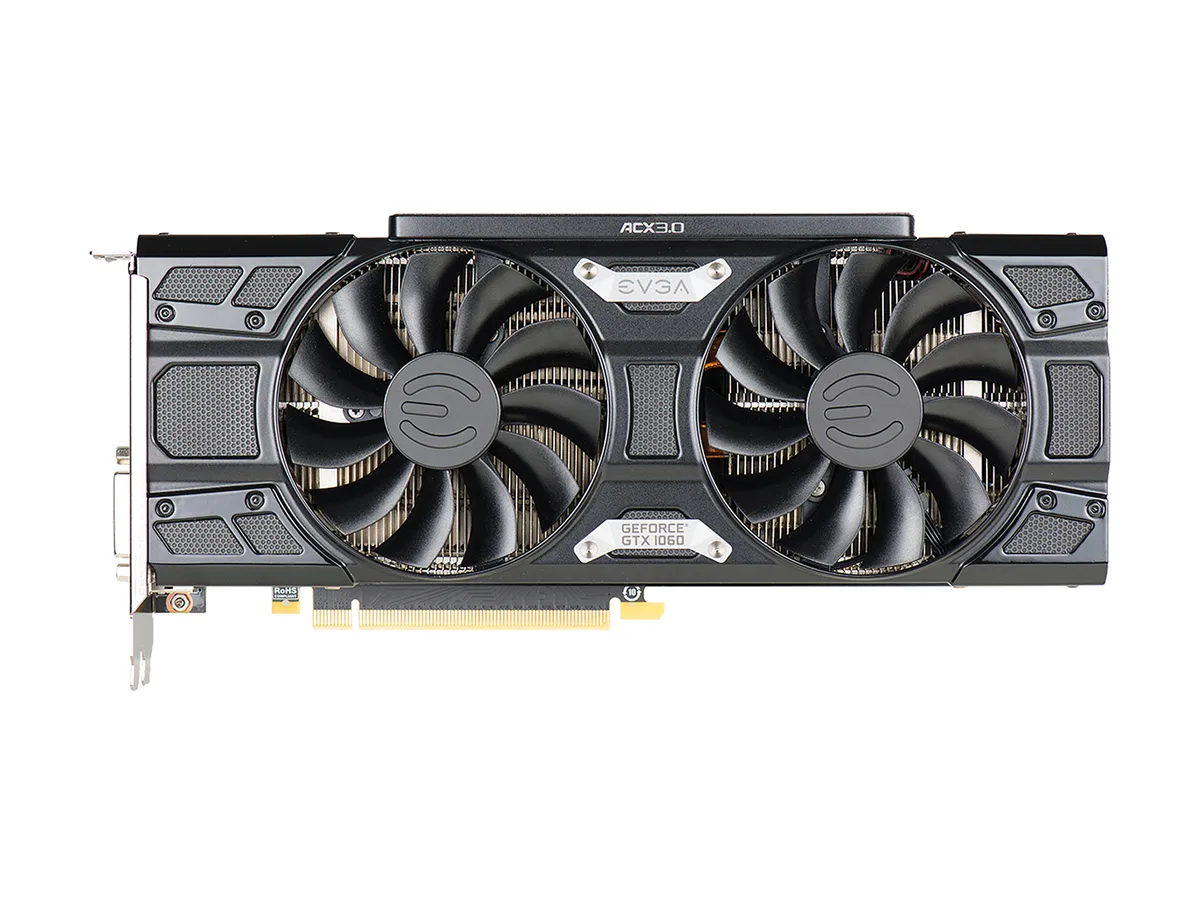

  • ACX 3.0 cooling with double ball bearings extends fan life
  • Four display outputs support multi-monitor setups

Target Gamer

The EVGA GeForce GTX 1060 SSC DT 06G-P4-6265-KR is a 6GB graphics card built for 1080p gaming. It uses the NVIDIA Pascal architecture with 1280 CUDA cores and a 1708 MHz boost clock. The ACX 3.0 cooler features double ball bearing fans for durability. It fits a standard PCI Express 3.0 slot.

Fit Check

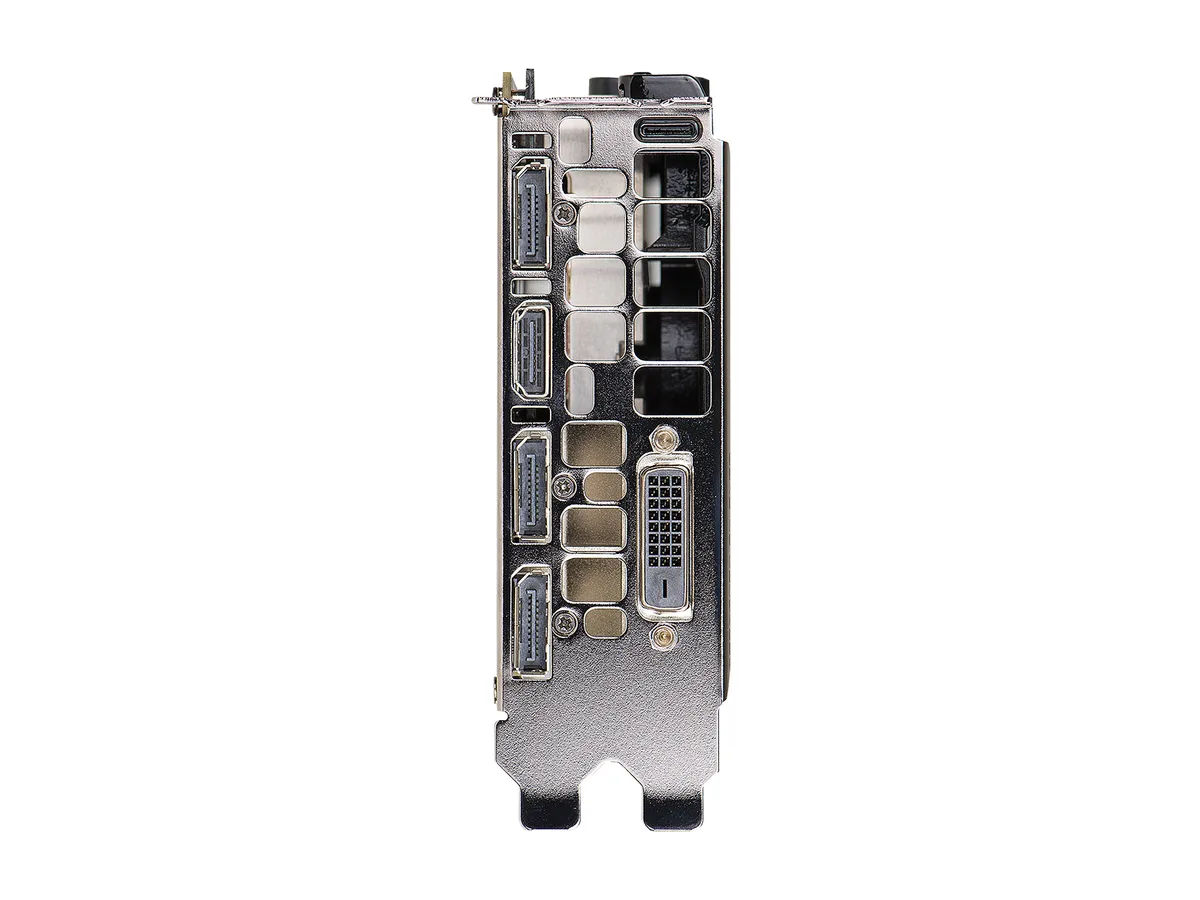

This card suits players wanting high frame rates in current titles at 1080p or smooth VR experiences. It supports up to four monitors via HDMI 2.0b, three DisplayPort 1.4 outputs and a Dual-Link DVI-D port. Buyers needing 4K60 gaming, ray tracing or more than 6GB VRAM should consider a higher tier.

Deciding Spec

The 6GB GDDR5 frame buffer on a 192-bit bus sets the practical limit for texture quality and resolution. Combined with 1280 CUDA cores at 1708 MHz boost, it defines the 1080p sweet spot. If your workload demands more memory bandwidth or capacity, this is not the right part.

Highlights

  • 6GB GDDR5 memory enables high-resolution textures
  • 1280 CUDA cores accelerate parallel workloads
  • Boost clock 1708 MHz lifts frame rates
  • ACX 3.0 cooling with double ball bearings extends fan life
  • Four display outputs support multi-monitor setups

Specifications

BrandEVGA
Model06G-P4-6265-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060
Core Clock1506 MHz
Boost Clock1708 MHz
CUDA Cores1280
Effective Memory Clock8008 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 10 32/64-bit
Windows 8 32/64-bit
Windows 7 32/64-bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power120W
System RequirementsMinimum of a 400-Watt power supply
One available 8-pin PCI-E power connector
Total Power Draw: 120 Watts
Power Connector8-Pin
Dual-Link DVI SupportedYes
FeaturesNVIDIA GameStream Technology
NVIDIA G-SYNC Ready
OpenGL 4.6 Support
Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel
NVIDIA GPU Boost 3.0
Microsoft DirectX 12 API
Vulkan API
PCI Express 3.0
Max Digital Resolution - 7680x4320
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
Built for EVGA Precision XOC
EVGA ACX 3.0 Cooling
Max GPU Length267 mm
Card Dimensions (L x H)10.50" x 4.38"
Slot Width2 Slots
Shipping weight1.09 kg
Package size328 × 244 × 74 mm

Questions about this item

What slot and bracket space does the 06G-P4-6265-KR require?

It fits a PCI Express 3.0 x16 slot and uses a dual-slot bracket.

How is the card installed and what step is often missed?

Insert the card into the PCI Express 3.0 slot until it clicks, then secure the bracket screw; the step often missed is connecting the required PCIe power cable.

What maintenance will the ACX 3.0 cooler need later?

The double ball bearing fans are rated for longer life; clean dust from the heatsink fins and fan blades periodically with compressed air.
