EVGA GeForce GTX 1080 FTW graphics card with silver and black triple-fan cooler and RGB LED lighting

EVGA

EVGA GeForce GTX 1080 FTW 08G-P4-6286-KR graphics card

SKU CH-N611-2CPVZ

GeForce GTX 1080 graphics card with 8 GB GDDR5X, 2560 CUDA cores, boost clock of 1860 MHz and four display outputs

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1080
  • Core Clock1721 MHz
  • Boost Clock1860 MHz
  • 8 GB GDDR5X memory for high-bandwidth 4K gaming
  • Boost clock reaches 1860 MHz for strong frame rates
  • 2560 CUDA cores accelerate compute and shading workloads
  • Four-display output via HDMI 2.0b and three DisplayPort 1.4 connectors
  • Dual BIOS and 10 power phases add overclocking headroom

EVGA GeForce GTX 1080 FTW 8GB GDDR5X

This EVGA graphics card uses the NVIDIA GeForce GTX 1080 GPU with 8GB of GDDR5X memory on a 256-bit interface. It targets enthusiasts who want high frame rates at 1440p or 4K and support for VR headsets. The card runs at a 1721 MHz base clock and a 1860 MHz boost clock across 2560 CUDA cores. It fits builds that need strong DirectX 12 and OpenGL 4.5 performance.

Check PCIe 3.0 x16 slot and power connectors

Verify your motherboard has a free PCI Express 3.0 x16 slot for the interface. Ensure the power supply delivers enough wattage and the required PCIe power cables for the 10 power phase design. Confirm the case length and height clearance can accommodate a full-height, dual-slot card with a triple-fan cooler. Check that your monitor cables match the available outputs before installing.

Dual BIOS and four display outputs

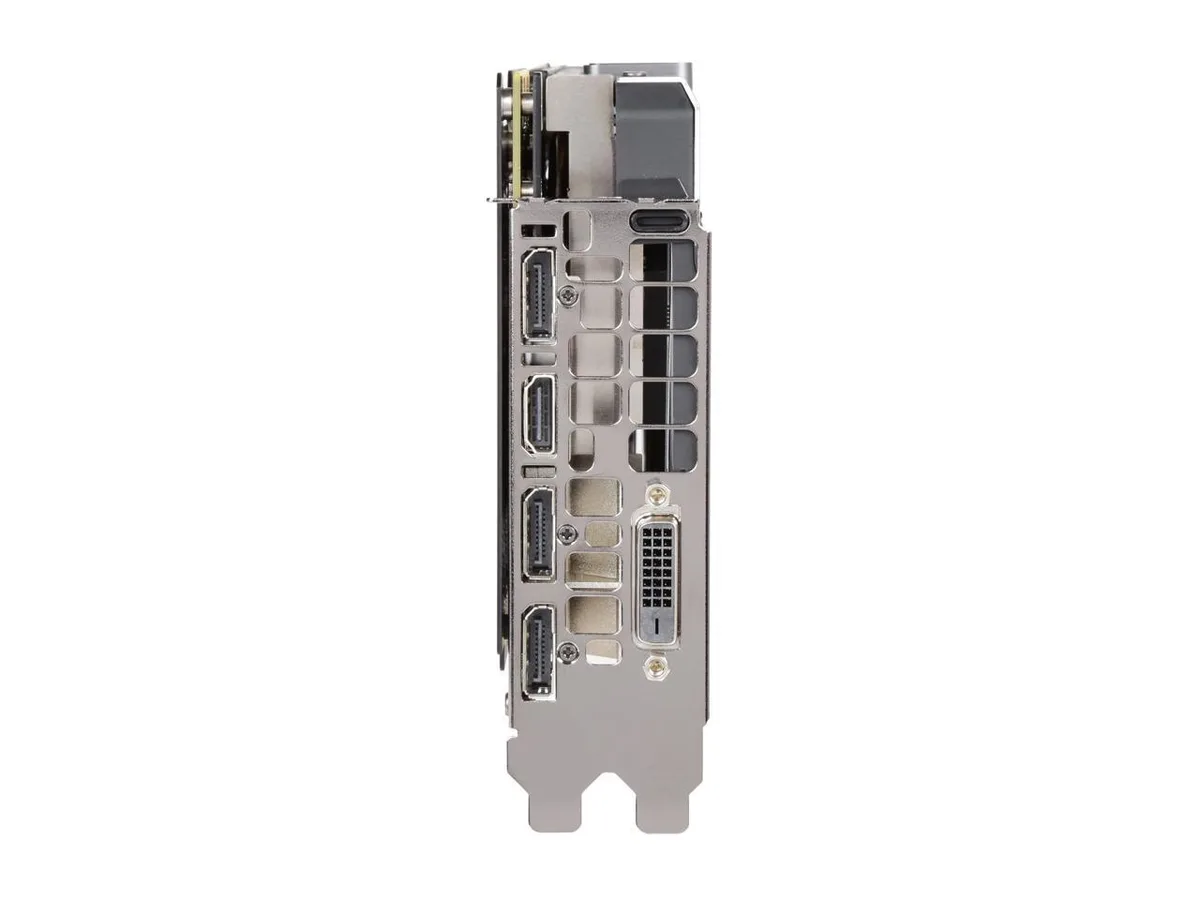

A Dual BIOS switch lets you toggle between firmware profiles without opening the case. The I/O bracket provides one HDMI 2.0b, three DisplayPort 1.4, and one Dual-Link DVI-D connector for up to four simultaneous displays. Maximum digital resolution reaches 7680 x 4320 at 60 Hz. The metal backplate adds rigidity and helps dissipate heat from the memory modules.

Highlights

  • 8 GB GDDR5X memory for high-bandwidth 4K gaming
  • Boost clock reaches 1860 MHz for strong frame rates
  • 2560 CUDA cores accelerate compute and shading workloads
  • Four-display output via HDMI 2.0b and three DisplayPort 1.4 connectors
  • Dual BIOS and 10 power phases add overclocking headroom

Specifications

BrandEVGA
Model08G-P4-6286-KR
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1080
Core Clock1721 MHz
Boost Clock1860 MHz
CUDA Cores2560
Effective Memory Clock10000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR5X
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x DVI
Max Resolution7680 x 4320
SLI Support2-Way SLI
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power180W
System Requirements500W or greater power supply.
Power Connector2 x 8-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
Max GPU Length267 mm
Card Dimensions (L x H)10.50" x 5.06"
Slot Width2 Slots

Questions about this item

Does the EVGA GeForce GTX 1080 FTW 08G-P4-6286-KR include a backplate or power cables in the box?

The card ships with the graphics board, a driver disc and a quick-start guide. A metal backplate is not included. Power cables must come from your PSU; the board requires one 8-pin and one 6-pin PCIe connector.

Is the 8 GB GDDR5X frame buffer on this GTX 1080 sufficient for 4K gaming?

The 8 GB 256-bit GDDR5X memory running at 10000 MHz provides enough bandwidth for most 4K titles at high settings, though very heavy texture packs may benefit from more VRAM.

What does the 1860 MHz boost clock mean once the card is installed in my system?

GPU Boost 3.0 will raise the core toward 1860 MHz when power, temperature and workload allow. Actual sustained clocks depend on case airflow, PSU quality and the specific game load.
