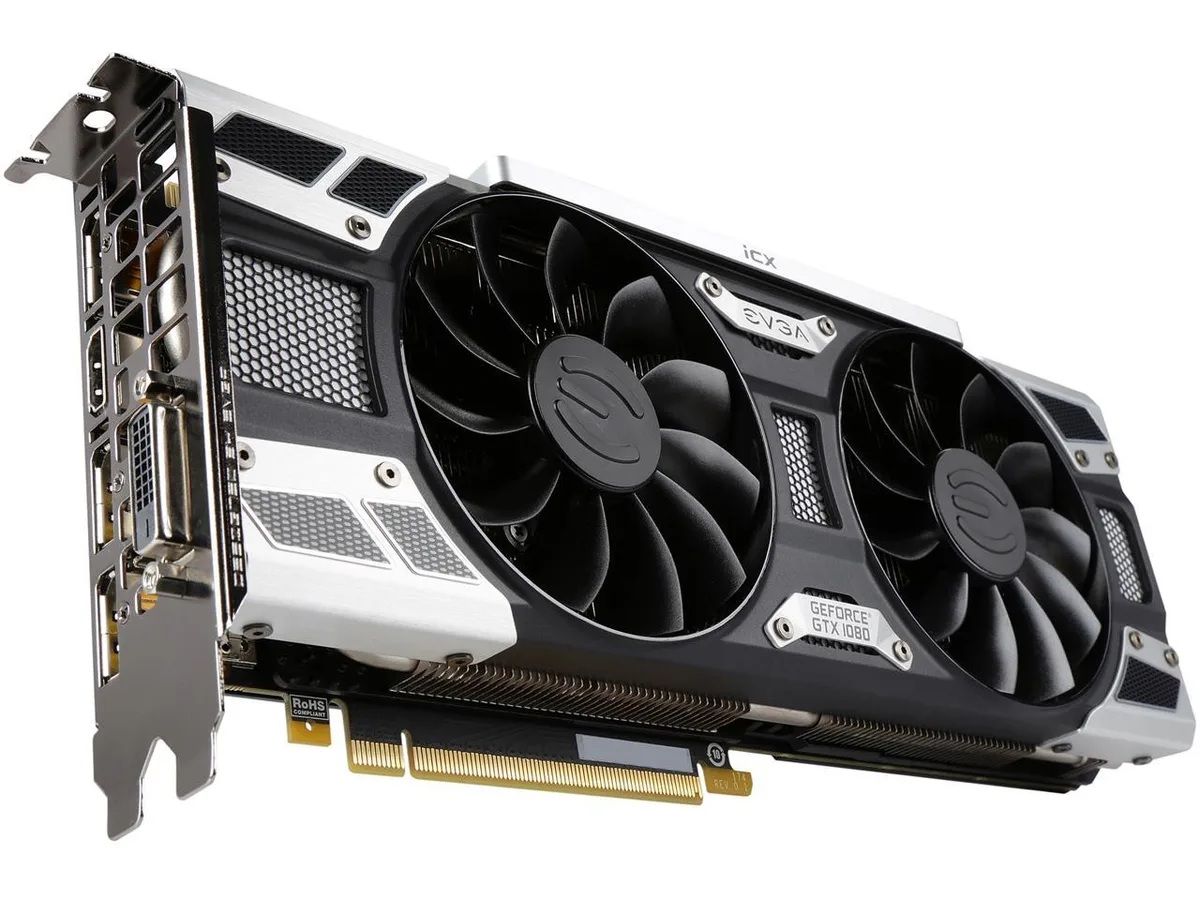

EVGA GeForce GTX 1080 graphics card with dual-fan cooler, metal backplate and silver finish

EVGA

EVGA GeForce GTX 1080 SC2 GAMING iCX 08G-P4-6583-KR 8GB GDDR5X graphics card

SKU CH-BVYB-6KAVC

GeForce GTX 1080 graphics card with 8 GB GDDR5X, 2560 CUDA cores, boost clock 1847 MHz and EVGA iCX cooling with nine thermal sensors

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1080
  • Core Clock1708 MHz
  • Boost Clock1847 MHz
  • 9 thermal sensors enable precise component monitoring
  • 11 global patents reflect the iCX cooling architecture
  • 1847 MHz boost clock delivers strong 1080p and 1440p performance
  • 8 GB GDDR5X on a 256-bit bus supports high-resolution textures
  • 4 simultaneous displays via HDMI 2.0b and 3 DisplayPort 1.4 outputs

EVGA GTX 1080 SC2 iCX 8GB

The EVGA GeForce GTX 1080 SC2 GAMING iCX is an 8GB graphics card built for enthusiasts who want detailed thermal feedback. It uses the NVIDIA GeForce GTX 1080 GPU with 2560 CUDA cores and a 256-bit GDDR5X memory interface. Core clock runs at 1708 MHz with a boost clock of 1847 MHz. The card supports DirectX 12 and OpenGL 4.6 for modern gaming workloads.

Build Fit PCIe 3.0 x16 SLI Ready

This card installs into a PCI Express 3.0 x16 slot and draws power through the standard connectors for the GTX 1080 class. It provides one HDMI 2.0b port, three DisplayPort 1.4 outputs and one Dual-Link DVI-D connector to drive up to four monitors at 7680 x 4320 resolution. SLI Ready certification allows pairing with a second card using an HB Bridge for multi-GPU scaling. The die-cast baseplate and backplate add structural rigidity inside the chassis.

iCX Cooling 9 Sensors Asynchronous Fans

EVGA iCX technology embeds nine thermal sensors across the PCB to monitor GPU, memory and power components independently. Asynchronous fan control adjusts each fan speed based on the nearest sensor data rather than a single GPU reading. Purpose-directed airflow chambers and the optimized fin design move heat away from critical zones. The thermal display LED system gives a visual indication of zone temperatures during operation.

Highlights

  • 9 thermal sensors enable precise component monitoring
  • 11 global patents reflect the iCX cooling architecture
  • 1847 MHz boost clock delivers strong 1080p and 1440p performance
  • 8 GB GDDR5X on a 256-bit bus supports high-resolution textures
  • 4 simultaneous displays via HDMI 2.0b and 3 DisplayPort 1.4 outputs

Specifications

BrandEVGA
Model08G-P4-6583-KR
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1080
Core Clock1708 MHz
Boost Clock1847 MHz
CUDA Cores2560
Effective Memory Clock10010 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR5X
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
Max Resolution7680 x 4320
SLI SupportSLI Ready
Virtual Reality ReadyYes
CoolerDouble Fans
Operating Systems SupportedWindows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power180W
System RequirementsMinimum of a 500W power supply One available 8-pin PCI-E power dongle Total Power Draw: 180W
Power Connector8-Pin
Dual-Link DVI SupportedYes
FeaturesSimultaneous Multi-Projection VR Ready NVIDIA Ansel NVIDIA SLI w/ HB Bridge Support NVIDIA G-SYNC NVIDIA GameStream NVIDIA GPU Boost 3.0 Microsoft DirectX 12 API Vulkan API OpenGL 4.6 Support HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI Built for EVGA Precision XOC Asynchronous Fans GPU / Memory / PWM Thermal Status Indicator LEDs New vented heatsink fin design and pin fins for optimized airflow Safety fuse to protect components from damage due to improper installation or other component failures Redesigned cooling with L-shaped contact fins to improve contact surface area for better
Max GPU Length267 mm
Card Dimensions (L x H)10.50" x 4.38"

Questions about this item

What core-clock speed limits the GTX 1080 SC2 under sustained load?

The base core clock is 1708 MHz; the GPU Boost 3.0 clock reaches 1847 MHz and will hold that frequency until power or thermal limits engage.

How do the nine thermal sensors and asynchronous fans behave during all-day operation?

Nine onboard sensors feed EVGA iCX technology, letting each fan zone spin independently so hotspots stay cool without unnecessary noise.

Which power connectors must my PSU already provide for this card?

The card draws auxiliary power through standard PCIe 6-pin and 8-pin connectors; verify your supply has both cables before installing.
