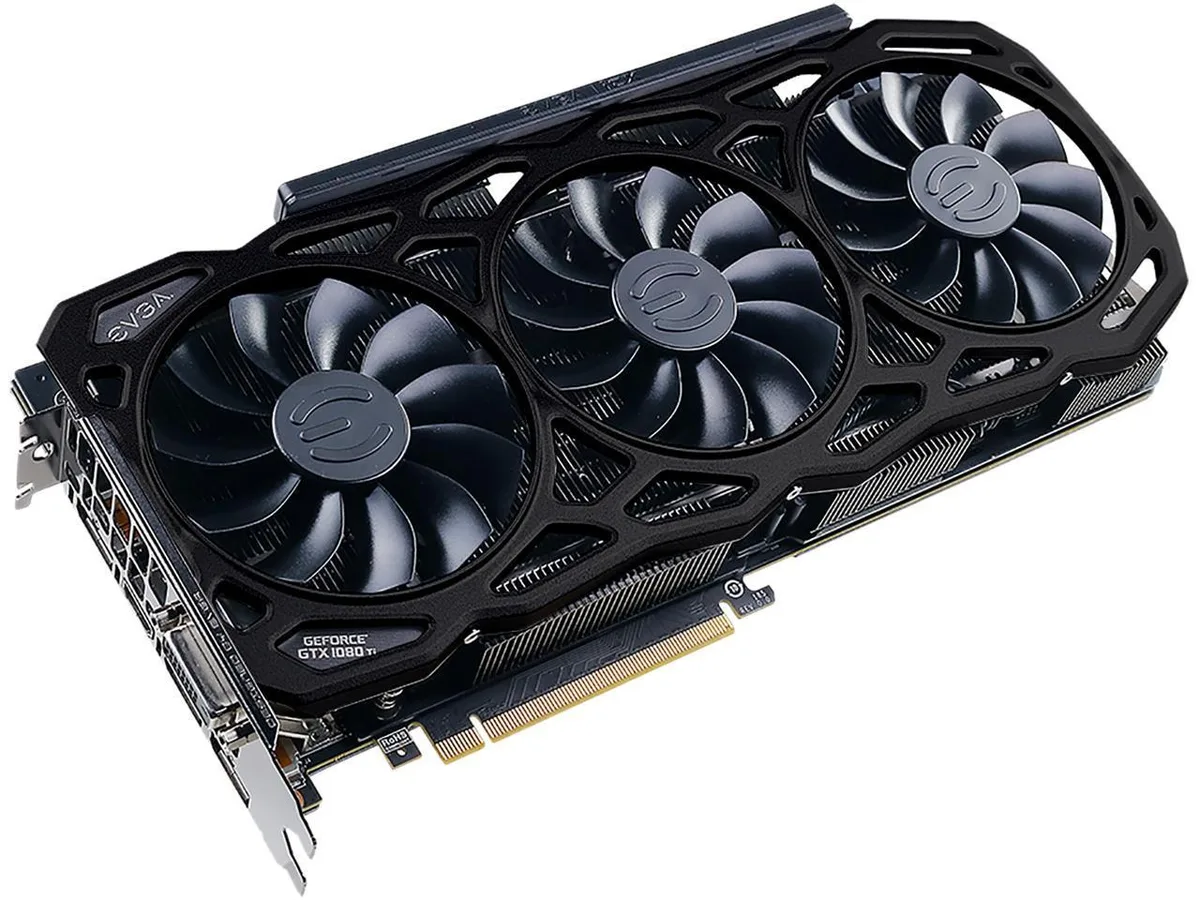

Black triple-fan graphics card with RGB lighting, metal backplate and three DisplayPort outputs

EVGA

EVGA GeForce GTX 1080 Ti FTW3 Elite 11G-P4-6796-K3 graphics card

SKU CH-4XSB-3YR0C MPN 11G-P4-6796-K3

Triple-fan graphics card with 11 GB GDDR5X on a 352-bit bus, 3584 CUDA cores, boost clock 1683 MHz and HDMI 2.0b plus three DisplayPort 1.4 outputs for 7680 x 4320 resolution

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1080 Ti
  • Core Clock1569 MHz
  • Boost Clock1683 MHz
  • 11GB GDDR5X memory on a 352-bit bus feeds high-resolution textures
  • 3584 CUDA cores and a 1683 MHz boost clock drive demanding compute workloads
  • iCX cooling with nine thermal sensors keeps temperatures stable under load

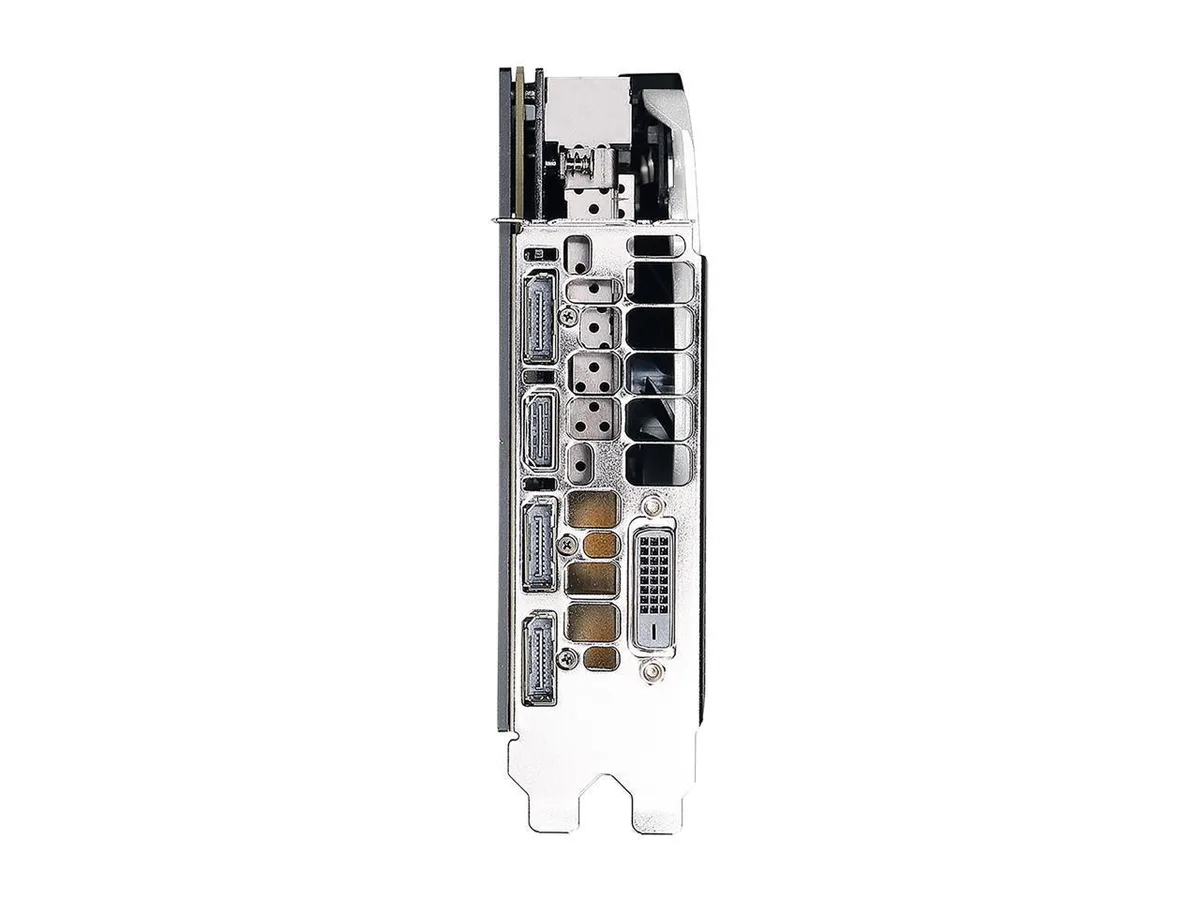

  • HDMI 2.0b plus three DisplayPort 1.4 outputs support four simultaneous displays
  • VR-ready design with SLI HB bridge support enables multi-GPU scaling

EVGA GTX 1080 Ti FTW3 Elite 11GB

This EVGA GeForce GTX 1080 Ti FTW3 Elite graphics card delivers 11GB of GDDR5X memory on a 352-bit interface. It targets enthusiasts and professionals who need high frame rates at 4K resolution or smooth VR experiences. The PCI Express 3.0 board fits standard ATX systems with a 600W power supply and two 8-pin connectors.

Sustained load behaviour

The iCX cooling system uses nine thermal sensors to monitor GPU, memory and VRM zones independently. Three fans adjust speed per zone so temperatures stay controlled during extended gaming or compute sessions. A 1683 MHz boost clock is maintained longer because heat is spread across the full heatsink rather than spiking in one area.

Deciding specification

The 11GB GDDR5X frame buffer at 11016 MHz effective clock decides if this card fits your workload. That capacity and bandwidth combination handles 7680 x 4320 output and large texture sets without paging to system memory. If your application needs more VRAM, you must look at a different GPU tier.

Highlights

  • 11GB GDDR5X memory on a 352-bit bus feeds high-resolution textures
  • 3584 CUDA cores and a 1683 MHz boost clock drive demanding compute workloads
  • iCX cooling with nine thermal sensors keeps temperatures stable under load
  • HDMI 2.0b plus three DisplayPort 1.4 outputs support four simultaneous displays
  • VR-ready design with SLI HB bridge support enables multi-GPU scaling

Specifications

BrandEVGA
Model11G-P4-6796-K2
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1080 Ti
Core Clock1569 MHz
Boost Clock1683 MHz
CUDA Cores3584
Effective Memory Clock11016 MHz
Memory Size11GB
Memory Interface352-Bit
Memory TypeGDDR5X
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x Dual-Link DVI
Max Resolution7680 x 4320
SLI Support2-Way SLI
Virtual Reality ReadyYes
CoolerTriple Fans
Operating Systems SupportedWindows 10 32/64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power250W
System Requirements600W or greater power supply.
PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
Power Connector2 x 8-Pin or 2 x 6+2-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
FeaturesEVGA's first ever 3 fan design for optimal cooling.
With EVGA's new iCX technology, users can have a better understanding of their cards operation. This includes temperature monitoring on key components (not just GPU), interaction with other devices and better cooling with asynchronous fan control providing better overclocking capabilities.
Peace of Mind Gaming
- 9 additional temp sensors to monitor memory and PWN
- Asynchronous Fan Control improves cooling efficiency while reducing fan noise
- Full control with EVGA Precision XOC
- Safety fuse to protect components from damage due t
Max GPU Length300 mm
Card Dimensions (L x H)11.80" x 5.62"
Slot Width2 Slots

Questions about this item

How loud and hot does the triple-fan iCX cooler run on this 1080 Ti FTW3 Elite during all-day loads?

The card uses EVGA iCX technology with nine thermal sensors and three fans to manage heat from the 1683 MHz boost clock and 11 GB GDDR5X memory; fan curves ramp up under sustained load but stay within the 600 W PSU budget.

What power connectors and motherboard slot must my system already have for this 1080 Ti FTW3 Elite?

You need a PCI Express 3.0 x16 slot and two 8-pin or 6+2-pin PCIe power cables from a 600 W or larger supply to feed the 1569 MHz base and 1683 MHz boost clocks.

Will my older Dual-Link DVI monitor work alongside newer DisplayPort screens on this 1080 Ti FTW3 Elite?

Yes — the card provides one Dual-Link DVI, one HDMI 2.0b and three DisplayPort 1.4 outputs, supporting up to four simultaneous displays at 7680 x 4320 max resolution.
