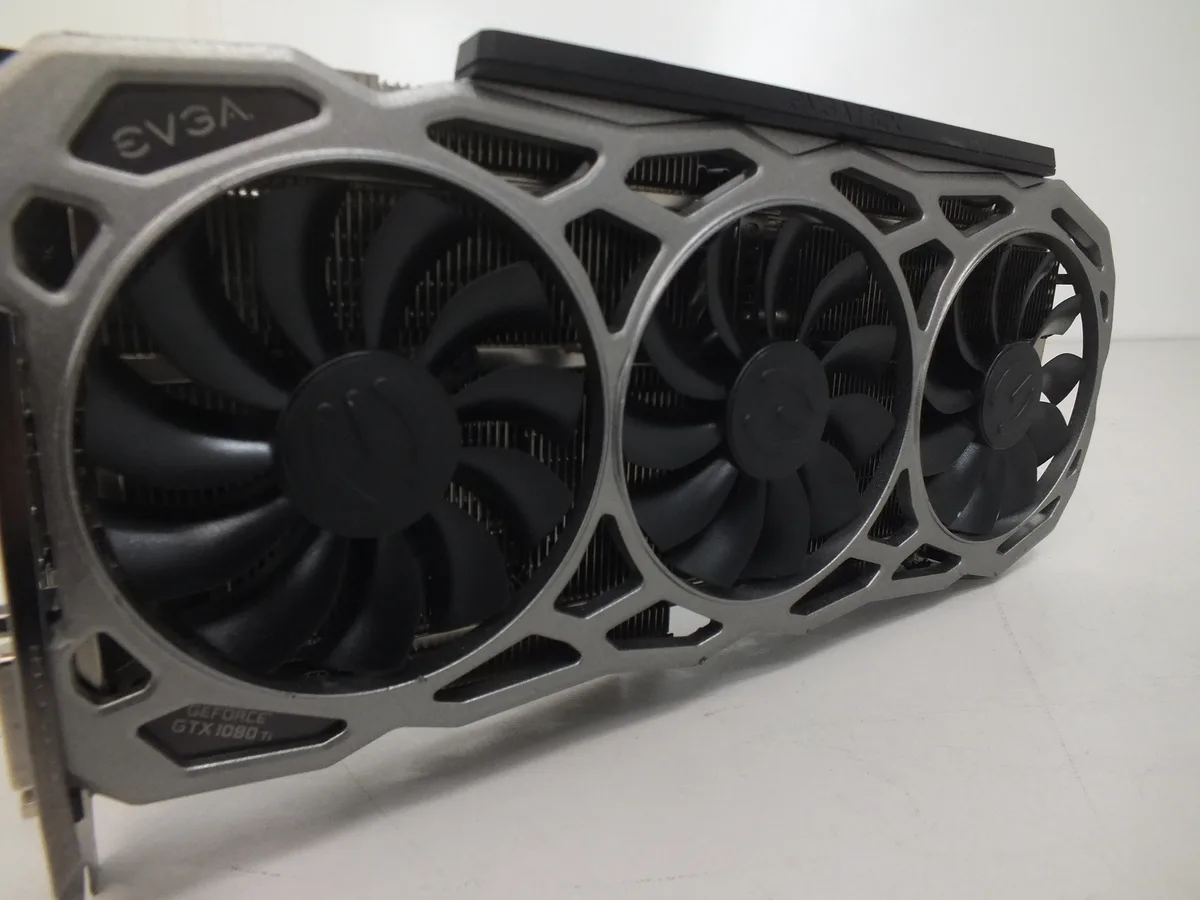

Triple-fan graphics card with silver shrool, black backplate and RGB lighting

EVGA

EVGA GeForce GTX 1080 Ti FTW3 Gaming 11GB graphics card

SKU CH-JY2J-D5T64

Delivers 3584 CUDA cores at 1683 MHz boost with 11 GB GDDR5X on a 352-bit bus for 4K and multi-monitor gaming

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1080 Ti
  • Core Clock1596MHz
  • Boost Clock1683MHz
  • 11 GB GDDR5X memory drives high-resolution textures
  • 3584 CUDA cores accelerate compute-heavy workloads
  • Boost clock reaches 1683 MHz for responsive frame rates
  • iCX Technology with nine thermal sensors balances cooling per zone

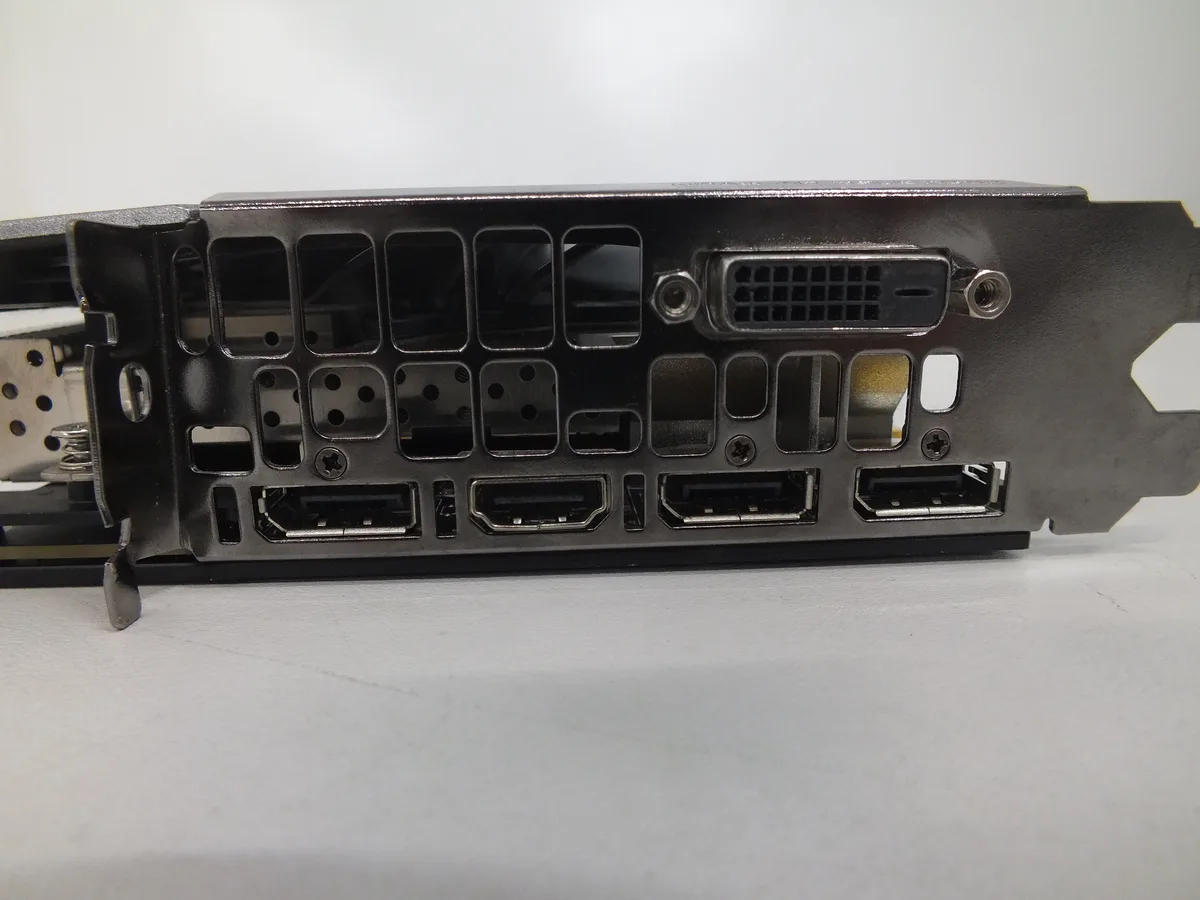

  • Four-display support via HDMI 2.0b, three DisplayPort 1.4 and DVI-D

Target build and core specs

The EVGA GeForce GTX 1080 Ti FTW3 Gaming is a full-size graphics card built for enthusiasts who need high frame rates at 1440p or 4K. It uses the NVIDIA GeForce GTX 1080 Ti GPU with 3584 CUDA cores and 11GB of GDDR5X memory on a 352-bit bus. The card connects through a PCI Express 3.0 slot and outputs to four displays via HDMI 2.0b, three DisplayPort 1.4 connectors and a Dual-Link DVI-D port. Base clock sits at 1569 MHz with a boost of 1683 MHz.

Thermals and noise in normal use

EVGA iCX Technology places nine additional thermal sensors on the memory and VRM areas to drive three asynchronous fans independently. A vented heatsink with L-shaped contact fins increases surface area for better heat transfer while a safety fuse protects components from installation faults. In typical desktop or light gaming workloads the fans often stop or spin slowly, keeping acoustic output low and power draw modest. Thermal status LEDs on the card show GPU, memory and PWM zones at a glance.

Sustained load behaviour

Under prolonged heavy loads the asynchronous fans ramp up individually to match the hottest zones, preventing localised heat soak on the VRM and memory. The redesigned fin stack and pin fins maintain airflow through the heatsink so clocks remain stable near the 1683 MHz boost figure rather than throttling after a short burst. Drivers expose GPU Boost 3.0, DirectX 12 and Vulkan API support for consistent performance in extended gaming or compute sessions.

Highlights

  • 11 GB GDDR5X memory drives high-resolution textures
  • 3584 CUDA cores accelerate compute-heavy workloads
  • Boost clock reaches 1683 MHz for responsive frame rates
  • iCX Technology with nine thermal sensors balances cooling per zone
  • Four-display support via HDMI 2.0b, three DisplayPort 1.4 and DVI-D

Specifications

BrandEVGA
Model11G-p4-6696-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1080 Ti
Core Clock1596MHz
Boost Clock1683MHz
CUDA Cores3584
Effective Memory Clock11016 MHz
Memory Size11GB
Memory Interface352-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
SLI SupportSLI Ready
Virtual Reality ReadyYes
CoolerTriple Fans
Power Connector2 x 8-Pin or 6+2-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
Features600 Watts or greater power supply. PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
Slot Width2 Slots
Package ContentsVIDEO CARD COMES IN RETAIL BOX WITH PICTURED ACCESSORIES ONLY! IF IT'S NOT PICTURED => IT'S NOT INCLUDED! HARDWARE USED FOR TESTING (CPU, Motherboard, Monitor, RAM, PSU, etc.) IS NOT INCLUDED! OUTER BOX IS A BIT TORN AND HAS RESIDUE FORM REMOVED STICKERS/LABELS => SEE IMAGES!

Questions about this item

How do I install the EVGA GeForce GTX 1080 Ti FTW3 Gaming into a PCI Express 3.0 slot, and what step is often missed?

Seat the card firmly until the retention bracket clicks, then attach both 8-pin power connectors; the step most often missed is connecting the second 8-pin plug, which leaves the 3584 CUDA cores underpowered.

What maintenance will the iCX cooling system with its 9 thermal sensors need later?

Use compressed air to clear dust from the vented heatsink fin design and pin fins every few months; the asynchronous fan control relies on clean airflow paths to keep GPU, memory and VRM temperatures in check.

What limit appears first during sustained loads on the 11GB GDDR5X frame buffer?

The 352-bit memory interface running at 11016 MHz effective clock becomes the bottleneck before the 1683 MHz boost clock, capping throughput in extended 7680 x 4320 workloads.
