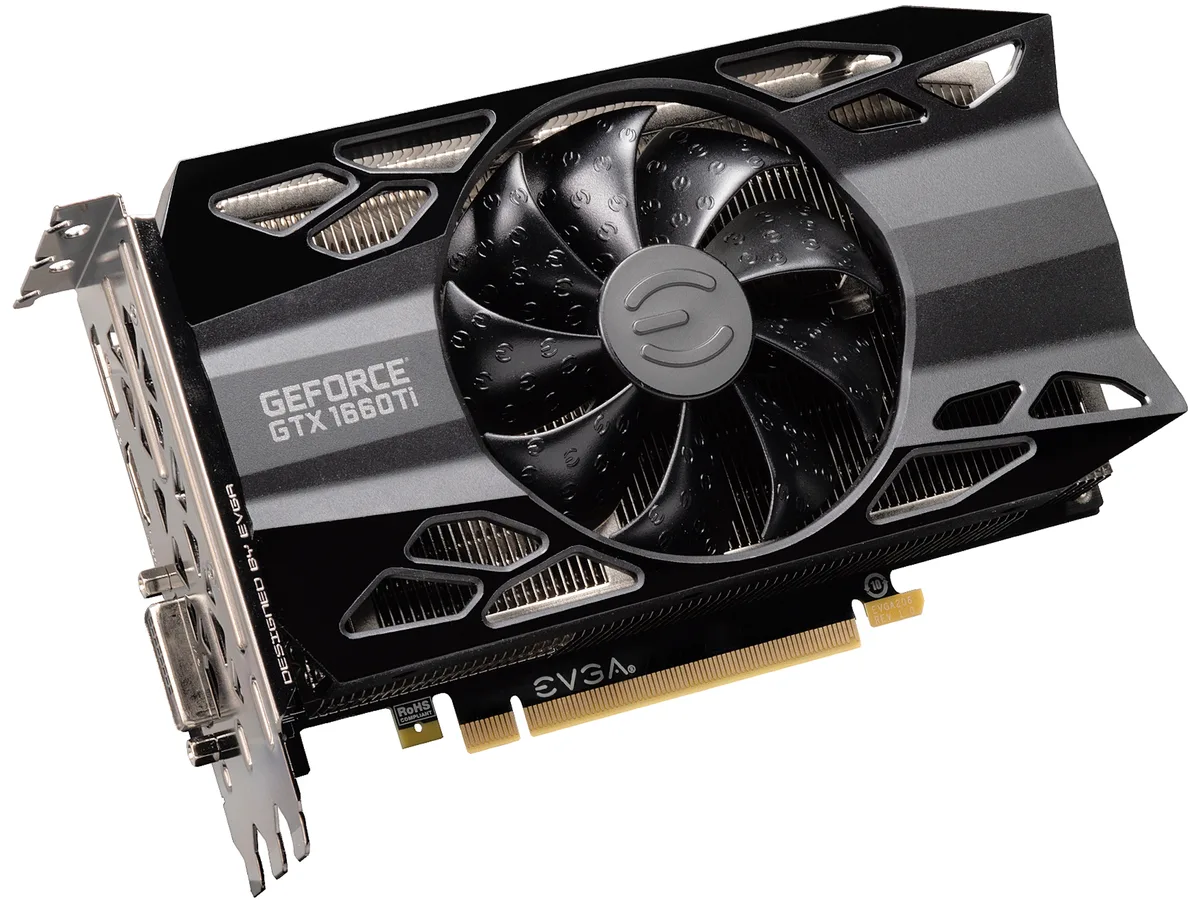

Black dual-slot graphics card with single HDB fan and metal backplate

EVGA

EVGA GeForce GTX 1660 Ti XC Black 06G-P4-1261-KR 6GB GDDR6 graphics card

SKU CH-BHH8-DYG7A MPN 06G-P4-1261-KR

Refurbished GTX 1660 Ti graphics card with 6 GB GDDR6, 1536 CUDA cores and a single HDB fan for quiet cooling

  • InterfacePCI Express 3.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 16 Series
  • GPUGeForce GTX 1660 Ti
  • Boost Clock1770 MHz
  • CUDA Cores1536
  • 6 GB GDDR6 memory delivers high bandwidth for 1080p gaming
  • Boost clock of 1770 MHz provides strong single-threaded performance
  • Single HDB fan runs cooler and quieter under load

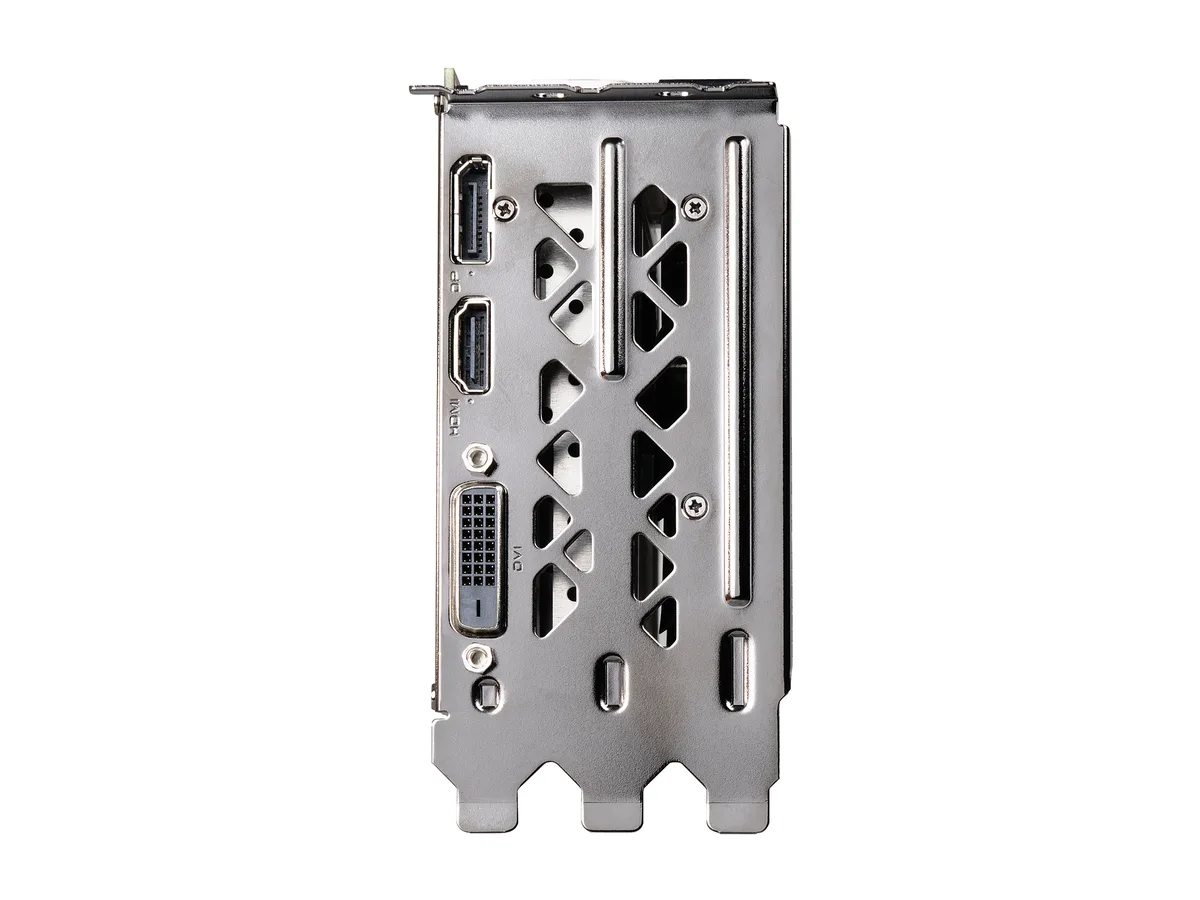

  • Three video outputs — HDMI 2.0b, DisplayPort 1.4, Dual-Link DVI-D — drive up to three monitors
  • EVGA Precision X1 utility enables detailed monitoring and overclocking control

Refurbished GTX 1660 Ti 6GB

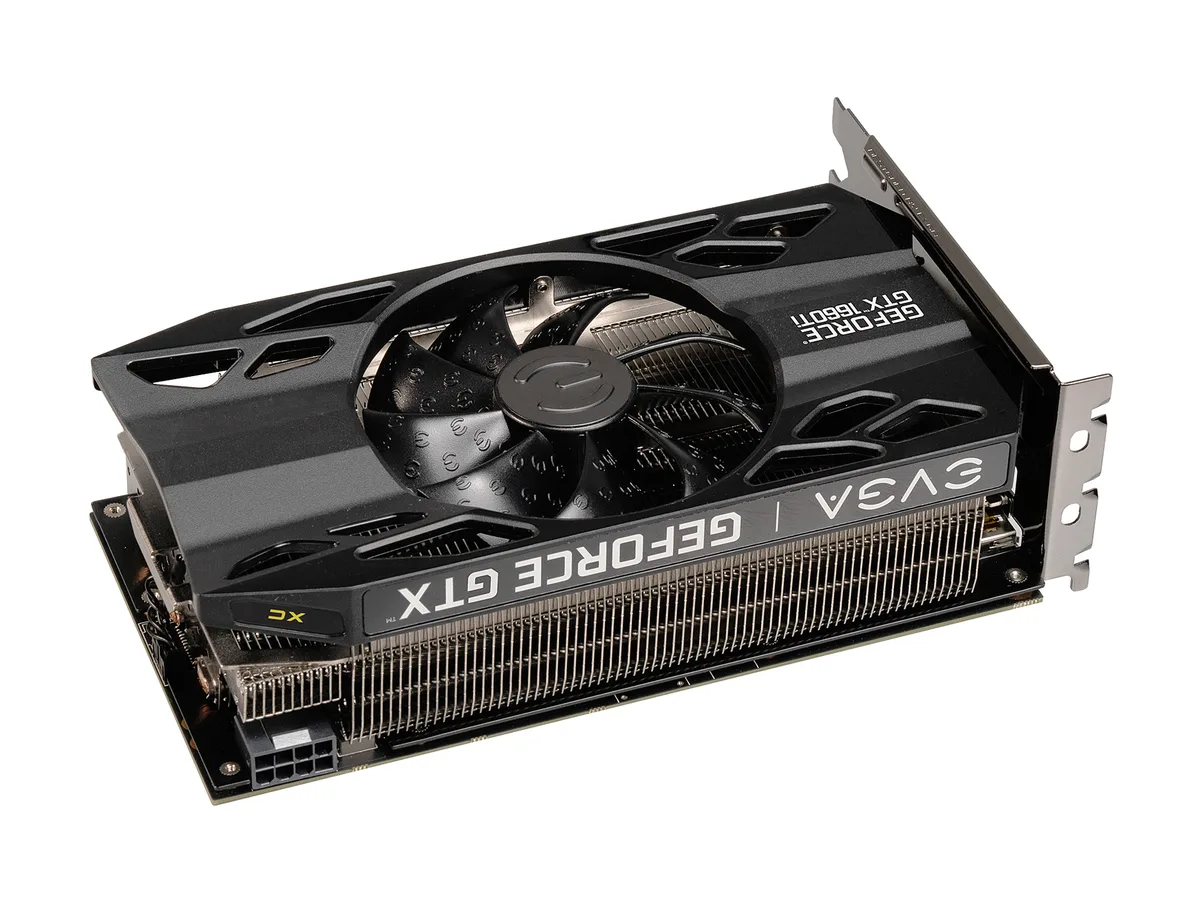

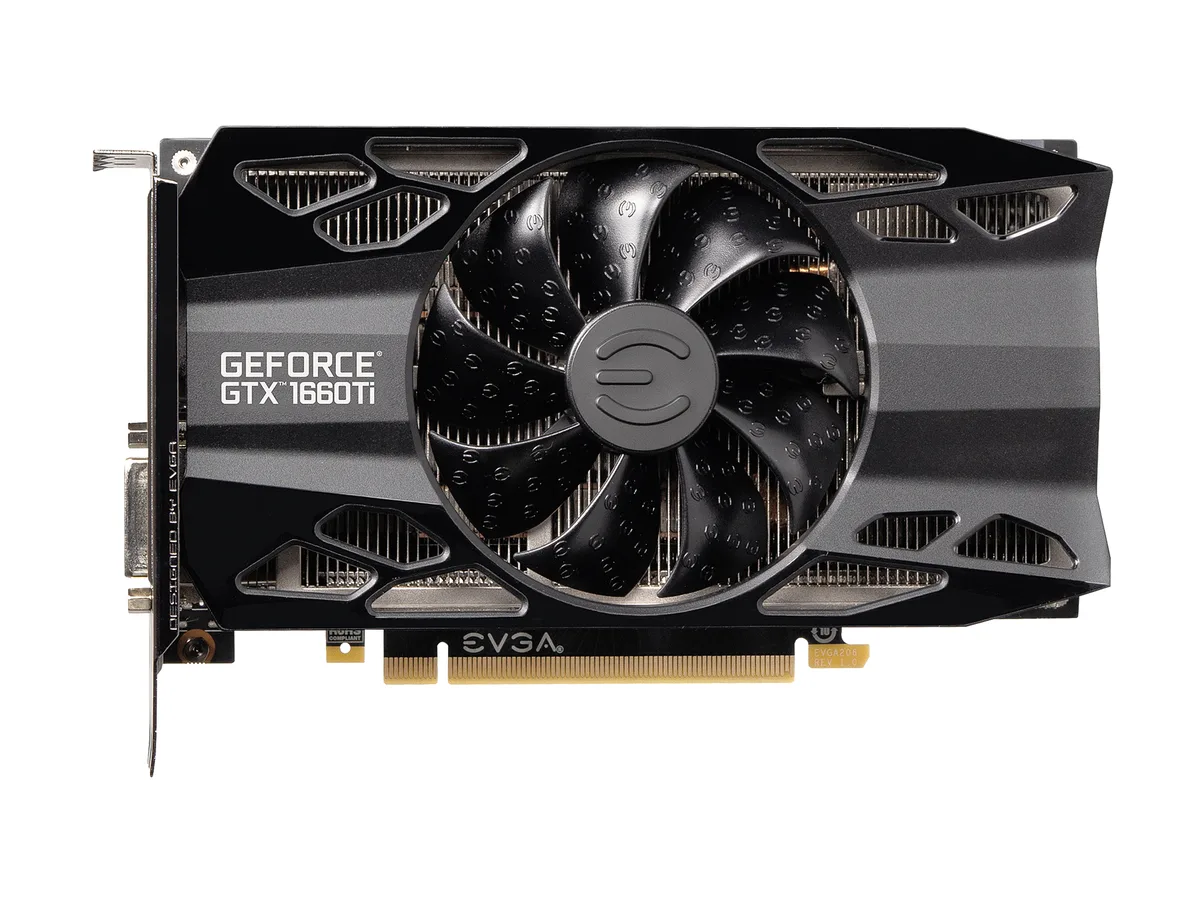

This refurbished EVGA GeForce GTX 1660 Ti XC Black graphics card delivers 1536 CUDA cores and 6GB of GDDR6 memory on a 192-bit interface. It connects through a PCI Express 3.0 slot and supports three simultaneous displays via HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI-D. The single HDB fan cooler keeps thermals in check while running quietly.

Upgrade from older GTX cards

Moving up from an earlier GTX model brings a boost clock of 1770 MHz and the Turing architecture’s improved performance per watt. The 12000 MHz effective memory clock lifts bandwidth for 1080p and 1440p gaming without requiring a new power supply or platform. The jump is worthwhile when your current card limits frame rates in modern titles or lacks the display outputs you need.

Build fit and requirements

The card fits a standard plug-in card form factor and needs a PCIe 3.0 x16 slot plus adequate case airflow for the single fan. It draws power from the slot and a single auxiliary connector, freeing up extra cables in tighter builds. DirectX 12 and OpenGL 4.5 support cover current APIs, while the 7680 x 4320 maximum resolution handles high-DPI monitors or multi-monitor arrays.

Highlights

  • 6 GB GDDR6 memory delivers high bandwidth for 1080p gaming
  • Boost clock of 1770 MHz provides strong single-threaded performance
  • Single HDB fan runs cooler and quieter under load
  • Three video outputs — HDMI 2.0b, DisplayPort 1.4, Dual-Link DVI-D — drive up to three monitors
  • EVGA Precision X1 utility enables detailed monitoring and overclocking control

Specifications

BrandEVGA
Model06G-P4-1261-KR
InterfacePCI Express 3.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 16 Series
GPUGeForce GTX 1660 Ti
Boost Clock1770 MHz
CUDA Cores1536
Effective Memory Clock12000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support3
HDMI1 x HDMI 2.0b
DisplayPort1 x DisplayPort 1.4
DVI1 x Dual-Link DVI-D
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerSingle Fan
Operating Systems SupportedWindows 10 64-bit, Windows 7 64-bit ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power130W
System Requirements500-Watt or greater power supply
PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot
Power Connector8-Pin
Dual-Link DVI SupportedYes
HDCP Ready2.2
FeaturesNVIDIA Ansel
NVIDIA GeForce Experience
NVIDIA Highlights
NVIDIA G-SYNC Compatible
Game Ready Drivers
Microsoft DirectX 12 API, Vulkan API, OpenGL 4.5
NVIDIA GPU Boost
Built for EVGA Precision X1
Max GPU Length190 mm
Card Dimensions (L x H)7.48" x 4.38"
Slot Width2.75 Slots
Shipping weight0.91 kg
Package size315 × 168 × 79 mm

Questions about this item

Will the EVGA GTX 1660 Ti XC Black fit a standard PCI Express 3.0 slot and a dual-slot bracket?

It uses a PCI Express 3.0 interface and a dual-slot plug-in card form factor, so it fits any motherboard with a full-size PCIe 3.0 x16 slot and two rear expansion openings.

How do I install the single HDB fan cooler correctly, and what step do builders often miss?

Seat the card firmly until the bracket clicks, connect the 8-pin power cable, then install EVGA Precision X1 before the first boot to set the fan curve for the HDB cooler.

When will the 6GB GDDR6 memory or the HDB fan need replacement?

The 6GB GDDR6 memory is soldered and not user-replaceable; the HDB fan is rated for long life but can be swapped with a compatible 92 mm replacement if bearing noise develops years later.
