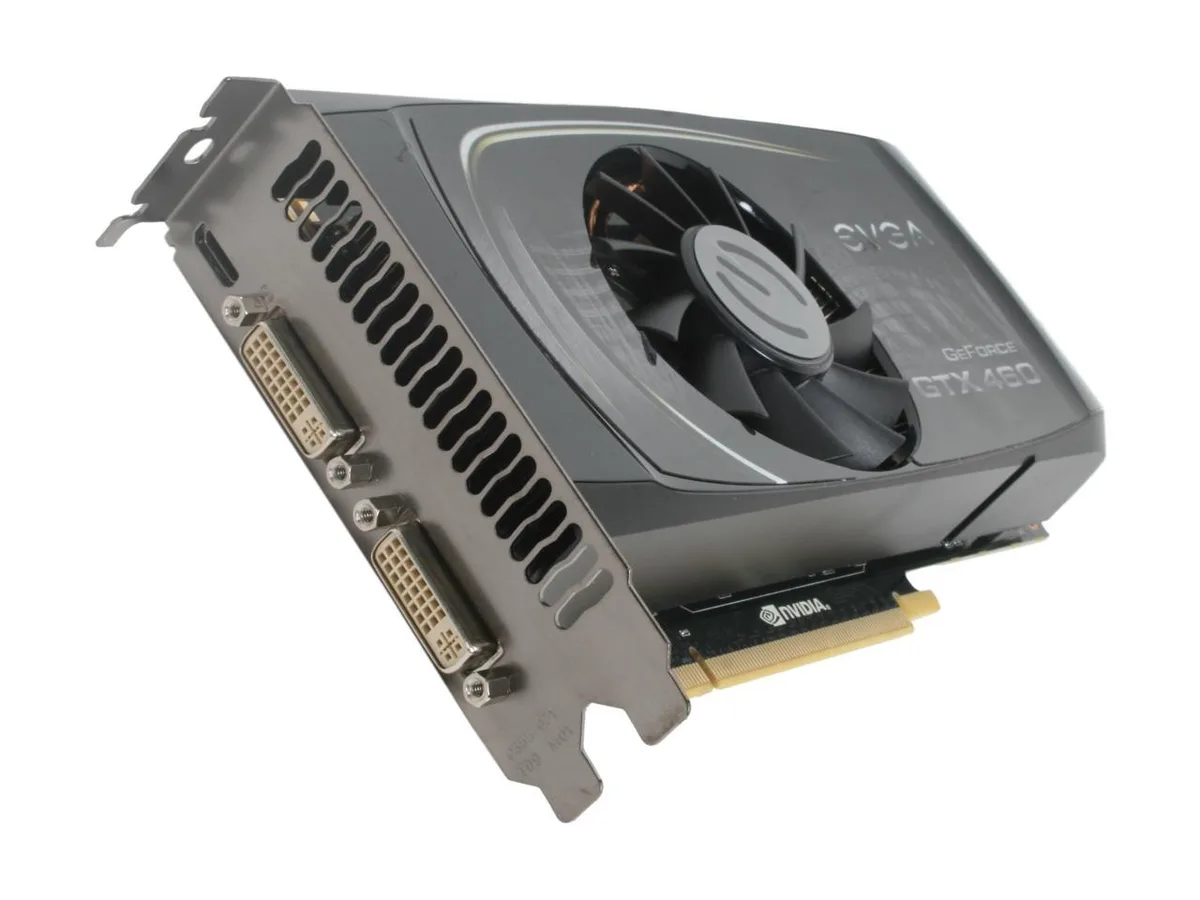

EVGA GeForce GTX 460 Superclocked graphics card with dual DVI and mini HDMI ports

EVGA

EVGA GeForce GTX 460 Superclocked 1GB graphics card

SKU CH-3JNK-Z39Q0

DirectX 11 GPU with 336 CUDA cores, 1 GB GDDR5 on a 256-bit bus, factory overclocked to 763 MHz core and 1526 MHz shader clocks

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GTX 460 (Fermi)
  • Core Clock763MHz
  • Shader Clock1526MHz
  • CUDA Cores336
  • DirectX 11 support enables advanced tessellation and shading
  • 336 CUDA cores accelerate parallel compute and PhysX tasks
  • 1 GB GDDR5 on a 256-bit bus delivers 3800 MHz effective memory speed
  • Factory core clock of 763 MHz with 1526 MHz shaders boosts frame rates
  • HDMI 1.4a plus dual dual-link DVI drive 2560 x 1600 resolution

EVGA GeForce GTX 460 Superclocked 1GB overview

This EVGA graphics card uses the NVIDIA Fermi GPU with 336 CUDA cores and a 763MHz core clock. It targets gamers wanting DirectX 11 performance and 1GB of 256-bit GDDR5 memory. The superclocked shader runs at 1526MHz for improved frame rates. It fits a standard PCI Express 2.0 x16 slot.

Installation and common issues

The card installs into any PCI Express 2.0 x16 slot and needs supplementary power connectors from the supply. Drivers must support DirectX 11 and OpenGL 4.0 for full feature access. A frequent problem is insufficient power capacity or missing 6-pin leads causing instability. Dust buildup on the heatsink can raise temperatures over time.

PCI Express 2.0 x16 practical limits

The PCI Express 2.0 x16 interface provides up to 8 GB/s bandwidth, limiting data transfer between GPU and system memory. This ceiling affects texture streaming and compute workloads more than frame output. DirectX 11 and OpenGL 4.0 features operate within this constraint. SLI scaling is also bounded by the same link width.

Highlights

  • DirectX 11 support enables advanced tessellation and shading
  • 336 CUDA cores accelerate parallel compute and PhysX tasks
  • 1 GB GDDR5 on a 256-bit bus delivers 3800 MHz effective memory speed
  • Factory core clock of 763 MHz with 1526 MHz shaders boosts frame rates
  • HDMI 1.4a plus dual dual-link DVI drive 2560 x 1600 resolution

Specifications

BrandEVGA
SeriesGeForce GTX 400 SuperClocked
Model01G-P3-1372-TR
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce GTX 460 (Fermi)
Core Clock763MHz
Shader Clock1526MHz
CUDA Cores336
Effective Memory Clock3800 MHz
Memory Size1GB
Memory Interface256-Bit
Memory TypeGDDR5
DirectXDirectX 11
OpenGLOpenGL 4.0
HDMI1 x mini HDMI
DVI2 x DVI
TunerNone
RAMDAC400MHz
Max Resolution2560 x 1600
3D VISION Game ReadyYes
SLI SupportSLI Ready
CoolerSingle Fan
System RequirementsMinimum of a 450 Watt power supply. (Minimum recommended power supply with +12 Volt current rating of 24 Amps.)
Power Connector2 x 6-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
Card Dimensions (L x H)8.25" x 4.37"
Slot Width2 Slots

Questions about this item

How can I verify the EVGA GeForce GTX 460 Superclocked is running at its 763MHz core clock after installation?

Use GPU monitoring software such as EVGA Precision X or GPU-Z to confirm the core clock reads 763MHz and the shader clock reads 1526MHz while under 3D load.

What cables and adapters are included with the EVGA GeForce GTX 460 Superclocked, and what must I supply?

The card provides two dual-link DVI-I ports and one mini HDMI 1.4a connector; you must supply a mini HDMI to standard HDMI cable or DVI cables for your monitors.

Which memory configuration should I choose for the EVGA GeForce GTX 460 Superclocked?

This model is offered only with 1GB of 256-bit GDDR5 memory running at an effective 3800MHz, so no capacity or bus-width option exists.
