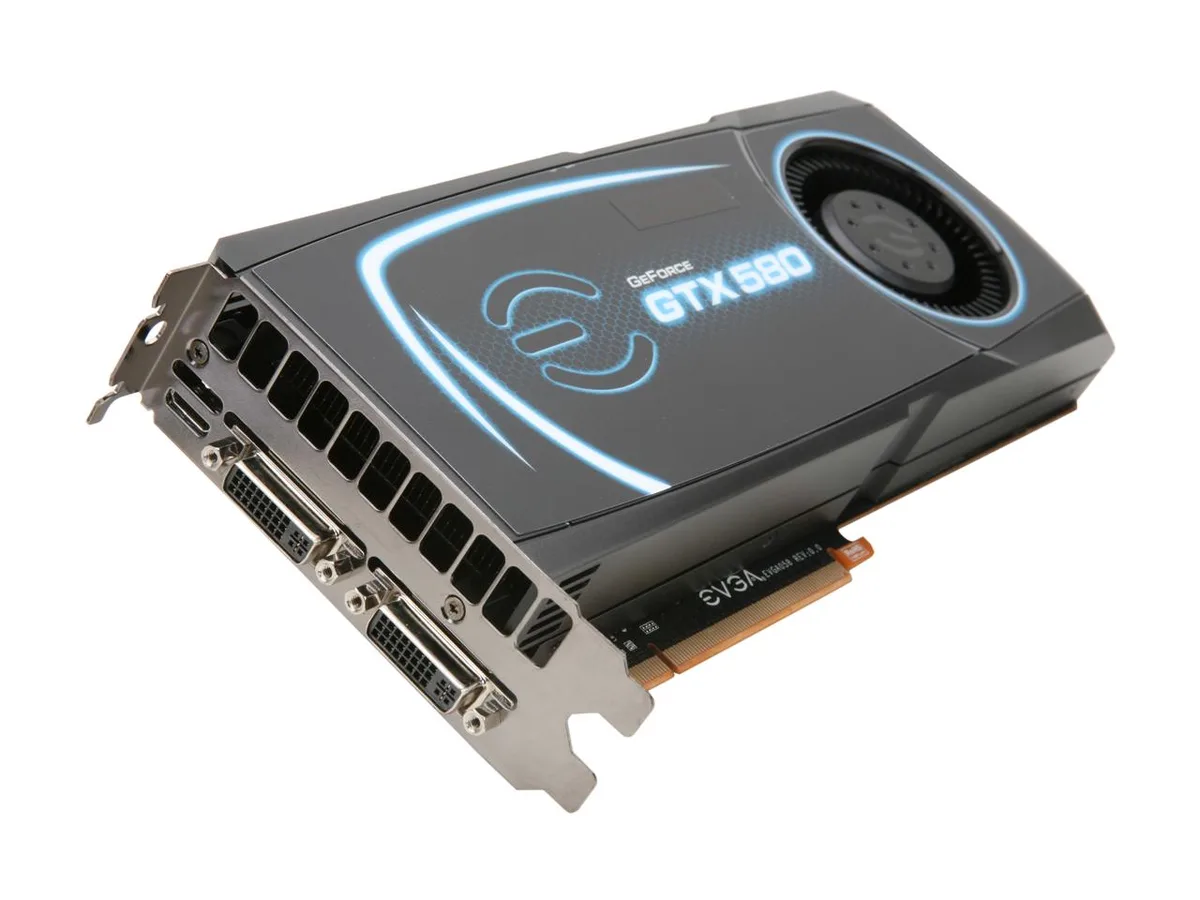

EVGA GeForce GTX 580 graphics card with silver dual-slot cooler and rear I/O bracket showing two DVI ports and one mini HDMI port

EVGA

EVGA GeForce GTX 580 015-P3-1580-TR 1536MB GDDR5 graphics card

SKU CH-ZVG7-EDQHW

Fermi GPU with 512 CUDA cores and 1536MB GDDR5 on a 384-bit bus, PCIe 2.0 x16, dual DVI plus mini HDMI, DirectX 11 and OpenGL 4.1

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 500 Series
  • GPUGeForce GTX 580 (Fermi)
  • Core Clock772MHz
  • Shader Clock1544MHz
  • DirectX 11 support enables modern game compatibility
  • 512 CUDA cores accelerate parallel workloads and rendering
  • 1536MB GDDR5 on a 384-bit bus delivers high memory bandwidth
  • Core clock 772 MHz with shader clock 1544 MHz drives processing speed
  • PCI Express 2.0 x16 interface provides ample host bandwidth

Fermi GTX 580 for PCIe 2.0 systems

The EVGA GeForce GTX 580 015-P3-1580-TR is a Fermi-architecture graphics card built for enthusiasts running PCI Express 2.0 platforms. It delivers 512 CUDA cores clocked at 772 MHz with a 1544 MHz shader clock. The 1536 MB GDDR5 frame buffer operates across a 384-bit interface at 4008 MHz effective. DirectX 11 and OpenGL 4.1 support cover the API requirements of the period.

PCIe 2.0 x16 bandwidth and display limits

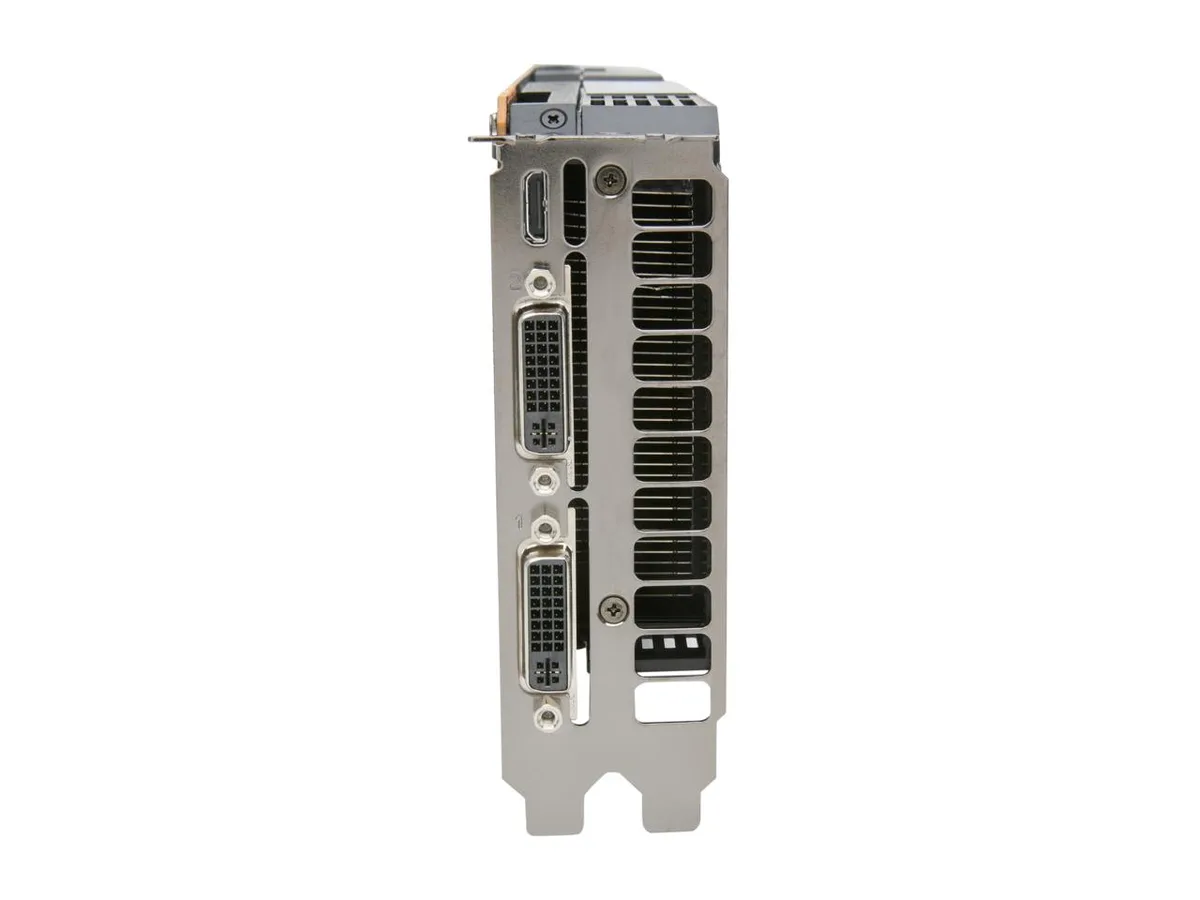

The card installs in a PCI Express 2.0 x16 slot, which caps theoretical bandwidth at the 2.0 specification. Two dual-link DVI outputs and one mini HDMI port drive displays up to 2560 x 1600 resolution. HDCP readiness protects premium video playback. SLI support allows a second identical card to be paired for multi-GPU scaling. The 400 MHz RAMDAC handles analogue conversion on the DVI-I ports.

Dual-slot reference cooler with standard mounting

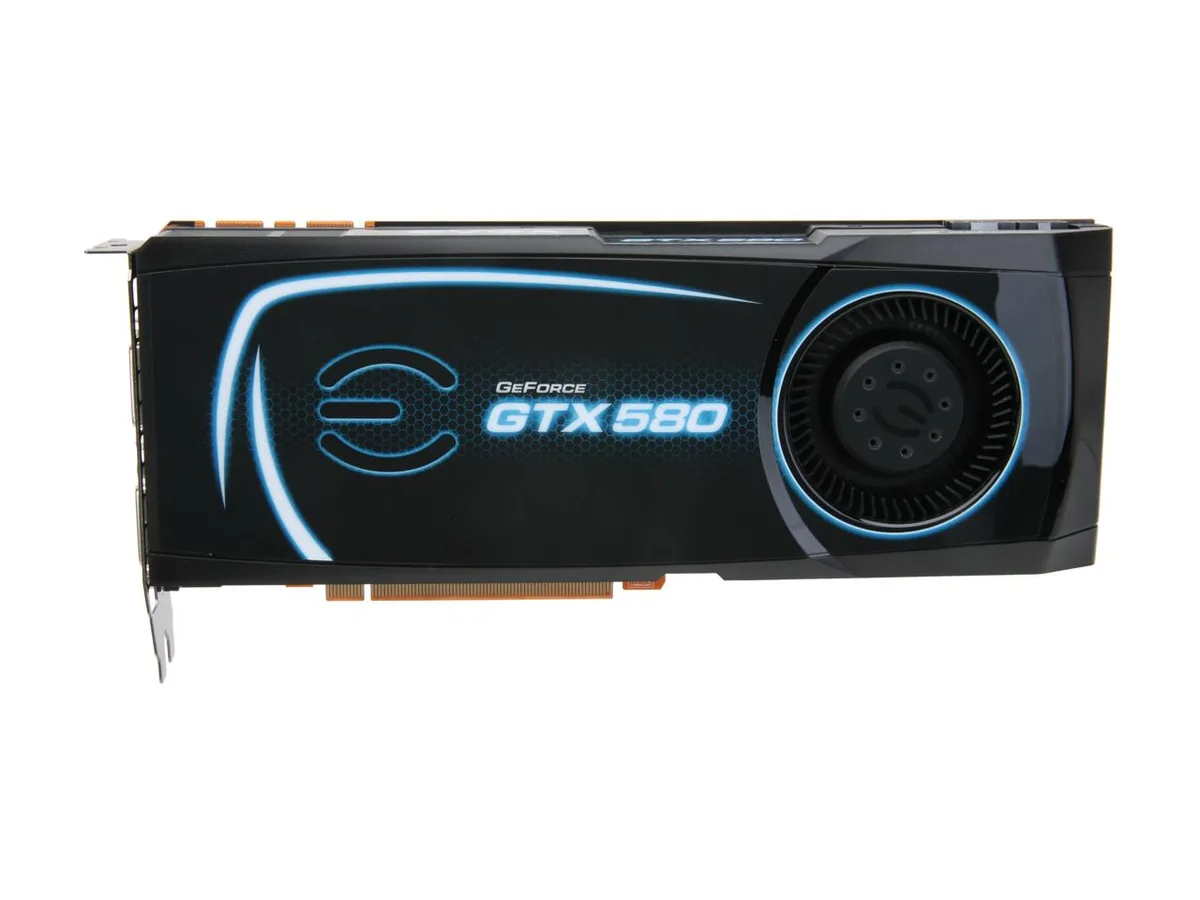

The reference design occupies two expansion slots and uses a radial blower that exhausts heat through the rear I/O bracket. This layout keeps hot air out of the chassis regardless of case airflow. Mounting holes follow the standard Fermi pattern, so the card fits any ATX board with a PCIe 2.0 x16 slot and sufficient length clearance. External power comes from two six-pin connectors, a common requirement for 500-series cards.

Highlights

  • DirectX 11 support enables modern game compatibility
  • 512 CUDA cores accelerate parallel workloads and rendering
  • 1536MB GDDR5 on a 384-bit bus delivers high memory bandwidth
  • Core clock 772 MHz with shader clock 1544 MHz drives processing speed
  • PCI Express 2.0 x16 interface provides ample host bandwidth

Specifications

BrandEVGA
Model015-P3-1580-TR
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 500 Series
GPUGeForce GTX 580 (Fermi)
Core Clock772MHz
Shader Clock1544MHz
CUDA Cores512
Effective Memory Clock4008MHz
Memory Size1536MB
Memory Interface384-Bit
Memory TypeGDDR5
DirectXDirectX 11
OpenGLOpenGL 4.1
HDMI1 x mini HDMI
DVI2 x DVI
RAMDAC400MHz
Max Resolution2560 x 1600
3D VISION Game ReadyYes
SLI SupportSLI Ready
CoolerWith Fan
Dual-Link DVI SupportedYes
HDCP ReadyYes
FeaturesNVIDIA CUDA technology with CUDA C/C++, DirectCompute 5.0 and OpenCL support NVIDIA PhysX technology NVIDIA 3D Vision Surround Ready NVIDIA PureVideo HD technology Dual-link HDCP-Capable OpenGL 4.1 support
Card Dimensions (L x H)10.5" x 4.38"

Questions about this item

Will this card fit in a PCI Express 2.0 x16 slot on my motherboard?

Yes, the card uses a PCI Express 2.0 x16 interface and will work in any compatible x16 slot.

What display connectors are available and what is the maximum resolution?

The card provides two DVI ports and one mini HDMI port, supporting a maximum resolution of 2560 x 1600.

Does this model support multi-GPU scaling for higher frame rates?

Yes, the card includes SLI support so you can link multiple GTX 580 cards for increased performance.
