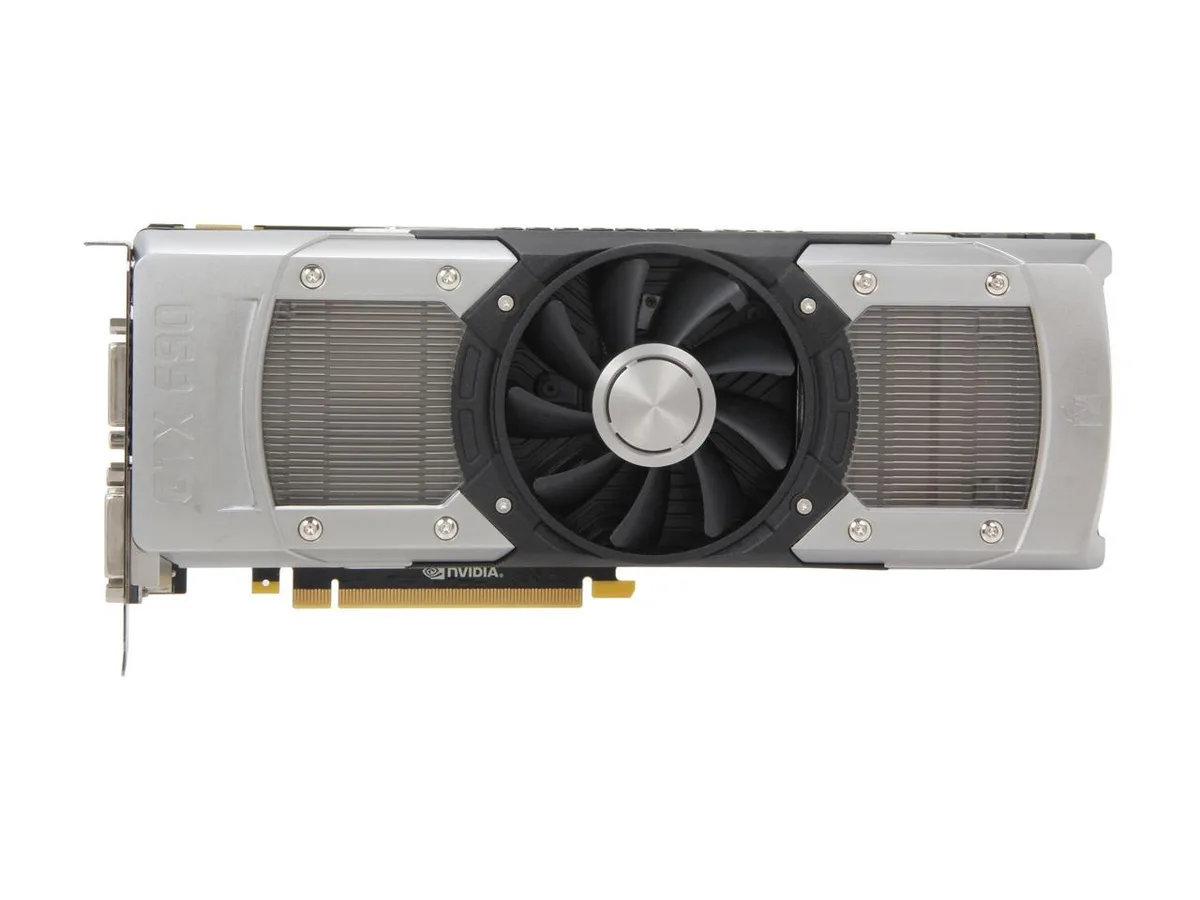

Dual-GPU EVGA GeForce GTX 690 graphics card with silver metal shroud, three DVI ports and one Mini DisplayPort

EVGA

EVGA GeForce GTX 690 04G-P4-2692-KR 4GB GDDR5 graphics card

SKU CH-ETSX-5V98X

Dual-GPU card with 3072 CUDA cores, 4GB 512-bit GDDR5 memory at 6008 MHz, PCIe 3.0 x16, and DirectX 11 support

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 600 Series
  • GPUGeForce GTX 690
  • Core Clock915 MHz
  • Boost Clock1019 MHz
  • 4GB 512-bit GDDR5 memory fuels high-resolution gaming
  • 3072 CUDA cores accelerate parallel workloads
  • GPU Boost raises clocks to 1019 MHz under load
  • PCI Express 3.0 x16 interface doubles bandwidth headroom

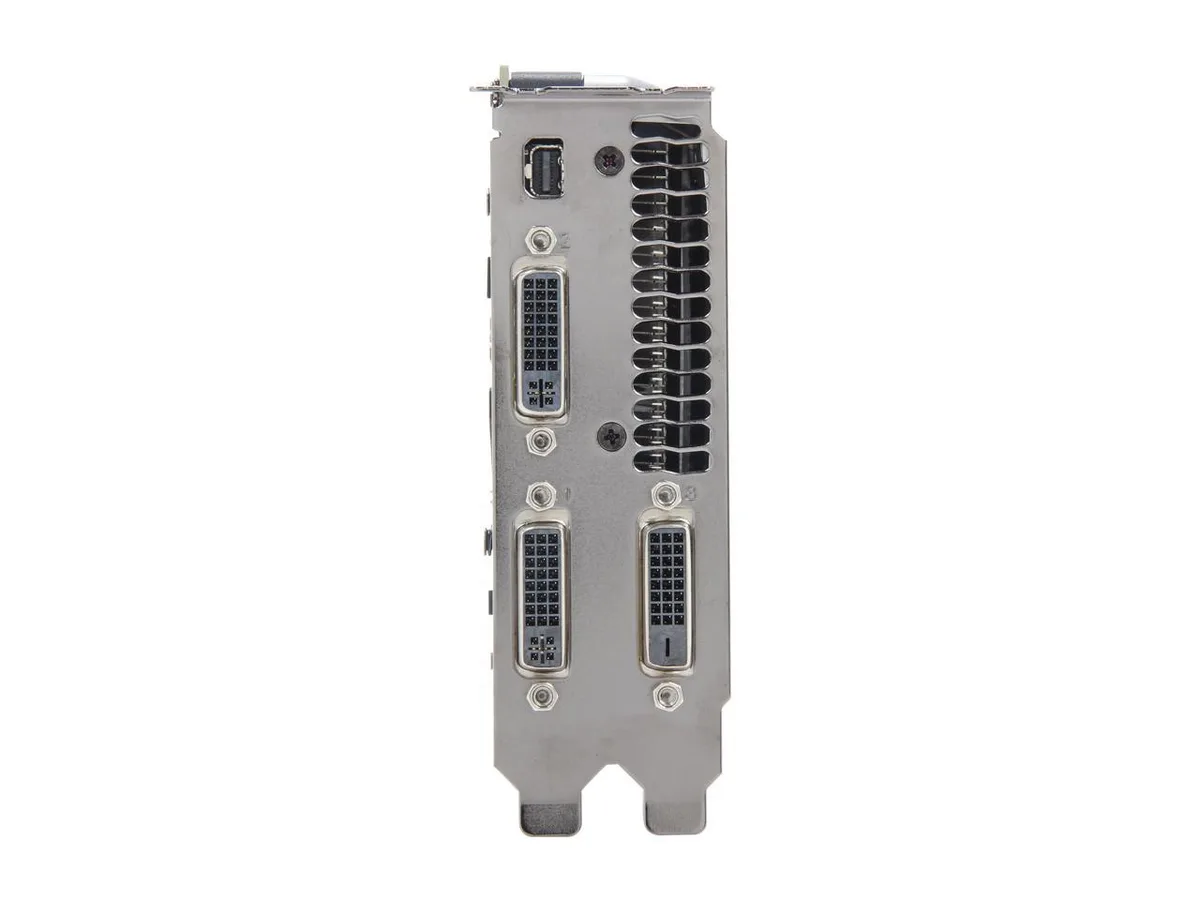

  • Three DVI and one Mini DisplayPort drive multiple displays

Dual-GPU card for high-resolution gaming

The EVGA GeForce GTX 690 combines two Kepler GPUs on a single PCI Express 3.0 x16 board. It delivers 3072 CUDA cores and 4GB of GDDR5 memory across a 512-bit interface. The card targets enthusiasts who need maximum frame rates at 2560 x 1600 resolution.

512-bit memory interface and 4GB GDDR5

A 512-bit bus paired with 6008 MHz effective memory clock feeds both GPUs without bottlenecking. This specification determines whether the card can sustain high texture detail and anti-aliasing at the maximum supported resolution of 2560 x 1600. The 4GB frame buffer is shared between the two processors.

Dual-slot cooler requires strong case airflow

The reference design exhausts heat through a rear bracket, so a case with direct front-to-back airflow is essential. Install the card in the primary x16 slot and connect both 8-pin power connectors. Common issues include insufficient PSU wattage and restricted intake causing thermal throttling.

Highlights

  • 4GB 512-bit GDDR5 memory fuels high-resolution gaming
  • 3072 CUDA cores accelerate parallel workloads
  • GPU Boost raises clocks to 1019 MHz under load
  • PCI Express 3.0 x16 interface doubles bandwidth headroom
  • Three DVI and one Mini DisplayPort drive multiple displays

Specifications

BrandEVGA
Model04G-P4-2692-KR
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 600 Series
GPUGeForce GTX 690
Core Clock915 MHz
Boost Clock1019 MHz
CUDA Cores3072
Effective Memory Clock6008 MHz
Memory Size4GB
Memory Interface512-Bit
Memory TypeGDDR5
DirectXDirectX 11
OpenGLOpenGL 4.2
DisplayPort1 x Mini DisplayPort
DVI3 x DVI
TunerNone
RAMDAC400MHz
Max Resolution2560 x 1600
3D VISION Game ReadyYes
SLI Support4-Way SLI
CoolerSingle Fan
Thermal Design Power300W
System RequirementsMinimum of a 650 Watt power supply. (Minimum recommended power supply with +12 Volt current rating of 38 Amps.)
Power Connector2 x 8-Pin
Dual-Link DVI SupportedYes
HDCP ReadyYes
Card Dimensions (L x H)11" x 4.38"
Slot Width2 Slots

Questions about this item

What does the 1019 MHz boost clock mean for actual frame rates?

The card can raise its core speed from 915 MHz up to 1019 MHz when thermal headroom allows, giving higher frame rates in demanding scenes without manual overclocking.

What bandwidth limit does the PCI Express 3.0 x16 interface impose on this GTX 690?

The PCI Express 3.0 x16 link provides up to 16 GB/s of host bandwidth, which is sufficient for the 3072 CUDA cores and 6008 MHz GDDR5 memory subsystem.

How many expansion slots and power connectors does the 04G-P4-2692-KR need to fit and run?

The dual-GPU design occupies two rear I/O brackets and requires two 8-pin PCIe power connectors from the PSU.
