EVGA
EVGA GeForce GTX 760 FTW 4GB ACX Cooler
A GeForce GTX 760 with 4GB GDDR5 memory, factory overclocked to 1085MHz base and 1150MHz boost clocks, cooled by EVGA's dual-fan ACX design
- InterfacePCI Express 3.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce GTX 700 Series
- GPUGeForce GTX 760
- Core Clock1085 MHz
- Boost Clock1150 MHz
- 1152 CUDA cores deliver strong parallel performance for gaming and compute
- Factory overclock to 1085 MHz base and 1150 MHz boost for smoother frame rates
- 4 GB GDDR5 on a 256-bit bus provides high memory bandwidth at 6008 MHz effective

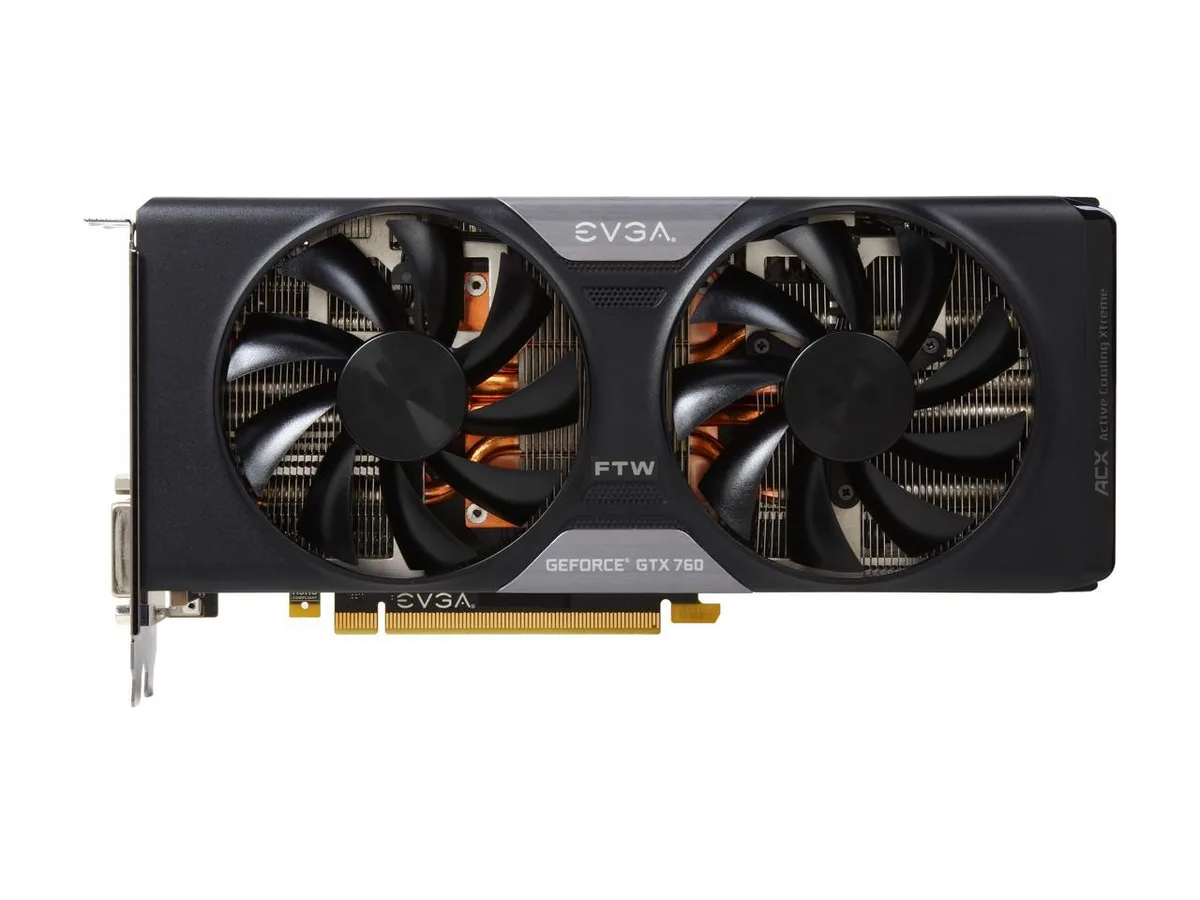

- EVGA ACX dual-fan cooler cuts GPU temperatures by 15 % with 40 % larger heatsink

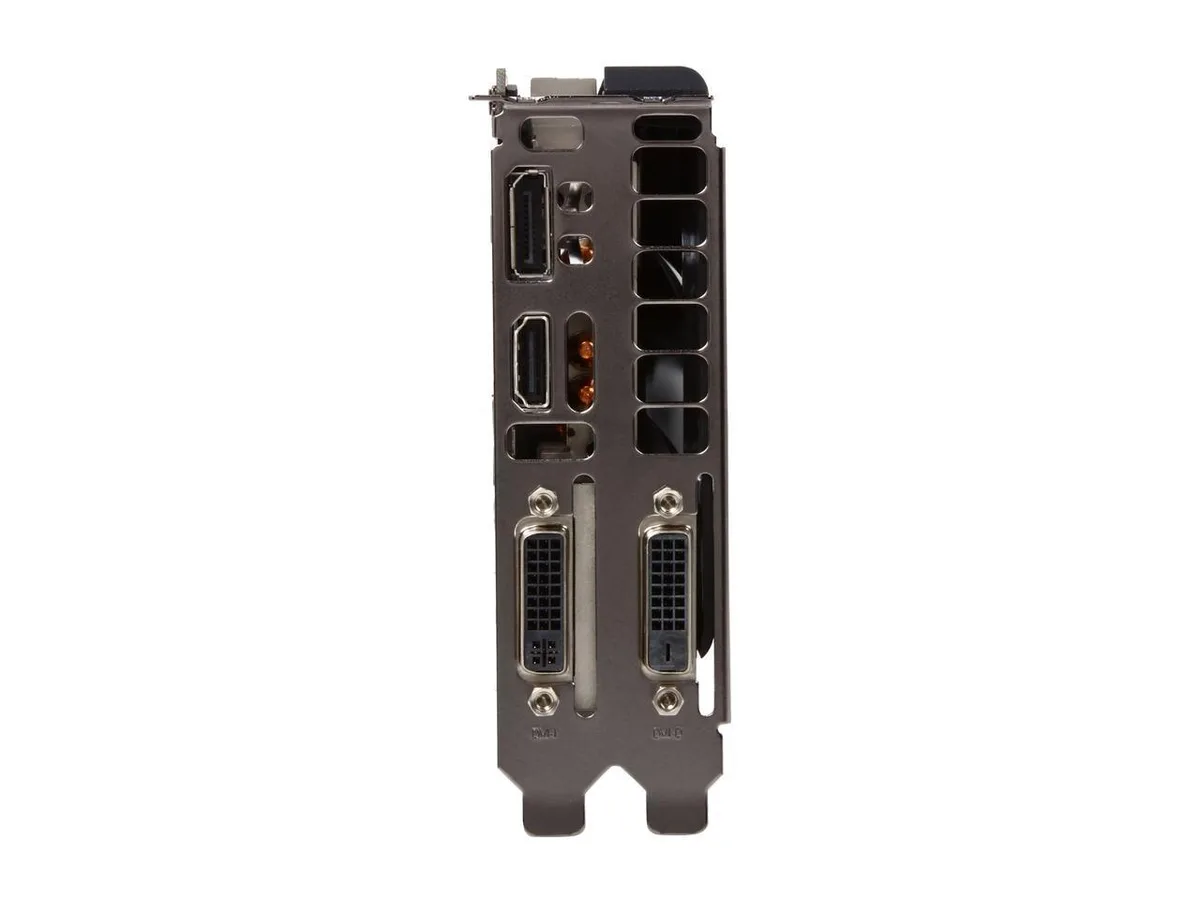

- PCI Express 3.0, HDMI, DisplayPort and dual DVI support up to 4096 × 2160 resolution
4GB GDDR5 for 1080p Gaming
The EVGA GeForce GTX 760 FTW 4GB is a factory-overclocked graphics card built on the NVIDIA Kepler architecture. It targets gamers who want smooth frame rates at 1080p resolution without moving to a higher tier. The card delivers 1152 CUDA cores and a 256-bit memory interface for mainstream gaming workloads.
4GB Frame Buffer and 256-Bit Bus
The 4GB GDDR5 buffer running at 6008 MHz effective clock provides headroom for high-resolution textures at 1080p and entry-level 1440p. The 256-bit interface sustains bandwidth for demanding scenes. At 4K resolution the memory capacity and GPU throughput become the limiting factor for playable frame rates.
Factory Overclock and ACX Cooling Upgrade
This model raises the base clock to 1085 MHz and boost clock to 1150 MHz over the reference 980 MHz and 1033 MHz speeds. The ACX cooler increases heatsink volume by 40 percent and lowers GPU temperatures by 15 percent compared to standard designs. The upgrade is worth it when thermal headroom and factory-tuned clocks matter for sustained gaming sessions.
Highlights
- 1152 CUDA cores deliver strong parallel performance for gaming and compute
- Factory overclock to 1085 MHz base and 1150 MHz boost for smoother frame rates
- 4 GB GDDR5 on a 256-bit bus provides high memory bandwidth at 6008 MHz effective
- EVGA ACX dual-fan cooler cuts GPU temperatures by 15 % with 40 % larger heatsink
- PCI Express 3.0, HDMI, DisplayPort and dual DVI support up to 4096 × 2160 resolution
Specifications
| Brand | EVGA |
|---|---|
| Model | 04G-P4-3768-KR |
| Interface | PCI Express 3.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce GTX 700 Series |
| GPU | GeForce GTX 760 |
| Core Clock | 1085 MHz |
| Boost Clock | 1150 MHz |
| CUDA Cores | 1152 |
| Effective Memory Clock | 6008 MHz |
| Memory Size | 4GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 (feature level 11_0) |
| OpenGL | OpenGL 4.3 |
| HDMI | 1 x HDMI |
| DisplayPort | 1 x DisplayPort |
| DVI | 2 x DVI |
| RAMDAC | 400MHz |
| Max Resolution | 4096 x 2160 |
| 3D VISION Game Ready | Yes |
| SLI Support | SLI Ready |
| Cooler | Double Fans |
| Thermal Design Power | 170W |
| System Requirements | 500 watt or greater power supply with a minimum of 30 amps on the +12 volt rail. |
| Dual-Link DVI Supported | Yes |
| Card Dimensions (L x H) | 9.5" x 4.38" |
| Slot Width | 2 Slots |
Questions about this item
Will the PCI Express 3.0 x16 slot on my older motherboard run the GTX 760 at full speed?
The card uses a PCI Express 3.0 interface and is backward compatible with PCIe 2.0 slots, so it will work on older motherboards without losing the 256-bit memory bandwidth or 1152 CUDA cores.
How can I confirm the 1085 MHz base clock and 1150 MHz boost clock are active after installing the drivers?
Open GPU-Z or EVGA Precision X and check the sensor tab; the core clock should read 1085 MHz at idle and rise to 1150 MHz under load, matching the factory overclock.
Does the box include the 6-pin and 8-pin power adapters, or do I need to buy them separately?
The package contains the graphics card with the ACX dual-fan cooler, a quick-install guide, and a driver disc; power cables are not included, so use the connectors from your PSU.
