EVGA GeForce RTX 2060 12GB XC 12G-P4-2263-KR graphics card

EVGA RTX 2060 12GB XC Gaming Card

This EVGA GeForce RTX 2060 XC model provides 12GB of GDDR6 memory across a 192-bit interface. The card uses the Turing architecture with 2176 CUDA cores and a boost clock of 1680 MHz. It connects through a PCI Express 3.0 slot and requires an 8-pin power connector. The dual-fan cooler and all-metal backplate support sustained operation within a 185W thermal design power limit.

Sustained Load Behaviour With Dual Fans

Under continuous load the dual-fan cooler maintains airflow across the heatsink while the metal backplate adds structural rigidity and helps dissipate heat from the rear of the PCB. The 185W TDP means the card draws steady power from a 550W supply through the single 8-pin connector. Clock speeds hold at the 1680 MHz boost rating rather than throttling back, so frame rates stay consistent during extended gaming or compute sessions.

PCI Express 3.0 Interface Limits

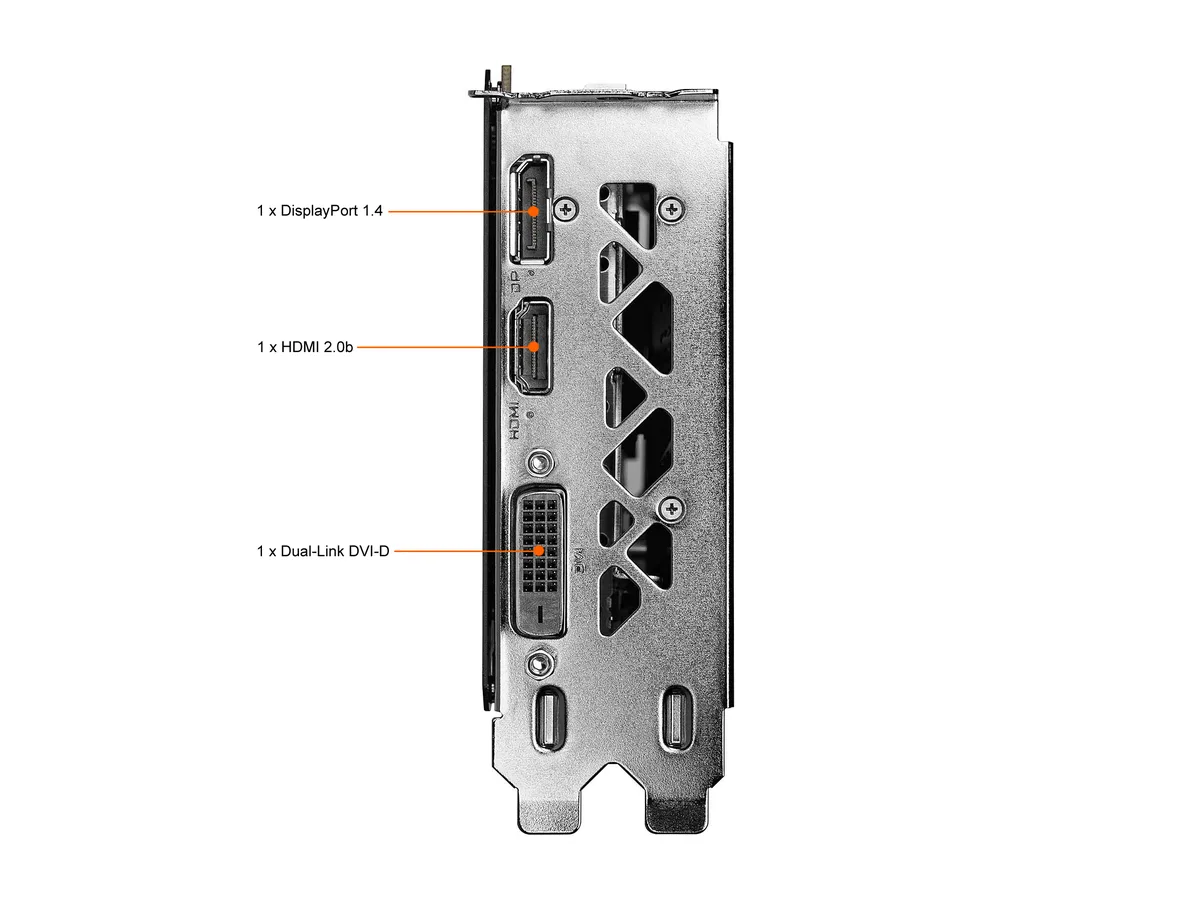

The PCI Express 3.0 x16 link caps theoretical bandwidth at roughly 16 GB/s per direction, which is sufficient for the 14000 MHz GDDR6 memory subsystem and 192-bit bus. Display outputs include one HDMI 2.0b, one DisplayPort 1.4 and a Dual-Link DVI-D port, driving up to three monitors at a maximum digital resolution of 7680 x 4320. HDCP 2.2 support ensures protected content playback across these connections.
