EVGA
EVGA GeForce RTX 2060 SUPER XC GAMING 08G-P4-3162-KR graphics card
Refurbished graphics card with NVIDIA RTX 2060 SUPER GPU, 2176 CUDA cores, 8GB GDDR6 memory on a 256-bit bus and boost clock of 1695 MHz
- InterfacePCI Express 3.0
- Chipset ManufacturerNVIDIA
- GPUGeForce RTX 2060 SUPER
- Boost Clock1695 MHz
- CUDA Cores2176
- Effective Memory Clock14000 MHz
- 8 GB GDDR6 memory for high-resolution textures
- 2176 CUDA cores accelerate compute workloads
- 1695 MHz boost clock lifts frame rates

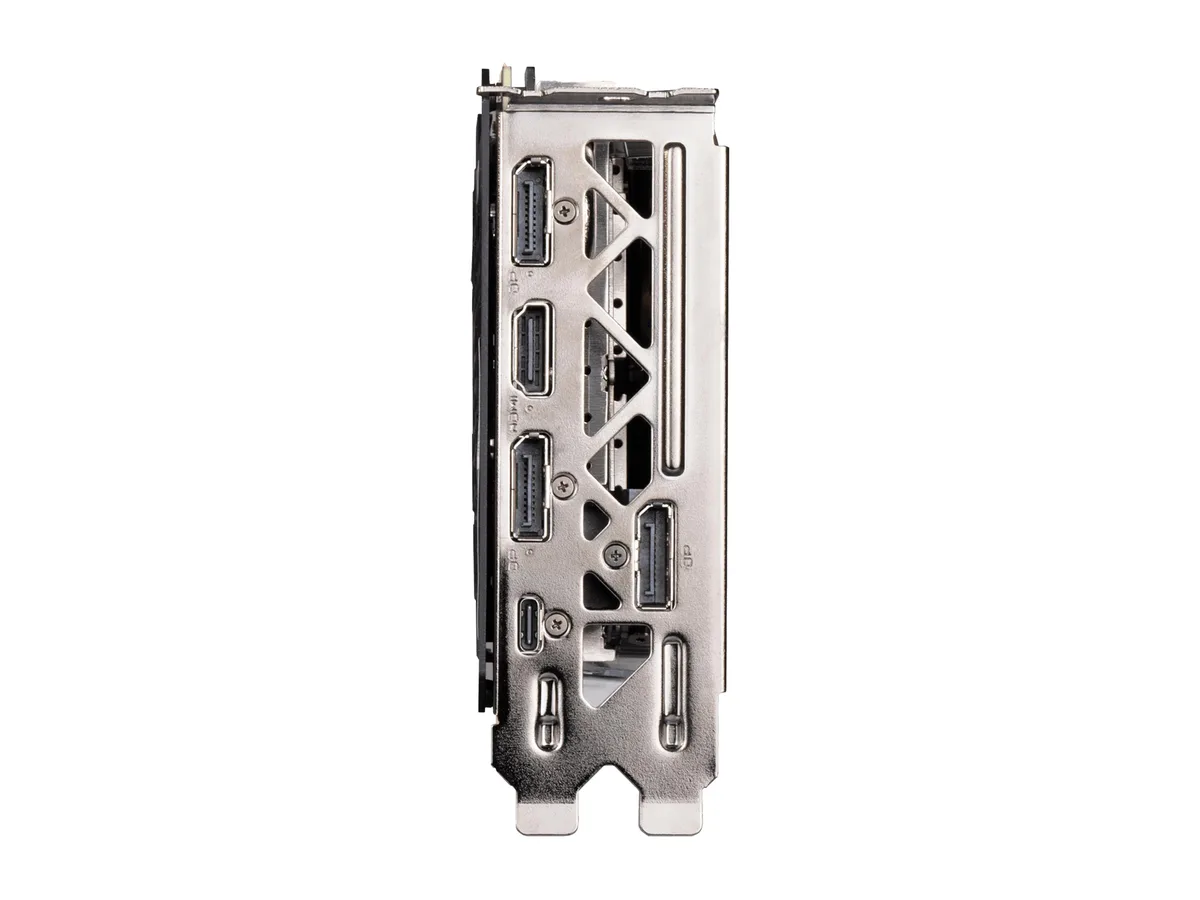

- HDMI 2.0b plus three DisplayPort 1.4 outputs drive four monitors
- All-metal backplate and dual HDB fans improve cooling and durability
EVGA RTX 2060 SUPER XC GAMING 8GB

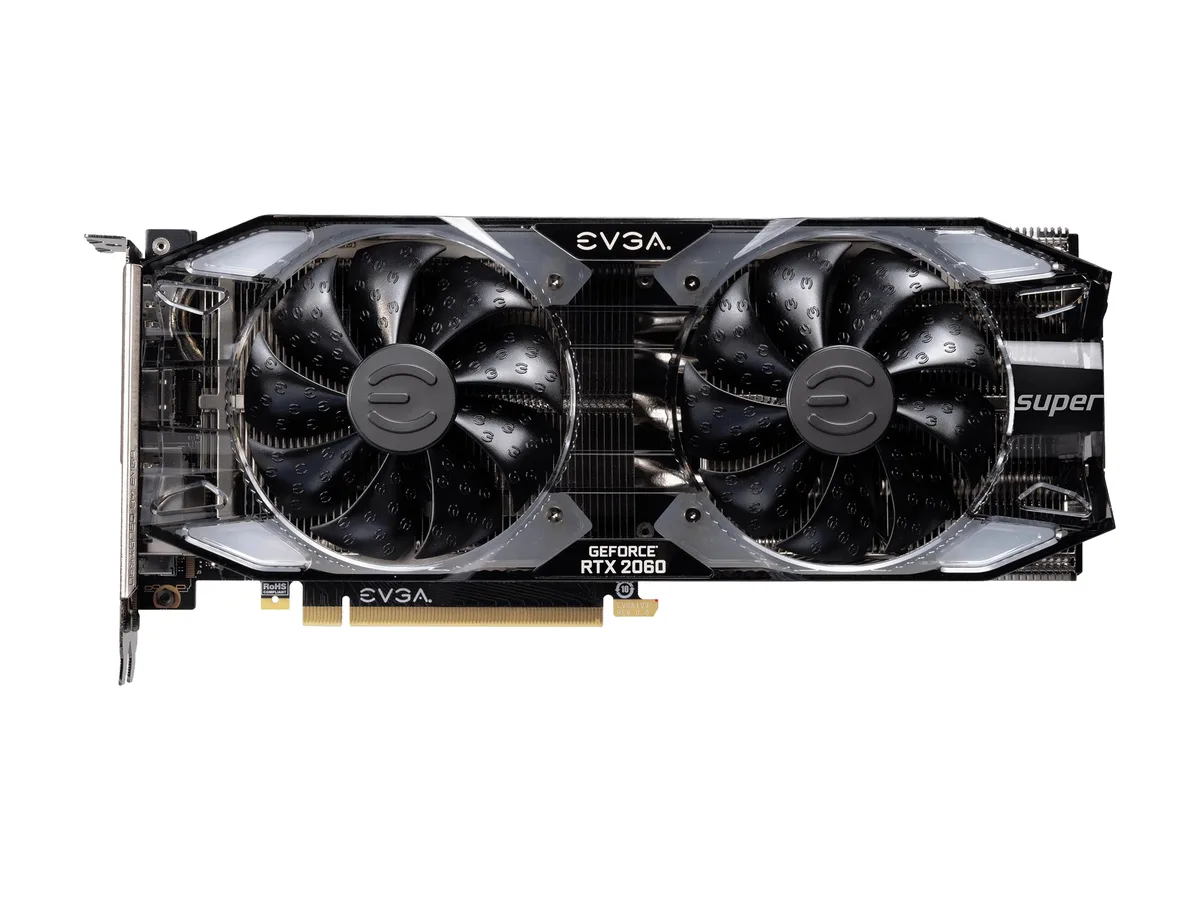

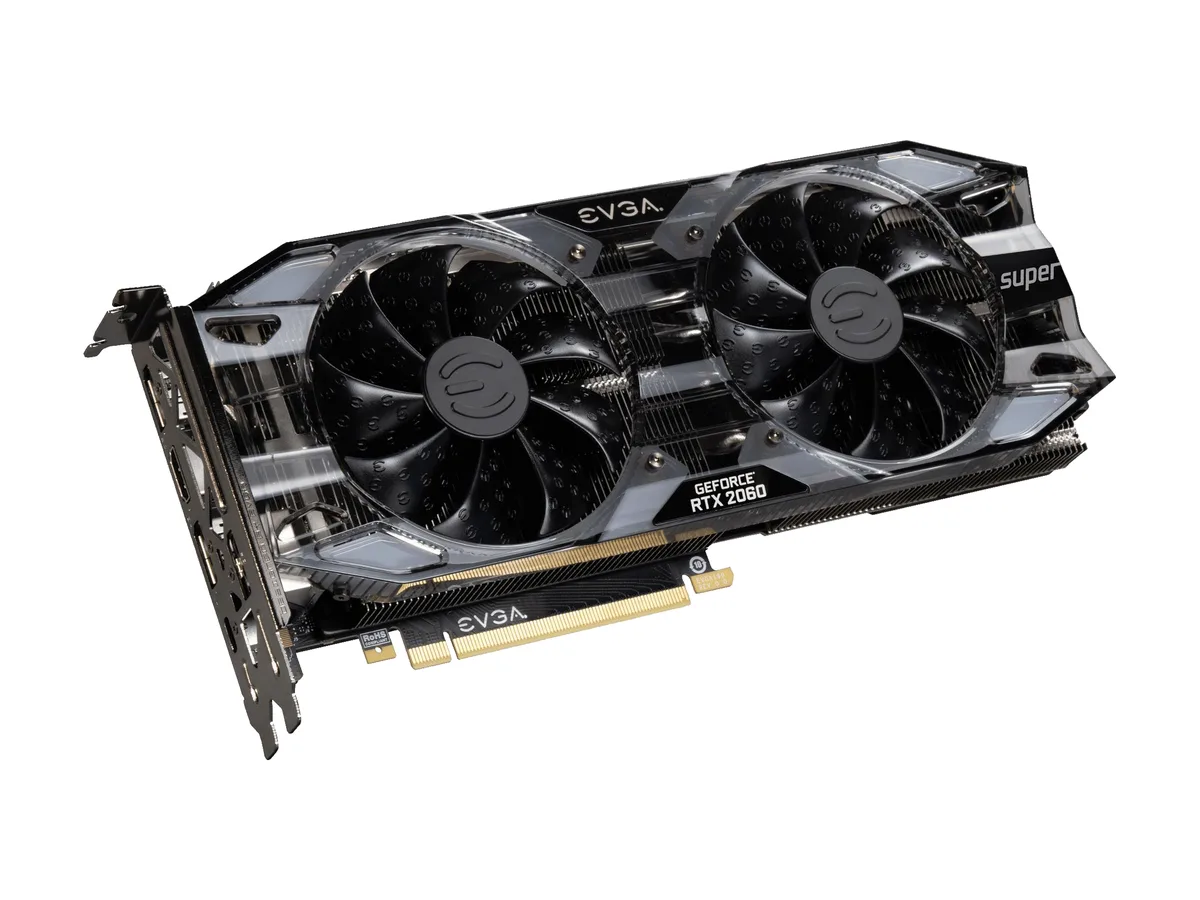

The EVGA GeForce RTX 2060 SUPER XC GAMING is a refurbished graphics card built for 1440p gaming. It uses the NVIDIA Turing GPU with 2176 CUDA cores and 8GB of GDDR6 memory across a 256-bit interface. The PCI Express 3.0 board delivers a 1695 MHz boost clock and supports up to four displays via HDMI 2.0b, three DisplayPort 1.4 connectors and a USB Type-C VirtualLink port.
Dual HDB fan cooling under sustained load

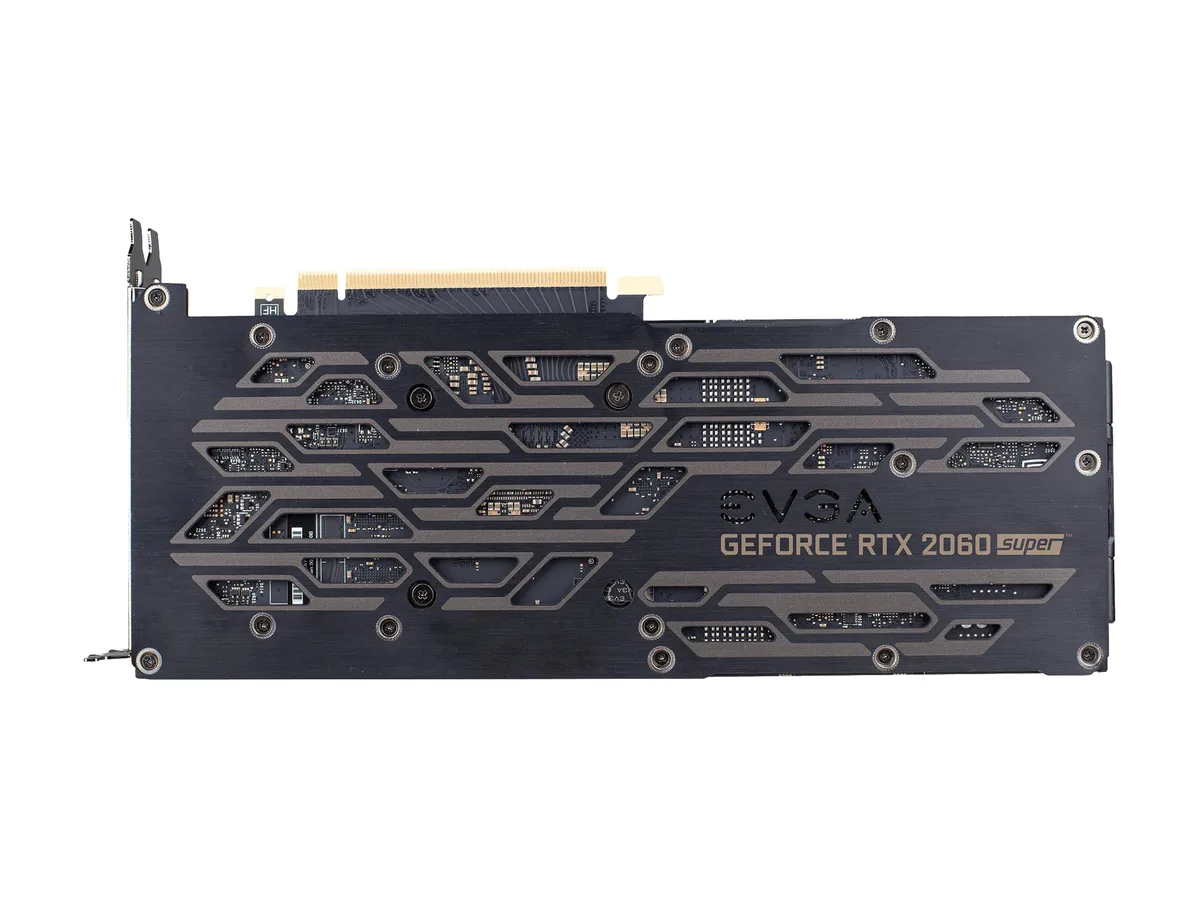

Dual HDB fans move more air at lower noise than standard designs, keeping the GPU stable during long sessions. The all-metal backplate adds structural rigidity and helps spread heat away from the PCB. EVGA Precision X1 software lets you tune fan curves and clocks so the card stays cool when frame rates are pushed for hours.
Upgrade from 6GB RTX 2060 or older mid-range cards
The jump to 8GB GDDR6 and 2176 CUDA cores removes the VRAM bottleneck that limits texture quality in modern titles. If your current card has 6GB or less, or lacks Turing RTX features, this model adds real-time ray tracing support and higher 14000 MHz effective memory speed. The upgrade is worth it when you need 1440p headroom without moving to a higher tier.
Highlights
- 8 GB GDDR6 memory for high-resolution textures
- 2176 CUDA cores accelerate compute workloads
- 1695 MHz boost clock lifts frame rates
- HDMI 2.0b plus three DisplayPort 1.4 outputs drive four monitors
- All-metal backplate and dual HDB fans improve cooling and durability
Specifications
| Brand | EVGA |
|---|---|
| Model | 08G-P4-3162-KR |
| Interface | PCI Express 3.0 |
| Chipset Manufacturer | NVIDIA |
| GPU | GeForce RTX 2060 SUPER |
| Boost Clock | 1695 MHz |
| CUDA Cores | 2176 |
| Effective Memory Clock | 14000 MHz |
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| Other Ports | 1 x USB Type-C VirtualLink |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Operating Systems Supported | Windows 10 (64-bit), Windows 7 (64-bit) 👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power | 175W |
| System Requirements | 550W or greater power supply. PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot. |
| Power Connector | An available 6-pin PCIe power connector and an available 8-pin PCIe power connector |
| HDCP Ready | 2.2 |
| Features | NVIDIA Ansel Adjustable RGB LED All-Metal Backplate, Pre-Installed Real-Time Ray Tracing NVIDIA GeForce Experience NVIDIA Highlights NVIDIA G-SYNC Compatible Game Ready Drivers Microsoft DirectX 12 API, Vulkan API, OpenGL 4.5 NVIDIA GPU Boost Built for EVGA Precision X1 Designed for USB Type-C and VirtualLink |
| Max GPU Length | 270 mm |
| Card Dimensions (L x H) | 10.62" x 4.38" |
| Slot Width | 2 Slots |
| Shipping weight | 1.32 kg |
| Package size | 348 × 165 × 79 mm |
Questions about this item
How loud does the Dual HDB fan cooler get when the RTX 2060 SUPER runs at its 1695 MHz boost clock all day?
The card uses Dual HDB fans designed for quieter acoustic noise under load, while the all-metal backplate helps dissipate heat from the 8 GB GDDR6 memory and GPU during extended sessions.
My PSU only has a single 8-pin PCIe connector — will that power this EVGA 08G-P4-3162-KR card?
The board draws power through the PCI Express 3.0 slot and its onboard 8-pin connector, so a PSU with one 8-pin PCIe lead and enough total wattage for the rest of the system is sufficient.
Can I keep my older PCIe 2.0 motherboard and still use the 256-bit memory interface of this RTX 2060 SUPER?
Yes, the card is backward compatible with PCIe 2.0 slots; it will operate at PCIe 2.0 speeds while still providing the full 256-bit GDDR6 memory path and 2176 CUDA cores.
