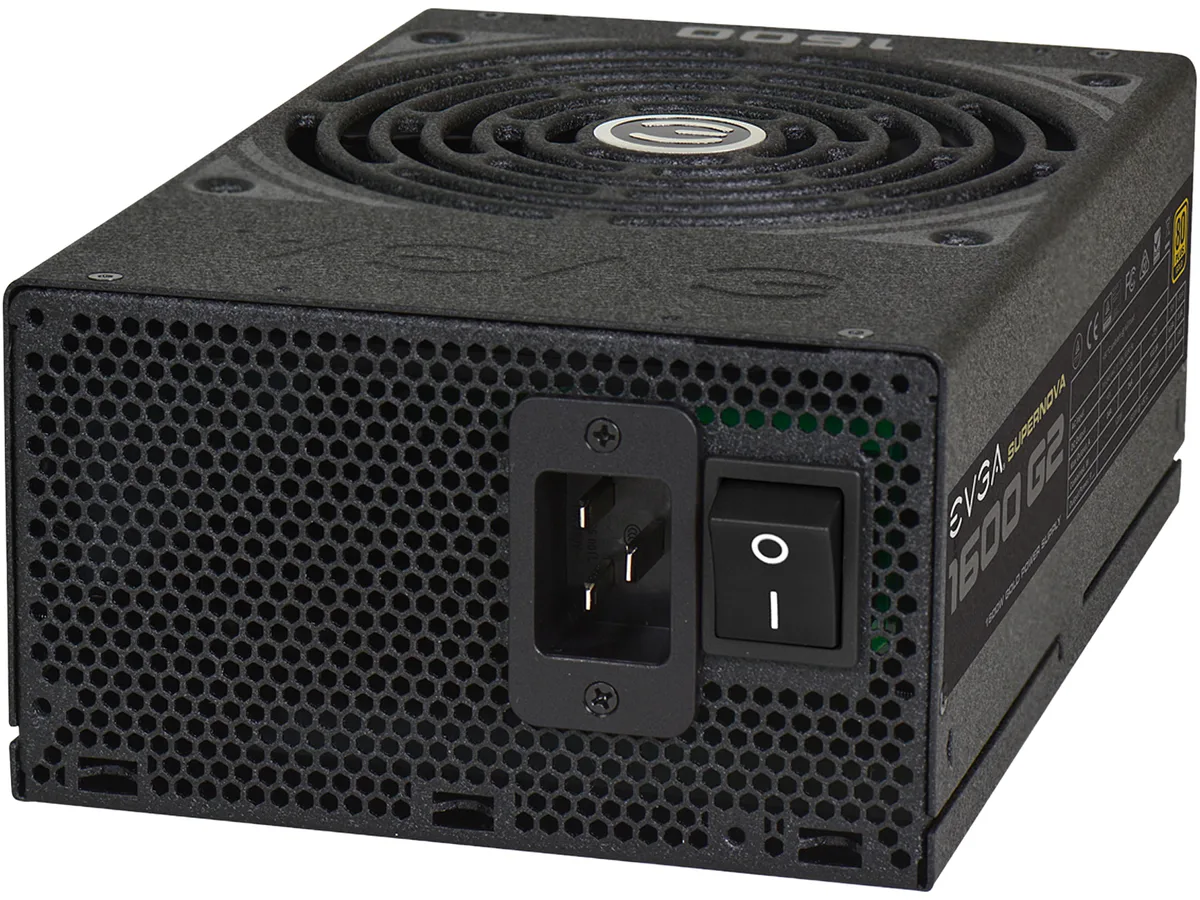

Rectangular black metal ATX power supply unit with 140mm fan grille and modular cable sockets

EVGA

EVGA SuperNOVA 1600 G2 120-G2-1600-X1 1600W power supply

SKU CH-V650-XBHQ0 MPN 120-G2-1600-X1

A fully modular 1600 W ATX power supply with 80 PLUS Gold efficiency, a single +12 V rail delivering 133.3 A, and a 140 mm double ball-bearing fan

  • TypeATX12V / EPS12V
  • Maximum Power1600 W
  • Fans140mm Double Ball Bearing
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector9x 8pin (6+2), 5x 6pin
  • Delivers 1600 W continuous power for demanding multi-GPU builds
  • 80 PLUS Gold certification achieves up to 90 % efficiency under typical loads
  • Fully modular cabling lets you install only the connectors you need
  • Single +12 V rail supplies 133.3 A for stable high-current delivery
  • 140 mm double ball-bearing fan provides reliable cooling at lower noise

1600W Fully Modular ATX Power Supply

The EVGA SuperNOVA 1600 G2 delivers 1600W of continuous power for high-end desktop systems. It uses a single +12V rail rated at 133.3A to support multi-GPU configurations and heavy overclocking. 80 PLUS GOLD certification confirms up to 90% efficiency at typical loads. The unit accepts 115-240V input at 50/60Hz for worldwide compatibility.

Fully Modular Cable Installation

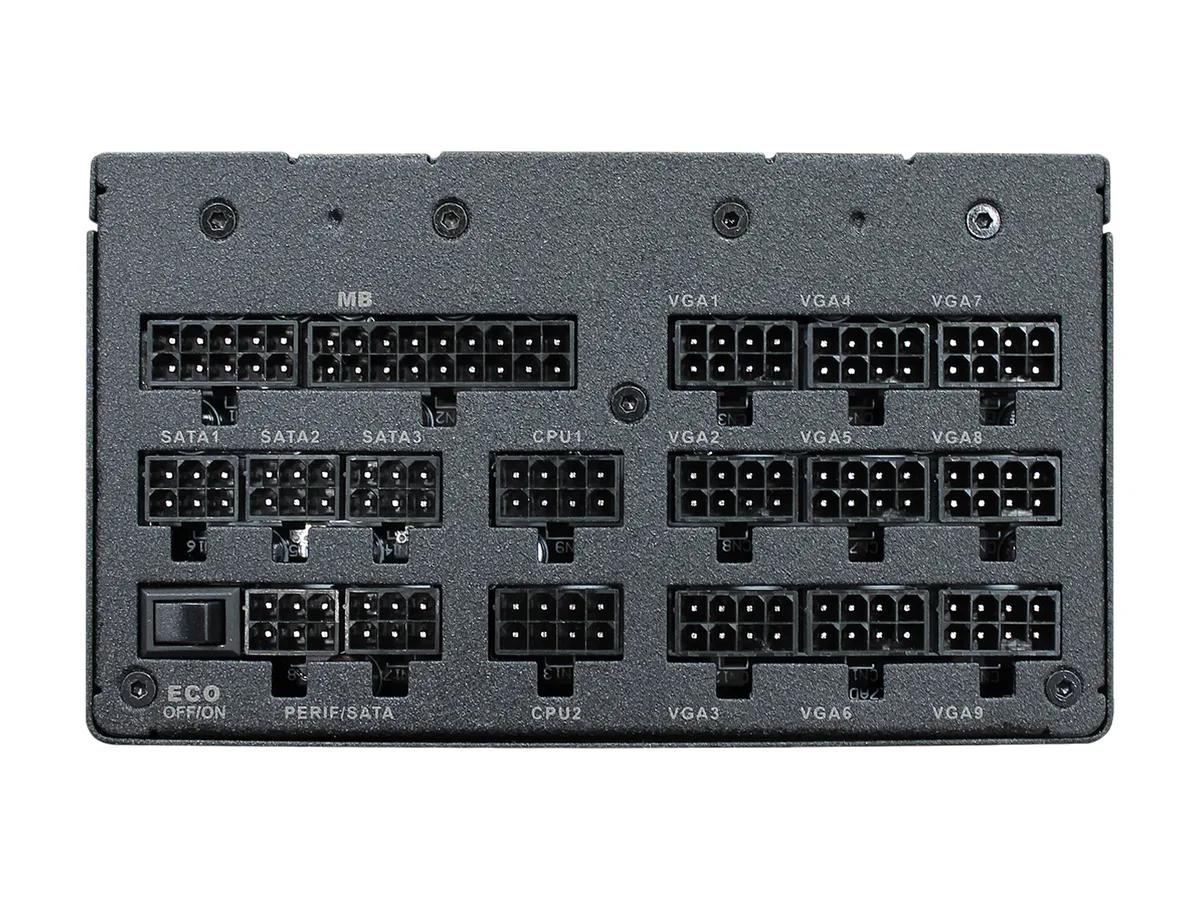

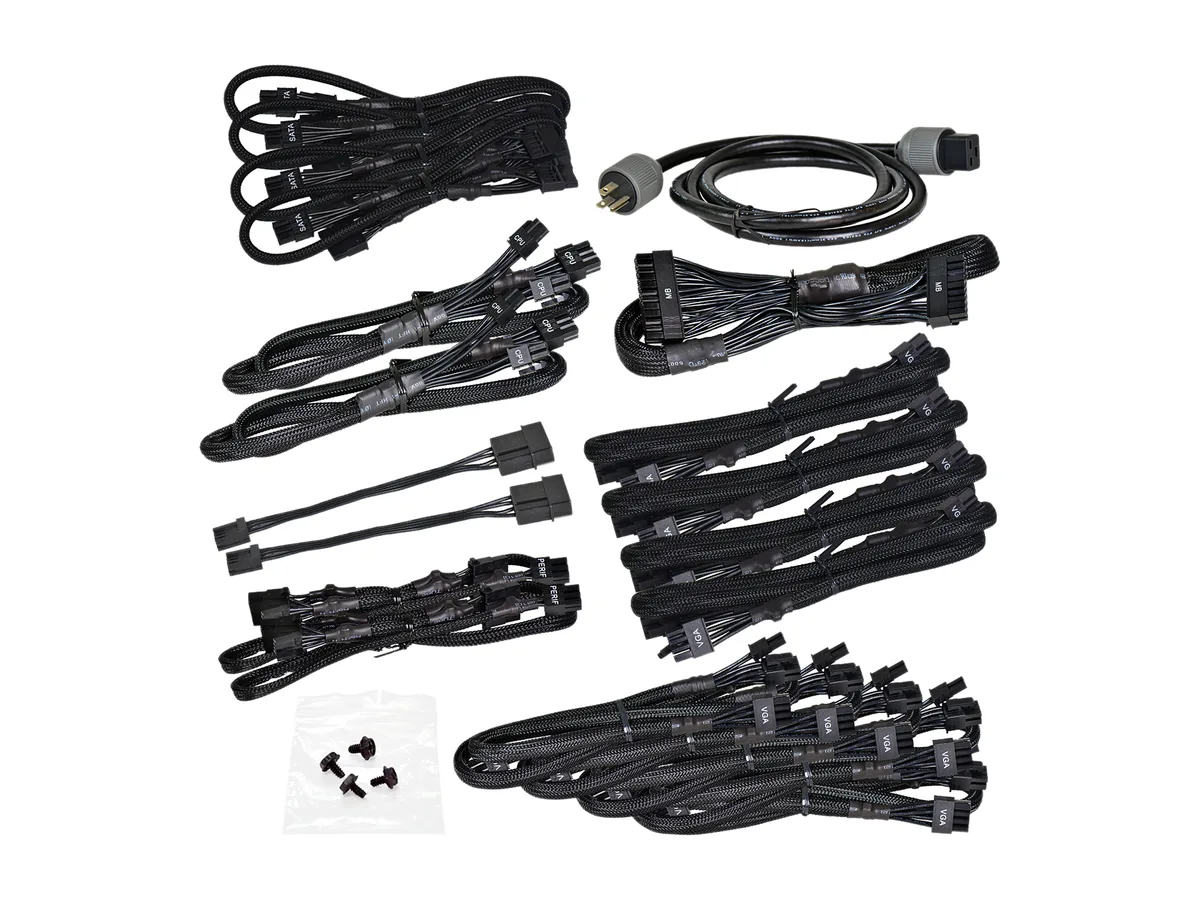

A fully modular design lets you connect only the cables your build requires, reducing internal clutter and improving airflow. The package includes nine 8-pin (6+2) PCIe connectors, five 6-pin PCIe connectors and sixteen SATA power connectors for extensive drive support. Japanese Nippon Chemi-Con solid-state capacitors are used throughout for long-term reliability. A 140mm double ball bearing fan provides cooling across the 220mm chassis length.

Sustained Load Behaviour

LLC resonant circuit topology combined with full DC-to-DC conversion maintains stable voltage regulation during extended high-wattage operation. Over-voltage and overload protection circuits safeguard components if draw exceeds safe limits. The single-rail architecture distributes the full 1600W capacity without per-rail balancing constraints. Efficiency remains high across a broad load range, limiting waste heat during prolonged compute or rendering sessions.

Highlights

  • Delivers 1600 W continuous power for demanding multi-GPU builds
  • 80 PLUS Gold certification achieves up to 90 % efficiency under typical loads
  • Fully modular cabling lets you install only the connectors you need
  • Single +12 V rail supplies 133.3 A for stable high-current delivery
  • 140 mm double ball-bearing fan provides reliable cooling at lower noise

Specifications

BrandEVGA
Model120-G2-1600-X1
TypeATX12V / EPS12V
Maximum Power1600 W
Fans140mm Double Ball Bearing
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector9x 8pin (6+2), 5x 6pin
SATA Power Connector16
SLISLI Ready
Max PSU Length220 mm
ModularYes
Efficiency90%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes

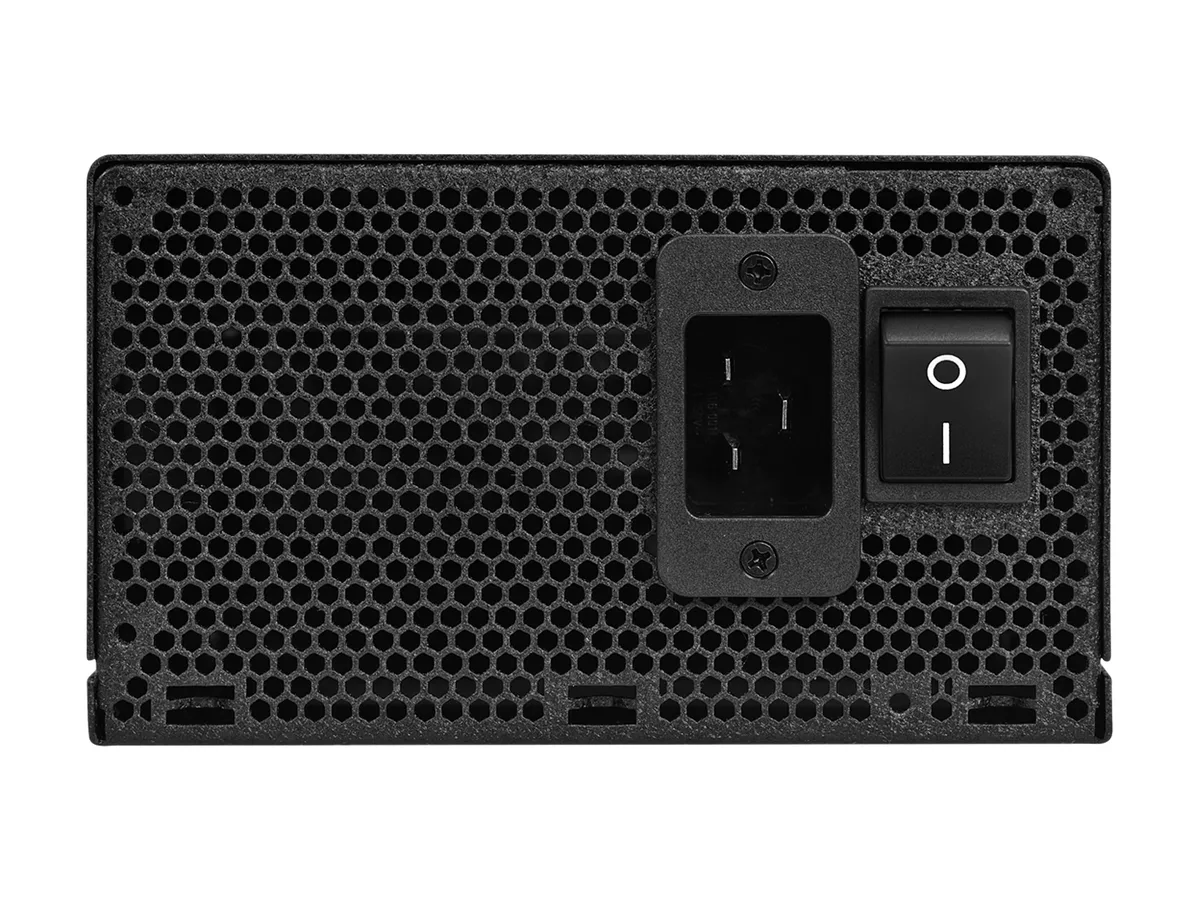

Input Voltage115 - 240 V
Input Frequency Range50/60 Hz
Input Current17-10A

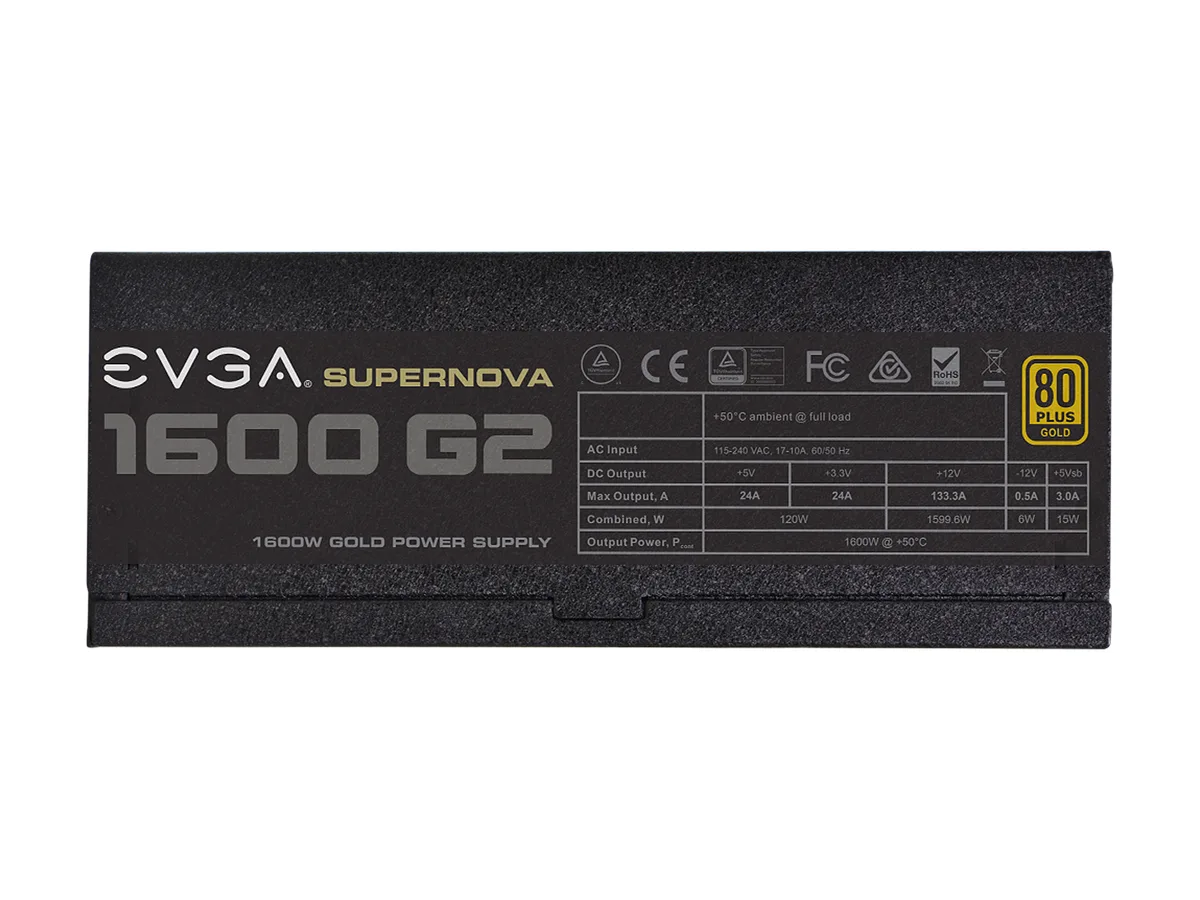

Output+3.3V@24A, +5V@24A, [email protected] , +5VSB@3A, [email protected]
MTBF>100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Connectors1 x 24 Pin ATX
EPS (CPU): 2 x 8pin (4+4)
PCIE: 9 x 8pin (6+2), 5 x 6pin
16 x SATA
6 x Four-Pin Peripheral
2 x Floppy
FeaturesUnbeatable 10 Year Warranty and unparalleled EVGA Customer Support
80 PLUS Gold certified, with up to 90% efficiency under typical loads
Highest quality Japanese brand capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI Ready
Double Ball Bearing fan for exceptional reliability and quiet operation
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), and SCP (Short Circuit Protection)
Dimensions3.34" x 5.90" x 8.66" (H x W x L)
Weight8.00lbs
Shipping weight6.17 kg
Package size292 × 269 × 180 mm

Questions about this item

Will the 220 mm length fit in a mid-tower case?

The unit is 220 mm long; check your case specification for maximum PSU clearance before buying.

Can the single +12V rail deliver enough current for multiple high-end GPUs?

The rail is rated for 133.3 A, which supports several 8-pin and 6-pin PCIe connectors simultaneously.

Does the fully modular design include all cables needed for a typical build?

The box supplies 24-pin, 9x 8-pin (6+2), 5x 6-pin and 16 SATA connectors, covering most motherboards, GPUs and drives.
