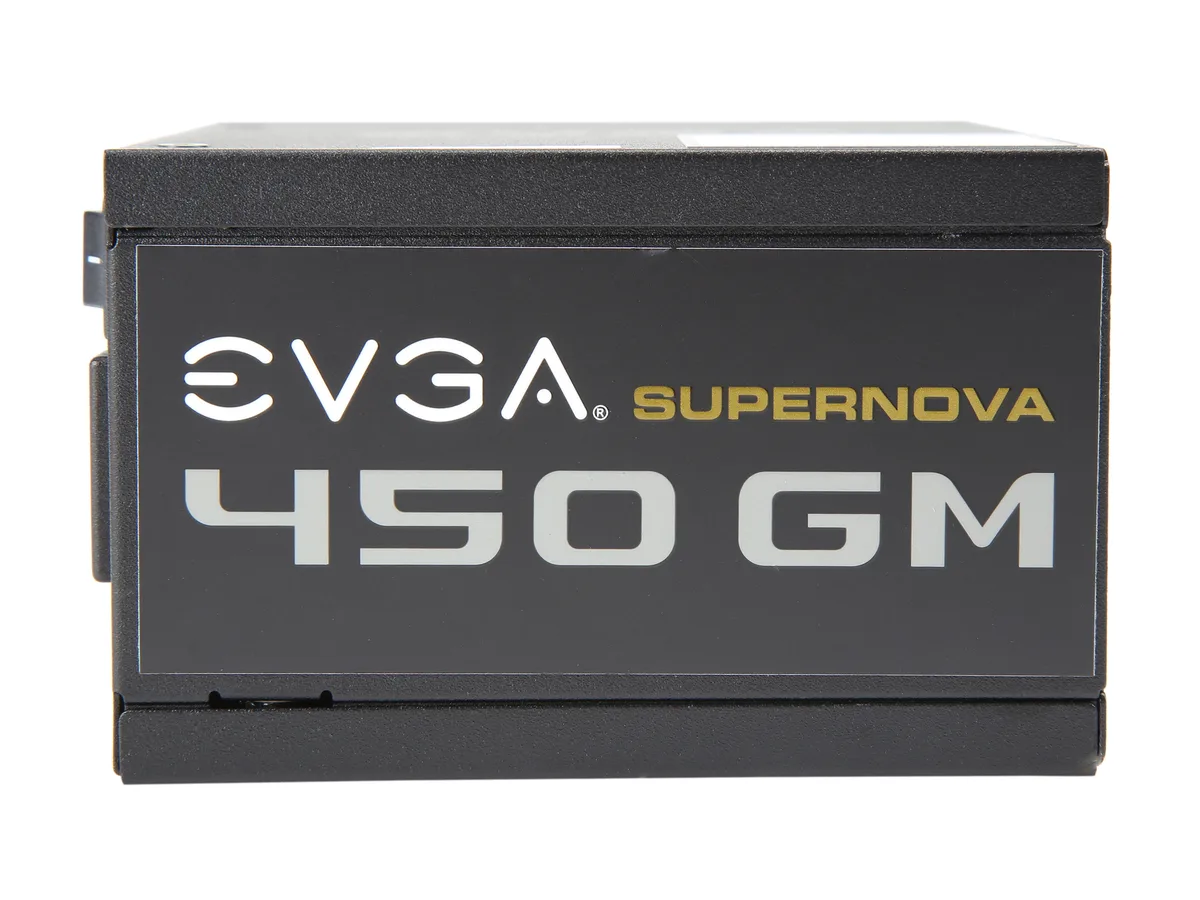

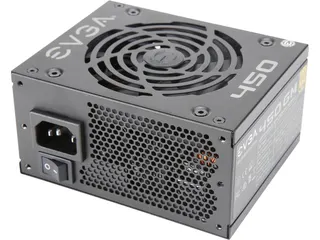

EVGA SuperNOVA 450 GM SFX Power Supply 123-GM-0450-Y1
SFX power supply delivering 450 W with 80 Plus Gold efficiency, fully modular cables and a 92 mm double ball bearing fan
- TypeSFX
- Maximum Power450 W
- Fans1 x 92mm Double Ball Bearing Fan
- PFCActive
- Main Connector1 x 24 Pin ATX
- +12V RailsSingle
Options SFX 80+ Gold (450W)
- SFX 80+ Gold (550W)
- SFX 80+ Gold (450W)
- 80 Plus Gold certification delivers 90% typical efficiency at 115 VAC
- Fully modular cables keep SFX builds clean and improve airflow
- 100% Japanese capacitors provide long-term reliability under load
- Single +12V rail supplies 54.1 A for stable GPU power

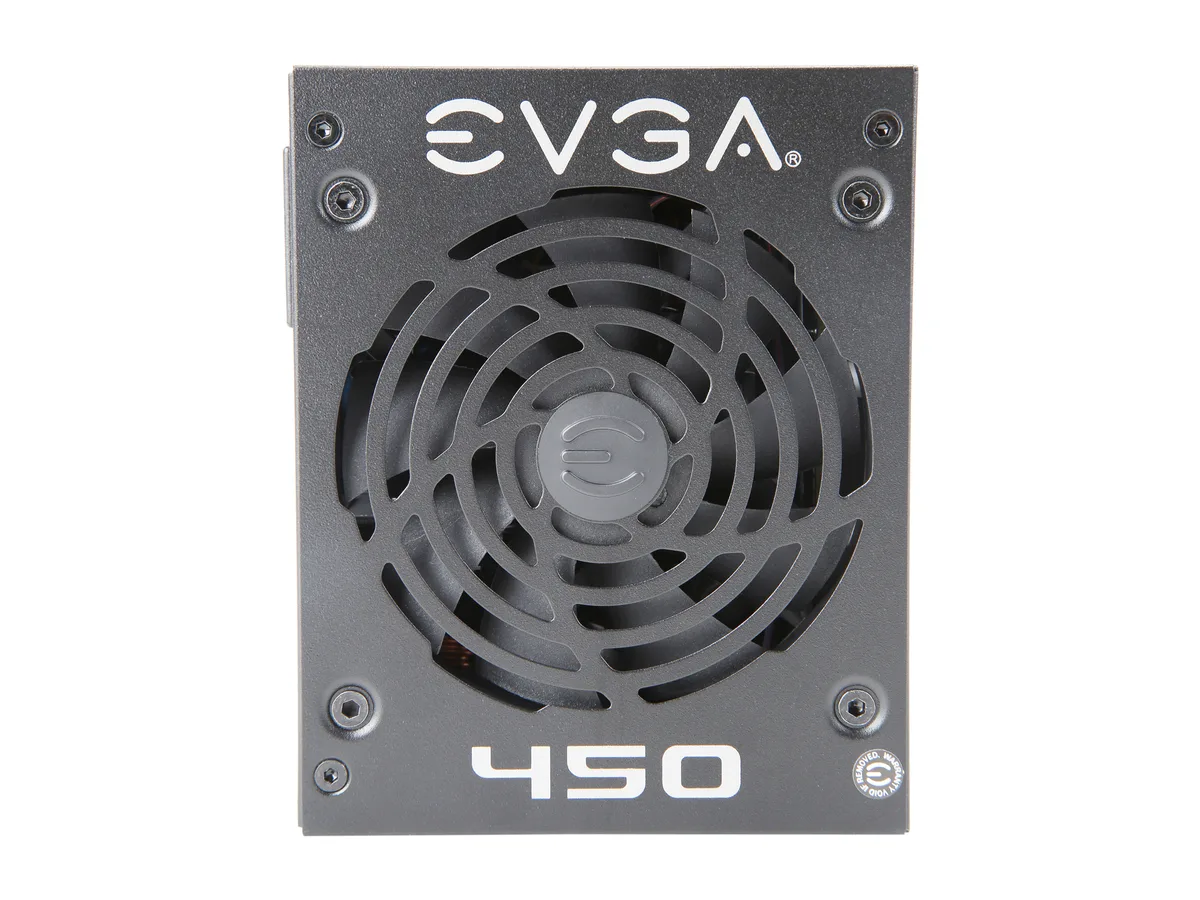

- ECO mode with 92 mm double ball bearing fan reduces noise at low loads
SFX Power Supply for Compact Builds
This EVGA SuperNOVA unit delivers 450 W in an SFX form factor measuring 124 mm in length. It includes an ATX mounting bracket for wider case compatibility. The fully modular design uses 100% Japanese capacitors and a single +12 V rail rated for 54.1 A. An ECO mode works with the 92 mm double ball bearing fan to reduce noise at low loads.
80 Plus Gold Efficiency Limits

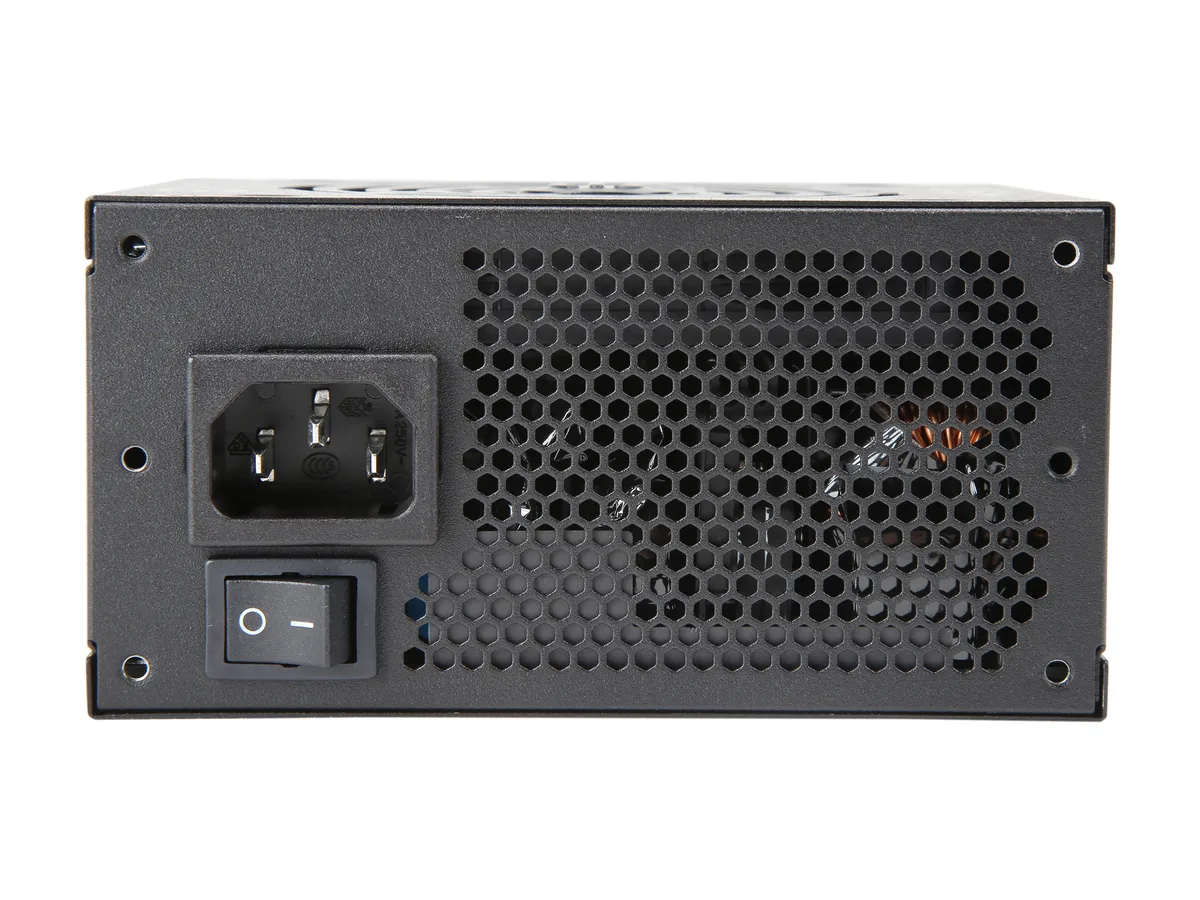

The power supply meets 80 Plus Gold certification with 90 % typical efficiency at 115 VAC input. Active PFC operates across a 100 to 240 V range at 50 or 60 Hz. Protection circuits include OVP, OCP, OTP, OPP, SCP and UVP. A DC-to-DC converter handles 3.3 V and 5 V regulation for stable output under varying loads.
Straightforward Modular Installation

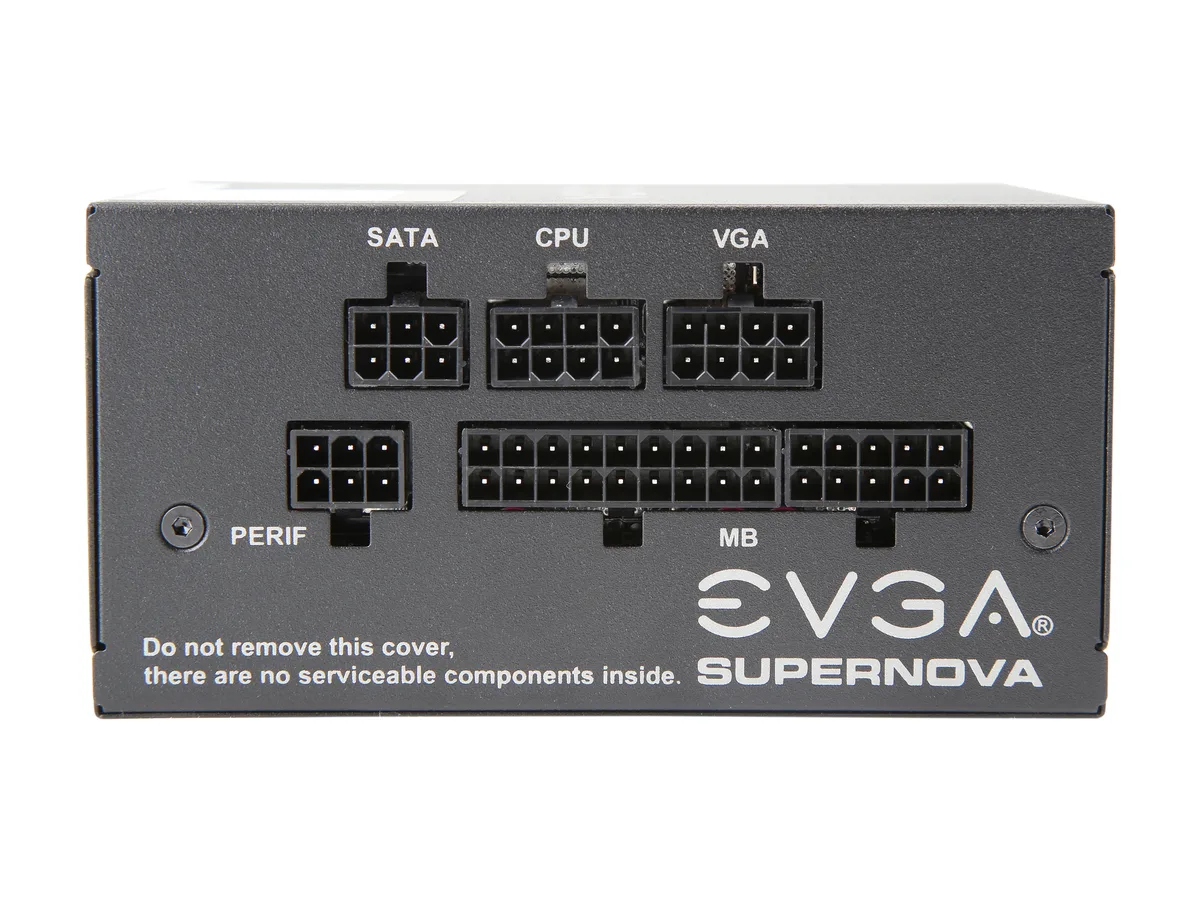

Fully modular cables let builders connect only the required 24-pin ATX, two 8-pin PCIe (6+2) and four SATA power leads. The supplied Power ON Self Tester enables a quick functional check before the unit is mounted. The only common issue is forgetting to seat the modular plugs fully, which can cause intermittent power on the affected rail.
Highlights
- 80 Plus Gold certification delivers 90% typical efficiency at 115 VAC
- Fully modular cables keep SFX builds clean and improve airflow
- 100% Japanese capacitors provide long-term reliability under load
- Single +12V rail supplies 54.1 A for stable GPU power
- ECO mode with 92 mm double ball bearing fan reduces noise at low loads
Specifications
| Brand | EVGA |
|---|---|
| Series | SuperNOVA 450 GM |
| Model | 123-GM-0450-Y1 |
| Type | SFX |
| Maximum Power | 450 W |
| Fans | 1 x 92mm Double Ball Bearing Fan |
| PFC | Active |
| Main Connector | 1 x 24 Pin ATX |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 8 Pin (6+2) PCIE |
| SATA Power Connector | 4 x SATA |
| Haswell Support | Certified |
| Max PSU Length | 124 mm |
| Modular | Full Modular |
| Efficiency | 90% (115 VAC) or Higher Typical |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 6.5 - 3A |

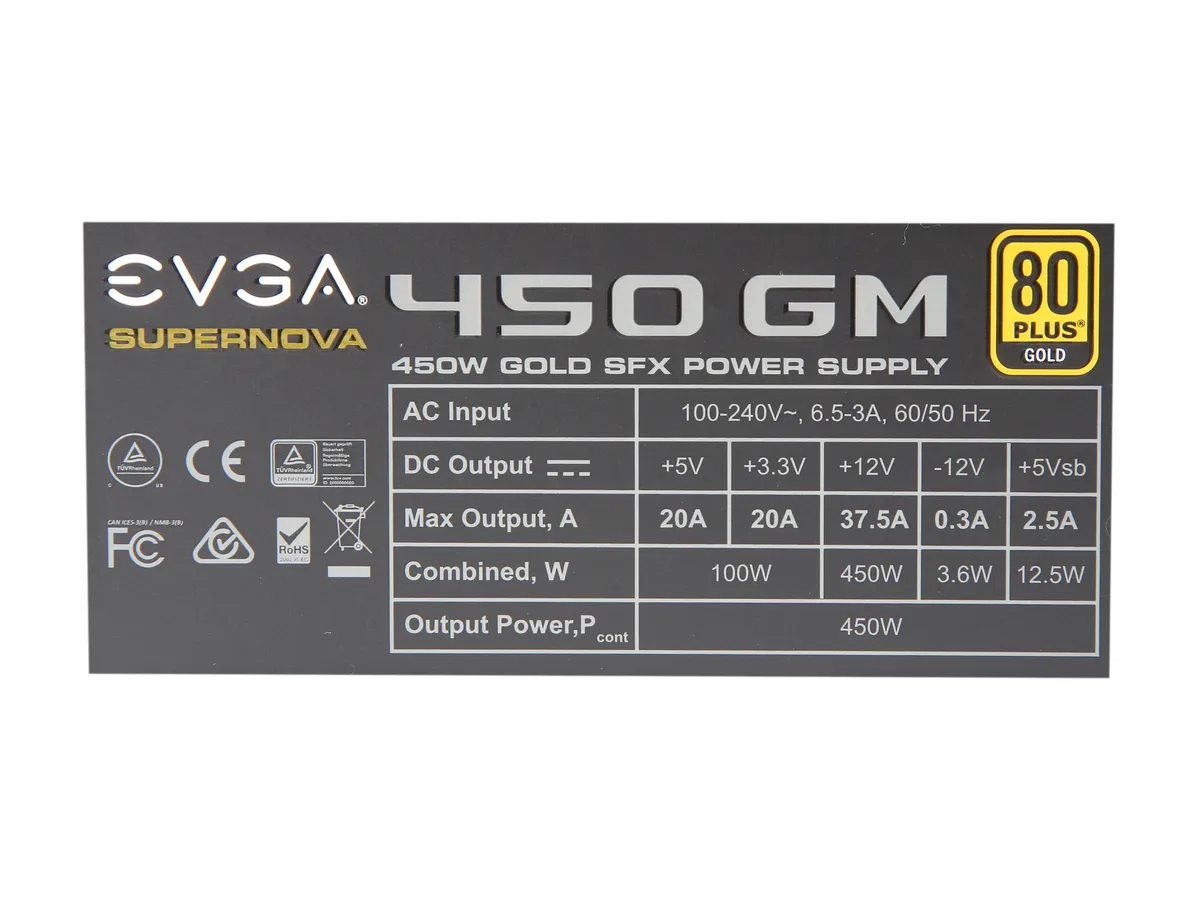

| Output | +3.3V @ 20A, +5V @ 20A, +12V @ 37.5A, +5VSB @ 2.5A, -12V @ 0.3A |
| MTBF | 100,000 Hours |
| Approvals | TUV, CB, CE, FCC, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Connectors | 1 x 24 pin ATX 1 x 8 pin (4+4) EPS (CPU) 2 x 8 pin (6+2) PCIe 4 x SATA 4 x 4 pin Peripheral 1 x Floppy |
| Cable Spec | ATX Cable: 1 x 300mm EPS Cable: 1 x 400mm PCIe Cable: 1 x 400mm, 510mm SATA Cable: 1 x 300mm, 410mm, 520mm, 630mm Four-Pin Peripheral Cable: 1 x 300mm, 410mm, 520mm, 630mm Floppy Adapter: 1 x 100mm AC Power: 1 x 1500mm Molex to FDD: 1 x |
| Features | 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads Fully Modular to reduce clutter and improve airflow Double Ball Bearing fan for exceptional reliability and quiet operation Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) Active Power Factor Correction Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary SFX- |
| Dimensions | 2.48" x 4.92" x 3.94" |
| Weight | 3.10 lbs. |
| 12V Power Connector | 1 x 8 Pin (4+4) EPS (CPU) |
| Floppy Connector | 1 x Floppy |
| Peripheral Connector | 4 x 4-Pin Peripheral |
| Shipping weight | 1.77 kg |
| Package size | 272 × 201 × 99 mm |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Should I pick the 450 W model or a higher-wattage SFX unit?
Choose the 450 W unit if your build draws less than 450 W total; the single +12 V rail can deliver up to 54.1 A, so it handles modern CPUs and GPUs within that budget.
What does the 80 Plus Gold rating mean once the PSU is installed?
At typical loads on 115 V mains the unit runs at 90 % efficiency or higher, so less power turns into heat and your electricity bill stays lower.
How does the SFX form factor and included bracket affect case compatibility?
The 124 mm long SFX chassis fits native SFX cases, and the supplied bracket lets you mount it in standard ATX cases as well.
