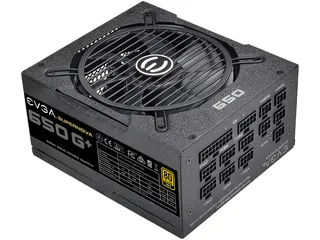

Black rectangular ATX power supply unit with modular cable sockets and a 135mm fan grille

EVGA

EVGA SuperNOVA 650 G+ 120-GP-0650-X1 power supply

SKU CH-27ZW-4NADX MPN 120-GP-0650-X1

Fully modular ATX power supply delivering 650 W with 80 Plus Gold efficiency, a 135 mm fluid-dynamic-bearing fan, 100 % Japanese capacitors and a single +12 V rail rated at 54 A

  • TypeATX12V / EPS12V
  • Maximum Power650 W
  • Fans135mm Fluid Dynamic Bearing Fan
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector4 x 6+2-Pin
  • 80 PLUS Gold certification delivers 90% typical efficiency
  • Fully modular design reduces cable clutter for better airflow
  • 135mm fluid dynamic bearing fan runs quietly under load
  • 100% Japanese capacitors and 100,000 hour MTBF support long-term reliability
  • Single +12V rail at 54A provides stable power to demanding components

What the G+ delivers

The EVGA SuperNOVA 650 G+ is a fully modular ATX power supply rated at 650 W with 80 PLUS Gold efficiency. It uses a single +12 V rail, 100 % Japanese capacitors and a 135 mm Fluid Dynamic Bearing fan. The unit measures 170 mm long and includes a Power ON Self Tester for quick checks before installation.

Who should choose it

System builders who need a compact, fully modular 650 W unit with Gold efficiency and a ten-year warranty will fit this PSU easily. Anyone requiring higher wattage, a different efficiency tier or a shorter depth than 170 mm should consider other models instead.

The deciding specification

The critical figure is the 650 W maximum power combined with a single +12 V rail rated at 54 A. If your build’s total power draw stays within that limit, the G+ will deliver stable voltage; if it exceeds 650 W, you must select a higher-capacity unit.

Highlights

  • 80 PLUS Gold certification delivers 90% typical efficiency
  • Fully modular design reduces cable clutter for better airflow
  • 135mm fluid dynamic bearing fan runs quietly under load
  • 100% Japanese capacitors and 100,000 hour MTBF support long-term reliability
  • Single +12V rail at 54A provides stable power to demanding components

Specifications

BrandEVGA
SeriesSuperNOVA
Model120-GP-0650-X1
TypeATX12V / EPS12V
Maximum Power650 W
Fans135mm Fluid Dynamic Bearing Fan
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector9
Max PSU Length170 mm
ModularFull Modular
Efficiency90% or Higher Typical
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes

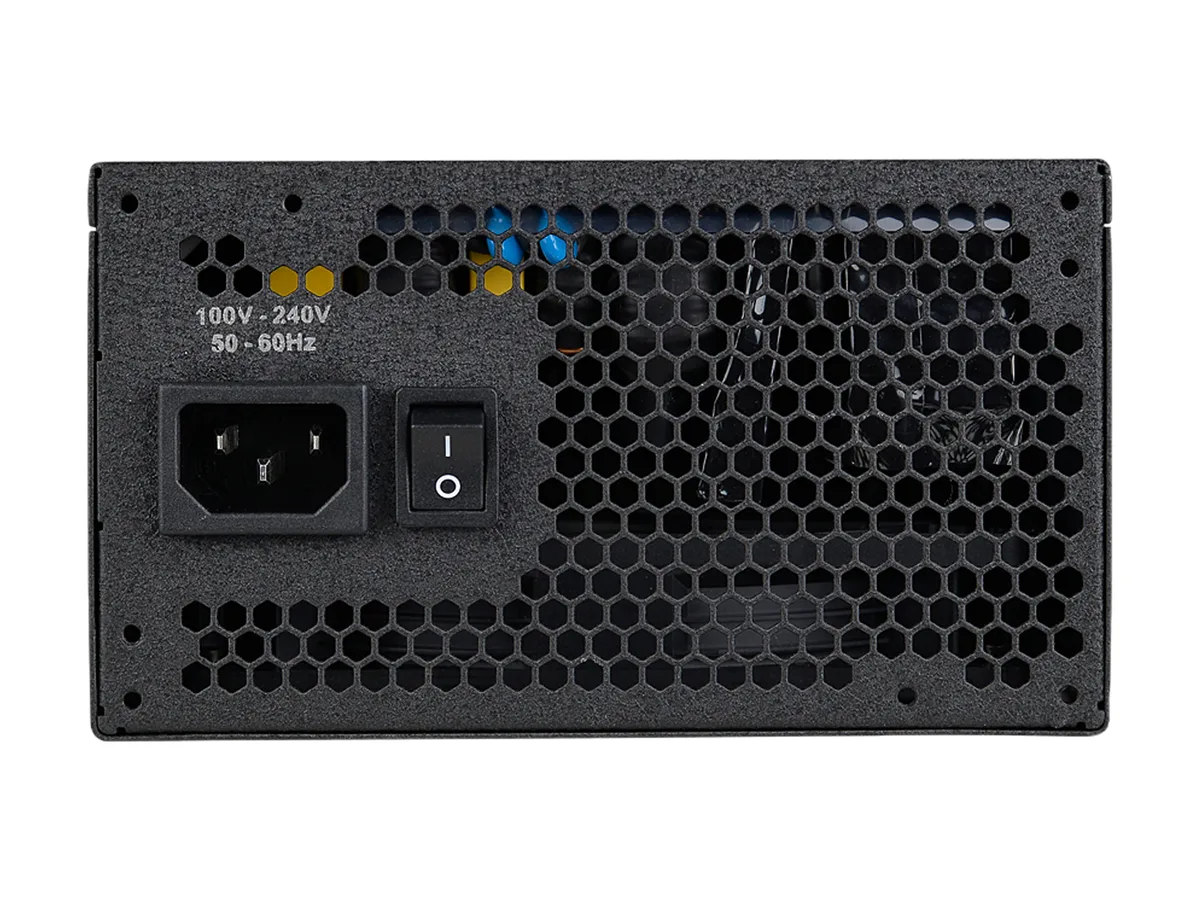

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10 - 5 A

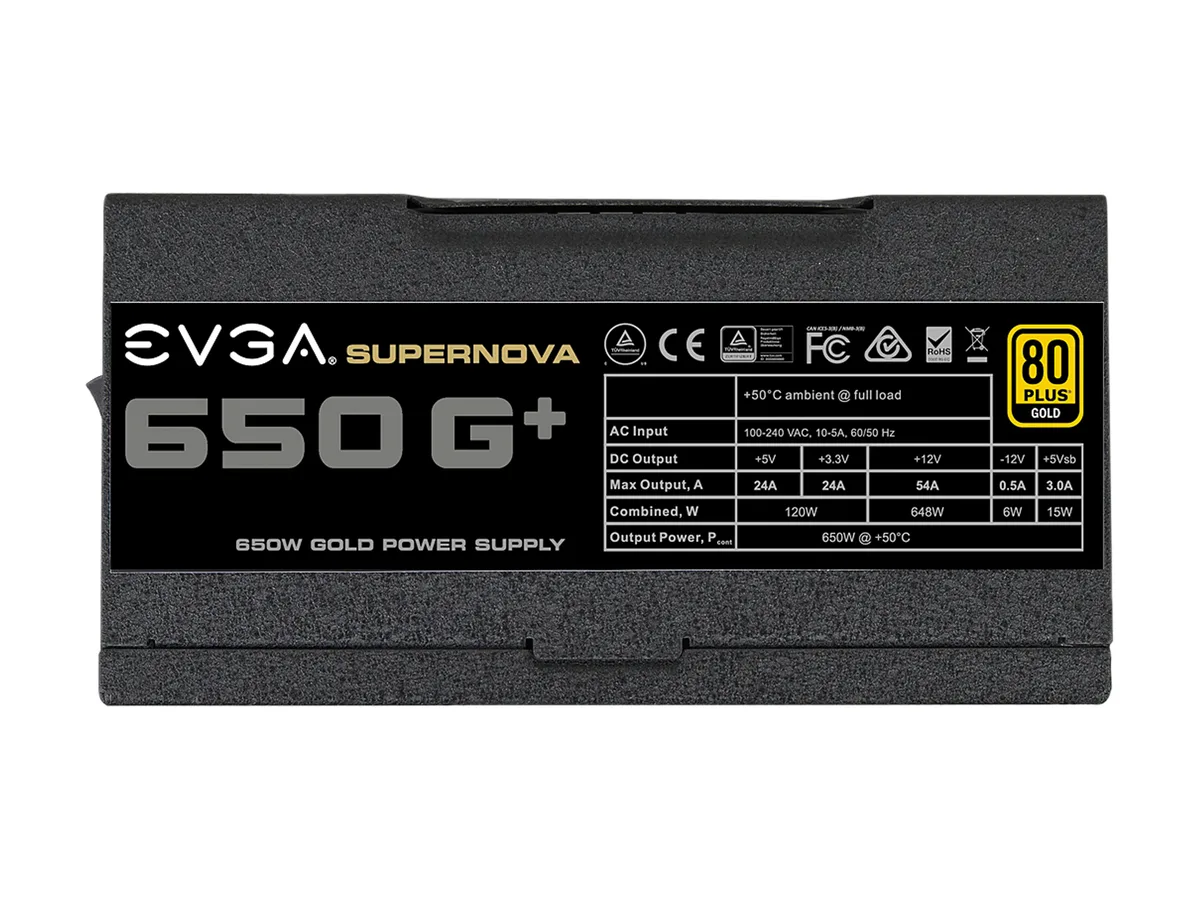

Output+3.3V@24A, +5V@24A, +12V@54A, [email protected] , [email protected]
MTBF100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

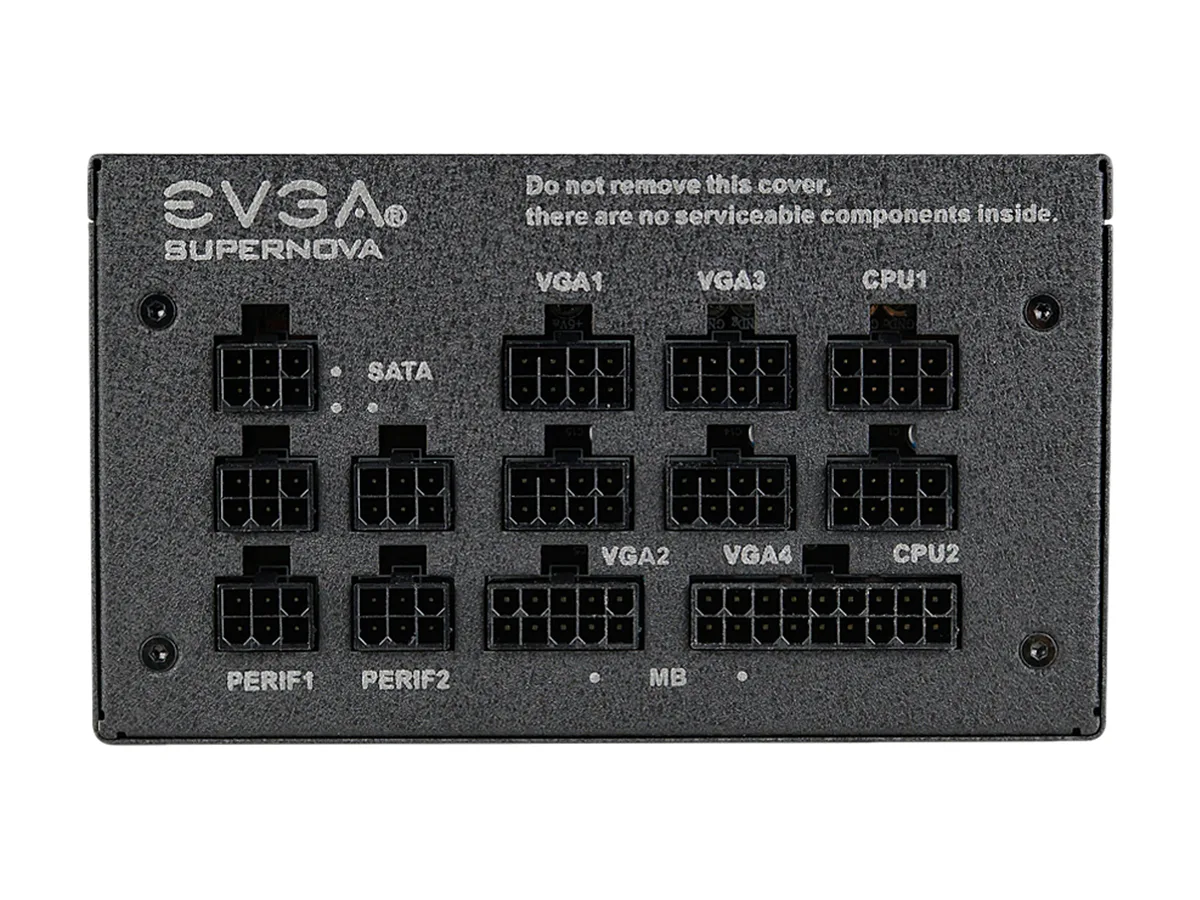

Connectors1 x 24 Pin ATX
2 x 8pin(4+4) EPS (CPU)
4 x 8pin(6+2)PCIE
9 x SATA
6 x Four-Pin Peripheral
2 x Floppy
Features80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
100% Japanese Capacitors ensure long-term reliability
Whisper Silent with 135mm Fluid Dynamic Bearing Fan

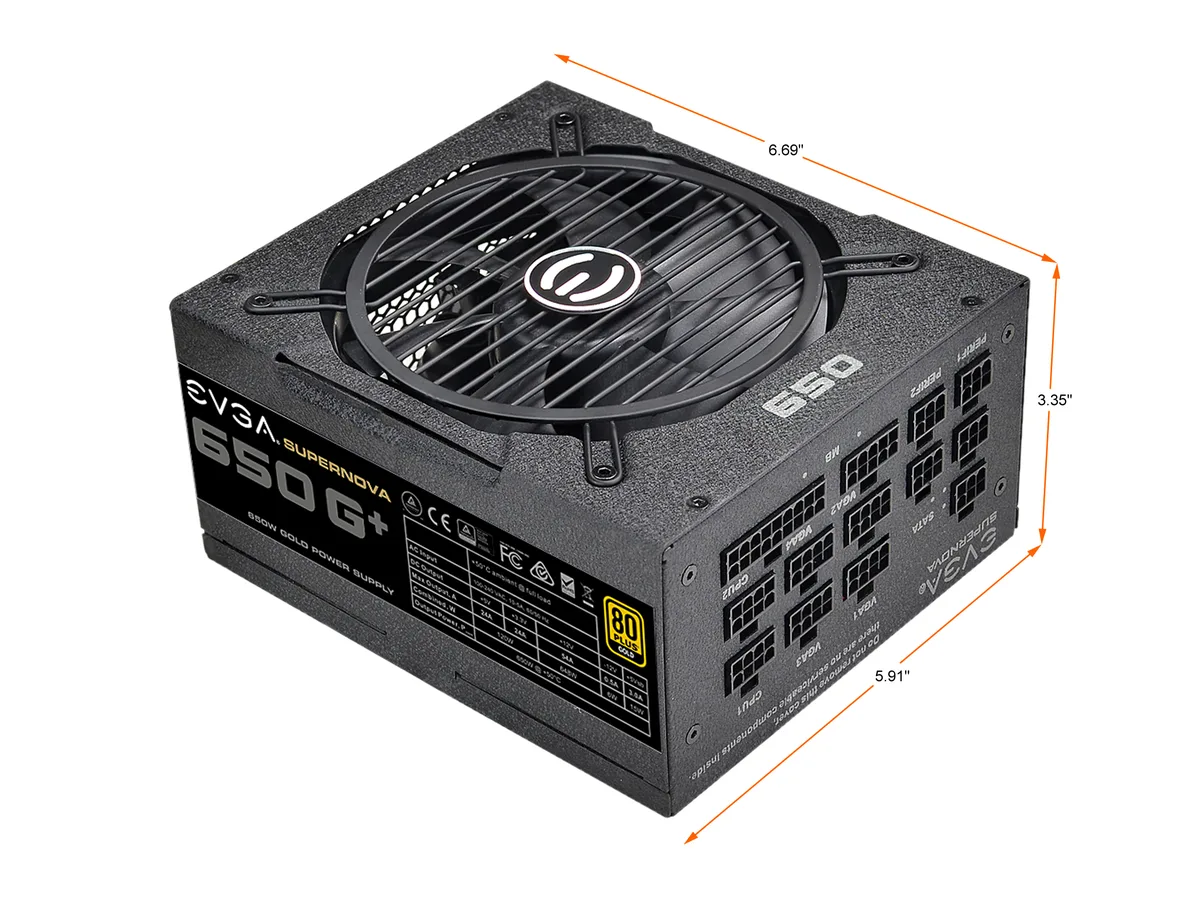

Dimensions3.35" x 5.91" x 6.69"
Weight7.00 lbs.
Shipping weight3.33 kg
Package size312 × 264 × 130 mm

Questions about this item

Does my case need to accept an ATX power supply up to 170 mm long?

Yes, the unit is 170 mm deep, so the case must support that length.

Can I reuse my older SATA drives and PCIe graphics cards with the included cables?

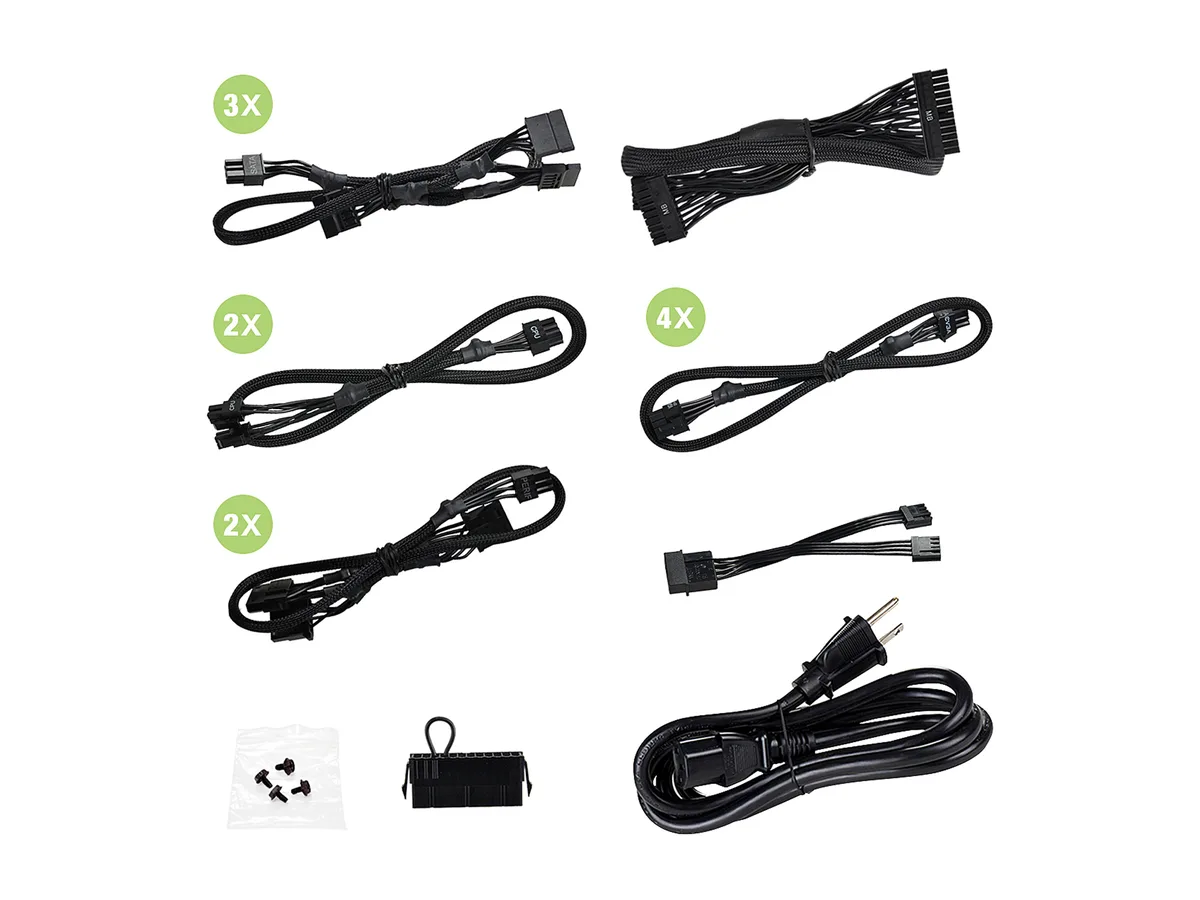

The box provides 9 SATA power connectors and 4 PCIe 6+2-pin cables for those devices.

How do I confirm the unit is working before installing it in the case?

Use the included Power ON Self Tester on the 24-pin connector to verify the PSU starts and delivers power.
