Compact black ATX power supply with modular cable sockets and a 130mm fan

EVGA

EVGA SuperNOVA 650 G3 220-G3-0650-Y1 650W Power Supply

SKU CH-6XBY-44KZR MPN 220-G3-0650-Y1

A fully modular 650 W ATX power supply with 80 Plus Gold efficiency, a 130 mm hydraulic dynamic bearing fan, and a compact 150 mm length

  • TypeATX12V / EPS12V
  • Maximum Power650 W
  • Fans1 x 130mm Hydraulic Dynamic Bearing Fan
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector3 x 6+2-Pin

Options ATX 80+ Gold (650W)

  • 80 PLUS Gold certified for 90 to 92 percent efficiency
  • 150 mm length fits compact cases while delivering 650 W
  • Fully modular cabling keeps builds clean and airflow unobstructed
  • 130 mm hydraulic dynamic bearing fan runs quieter and lasts longer
  • Single +12 V rail supplies 54.1 A for stable GPU power

Compact 150mm ATX Power Supply

The EVGA SuperNOVA G3 delivers 650 W of fully modular ATX12V and EPS12V power in a 150 mm long chassis. It targets builders who need Gold-certified efficiency and a single +12 V rail for modern GPUs. The unit includes a 24-pin main connector, three 6+2-pin PCIe connectors and six SATA power connectors. It supports SLI and CrossFire multi-GPU configurations.

Replaces Bulkier Gold Units

This model reduces length compared to many standard ATX supplies while keeping 80 PLUS GOLD ratings of 90% at 115 VAC and 92% at 220-240 VAC. The jump is worthwhile when case space is limited or when cable routing benefits from full modularity. A 130 mm hydraulic dynamic bearing fan and EVGA ECO mode lower noise at light loads. Over-voltage protection guards connected components.

Straightforward Modular Install

Full modularity means only required cables are fitted, simplifying routing in tight builds. The included Power On Self Tester lets you verify the unit before mounting it in the case. Ensure the 150 mm depth clears your chassis and cable bends. Connect the 24-pin, EPS and PCIe cables firmly to avoid intermittent power delivery.

Highlights

  • 80 PLUS Gold certified for 90 to 92 percent efficiency
  • 150 mm length fits compact cases while delivering 650 W
  • Fully modular cabling keeps builds clean and airflow unobstructed
  • 130 mm hydraulic dynamic bearing fan runs quieter and lasts longer
  • Single +12 V rail supplies 54.1 A for stable GPU power

Specifications

BrandEVGA
SeriesSuperNOVA G3 Series
Model220-G3-0650-Y1
TypeATX12V / EPS12V
Maximum Power650 W
Fans1 x 130mm Hydraulic Dynamic Bearing Fan
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector6
SLIReady
CrossFireReady
Max PSU Length150 mm
ModularFull Modular
Efficiency90% (115 VAC) / 92% (220 VAC - 240 VAC)
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50 - 60 Hz
Input Current10A

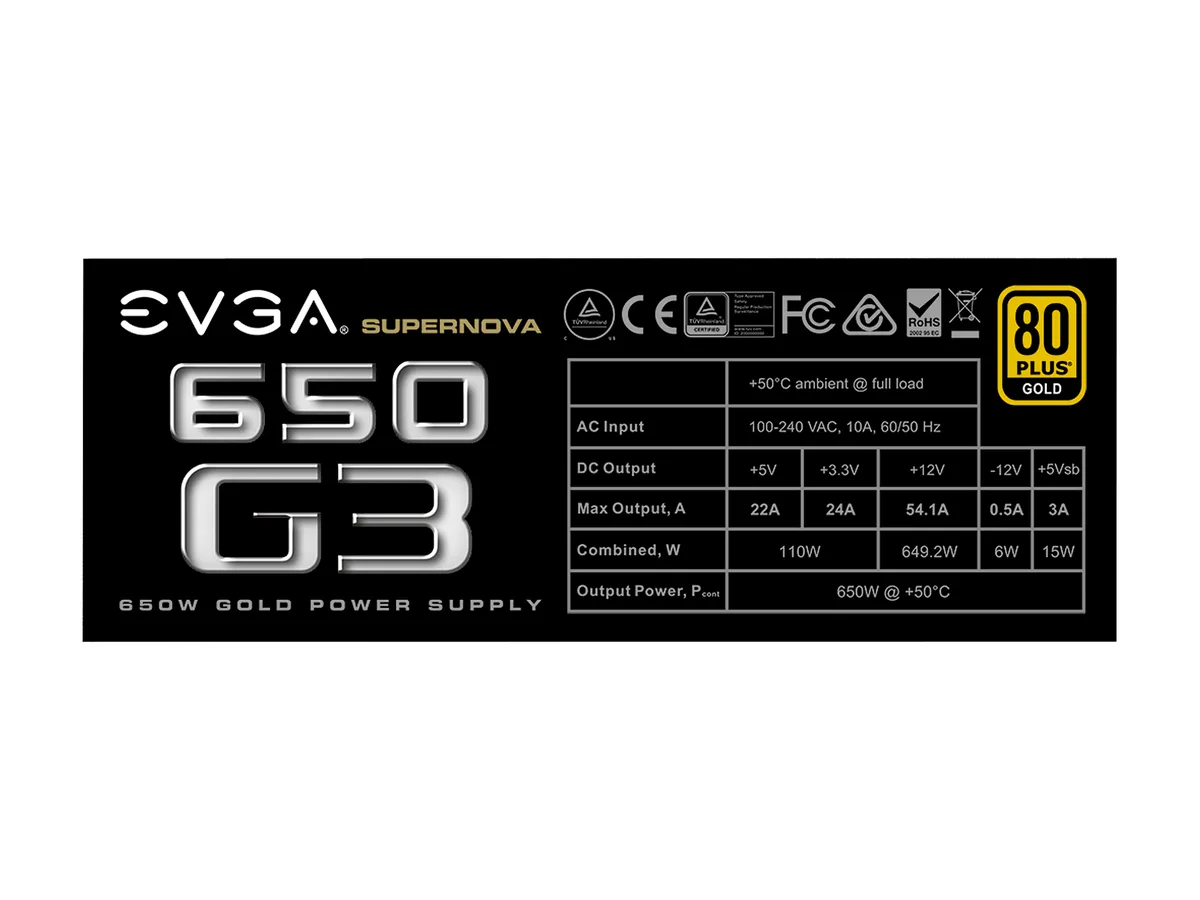

Output+3.3V @ 24A, +5V @ 22A, +12V @ 54.1A, +5Vsb @ 3.0A, -12V @ 0.5A
MTBF100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement

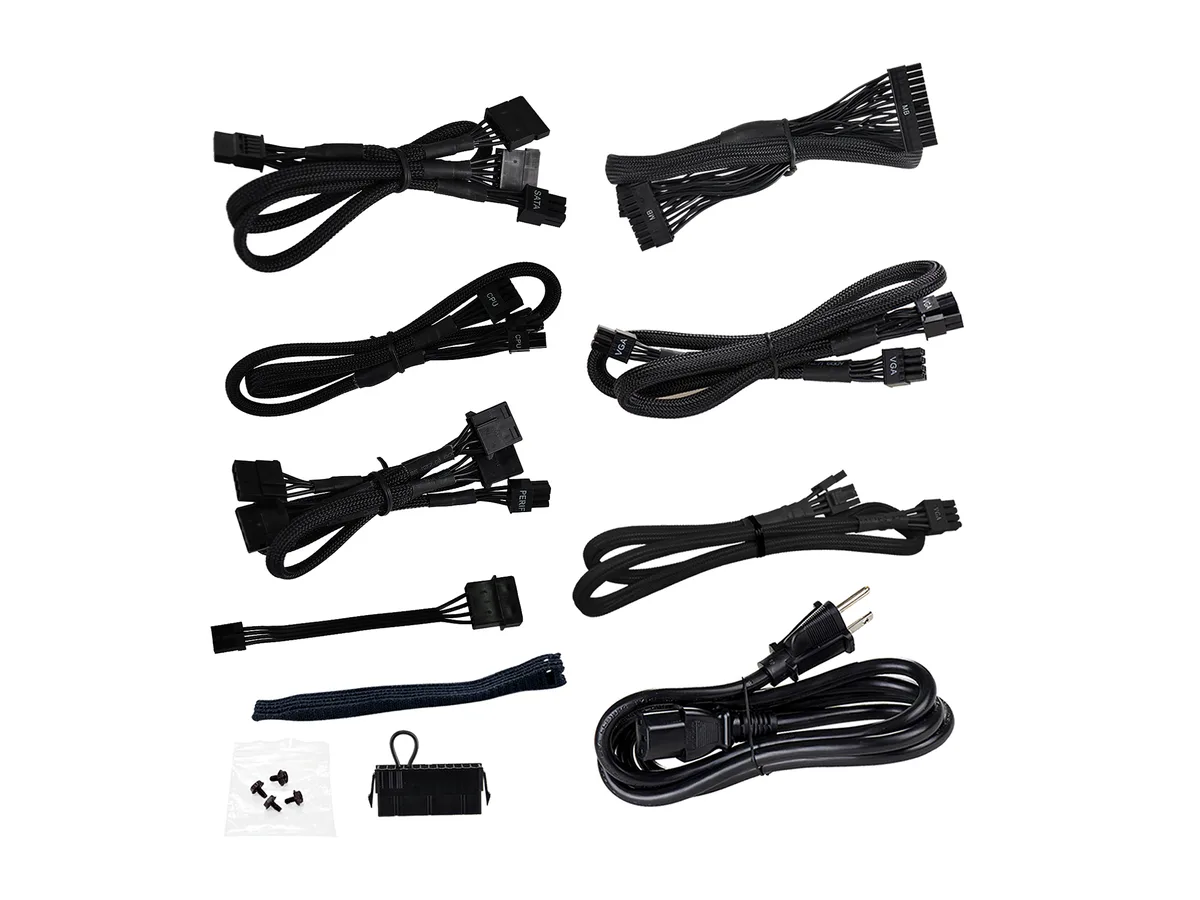

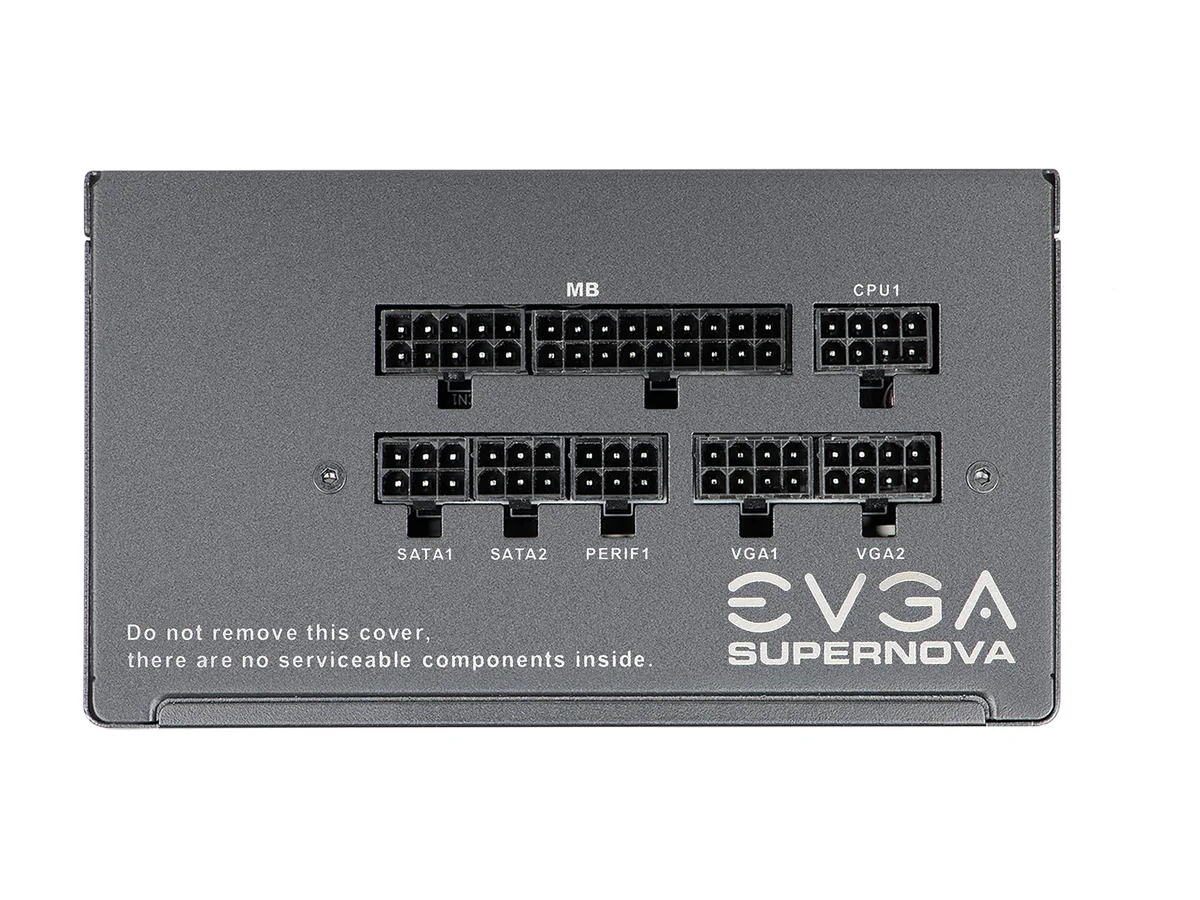

Connectors1 x 24 Pin ATX
1 x 8pin (4+4) EPS (CPU)
3 x 8pin (6+2) PCIE
6 x SATA
4 x Four-Pin Peripheral
1 x Floppy
PFCActive
Features80 PLUS Gold certified, with 90% (115 VAC) / 92% (220 VAC - 240 VAC) efficiency or higher under typical loads
Highest quality Japanese brand capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
EVGA ECO Intelligent Thermal Control System elminates fan noise at low to medium loads
Hydraulic
Dimensions3.35" x 5.91" x 5.91"
Weight5.00 lbs.
Shipping weight2.70 kg
Package size300 × 229 × 124 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case depth is required for the 150 mm long SuperNOVA G3 unit?

The power supply measures 150 mm in length, so the case must provide at least that much clear depth behind the motherboard tray for the unit and its modular cables.

Which cables must be connected during installation, and which step is often missed?

Attach the 24-pin ATX motherboard cable, the 8-pin EPS CPU cable and any required 6+2-pin PCIe cables; the step most often missed is plugging the modular cables into the PSU side before routing them.

When should the 130 mm hydraulic dynamic bearing fan be cleaned or replaced?

Clean dust from the fan blades and intake vents every 6 to 12 months; replace the fan only if bearing noise appears or airflow drops noticeably.
