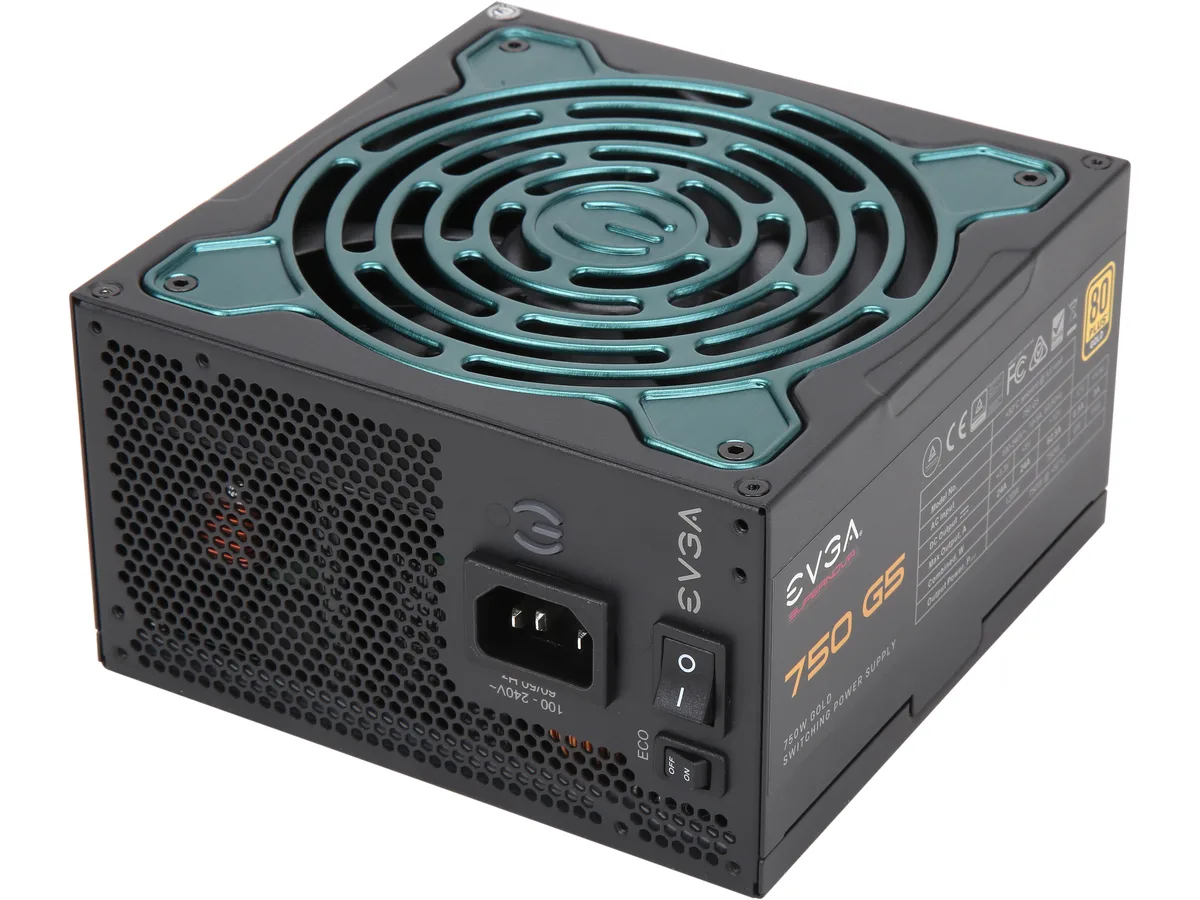

Rectangular black ATX power supply, 150mm long, fully modular with 135mm fan

EVGA

EVGA SuperNOVA 750 G5 220-G5-0750-X1 power supply

SKU CH-D85A-64566 MPN 220-G5-0750-X1

Fully modular 750 W ATX power supply with 80 PLUS Gold efficiency, 135 mm fluid dynamic bearing fan, 100 % Japanese capacitors and 150 mm compact length

  • TypeATX12V / EPS12V
  • Maximum Power750 W
  • Fans1 x 135mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 80 PLUS Gold certified for 91% typical-load efficiency
  • Fully modular cabling cuts clutter and improves airflow

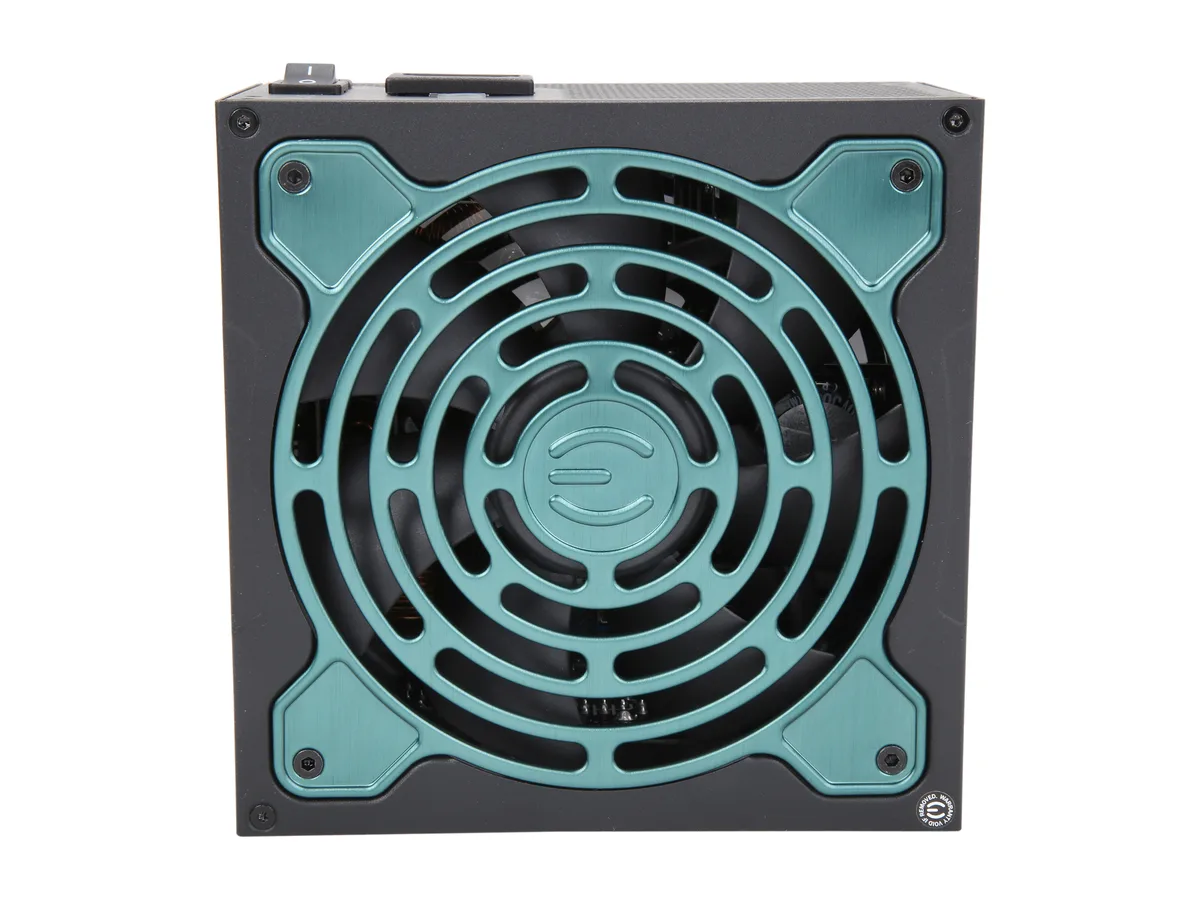

  • 135 mm Fluid Dynamic Bearing fan with ECO mode for quiet operation
  • 100% Japanese capacitors deliver long-term reliability
  • Compact 150 mm depth fits tight cases

Power for demanding builds

The EVGA SuperNOVA 750 G5 delivers 750 W of continuous power through a single +12V rail. It is built for systems that need stable output for high-end graphics cards and multi-drive arrays.

80 PLUS Gold efficiency

The unit meets 80 PLUS Gold certification and reaches 91% efficiency or higher under typical load. Active PFC and a DC-to-DC converter keep voltage regulation tight and ripple low across the 100-240 V input range.

Fully modular 150 mm design

Full modular cabling lets you connect only the 20+4 pin, six 6+2 pin PCIe and nine SATA leads you need. The 135 mm Fluid Dynamic Bearing fan runs quietly and the compact 150 mm depth fits most cases, but verify clearance before ordering.

Highlights

  • 80 PLUS Gold certified for 91% typical-load efficiency
  • Fully modular cabling cuts clutter and improves airflow
  • 135 mm Fluid Dynamic Bearing fan with ECO mode for quiet operation
  • 100% Japanese capacitors deliver long-term reliability
  • Compact 150 mm depth fits tight cases

Specifications

BrandEVGA
SeriesSuperNOVA 750 G5
Model220-G5-0750-X1
TypeATX12V / EPS12V
Maximum Power750 W
Fans1 x 135mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector9
SLISLI Ready
Haswell SupportYes
CrossFireCrossFire Ready
Max PSU Length150 mm
ModularFull Modular
Efficiency91% or higher (under typical load)
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10 - 5A

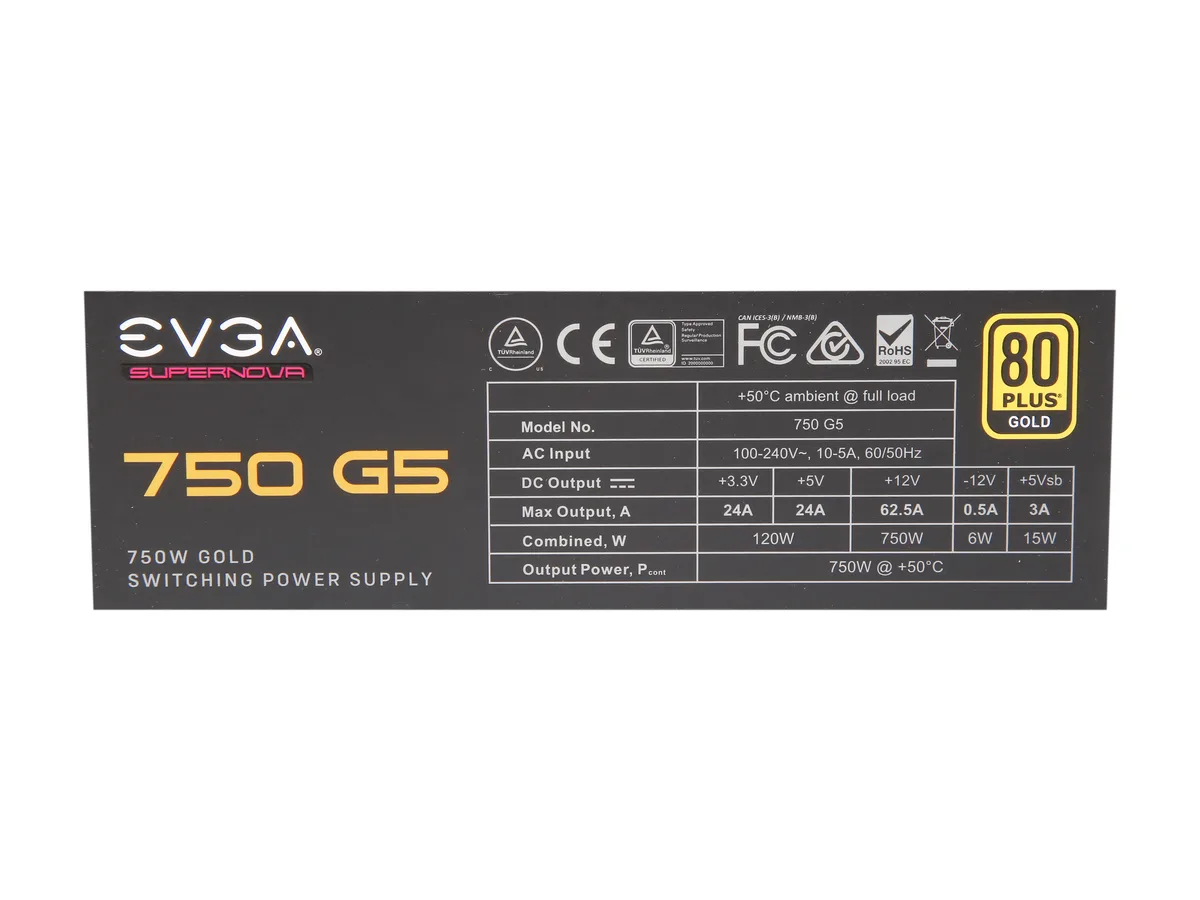

Output+3.3V@24A, +5V@24A, [email protected] , [email protected] , +5Vsb@3A
MTBF100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement

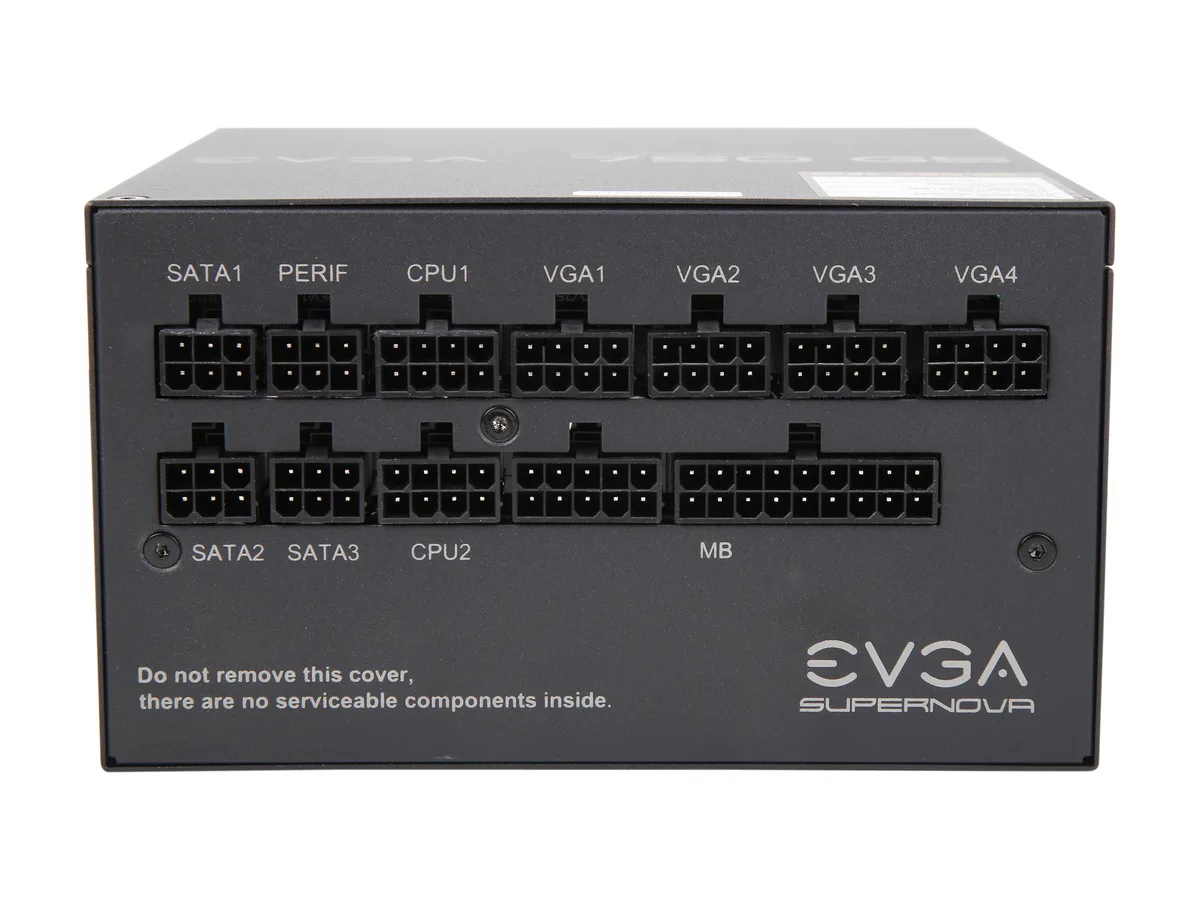

Connectors1 x 24 Pin ATX (20+4)
2 x 8 Pin EPS (4+4)
6 x 8 Pin PCIe (6+2)
9 x SATA
4 x Four-Pin Peripheral
1 x Floppy
Features80 PLUS Gold certified, with 91% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
100% Japanese Capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
Active Clamp +DC to DC design for efficient operation
DC-DC Converter improves 3.3V/5V stability
Active Power Factor Correction
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
NVIDIA SLI & AM
Dimensions3.39" x 5.91" x 5.91"
Weight3.60 lbs.
Shipping weight3.11 kg
Package size302 × 221 × 127 mm

Questions about this item

Will this 750 W unit fit in a case that only clears 150 mm for the power supply?

Yes, the enclosure is exactly 150 mm long so it matches that clearance limit.

Are the cables fully detachable so I only install the ones my build needs?

The unit is fully modular, letting you connect only the required cables and leave the rest out of the case.

Can it deliver enough 12 V current for a high-end graphics card that needs two 8-pin connectors?

It provides a single 12 V rail rated for the full 750 W and includes six 6+2-pin PCIe connectors for multiple GPU power cables.
