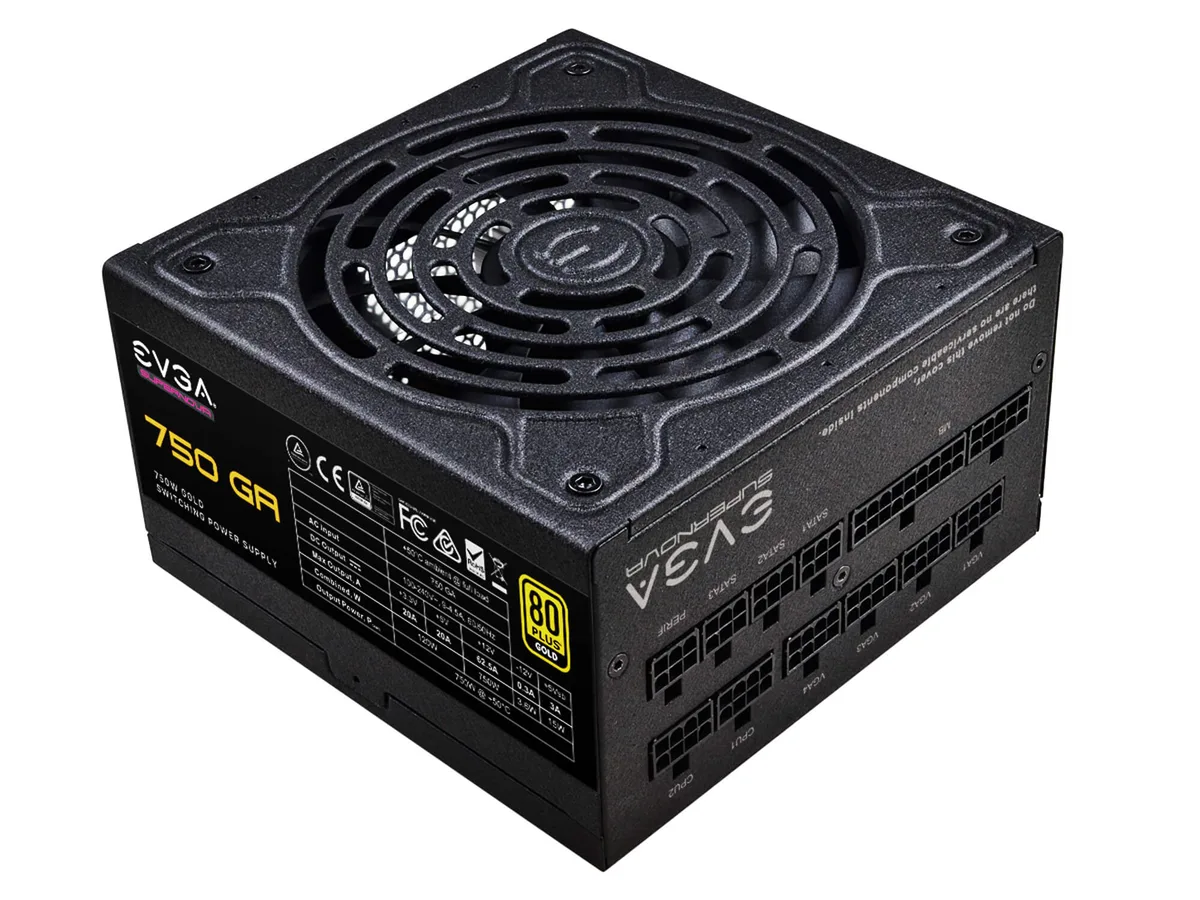

Black rectangular ATX power supply unit with honeycomb fan grille, modular cable sockets, and EVGA SuperNOVA branding

EVGA

EVGA SuperNOVA 750 GA 220-GA-0750-X1 power supply

SKU CH-NN78-4G1H1 MPN 220-GA-0750-X1

Fully modular 750 W ATX unit with 80 Plus Gold efficiency, 150 mm depth, Japanese capacitors and Eco fan mode

  • TypeATX12V
  • Maximum Power750 W
  • Fans1
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector6 x 6+2-Pin

Options ATX 80+ Gold (750W)

  • 750 W output powers demanding builds reliably
  • 80 PLUS Gold certification keeps efficiency at 90 % or higher
  • Fully modular cabling lets you use only the cables you need
  • Compact 150 mm length fits smaller cases easily
  • ECO mode stops the fan completely during low to medium loads

EVGA SuperNOVA 750 GA Power Supply

The EVGA SuperNOVA 750 GA is an ATX12V unit rated for 750 W maximum output. It targets system builders who need a fully modular Gold-rated supply in a compact 150 mm depth. The single +12 V rail design simplifies power distribution for modern graphics cards and CPUs. Japanese capacitors and a double-ball bearing fan support long-term reliability.

Fully Modular Cable Set

Every cable detaches from the unit so you install only the connections your build requires. The package provides a 24-pin main connector, six 6+2-pin PCI-Express leads and eight SATA power plugs. Removing unused cables reduces clutter and improves airflow inside the case. This flexibility suits both compact and full-size chassis layouts.

Sustained Load Behaviour

80 PLUS Gold certification guarantees at least 90 % efficiency at typical loads, limiting waste heat during extended sessions. The LLC resonant DC-to-DC topology maintains tight voltage regulation across the +3.3 V, 5 V and +12 V rails under continuous demand. ECO mode stops the fan entirely during low to medium workloads, delivering silent operation. The double-ball bearing fan engages only when thermal conditions require active cooling.

Highlights

  • 750 W output powers demanding builds reliably
  • 80 PLUS Gold certification keeps efficiency at 90 % or higher
  • Fully modular cabling lets you use only the cables you need
  • Compact 150 mm length fits smaller cases easily
  • ECO mode stops the fan completely during low to medium loads

Specifications

BrandEVGA
SeriesSuperNOVA 750 GA
Model220-GA-0750-X1
TypeATX12V
Maximum Power750 W
Fans1
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector8
SLISLI Ready
CrossFireCrossFire Ready
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current9 - 4.5 A

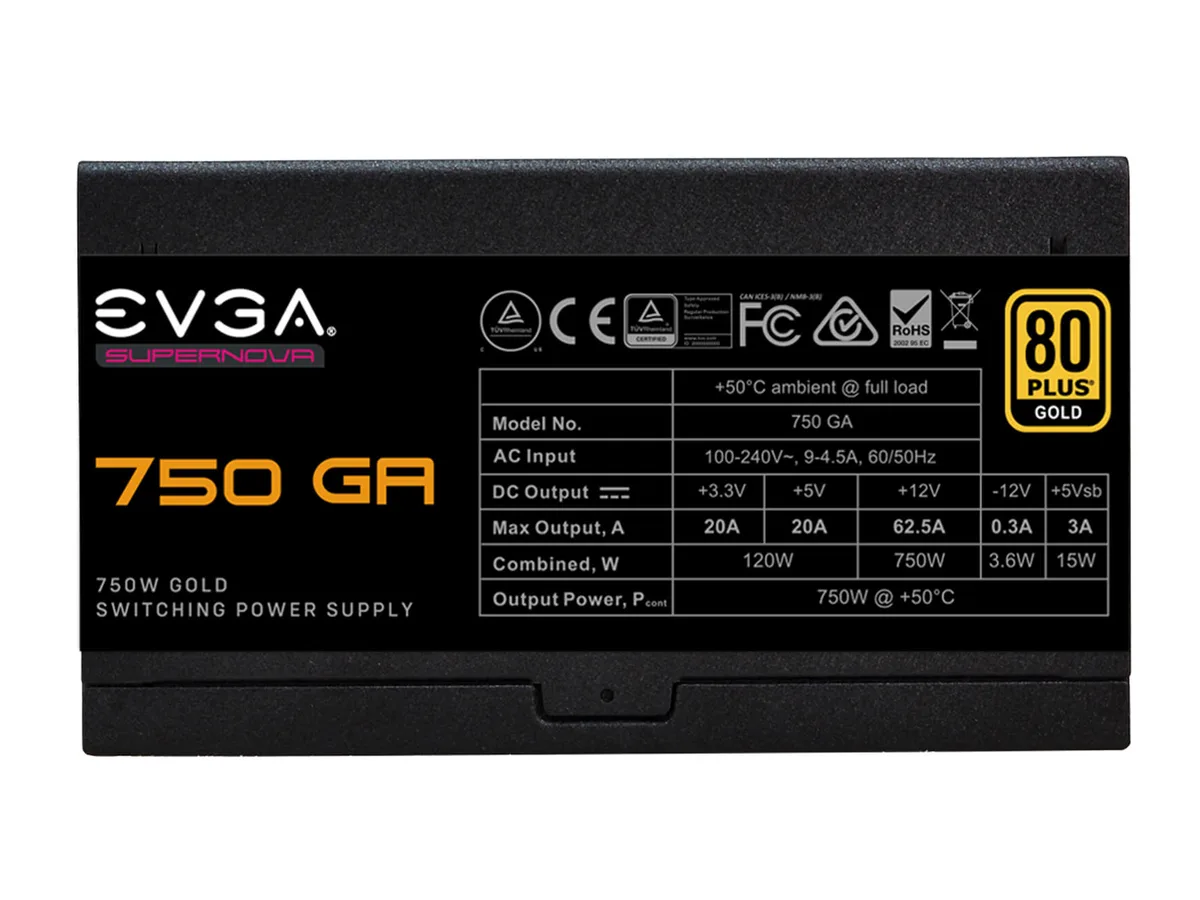

Output+3.3V@20A, 5V@20A, [email protected] , [email protected] , +5VSB@3A
MTBF>100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement

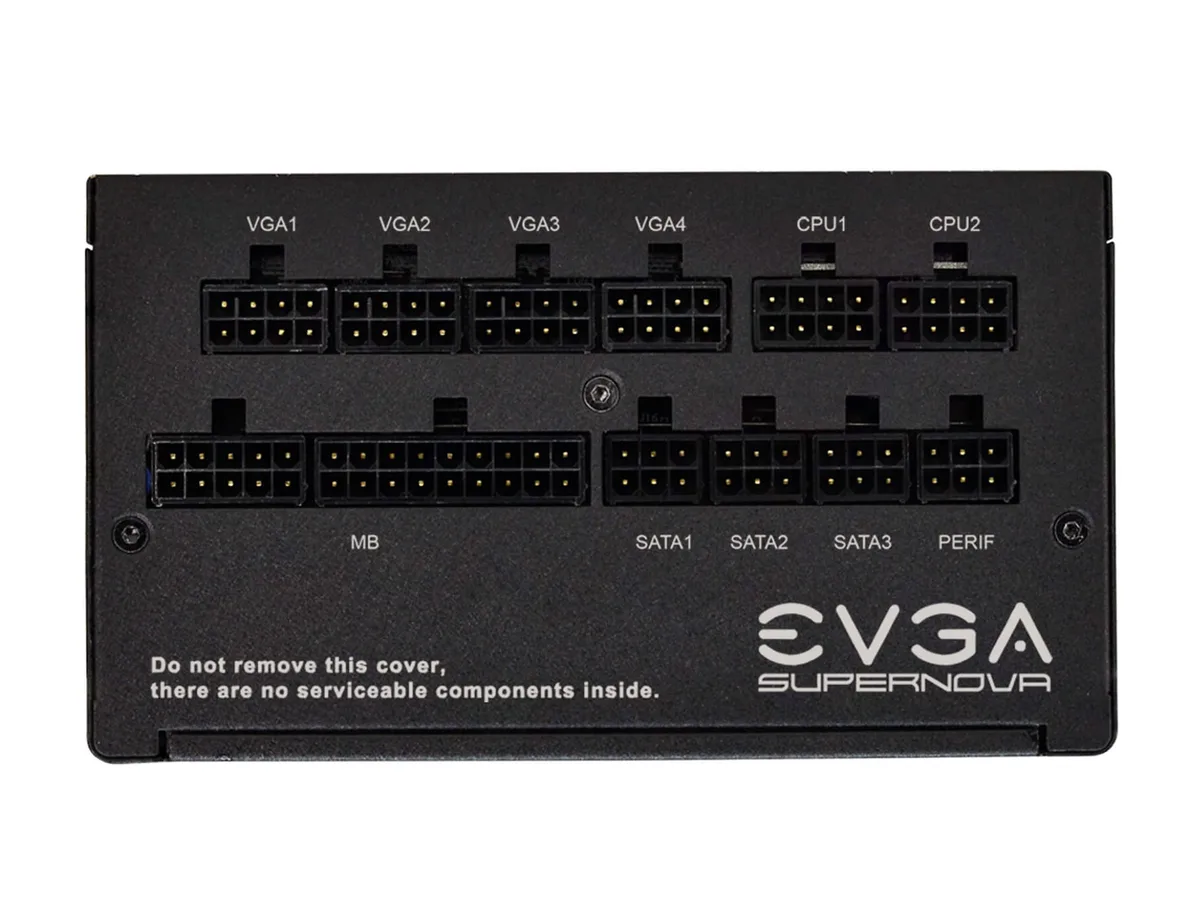

Connectors1 x 24 Pin ATX
2 x 8pin(4+4) EPS (CPU)
6 x 8pin(6+2) PCIe
9 x SATA
4 x Four-Pin Peripheral
1 x Floppy
FeaturesUnbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Double Ball Bearing fan for exceptional reliability and quiet operation
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
100% Japanese Capacitors ensu

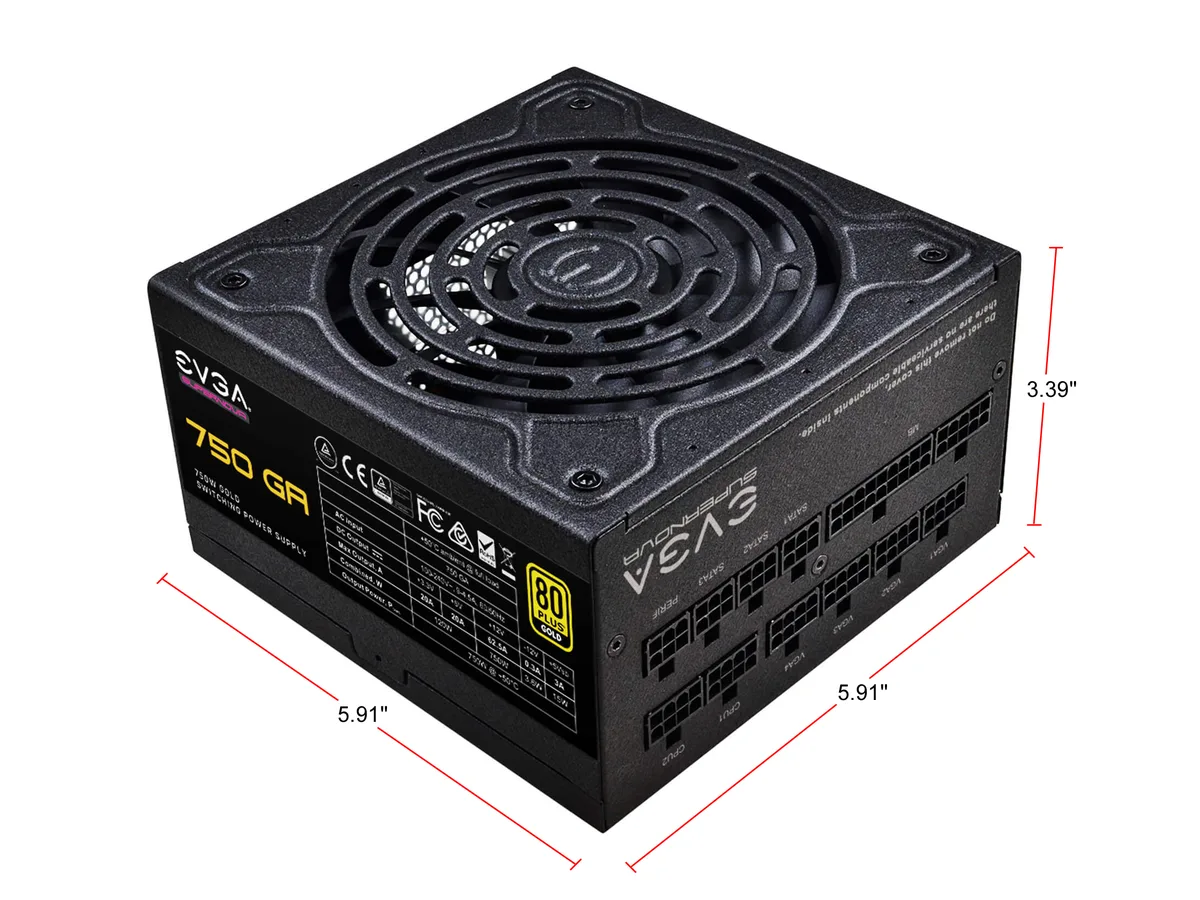

Dimensions3.39" x 5.91" x 5.91"
Weight7 lbs.
Shipping weight2.68 kg
Package size300 × 229 × 122 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 750 W rating mean once the unit is installed in a real PC?

It represents the maximum continuous DC power the supply can deliver across all rails combined, so a system drawing up to 750 W total will stay within the unit's rated capacity.

How does the 80 Plus Gold certification cap real-world efficiency?

The certification guarantees at least 90 % efficiency at typical loads, meaning no more than 10 % of the AC power drawn is lost as heat under normal use.

What does the 150 mm length require for fitting and mounting?

The case must provide at least 150 mm of clear depth in the PSU bay, and the standard ATX mounting holes will align with the four screws on the unit's rear face.
