Evoc
Evoc L5501A 15.3" QHD+ 165Hz Ultra 7-356H RTX 5060 96GB 4TB gaming laptop
15.3 inch QHD+ 165Hz display driven by 16-core Ultra 7-356H and RTX 5060 with 96GB DDR5 and 4TB NVMe
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 7-356H
- Screen16" QHD+
- Memory96GB
- Storage4 TB M.2 PCIe 4.0 x4 NVMe SSD
- QHD+ 165 Hz display delivers sharp motion for gaming
- Intel Core Ultra 7-356H 16-core CPU reaches 4.7 GHz turbo for heavy workloads
- RTX 5060 GPU with 8 GB GDDR7 powers modern titles at high settings
- 96 GB DDR5 5600 MHz memory handles multitasking and large datasets
- 4 TB PCIe 4.0 NVMe SSD provides fast storage for games and projects
Evoc L5501A 15.3" QHD+ 165Hz

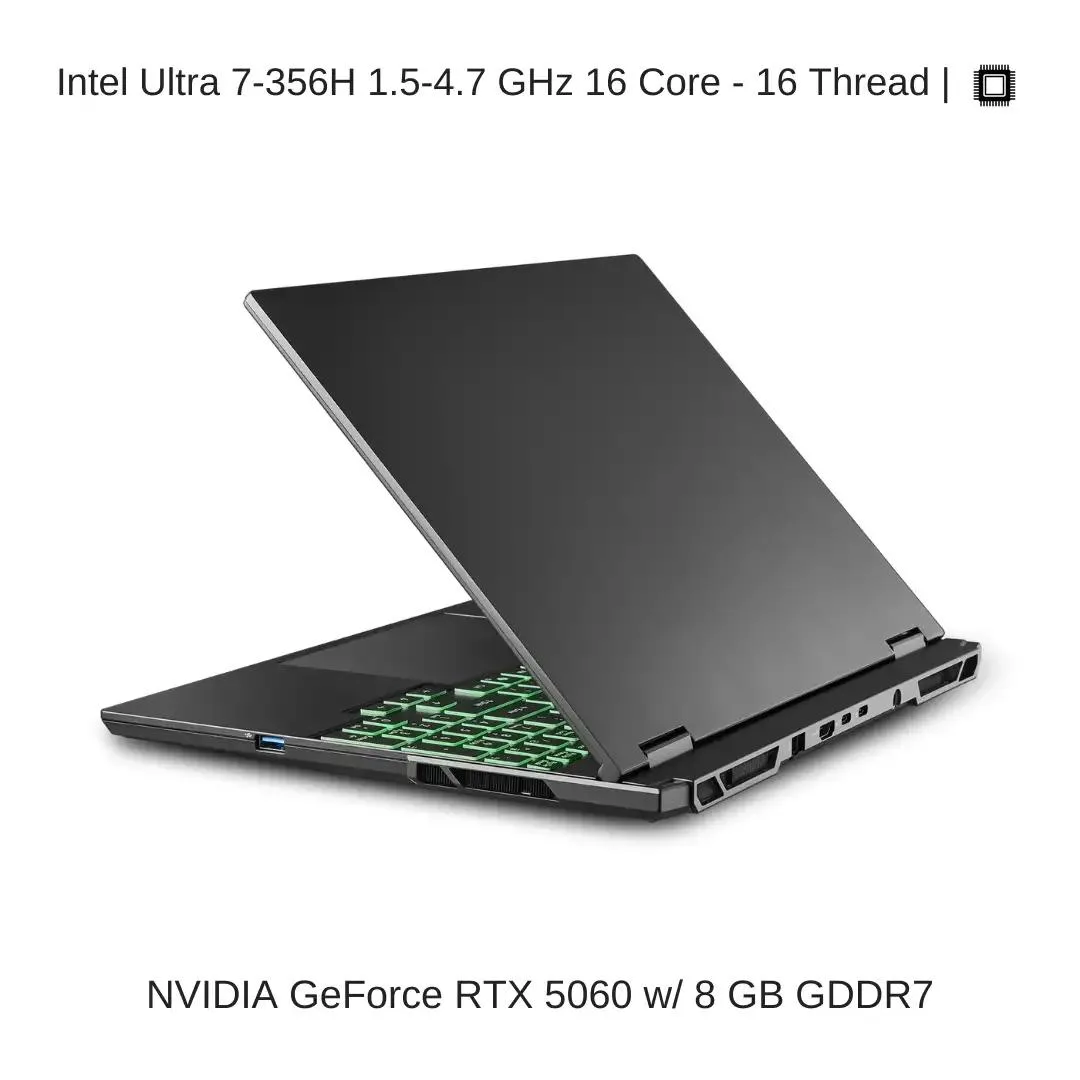

The Evoc L5501A is a 15.3 inch gaming laptop built around an Intel Core Ultra 7-356H processor with 16 cores and a maximum turbo frequency of 4.7 GHz. It pairs this CPU with an NVIDIA GeForce RTX 5060 graphics card featuring 8GB of GDDR7 video memory. The system runs Windows 11 Pro and is assembled by an authorized build-to-order dealer.
96GB DDR5 5600MHz for heavy multitasking
This configuration suits users who need 96GB of DDR5 memory in dual-channel mode for memory-intensive workloads and multitasking. The 4TB PCIe 4.0 x4 NVMe SSD array provides substantial fast storage. Buyers who do not require this memory capacity or storage volume should consider alternative configurations.

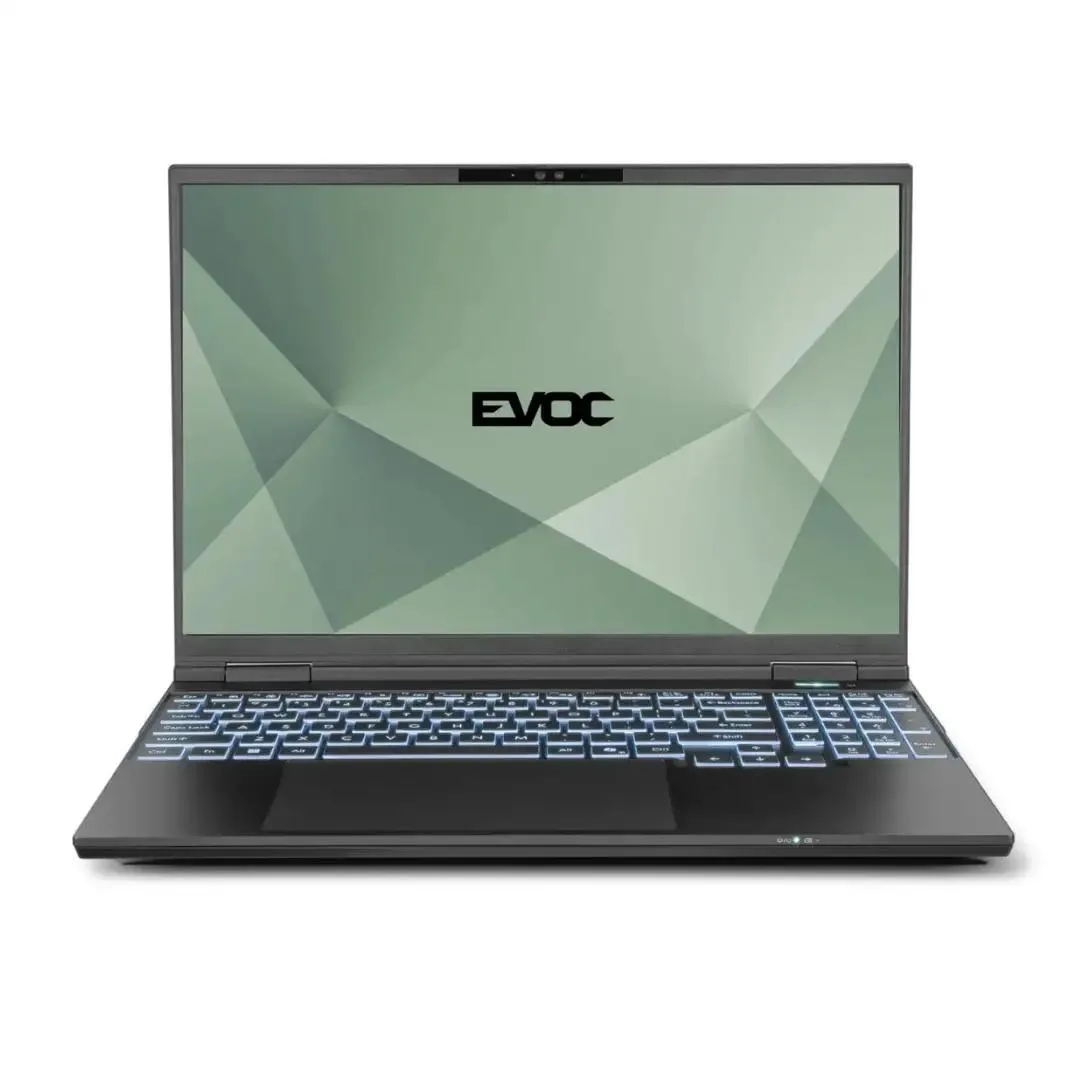

Magnesium alloy chassis at 3.51 lbs

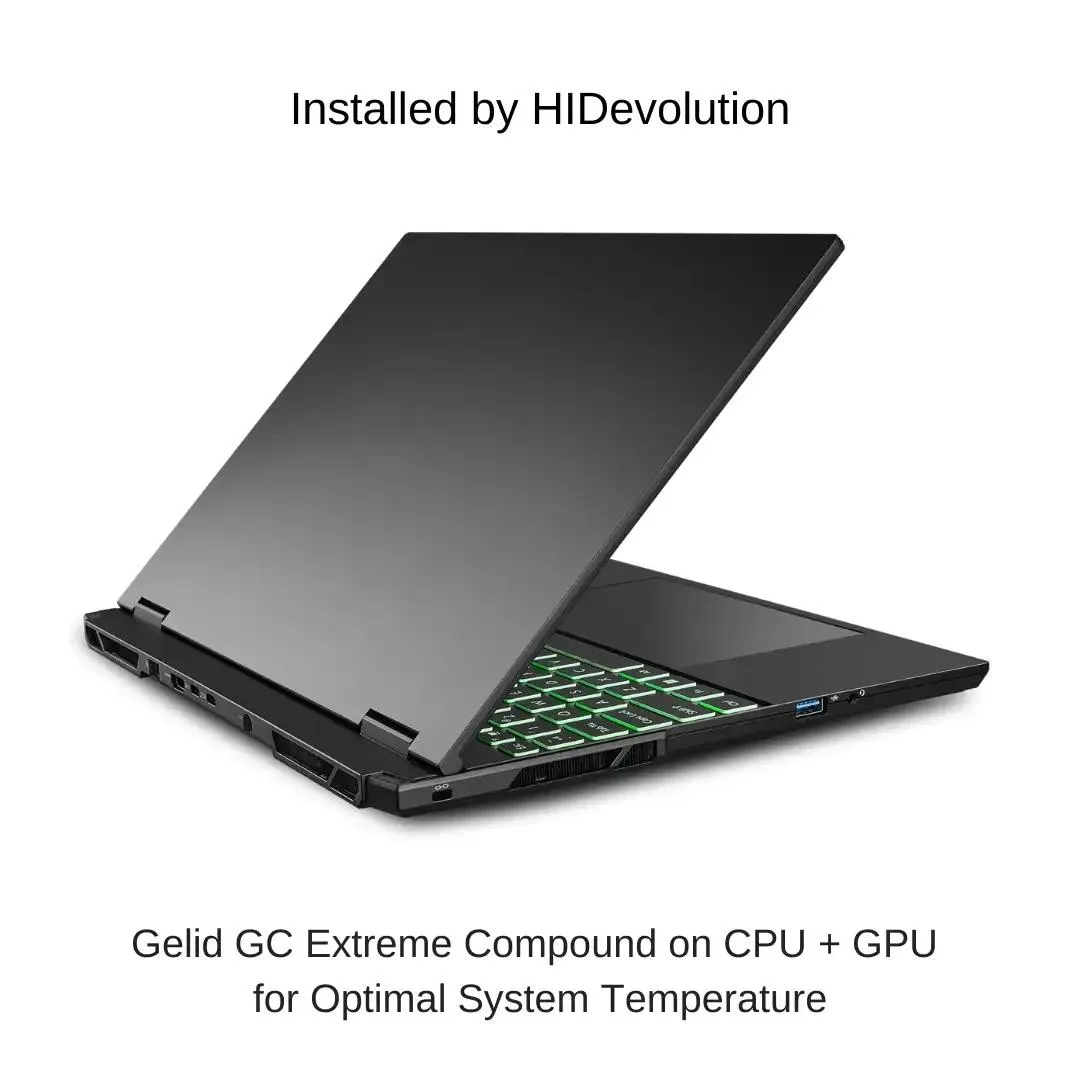

The magnesium aluminum alloy chassis measures 13.53 inches wide by 10.31 inches deep and ranges from 0.63 to 0.78 inches thick, weighing 3.51 lbs. Applied Gelid GC Extreme thermal interface material on the CPU and GPU helps manage system temperatures. The 2650x1600 OLED display at 165Hz delivers high-refresh visuals without external monitor dependency.
Highlights
- QHD+ 165 Hz display delivers sharp motion for gaming
- Intel Core Ultra 7-356H 16-core CPU reaches 4.7 GHz turbo for heavy workloads
- RTX 5060 GPU with 8 GB GDDR7 powers modern titles at high settings
- 96 GB DDR5 5600 MHz memory handles multitasking and large datasets
- 4 TB PCIe 4.0 NVMe SSD provides fast storage for games and projects
Specifications
| Brand | EVOC |
|---|---|
| Series | L550JNN |
| Model | EVOC L5501A (L550JNN) |
| Part Number | EV-L5501A-HID18 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 7-356H |
| Screen | 16" QHD+ |
| Memory | 96GB |
| Storage | 4 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.53" (w) x 10.31" (d) x 0.63" ~ 0.78" (h) |
| Weight | 3.51 lbs. |
| Other Features | Magnesium Aluminum Alloy Top, Palm Rest and Bottom Case, FlexiCharger,Intel DTT and Intel APO |
| CPU Type | Intel Core Ultra 7 (Series 3) |
| Processor Name | Intel Core Ultra 7-356H |
| Number of Cores | 16-core Processor |
| Core Name | Panther Lake |
| Turbo Frequency | Max Turbo Frequency 4.7 GHz |
| CPU L3 Cache | 18 MB |
| Chipset | Intel® |
| Screen Size | 15.3" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 165Hz |
| Display Features | View Angle, 100% DCI-P3 Display, Glossy Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 4 TB |
| HDD | No |
| Storage Spec | 4 TB (2 x 2 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 48 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE211 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x USB 3.2 Gen 2 port with DisplayPort 1.4 (Type C), 1x USB 3.2 Gen 2 port with DisplayPort 1.4 with Power Delivery DC in (Type C), 2x USB 3.2 Gen 1 ports (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 3 cells Polymer battery pack 60WH |
Questions about this item
Will the 15.3 inch OLED QHD+ display at 165 Hz fit in a standard 15 inch laptop sleeve?
The chassis measures 13.53 inches wide by 10.31 inches deep and ranges from 0.63 to 0.78 inches thick so check the sleeve internal dimensions against those numbers.
Can the 96 GB of DDR5 5600 MHz memory be expanded later?
The system ships with two 48 GB modules filling both slots so any increase would require replacing the existing sticks.
Does the 4 TB NVMe storage arrive as a single drive or split across two drives?
It is configured as two 2 TB M.2 PCIe 4.0 x4 NVMe SSDs installed by the builder.
