Evoc
Evoc L5501A (L550JNN) 15.3" QHD+ 165Hz Ultra 7-356H RTX 5060 64GB 8TB gaming laptop
15.3" QHD+ 165Hz panel driven by Core Ultra 7-356H and RTX 5060 with 64GB DDR5 and 8TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 7-356H
- Screen16" QHD+
- Memory64GB
- Storage8 TB M.2 PCIe 4.0 x4 NVMe SSD
- 16-core Ultra 7-356H processor reaches 4.7 GHz turbo for demanding workloads
- 3" OLED QHD+ 165Hz display delivers sharp motion at 2650x1600 resolution
- RTX 5060 graphics with 8GB GDDR7 memory powers modern games and creative apps
- 64GB DDR5 5600MHz dual-channel memory handles heavy multitasking and large datasets
- 8TB PCIe 4.0 NVMe storage across two 4TB drives provides vast capacity and fast load times
Evoc L5501A 15.3" QHD+ 165Hz Gaming Laptop

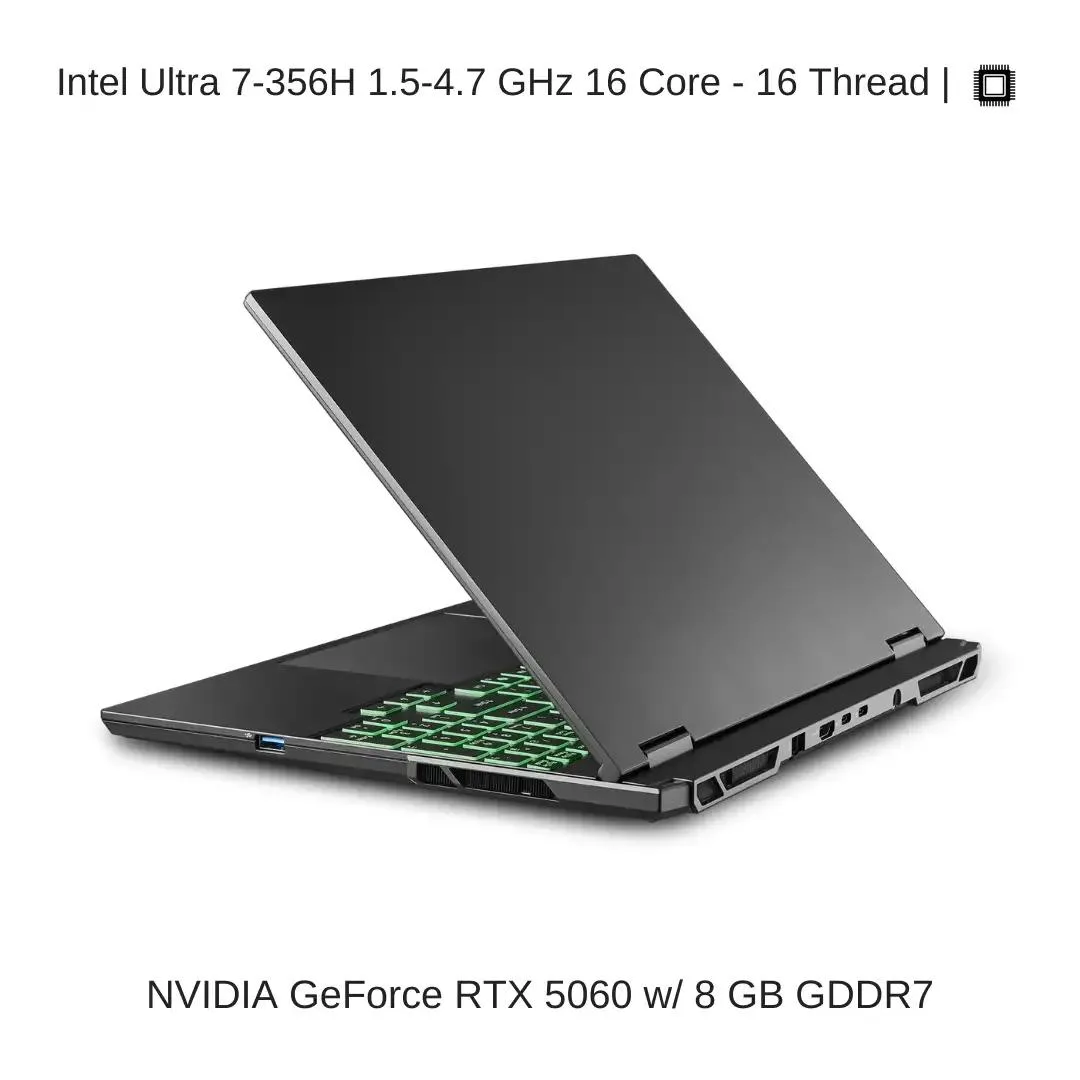

The Evoc L5501A (L550JNN) is a 15.3-inch gaming laptop with a QHD+ 165Hz display. It runs on an Intel Core Ultra 7-356H processor with 16 cores and a maximum turbo frequency of 4.7 GHz. Graphics are handled by an NVIDIA GeForce RTX 5060 with 8GB of GDDR7 video memory. The system includes 64GB of DDR5 5600MHz memory and an 8TB PCIe 4.0 x4 NVMe SSD. It ships with Windows 11 Pro.
Suited for high-spec portable gaming

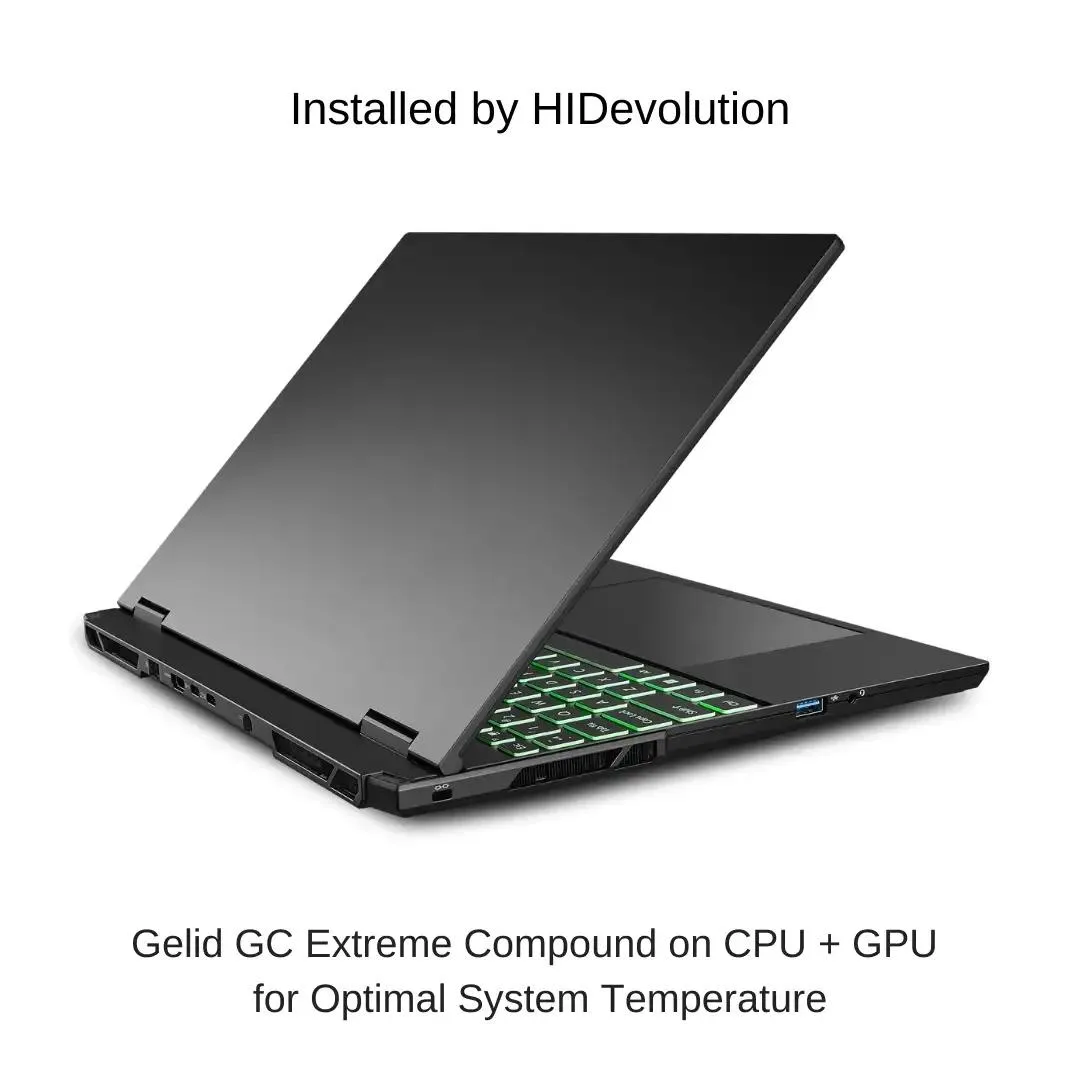

This configuration suits users who need 64GB of RAM and 8TB of fast storage in a 3.51 lb chassis for multitasking, content creation, or demanding games at QHD+ resolution. The 165Hz panel supports smooth motion. Buyers who need a smaller screen, lower weight, or a different GPU tier should evaluate other models. The magnesium-aluminum alloy build and Gelid GC Extreme thermal compound aim to manage thermals under load.
Deciding specification: 64GB DDR5 5600MHz
The installed 64GB (2 x 32GB) DDR5 5600MHz kit is the single specification that determines suitability for memory-intensive tasks such as large dataset processing, virtualization, or heavy creative workloads. This capacity and speed are configured in dual-channel mode. If your workflow does not require this memory ceiling, a laptop with less RAM may meet your needs at lower cost.
Highlights
- 16-core Ultra 7-356H processor reaches 4.7 GHz turbo for demanding workloads
- 3" OLED QHD+ 165Hz display delivers sharp motion at 2650x1600 resolution
- RTX 5060 graphics with 8GB GDDR7 memory powers modern games and creative apps
- 64GB DDR5 5600MHz dual-channel memory handles heavy multitasking and large datasets
- 8TB PCIe 4.0 NVMe storage across two 4TB drives provides vast capacity and fast load times
Specifications
| Brand | EVOC |
|---|---|
| Series | L550JNN |
| Model | EVOC L5501A (L550JNN) |
| Part Number | EV-L5501A-HID14 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 7-356H |
| Screen | 16" QHD+ |
| Memory | 64GB |
| Storage | 8 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.53" (w) x 10.31" (d) x 0.63" ~ 0.78" (h) |
| Weight | 3.51 lbs. |
| Other Features | Magnesium Aluminum Alloy Top, Palm Rest and Bottom Case, FlexiCharger,Intel DTT and Intel APO |
| CPU Type | Intel Core Ultra 7 (Series 3) |
| Processor Name | Intel Core Ultra 7-356H |
| Number of Cores | 16-core Processor |
| Core Name | Panther Lake |
| Turbo Frequency | Max Turbo Frequency 4.7 GHz |
| CPU L3 Cache | 18 MB |
| Chipset | Intel® |
| Screen Size | 15.3" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 165Hz |
| Display Features | View Angle, 100% DCI-P3 Display, Glossy Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 8 TB |
| HDD | No |
| Storage Spec | 8 TB (2 x 4 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 32 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE211 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x USB 3.2 Gen 2 port with DisplayPort 1.4 (Type C), 1x USB 3.2 Gen 2 port with DisplayPort 1.4 with Power Delivery DC in (Type C), 2x USB 3.2 Gen 1 ports (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 3 cells Polymer battery pack 60WH |
Questions about this item
Should I choose the 64 GB DDR5 5600 MHz kit or a smaller capacity?
The laptop ships with 64 GB (2 x 32 GB) DDR5 5600 MHz dual-channel memory already installed, so no smaller option is offered on this configuration.
What does the 1.5 GHz base and 4.7 GHz turbo on the Ultra 7-356H mean for everyday speed?
The 16-core Ultra 7-356H runs at 1.5 GHz base and boosts to 4.7 GHz, giving strong single-thread responsiveness and high multi-thread throughput for gaming and content work.
How does the PCIe 4.0 x4 NVMe interface affect the 8 TB SSD in real use?
The 8 TB array (2 x 4 TB) runs on PCIe 4.0 x4 NVMe, delivering sequential read/write speeds that saturate the Gen 4 lane for fast boots and level loads.
