Evoc

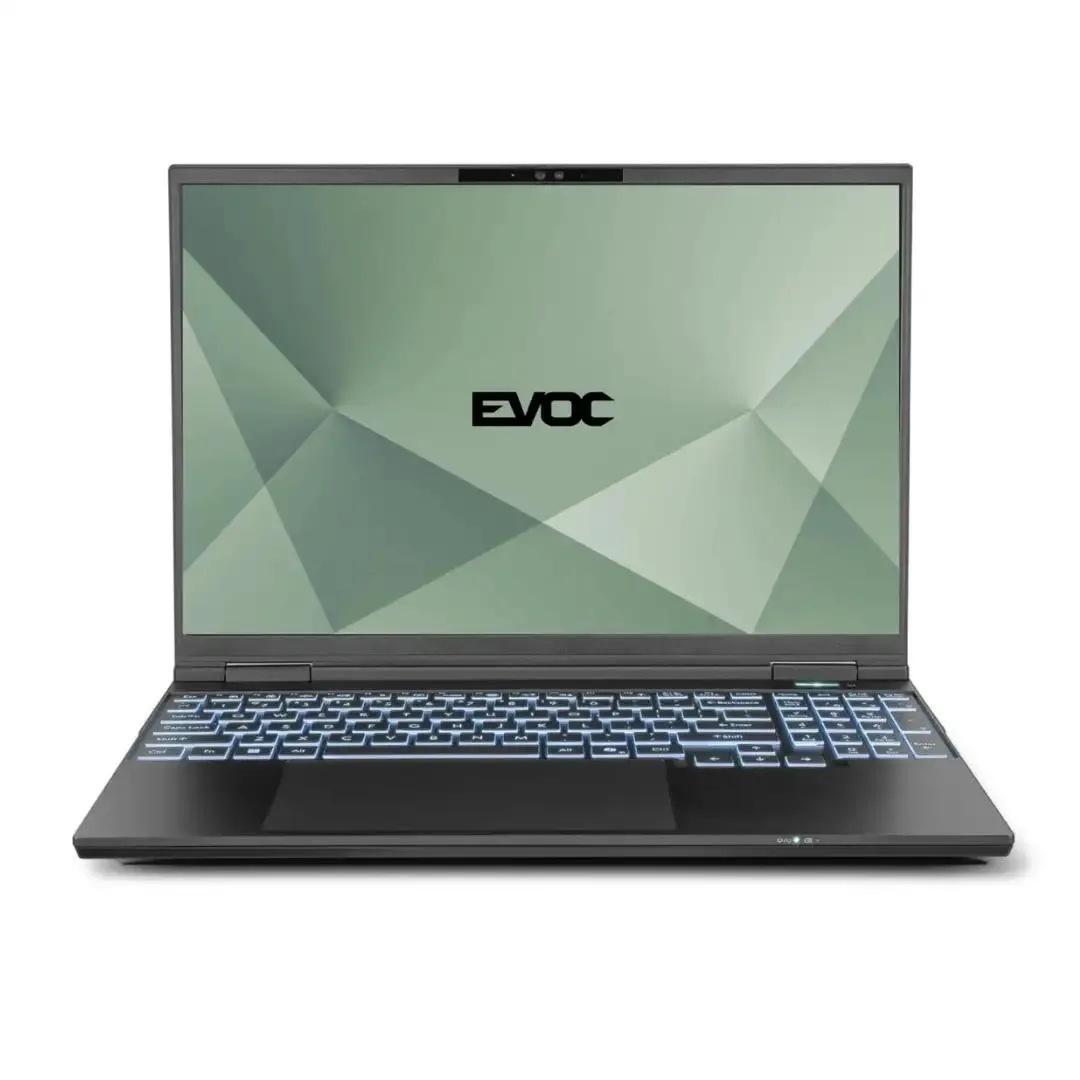

Evoc L5501A (L550JNN) gaming laptop 15.3" QHD+ 165Hz Ultra 7-356H RTX 5060 96 GB DDR5 16 TB
15.3" QHD+ 165Hz OLED gaming laptop with 16-core Ultra 7-356H, RTX 5060, 96 GB DDR5 and 16 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 7-356H
- Screen16" QHD+
- Memory96GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 3″ QHD+ 165 Hz panel for smooth visuals

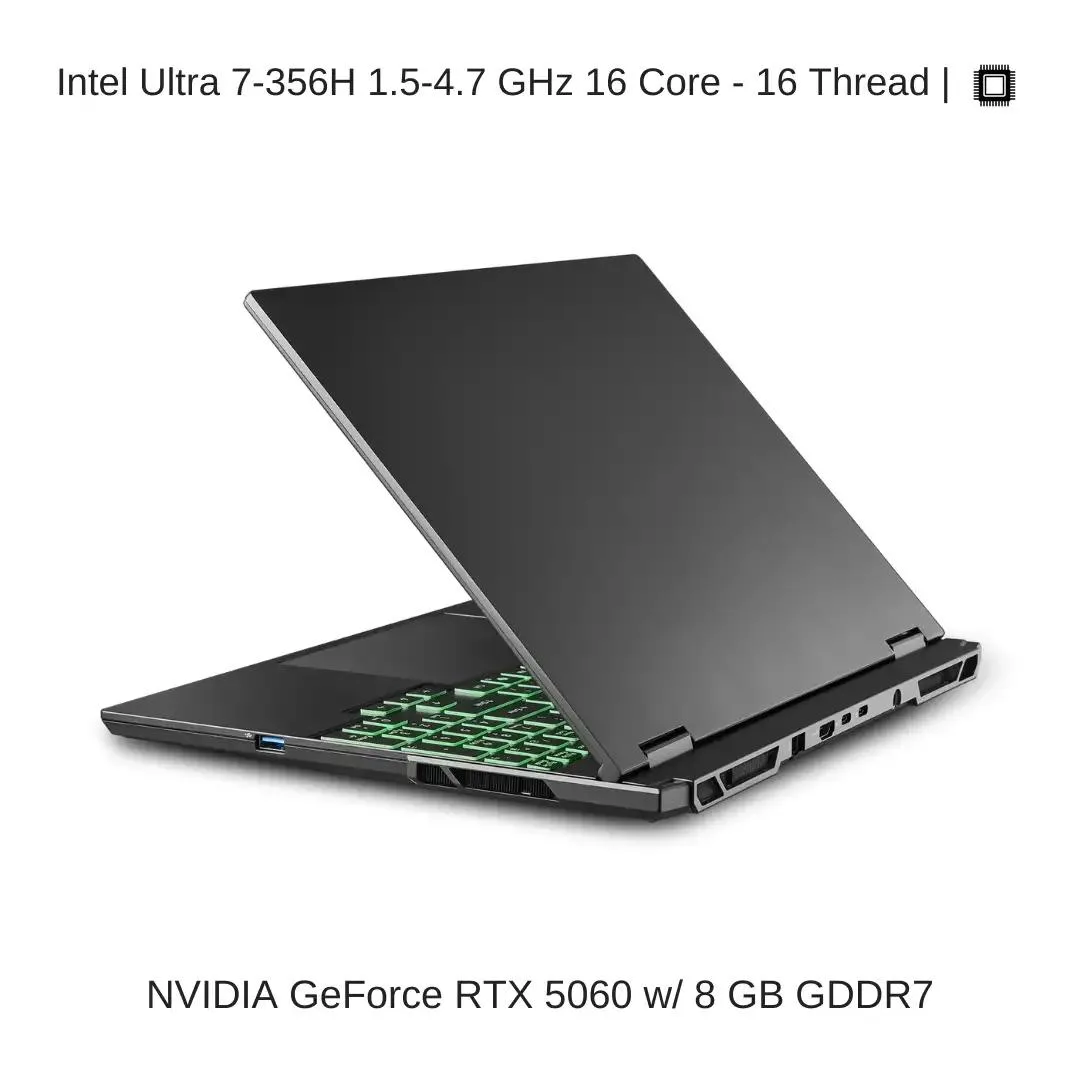

- Intel Core Ultra 7-356H 16-core CPU up to 4.7 GHz
- NVIDIA RTX 5060 8 GB GDDR7 graphics
- 96 GB DDR5 5600 MHz dual-channel memory
- 16 TB PCIe 4.0 NVMe SSD (2 × 8 TB) for massive storage
Built for heavy multitasking
The Evoc L5501A pairs a 16-core Intel Core Ultra 7-356H with 96 GB of DDR5 memory and an NVIDIA GeForce RTX 5060 graphics card. The 15.3-inch OLED panel runs at 2650 by 1600 resolution with a 165 Hz refresh rate. Sixteen terabytes of PCIe 4.0 x4 NVMe storage arrive as two 8 TB drives. Windows 11 Pro is pre-installed on a magnesium-aluminium chassis weighing 3.51 lbs.
Verify power and peripheral needs
Confirm your workspace can supply the laptop's FlexiCharger adapter and that any external displays support the native 2650 by 1600 resolution over the available video outputs. The system ships with the latest BIOS and drivers installed after burn-in stress testing, so no immediate firmware updates are required. Ensure your network environment matches the wired or wireless standards you intend to use.
Fits a portable workstation workflow

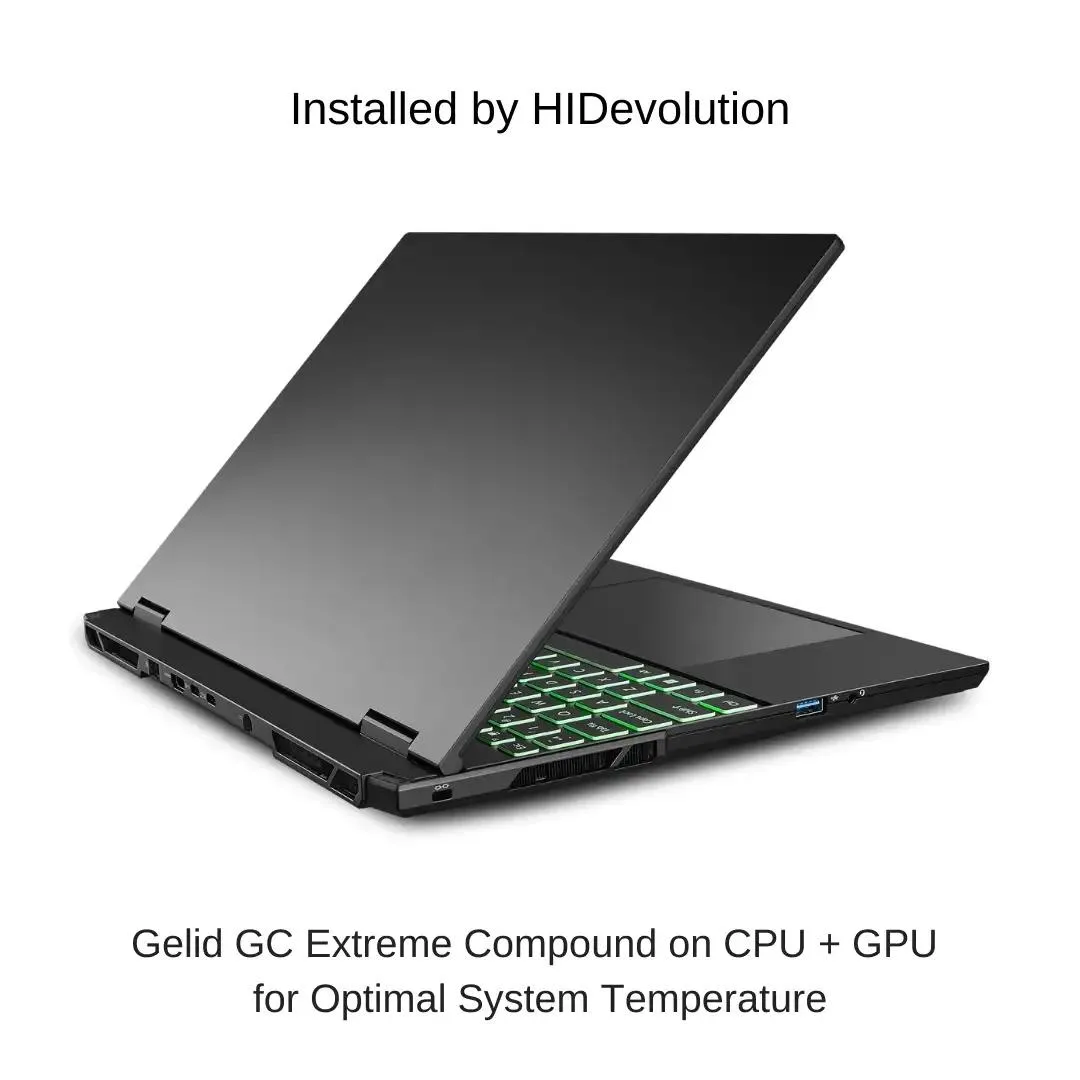

The 0.63 to 0.78 inch profile slides into most 15-inch bags while the 13.53 by 10.31 inch footprint leaves desk space for a mouse and compact keyboard. Dual-channel DDR5 5600 MHz memory and the 16 TB NVMe array remove bottlenecks for large datasets and game libraries. Gelid GC Extreme thermal compound on the CPU and GPU helps sustain clocks during extended render or compile sessions.
Highlights
- 3″ QHD+ 165 Hz panel for smooth visuals
- Intel Core Ultra 7-356H 16-core CPU up to 4.7 GHz
- NVIDIA RTX 5060 8 GB GDDR7 graphics
- 96 GB DDR5 5600 MHz dual-channel memory
- 16 TB PCIe 4.0 NVMe SSD (2 × 8 TB) for massive storage
Specifications
| Brand | EVOC |
|---|---|
| Series | L550JNN |
| Model | EVOC L5501A (L550JNN) |
| Part Number | EV-L5501A-HID20 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 7-356H |
| Screen | 16" QHD+ |
| Memory | 96GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.53" (w) x 10.31" (d) x 0.63" ~ 0.78" (h) |
| Weight | 3.51 lbs. |
| Other Features | Magnesium Aluminum Alloy Top, Palm Rest and Bottom Case, FlexiCharger,Intel DTT and Intel APO |
| CPU Type | Intel Core Ultra 7 (Series 3) |
| Processor Name | Intel Core Ultra 7-356H |
| Number of Cores | 16-core Processor |
| Core Name | Panther Lake |
| Turbo Frequency | Max Turbo Frequency 4.7 GHz |
| CPU L3 Cache | 18 MB |
| Chipset | Intel® |
| Screen Size | 15.3" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 165Hz |
| Display Features | View Angle, 100% DCI-P3 Display, Glossy Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 48 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE211 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x USB 3.2 Gen 2 port with DisplayPort 1.4 (Type C), 1x USB 3.2 Gen 2 port with DisplayPort 1.4 with Power Delivery DC in (Type C), 2x USB 3.2 Gen 1 ports (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 3 cells Polymer battery pack 60WH |
Questions about this item
Will the 15.3" OLED panel fit in a standard laptop sleeve?
The chassis measures 13.53" wide by 10.31" deep, so check the sleeve's internal dimensions against those figures.
Can the 96 GB DDR5 configuration run memory-heavy workloads without swapping?
96 GB (2 x 48 GB) dual-channel DDR5 at 5600 MHz provides headroom for large datasets, virtual machines and heavy multitasking.
Does the RTX 5060 with 8 GB GDDR7 support modern gaming at QHD+ resolution?
The 8 GB GDDR7 frame buffer paired with the 2650 x 1600 165 Hz panel allows high-refresh gaming at native resolution in current titles.
