Evoc
Evoc L5501B 15.3" QHD+ 165Hz Ultra 7-356H RTX 5060 16 GB 4 TB
15.3" 2650x1600 OLED 165 Hz panel, 16-core Ultra 7-356H at 4.7 GHz, RTX 5060 with 8 GB GDDR7, 16 GB DDR5-5600, 4 TB NVMe SSD in a 3.51 lb magnesium alloy chassis
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 7-356H
- Screen16" QHD+
- Memory16GB
- Storage4 TB M.2 PCIe 4.0 x4 NVMe SSD
- Sharp 15.3" QHD+ 165Hz OLED display for crisp motion
- 16-core Ultra 7-356H up to 4.7 GHz for heavy workloads
- RTX 5060 with 8 GB GDDR7 drives modern titles
- 4 TB PCIe 4.0 NVMe storage loads games fast
- Gelid GC Extreme paste keeps CPU and GPU cooler

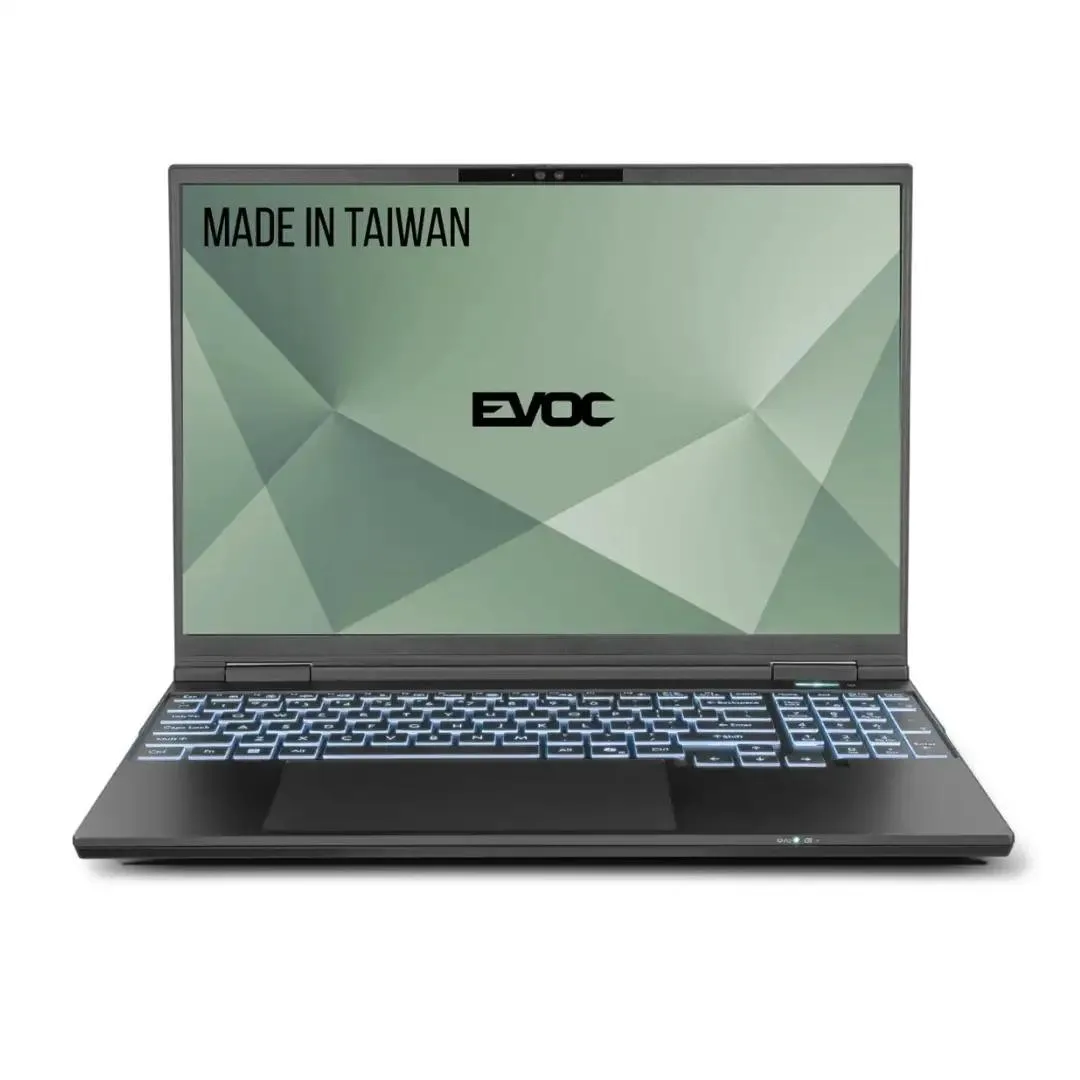

Built for high-refresh gaming

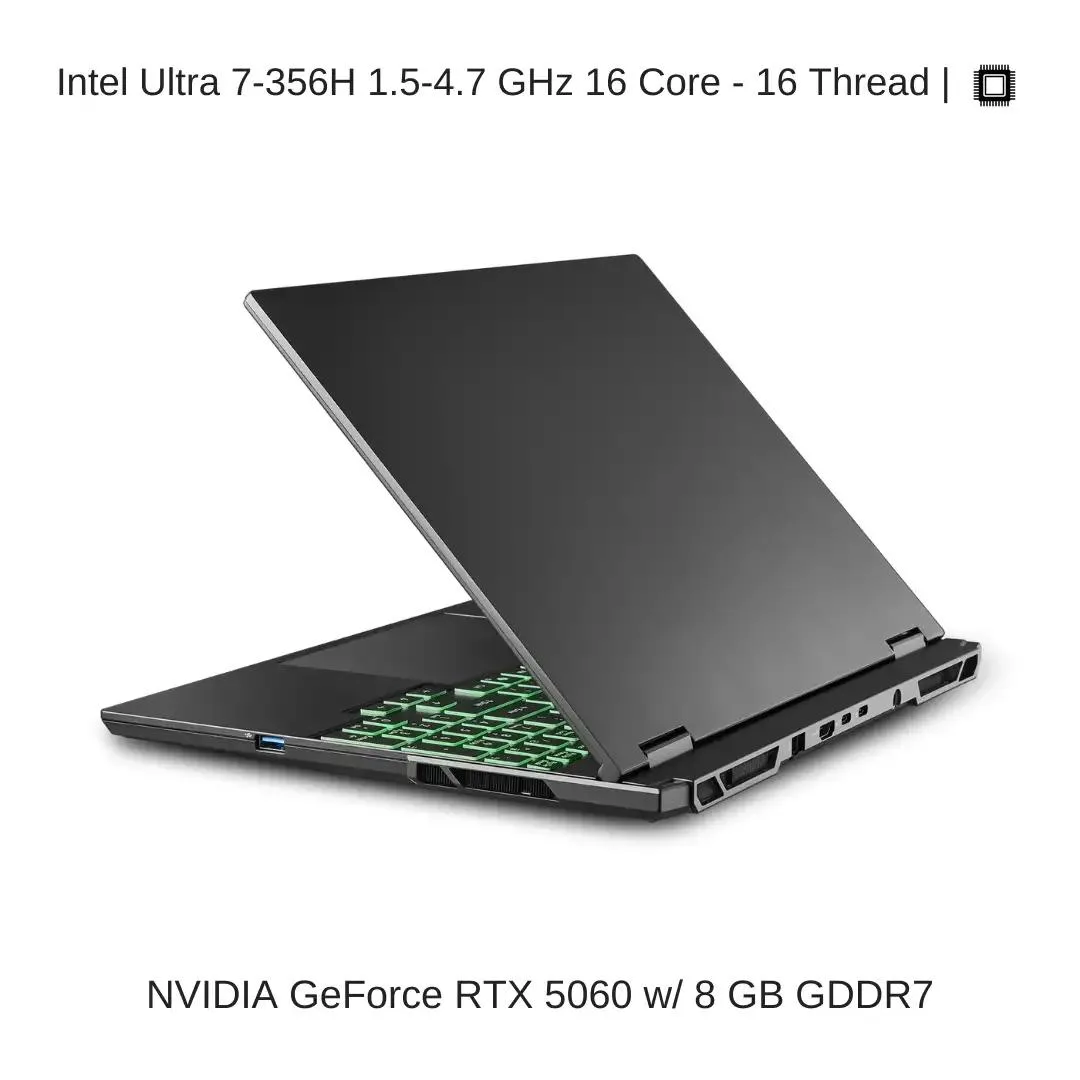

The Evoc L5501B pairs a 15.3-inch QHD+ panel running at 165 Hz with an Intel Core Ultra 7-356H and NVIDIA RTX 5060 graphics. Sixteen cores reach 4.7 GHz turbo while 8 GB of GDDR7 video memory feeds the GPU. Sixteen gigabytes of DDR5 system memory and a 4 TB PCIe 4.0 x4 NVMe array complete a configuration aimed at competitive play and content creation.
Check power and thermals before ordering
The chassis measures 13.53 by 10.31 inches with a height between .63 and .78 inches and weighs 3.51 lbs. Verify that your workspace and any sleeve or bag accommodate those dimensions. Confirm the supplied FlexiCharger meets your regional plug type and that the single 16 GB DDR5 kit matches any future upgrade plan you may have.

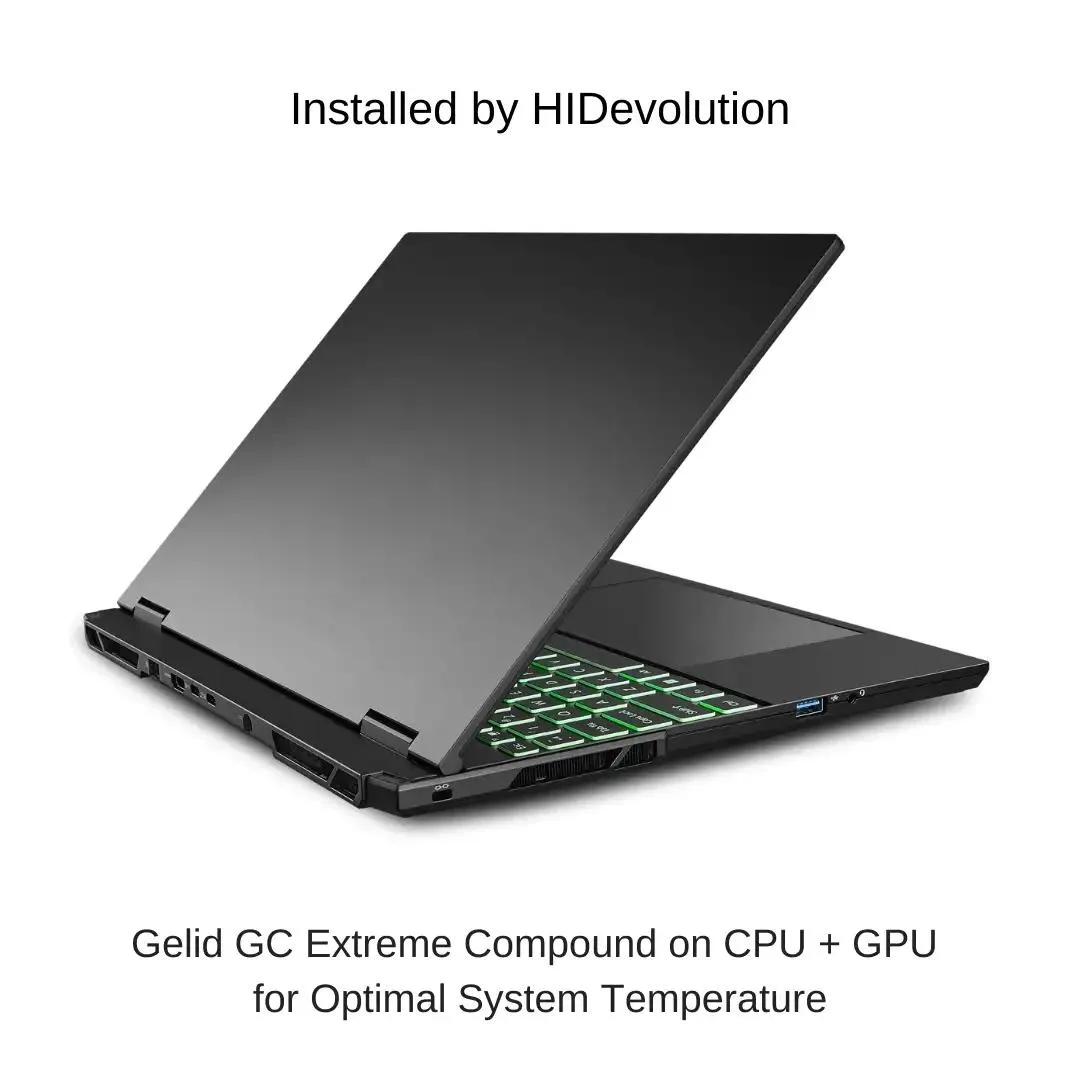

Gelid GC Extreme paste and dual SSD layout
HIDevolution replaces the stock thermal compound with Gelid GC Extreme on both CPU and GPU to lower operating temperatures under load. The 4 TB capacity is delivered as two 2 TB M.2 PCIe 4.0 x4 NVMe drives in a dual-channel arrangement. Windows 11 Pro is pre-installed with updated BIOS, drivers and a full burn-in validation completed before shipment.
Highlights
- Sharp 15.3" QHD+ 165Hz OLED display for crisp motion
- 16-core Ultra 7-356H up to 4.7 GHz for heavy workloads
- RTX 5060 with 8 GB GDDR7 drives modern titles
- 4 TB PCIe 4.0 NVMe storage loads games fast
- Gelid GC Extreme paste keeps CPU and GPU cooler
Specifications
| Brand | EVOC |
|---|---|
| Series | L550JNN |
| Model | EVOC L5501A (L550JNN) |
| Part Number | EV-L5501B-HID3 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 7-356H |
| Screen | 16" QHD+ |
| Memory | 16GB |
| Storage | 4 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.53" (w) x 10.31" (d) x 0.63" ~ 0.78" (h) |
| Weight | 3.51 lbs. |
| Other Features | Magnesium Aluminum Alloy Top, Palm Rest and Bottom Case, FlexiCharger,Intel DTT and Intel APO |
| CPU Type | Intel Core Ultra 7 (Series 3) |
| Processor Name | Intel Core Ultra 7-356H |
| Number of Cores | 16-core Processor |
| Core Name | Panther Lake |
| Turbo Frequency | Max Turbo Frequency 4.7 GHz |
| CPU L3 Cache | 18 MB |
| Chipset | Intel® |
| Screen Size | 15.3" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 165Hz |
| Display Features | View Angle, 100% DCI-P3 Display, Glossy Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 4 TB |
| HDD | No |
| Storage Spec | 4 TB (2 x 2 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 8 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE211 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x USB 3.2 Gen 2 port with DisplayPort 1.4 (Type C), 1x USB 3.2 Gen 2 port with DisplayPort 1.4 with Power Delivery DC in (Type C), 2x USB 3.2 Gen 1 ports (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 3 cells Polymer battery pack 60WH |
Questions about this item
What comes in the box with the L5501B and do I need to buy anything else?
The laptop ships with Windows 11 Pro installed, a 165 Hz QHD+ display, 16 GB DDR5 memory, 4 TB NVMe storage across two drives, and the RTX 5060 GPU with 8 GB GDDR7. No extra components are required for operation.
Which memory and storage configuration should I choose for the L5501B?
The unit is supplied with 16 GB of DDR5 5600 MHz memory in dual-channel layout and a 4 TB PCIe 4.0 x4 NVMe array built from two 2 TB modules. This configuration is fixed for this SKU.
What does the 165 Hz QHD+ panel mean for actual gaming on the RTX 5060?
The 15.3-inch 2650 × 1600 OLED screen refreshes at 165 Hz, and the RTX 5060 with 8 GB GDDR7 drives that resolution in modern titles at high settings with smooth motion.
