Evoc
Evoc L5501D 15.3" QHD+ 165Hz Ultra 7-356H RTX 5070 16 GB DDR5 4 TB NVMe gaming laptop
15.3" QHD+ 165Hz panel with Intel Core Ultra 7-356H, RTX 5070, 16 GB DDR5 and 4 TB NVMe
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 7-356H
- Screen16" QHD+
- Memory16GB
- Storage4 TB M.2 PCIe 4.0 x4 NVMe SSD
- QHD+ 165 Hz panel delivers sharp high-refresh visuals
- 16-core Ultra 7-356H reaches 4.7 GHz turbo for heavy workloads
- RTX 5070 with 8 GB GDDR7 powers modern gaming
- 4 TB PCIe 4.0 NVMe storage loads games and apps fast
- Gelid GC Extreme thermal paste lowers CPU and GPU temperatures
15.3" QHD+ 165Hz Gaming Laptop

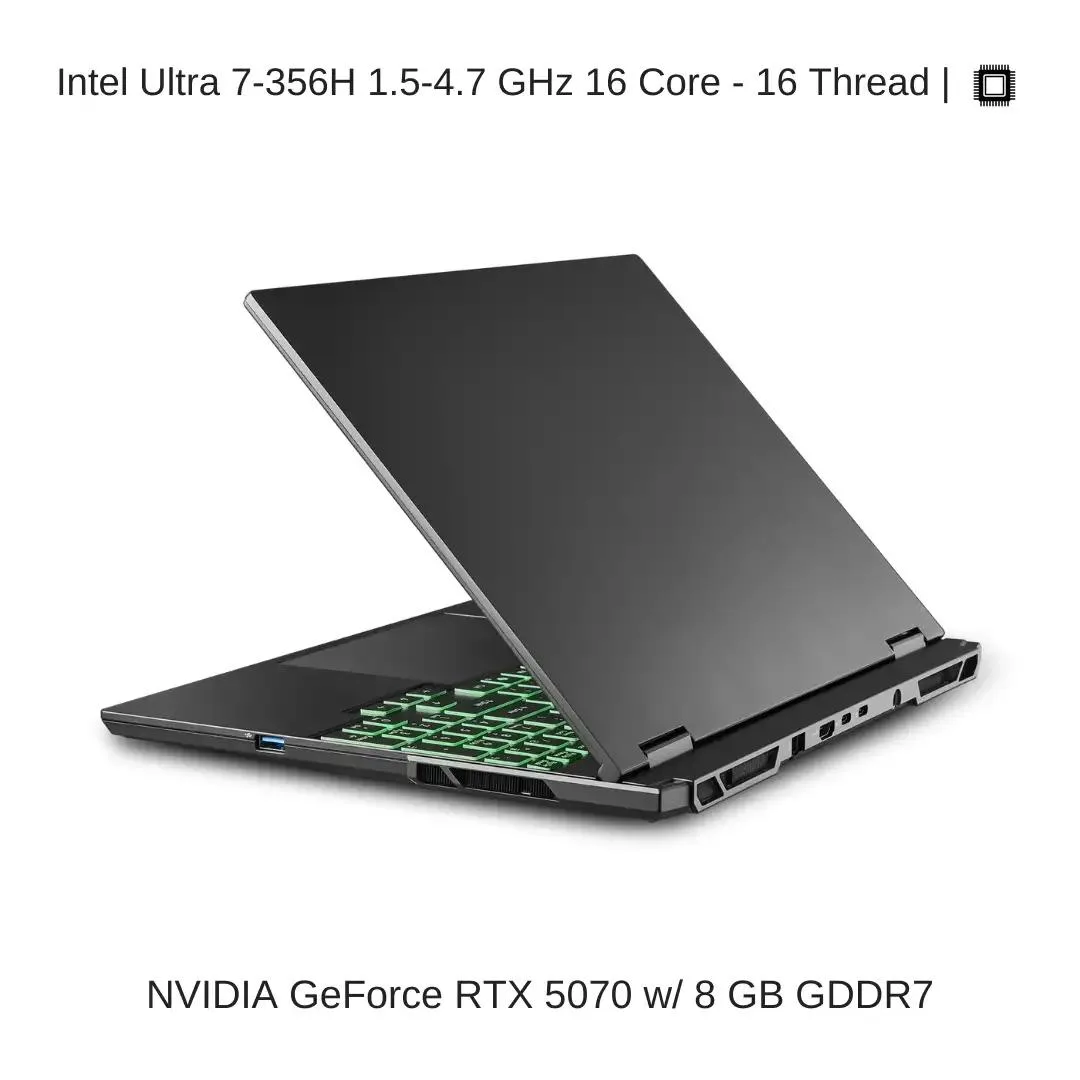

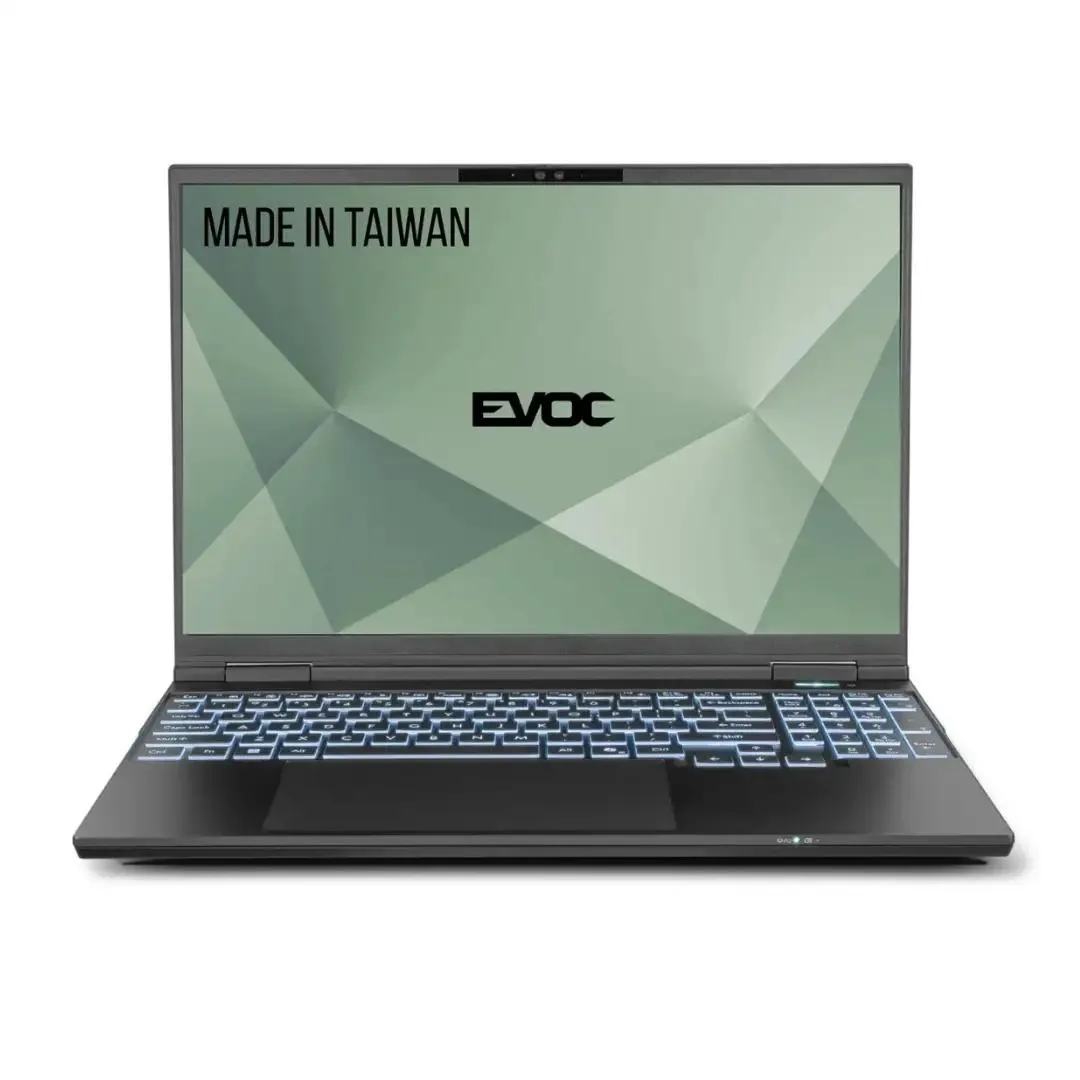

The Evoc L5501D is a 15.3 inch gaming laptop with a QHD+ 165Hz display. It runs on an Intel Core Ultra 7-356H processor with 16 cores and a 4.7 GHz max turbo frequency. An NVIDIA GeForce RTX 5070 GPU with 8 GB GDDR7 handles graphics. Windows 11 Pro comes pre-installed.
Build Integration
The chassis uses magnesium aluminum alloy for the top, palm rest and bottom case. Dimensions are 13.53 by 10.31 by 0.63 to 0.78 inches and weight is 3.51 lbs. The CPU operates at a 1.5 GHz base frequency. Storage uses two M.2 PCIe 4.0 x4 NVMe slots populated with 2 TB modules each. Memory occupies two DDR5 5600MHz slots.
Upgrade Impact

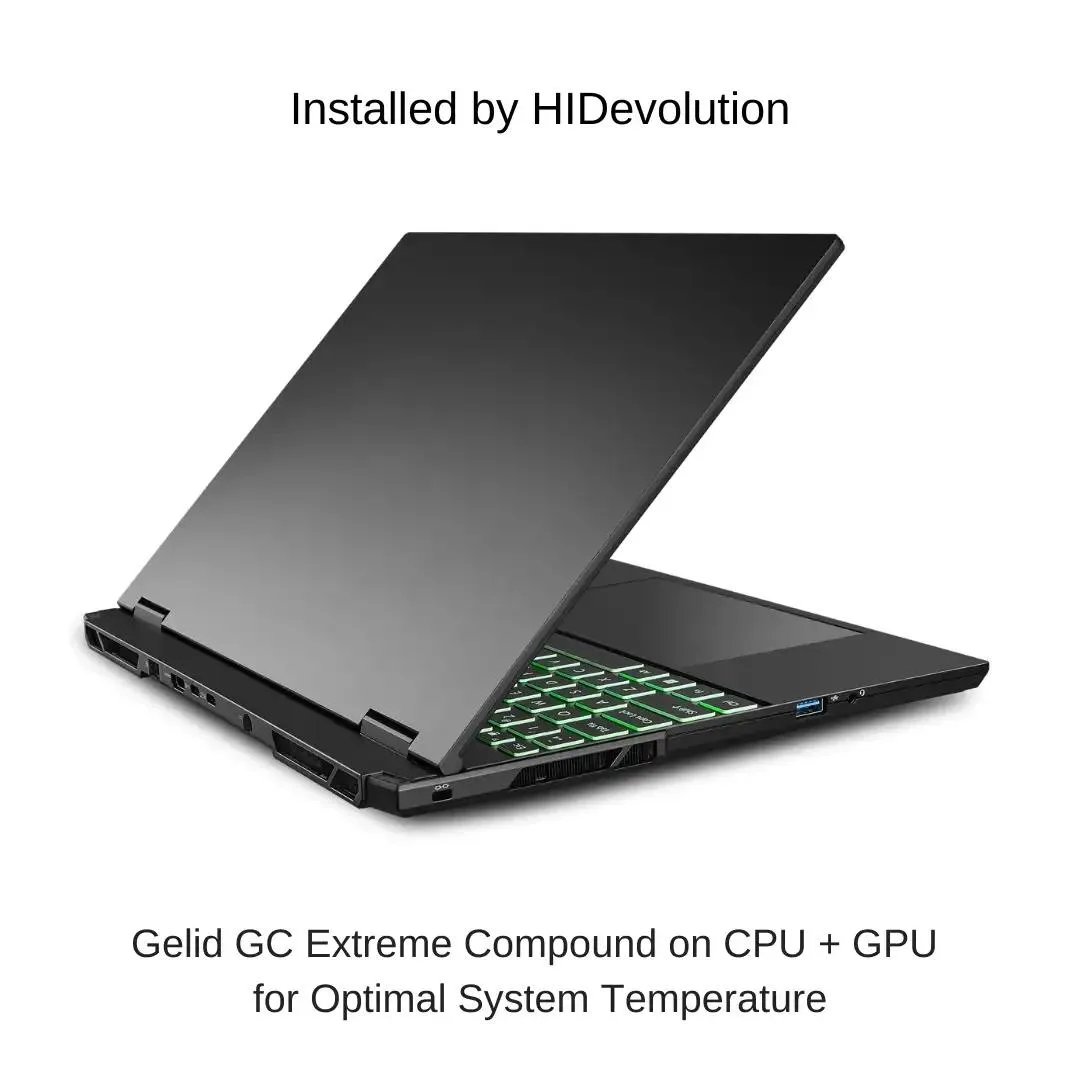

HIDevolution applies Gelid GC Extreme thermal interface material on the CPU and GPU to lower system temperatures. A full quality check installs the latest stable BIOS and drivers, runs burn-in stress and benchmark tests, and verifies keyboard, touchpad, ports and display. The 4 TB NVMe array and 16 GB dual-channel DDR5 are configured for fast boot and load times.
Highlights
- QHD+ 165 Hz panel delivers sharp high-refresh visuals
- 16-core Ultra 7-356H reaches 4.7 GHz turbo for heavy workloads
- RTX 5070 with 8 GB GDDR7 powers modern gaming
- 4 TB PCIe 4.0 NVMe storage loads games and apps fast
- Gelid GC Extreme thermal paste lowers CPU and GPU temperatures
Specifications
| Brand | EVOC |
|---|---|
| Series | L550JNP |
| Model | EVOC L5501C (L550JNP) |
| Part Number | EV-L5501D-HID3 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 7-356H |
| Screen | 16" QHD+ |
| Memory | 16GB |
| Storage | 4 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5070 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.53" (w) x 10.31" (d) x 0.63" ~ 0.78" (h) |
| Weight | 3.51 lbs. |
| Other Features | Magnesium Aluminum Alloy Top, Palm Rest and Bottom Case, FlexiCharger,Intel DTT and Intel APO |
| CPU Type | Intel Core Ultra 7 (Series 3) |
| Processor Name | Intel Core Ultra 7-356H |
| Number of Cores | 16-core Processor |
| Core Name | Panther Lake |
| Turbo Frequency | Max Turbo Frequency 4.7 GHz |
| CPU L3 Cache | 18 MB |
| Chipset | Intel® |
| Screen Size | 15.3" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 165Hz |
| Display Features | View Angle, 100% DCI-P3 Display, Glossy Finished |
| GPU/VPU | GeForce RTX 5070 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 4 TB |
| HDD | No |
| Storage Spec | 4 TB (2 x 2 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 8 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE211 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x USB 3.2 Gen 2 port with DisplayPort 1.4 (Type C), 1x USB 3.2 Gen 2 port with DisplayPort 1.4 with Power Delivery DC in (Type C), 2x USB 3.2 Gen 1 ports (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 3 cells Polymer battery pack 60WH |
Questions about this item
How long can the Core Ultra 7-356H sustain its 4.7 GHz turbo before thermal limits cut in?
The CPU is paired with Gelid GC Extreme thermal interface material on both the processor and the RTX 5070, which the builder uses to keep temperatures lower during extended loads and delay throttling.
What are the fan noise and surface temperatures like when the RTX 5070 runs at full load all day?
The magnesium-aluminium chassis and the upgraded Gelid GC Extreme compound are designed to move heat away from the CPU and GPU, reducing fan speed and keeping palm-rest temperatures comfortable during prolonged sessions.
Does the 4 TB NVMe storage arrive as a single drive or do I need to add a second M.2 module myself?
The 4 TB capacity is delivered as two 2 TB M.2 PCIe 4.0 x4 NVMe SSDs already installed in the laptop, so no extra drives are required.
