Evoc
Evoc L550JNP 15.3" QHD+ 165Hz Ultra 7-356H RTX 5070 16 GB DDR5 8 TB NVMe gaming laptop
A 15.3" QHD+ 165Hz gaming laptop with an Intel Core Ultra 7-356H processor, NVIDIA RTX 5070 graphics, 16 GB DDR5 memory and 8 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 7-356H
- Screen16" QHD+
- Memory16GB
- Storage8 TB M.2 PCIe 4.0 x4 NVMe SSD
- QHD+ 165 Hz panel delivers crisp motion for competitive play
- 16-core Ultra 7-356H reaches 4.7 GHz turbo for heavy workloads
- RTX 5070 with 8 GB GDDR7 drives modern titles at high settings
- 8 TB PCIe 4.0 NVMe storage loads games and projects in seconds
- Gelid GC Extreme paste lowers CPU and GPU temperatures under load

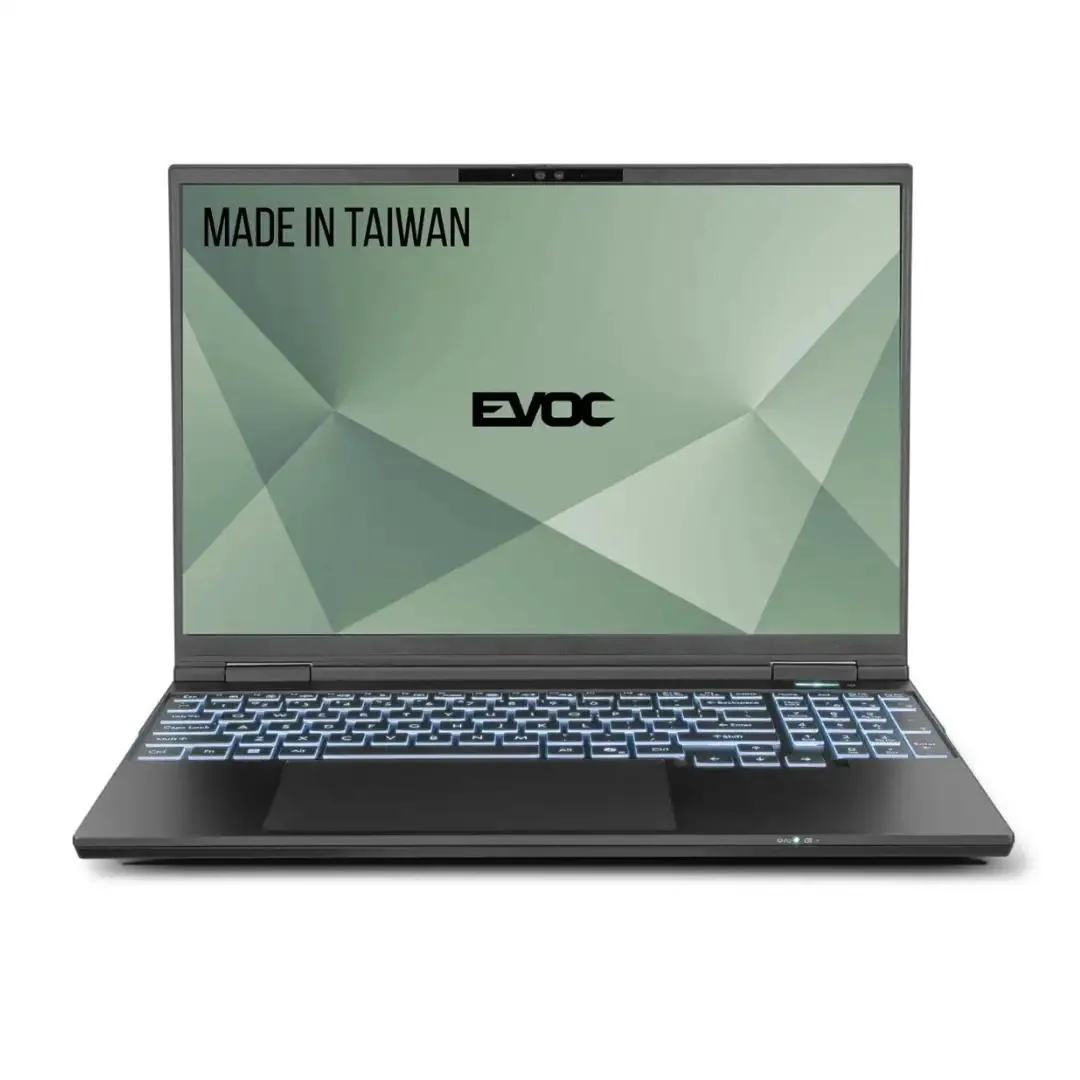

15.3″ QHD+ 165 Hz panel for competitive play

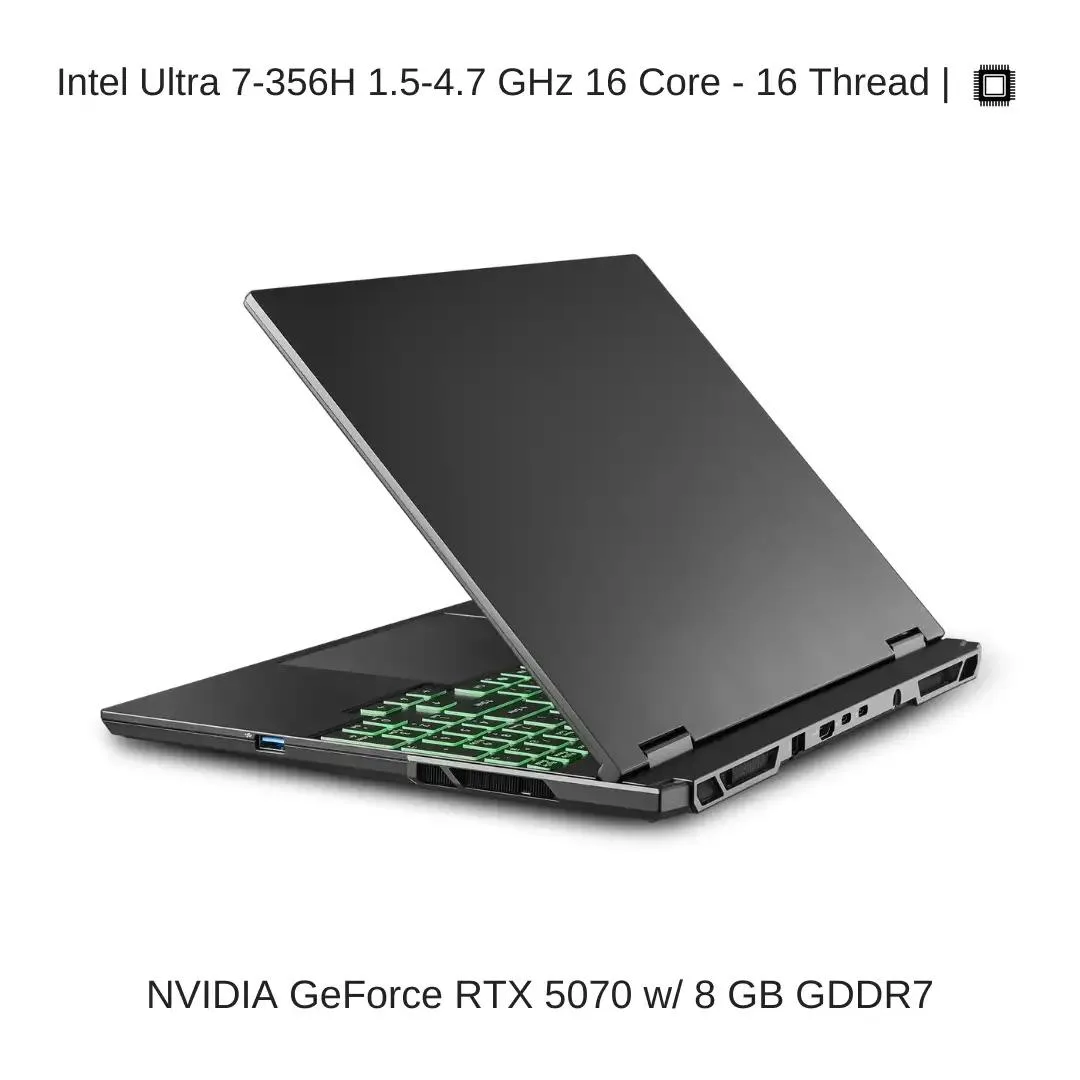

The Evoc L550JNP ships with a 15.3 inch OLED display at 2650 x 1600 resolution and a 165 Hz refresh rate. Intel Core Ultra 7-356H runs 16 cores and 16 threads with a 1.5 GHz base clock and 4.7 GHz max turbo. NVIDIA RTX 5070 graphics carry 8 GB GDDR7 video memory for modern titles.
Magnesium aluminium alloy chassis

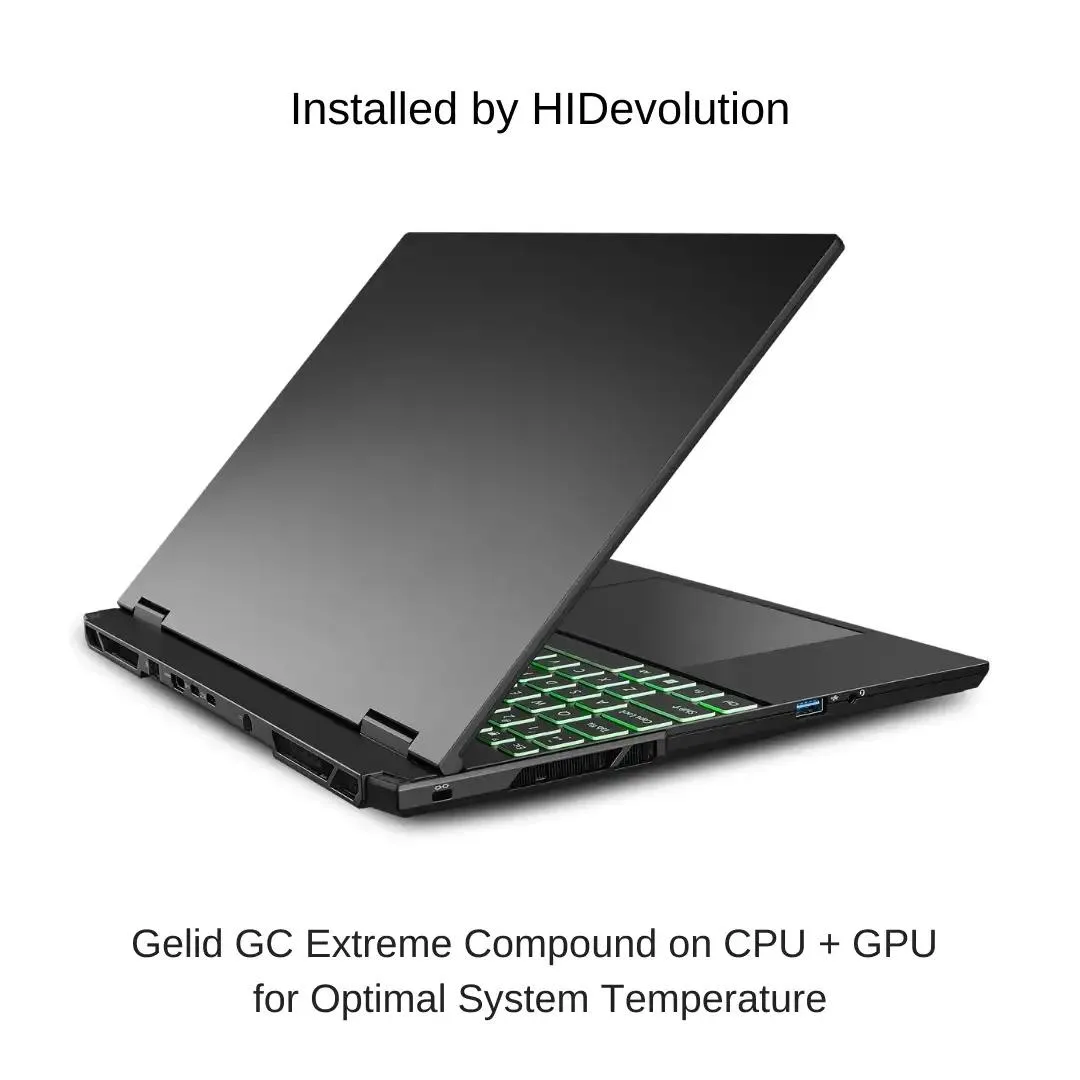

A magnesium aluminium alloy top, palm rest and bottom case keeps the 13.53 x 10.31 x 0.63–0.78 inch frame rigid at 3.51 lbs. Gelid GC Extreme thermal interface material is applied to both CPU and GPU during the build-to-order process to lower operating temperatures under sustained load.
8 TB dual NVMe storage and 16 GB DDR5 5600 MHz
Two 4 TB M.2 PCIe 4.0 x4 NVMe SSDs combine for 8 TB capacity with fast boot and load times. Dual-channel 16 GB DDR5 5600 MHz memory handles multitasking and memory-heavy workloads. Windows 11 Pro is pre-installed with latest BIOS, drivers and a full stress-test validation before shipment.
Highlights
- QHD+ 165 Hz panel delivers crisp motion for competitive play
- 16-core Ultra 7-356H reaches 4.7 GHz turbo for heavy workloads
- RTX 5070 with 8 GB GDDR7 drives modern titles at high settings
- 8 TB PCIe 4.0 NVMe storage loads games and projects in seconds
- Gelid GC Extreme paste lowers CPU and GPU temperatures under load
Specifications
| Brand | EVOC |
|---|---|
| Series | L550JNP |
| Model | EVOC L5501C (L550JNP) |
| Part Number | EV-L5501D-HID4 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 7-356H |
| Screen | 16" QHD+ |
| Memory | 16GB |
| Storage | 8 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5070 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 13.53" (w) x 10.31" (d) x 0.63" ~ 0.78" (h) |
| Weight | 3.51 lbs. |
| Other Features | Magnesium Aluminum Alloy Top, Palm Rest and Bottom Case, FlexiCharger,Intel DTT and Intel APO |
| CPU Type | Intel Core Ultra 7 (Series 3) |
| Processor Name | Intel Core Ultra 7-356H |
| Number of Cores | 16-core Processor |
| Core Name | Panther Lake |
| Turbo Frequency | Max Turbo Frequency 4.7 GHz |
| CPU L3 Cache | 18 MB |
| Chipset | Intel® |
| Screen Size | 15.3" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 165Hz |
| Display Features | View Angle, 100% DCI-P3 Display, Glossy Finished |
| GPU/VPU | GeForce RTX 5070 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 8 TB |
| HDD | No |
| Storage Spec | 8 TB (2 x 4 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 8 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE211 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x USB 3.2 Gen 2 port with DisplayPort 1.4 (Type C), 1x USB 3.2 Gen 2 port with DisplayPort 1.4 with Power Delivery DC in (Type C), 2x USB 3.2 Gen 1 ports (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size isolated keyboard with numeric pad |
| Webcam | Built-in 5.0M Hello Camera with TNR (Temporal Noise Reduction), SecureBIO and Human Presence Detection |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 3 cells Polymer battery pack 60WH |
Questions about this item
Does the PCIe 4.0 x4 NVMe interface cap the 8 TB SSD at PCIe 4.0 speeds?
Yes, the two 4 TB M.2 drives run on a PCIe 4.0 x4 NVMe link, so sequential throughput is limited to the PCIe 4.0 ceiling.
What are the exact chassis dimensions and weight for a backpack or sleeve?
The laptop measures 13.53 inches wide by 10.31 inches deep by 0.63 to 0.78 inches high and weighs 3.51 lbs.
How is the Gelid GC Extreme thermal compound applied, and what step do builders often miss?
HIDevolution disassembles the cooling assembly, cleans the CPU and GPU dies, applies Gelid GC Extreme, then reassembles; the step often missed is a full re-paste of both dies rather than only the CPU.
