Evoc

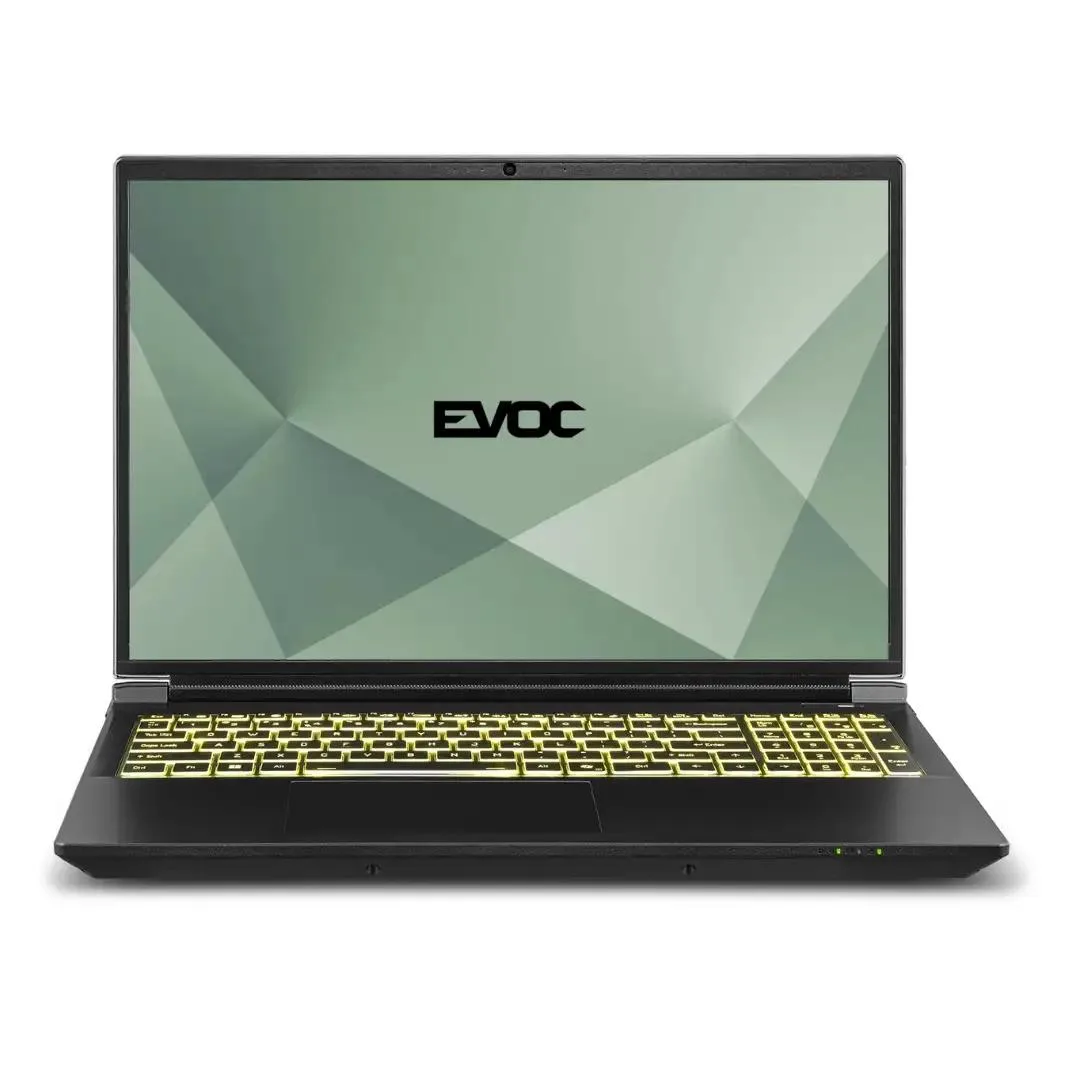

Evoc V3601A (V360WNMQ) 16" QHD+ 300Hz Ultra 9-290HX Plus RTX 5050 64GB 1TB gaming laptop
16-inch QHD+ 300 Hz display driven by a 24-core Ultra 9-290HX Plus at 5.5 GHz turbo, RTX 5050 with 8 GB GDDR7, 64 GB DDR5 5600 MHz and 1 TB NVMe SSD
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen16" QHD+
- Memory64GB
- Storage1 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Arrow Lake CPU reaches 5.5 GHz turbo for heavy workloads
- 16" QHD+ 300 Hz panel delivers smooth high-refresh visuals
- RTX 5050 with 8 GB GDDR7 powers modern gaming titles
- 64 GB DDR5 5600 MHz dual-channel memory handles multitasking
- 1 TB PCIe 4.0 NVMe SSD provides fast boot and load times
16" QHD+ 300Hz Gaming Laptop
The Evoc V3601A pairs a 16-inch 2560x1600 display running at 300Hz with an Intel Core Ultra 9 290HX Plus 24-core processor and NVIDIA GeForce RTX 5050 graphics with 8GB GDDR7. 64GB of DDR5 5600MHz memory and a 1TB PCIe 4.0 x4 NVMe SSD complete a configuration aimed at competitive gaming and heavy multitasking. Windows 11 Pro is pre-installed.

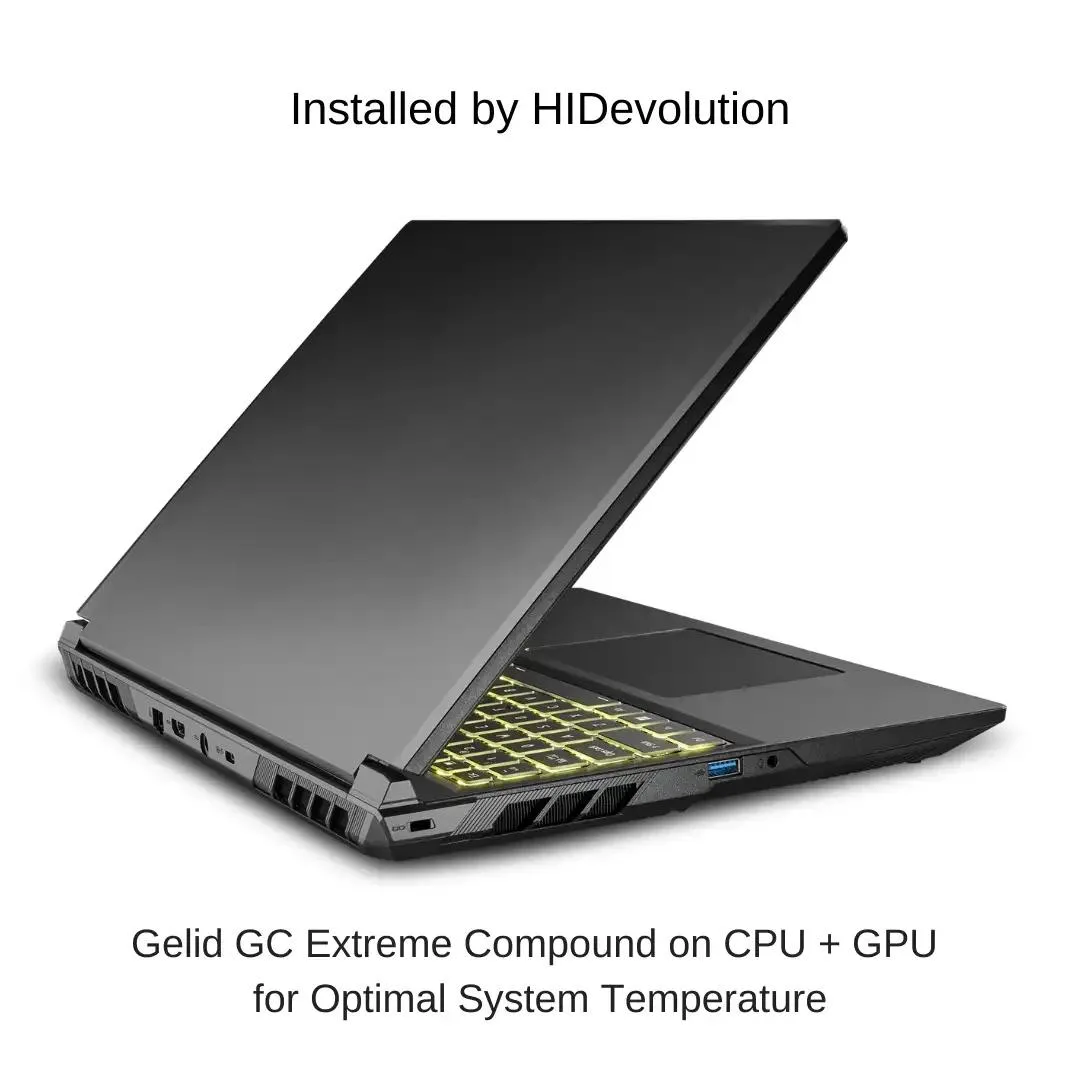

Gelid GC Extreme Thermal Upgrade
HIDevolution applies Gelid GC Extreme thermal interface material to the CPU and GPU during assembly, replacing the stock compound to lower sustained temperatures. The build also includes a full quality-control cycle with updated BIOS, driver installation, burn-in stress testing, and physical inspection before shipment. This reduces the chance of early hardware faults and improves thermal headroom.
Sustained Load Behaviour
Under continuous load the 24-core Arrow Lake processor can reach a 5.5 GHz max turbo frequency while the enhanced thermal interface helps maintain clock speeds longer than standard paste allows. The 300Hz panel keeps motion sharp during extended sessions, and the PCIe 4.0 SSD sustains high throughput for asset streaming without throttling. Dual-channel DDR5 bandwidth supports the CPU during prolonged compute tasks.
Highlights
- 24-core Arrow Lake CPU reaches 5.5 GHz turbo for heavy workloads
- 16" QHD+ 300 Hz panel delivers smooth high-refresh visuals
- RTX 5050 with 8 GB GDDR7 powers modern gaming titles
- 64 GB DDR5 5600 MHz dual-channel memory handles multitasking
- 1 TB PCIe 4.0 NVMe SSD provides fast boot and load times
Specifications
| Brand | EVOC |
|---|---|
| Series | V360WNMQ |
| Model | EVOC V3601A (V360WNMQ) |
| Part Number | EV-V3601A-HID13 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 16" QHD+ |
| Memory | 64GB |
| Storage | 1 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5050 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.21" (w) x 10.20" (d) x 1" ~ 1.22" (h) |
| Weight | 5.53 lbs. |
| Other Features | FlexiCharger, Intel DTT (Dynamic Tuning Technology) |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |

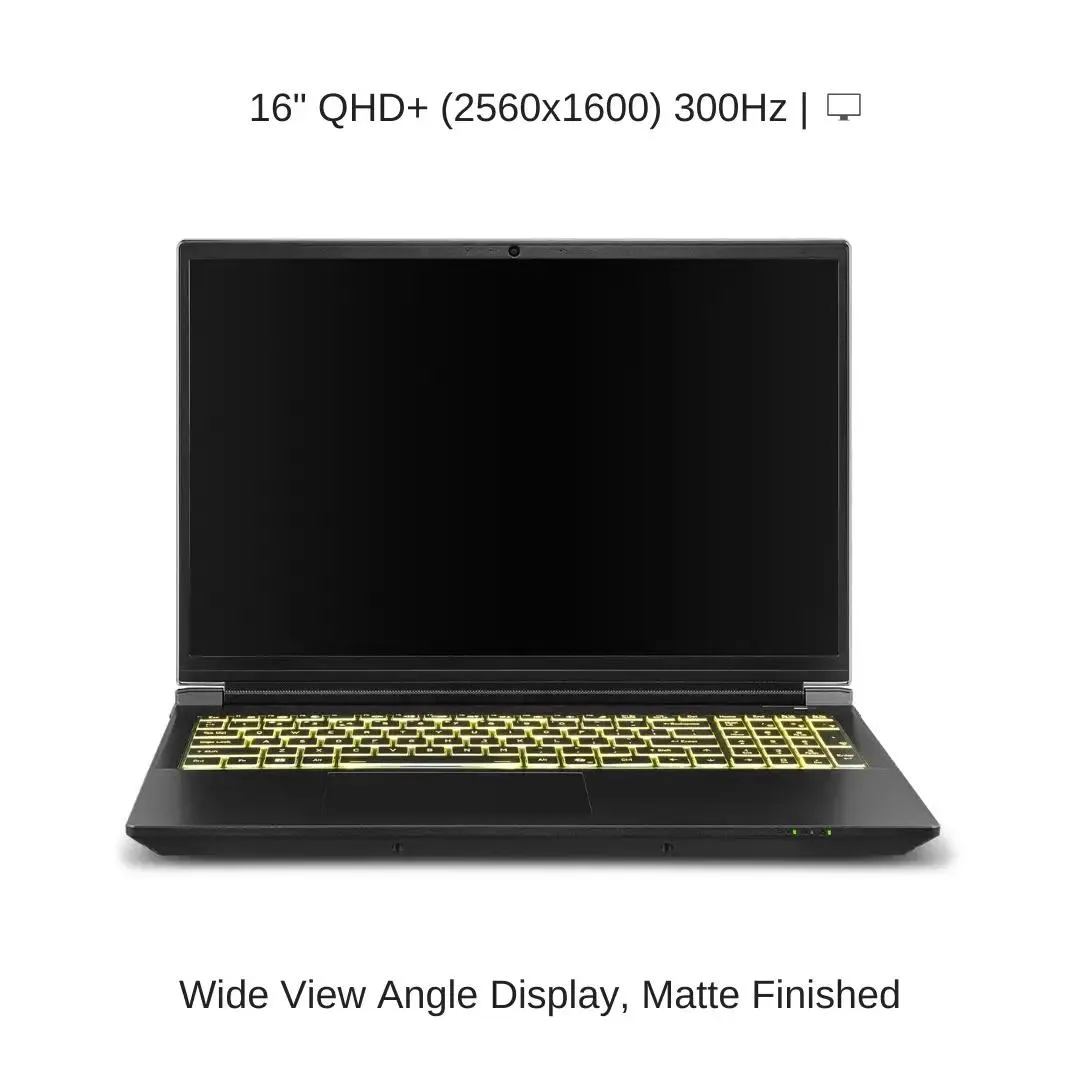

| Display Features | Wide View Angle Display, Matte Finished |
| GPU/VPU | GeForce RTX 5050 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 1 TB |
| HDD | No |
| Storage Spec | 1 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 32 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C), 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in, 1x USB 3.2 Gen 2 Port (Type A), 1x USB 3.2 Gen 1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 4 cells Polymer battery pack 73WH |
Questions about this item
What chassis clearance does the 16" 2560x1600 300Hz display need for mounting?
The laptop measures 14.21" wide by 10.20" deep and stands 1" to 1.22" high, so any mount or sleeve must accommodate those outer dimensions.
How is the Gelid GC Extreme thermal compound applied to the Ultra 9-290HX Plus and RTX 5050, and what step is often missed?
HIDevolution disassembles the cooling assembly, cleans both dies, spreads a thin layer of Gelid GC Extreme on each, then reassembles; the step often missed is re-torquing the heatsink screws in a cross pattern to ensure even pressure.
When will the 64GB DDR5 5600MHz memory or 1TB PCIe 4.0 x4 NVMe SSD need replacement?
The memory uses two 32GB DDR5 modules and the storage is a single 1TB PCIe 4.0 x4 NVMe drive; both are user-replaceable and typically require attention only if capacity or speed demands exceed the current configuration.
