Evoc
Evoc V3601B 16" QHD+ 300Hz Ultra 9-290HX Plus RTX 5060 64GB 2TB gaming laptop
A 16-inch QHD+ 300 Hz gaming laptop with a 24-core Intel Core Ultra 9-290HX Plus, RTX 5060 graphics, 64 GB DDR5 memory and a 2 TB NVMe SSD
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen16" QHD+
- Memory64GB
- Storage2 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 300 Hz 16" QHD+ panel at 2560x1600 keeps motion sharp
- RTX 5060 with 8 GB GDDR7 drives modern graphics
- 64 GB DDR5 5600 dual-channel runs memory-hungry apps
- 2 TB PCIe 4.0 x4 NVMe SSD loads games fast
Built for competitive QHD+ gaming
The 16 inch QHD+ 300 Hz panel pairs with an Intel Core Ultra 9 290HX Plus 24 core processor and an NVIDIA GeForce RTX 5060 graphics card with 8 GB GDDR7. Sixty four gigabytes of DDR5 5600 MHz memory and a 2 TB PCIe 4.0 x4 NVMe SSD complete a system tuned for high frame rates at 2560 by 1600 resolution.
Steps up from lower refresh rate machines
The 300 Hz display targets esports players and competitive shooters who need minimal motion blur, while the 24 core CPU handles streaming and heavy multitasking. Buyers whose workloads centre on professional colour grading or who prefer a lighter chassis for daily commuting should evaluate alternatives.

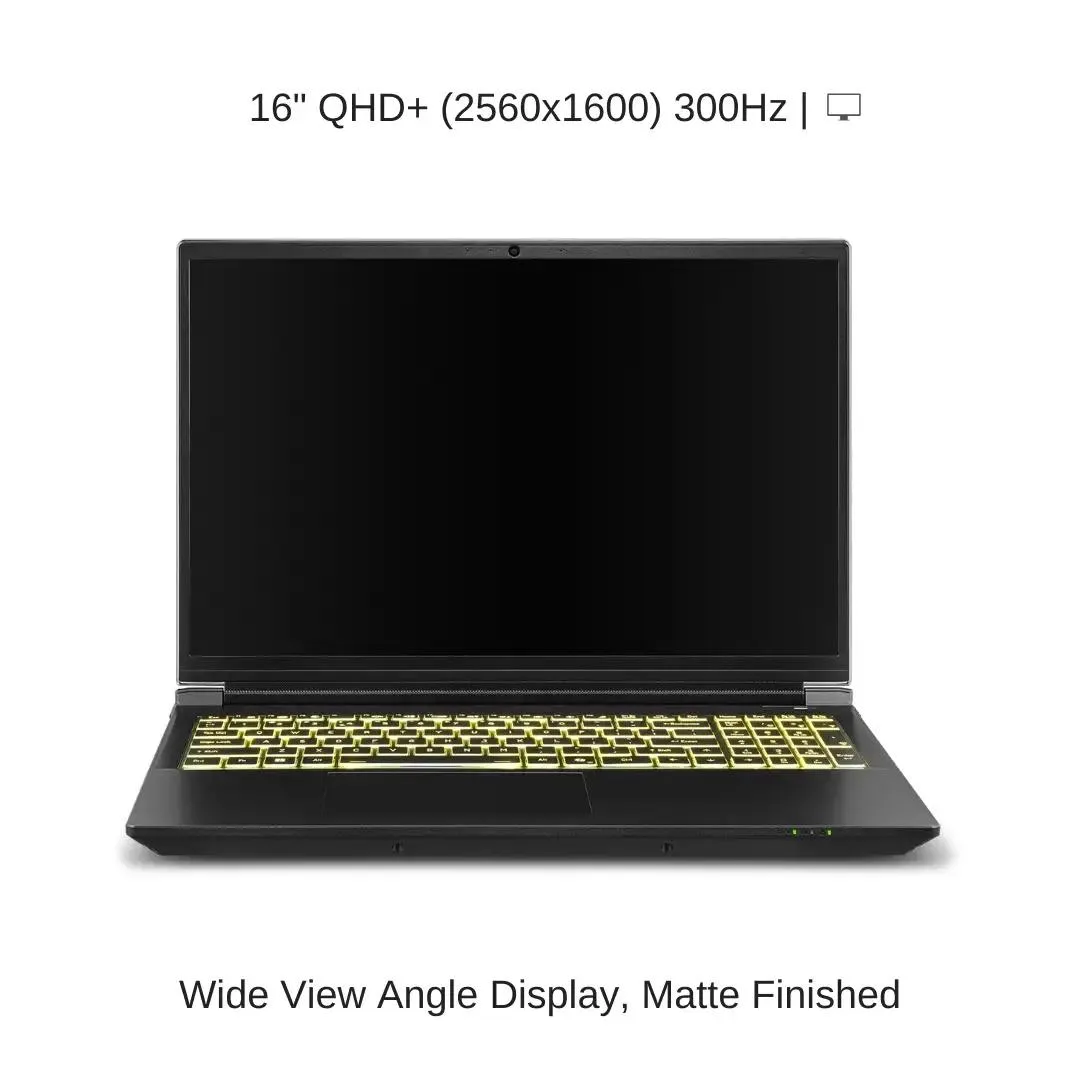

Hinge specification: 300 Hz QHD+ panel
The screen runs at 300 Hz with a 2560 by 1600 native resolution, a combination that determines whether the laptop matches a competitive gamer's refresh rate requirement or a creator's pixel density need.
Highlights
- 24-core Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 300 Hz 16" QHD+ panel at 2560x1600 keeps motion sharp
- RTX 5060 with 8 GB GDDR7 drives modern graphics
- 64 GB DDR5 5600 dual-channel runs memory-hungry apps
- 2 TB PCIe 4.0 x4 NVMe SSD loads games fast
Specifications
| Brand | EVOC |
|---|---|
| Series | V360WNNQ |
| Model | EVOC V3601B (V360WNNQ) |
| Part Number | EV-V3601B-HID14 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 16" QHD+ |
| Memory | 64GB |
| Storage | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.21" (w) x 10.20" (d) x 1" ~ 1.22" (h) |
| Weight | 5.53 lbs. |
| Other Features | FlexiCharger, Intel DTT (Dynamic Tuning Technology) |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 2 TB |
| HDD | No |
| Storage Spec | 2 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 32 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C), 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in, 1x USB 3.2 Gen 2 Port (Type A), 1x USB 3.2 Gen 1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 4 cells Polymer battery pack 73WH |
Questions about this item
What are the chassis dimensions and weight for the V3601B?
The V3601B measures 14.21 inches wide, 10.20 inches deep, and 1 to 1.22 inches high, weighing 5.53 lbs.

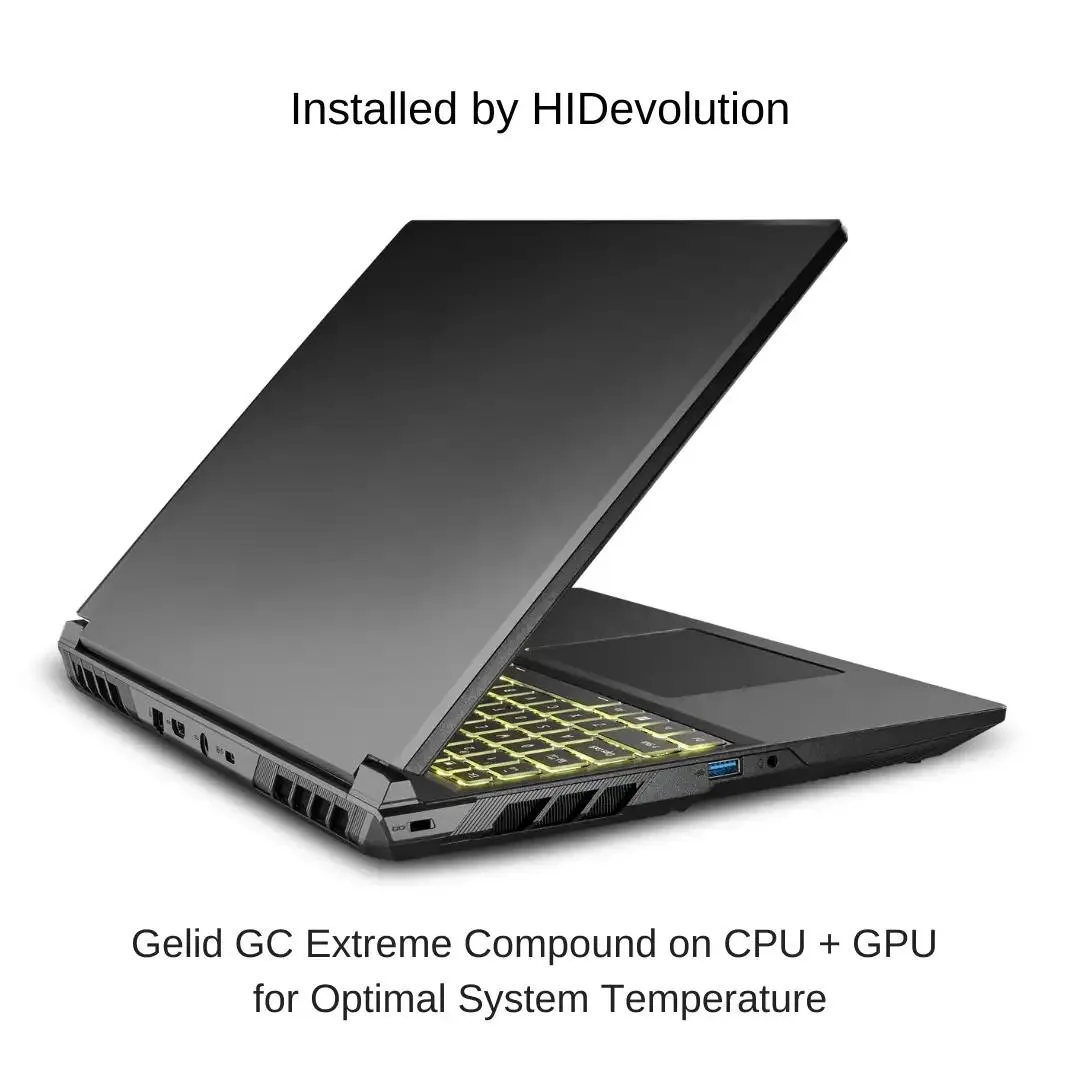

How is the Gelid GC Extreme thermal compound applied, and what step is often missed?
HIDevolution disassembles the laptop to apply Gelid GC Extreme on the CPU and GPU; the step often missed is reinstalling the heatsink with even pressure to avoid air gaps.
Which memory and storage components can be upgraded later in the V3601B?
The laptop uses two 32 GB DDR5 5600MHz modules and a 2 TB M.2 PCIe 4.0 x4 NVMe SSD, both accessible for future replacement.
