Evoc V3601B gaming laptop 16" QHD+ 300Hz Ultra 9-290HX Plus RTX 5060 32 GB DDR5 16 TB NVMe
16-inch QHD+ 300 Hz gaming laptop with 24-core Ultra 9-290HX Plus, RTX 5060, 32 GB DDR5 and 16 TB NVMe
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen16" QHD+
- Memory32GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 16-inch QHD+ 300 Hz panel delivers smooth high-refresh visuals
- RTX 5060 with 8 GB GDDR7 powers modern gaming at high settings
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking with ease
- 16 TB PCIe 4.0 NVMe storage (2×8 TB) provides massive fast capacity
Gaming laptop with 300 Hz QHD+ display

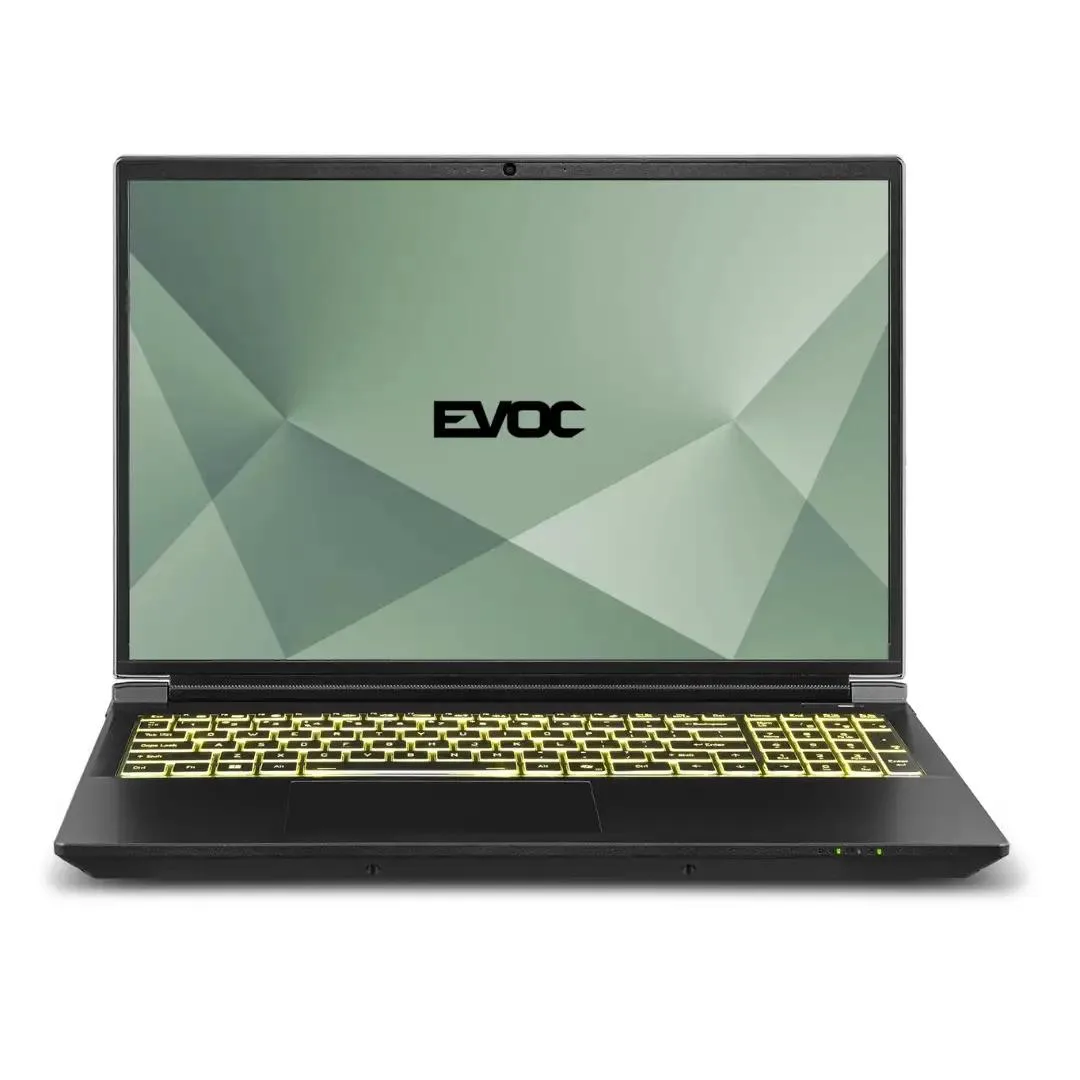

The EVOC V3601B is a 16 inch gaming laptop built around a 2560 by 1600 panel that refreshes at 300 Hz. It targets competitive players and creators who need high frame rates and colour accuracy in a portable chassis. Windows 11 Pro ships pre-installed.
PCIe 4.0 x4 NVMe storage and DDR5 5600 memory limits
The 16 TB array uses two 8 TB M.2 drives on a PCIe 4.0 x4 interface, so sequential throughput tops out at the bus ceiling. System memory is 32 GB of DDR5 5600 running in dual channel; speeds are subject to platform capability.

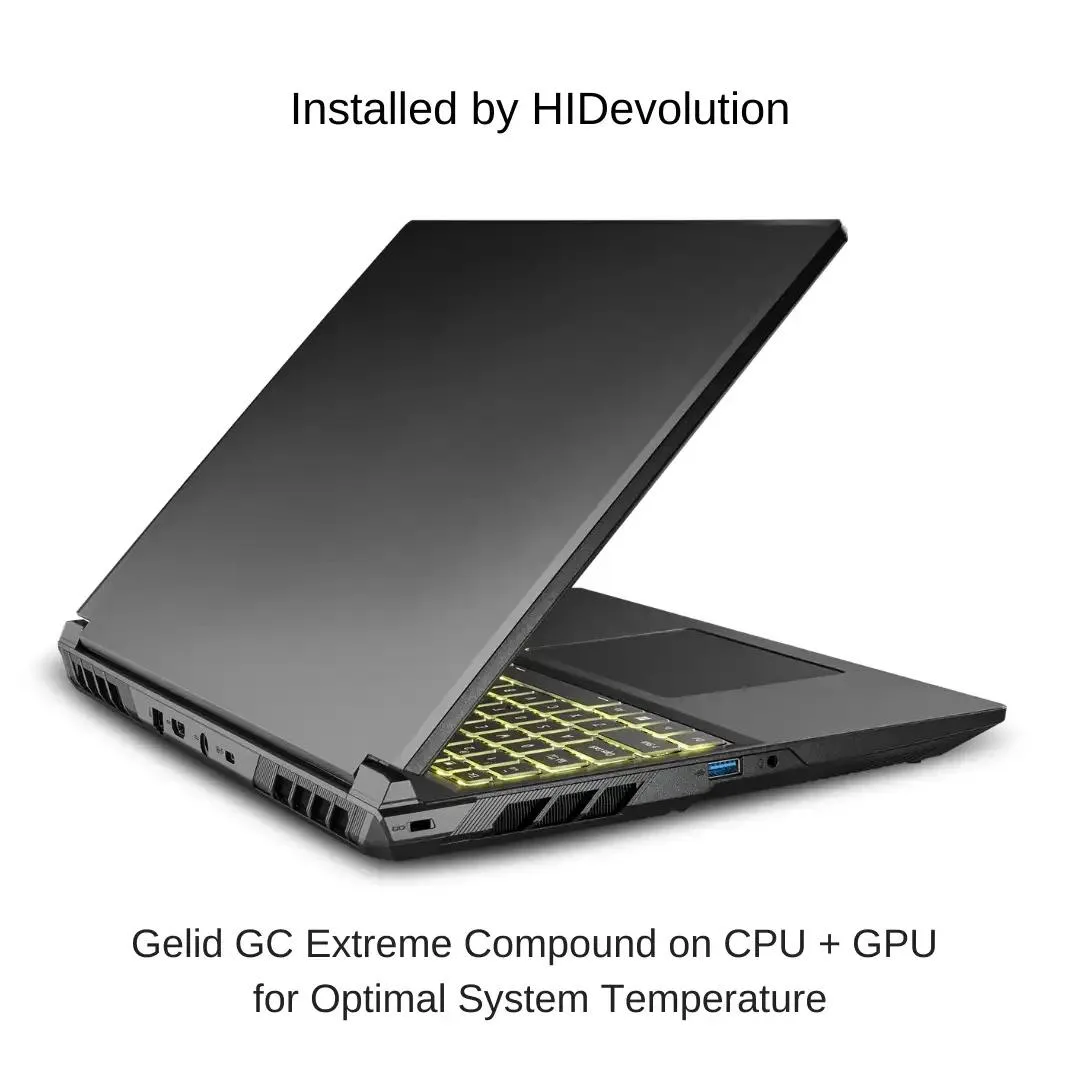

Gelid GC Extreme thermal compound upgrade
HIDevolution replaces the factory thermal interface material with Gelid GC Extreme on both CPU and GPU to lower peak temperatures under sustained load. The upgrade is worthwhile when you run long render jobs or extended gaming sessions that push the 24 core Arrow Lake processor and RTX 5060 8 GB GDDR7 graphics hard.
Highlights
- 24-core Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 16-inch QHD+ 300 Hz panel delivers smooth high-refresh visuals
- RTX 5060 with 8 GB GDDR7 powers modern gaming at high settings
- 32 GB DDR5 5600 MHz dual-channel memory handles multitasking with ease
- 16 TB PCIe 4.0 NVMe storage (2×8 TB) provides massive fast capacity
Specifications
| Brand | EVOC |
|---|---|
| Series | V360WNNQ |
| Model | EVOC V3601B (V360WNNQ) |
| Part Number | EV-V3601B-HID11 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 16" QHD+ |
| Memory | 32GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.21" (w) x 10.20" (d) x 1" ~ 1.22" (h) |
| Weight | 5.53 lbs. |
| Other Features | FlexiCharger, Intel DTT (Dynamic Tuning Technology) |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 16 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C), 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in, 1x USB 3.2 Gen 2 Port (Type A), 1x USB 3.2 Gen 1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 4 cells Polymer battery pack 73WH |
Questions about this item
Which storage capacity should I choose?
The laptop ships with 16 TB configured as two 8 TB M.2 PCIe 4.0 x4 NVMe SSDs, giving maximum capacity and redundancy in a single build.
What does the 300 Hz figure mean in daily use?
The 16 inch QHD+ panel refreshes at 300 Hz, so fast motion in competitive games stays sharp and input latency feels minimal.
What does the PCIe 4.0 x4 interface cap in practice?
PCIe 4.0 x4 NVMe drives in this system can reach their rated sequential speeds, so the 16 TB array loads games and large files at full drive performance.
