Evoc
Evoc V3601B gaming laptop 16" QHD+ 300Hz Ultra 9-290HX Plus RTX 5060 128GB 16TB
16-inch QHD+ 300 Hz gaming laptop with a 24-core Ultra 9-290HX Plus, RTX 5060 graphics, 128 GB DDR5 memory and 16 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen16" QHD+
- Memory128GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Arrow Lake Ultra 9 processor reaches 5.5 GHz turbo for heavy workloads

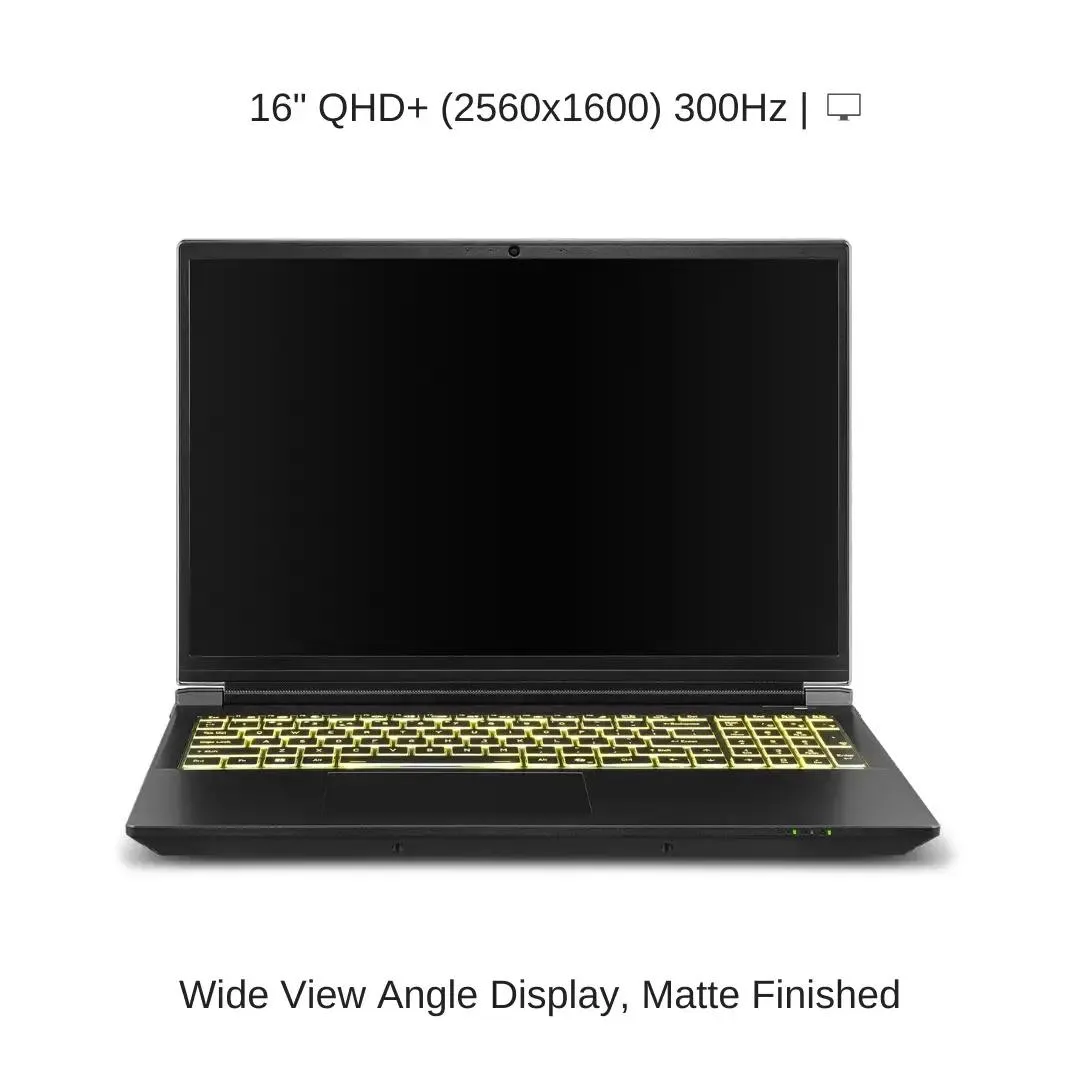

- 16-inch QHD+ 300 Hz panel at 2560 x 1600 resolution delivers smooth visuals
- RTX 5060 graphics with 8 GB GDDR7 memory powers modern titles
- 128 GB DDR5 5600 MHz dual-channel RAM handles multitasking with ease
- 16 TB PCIe 4.0 x4 NVMe SSD provides vast high-speed storage

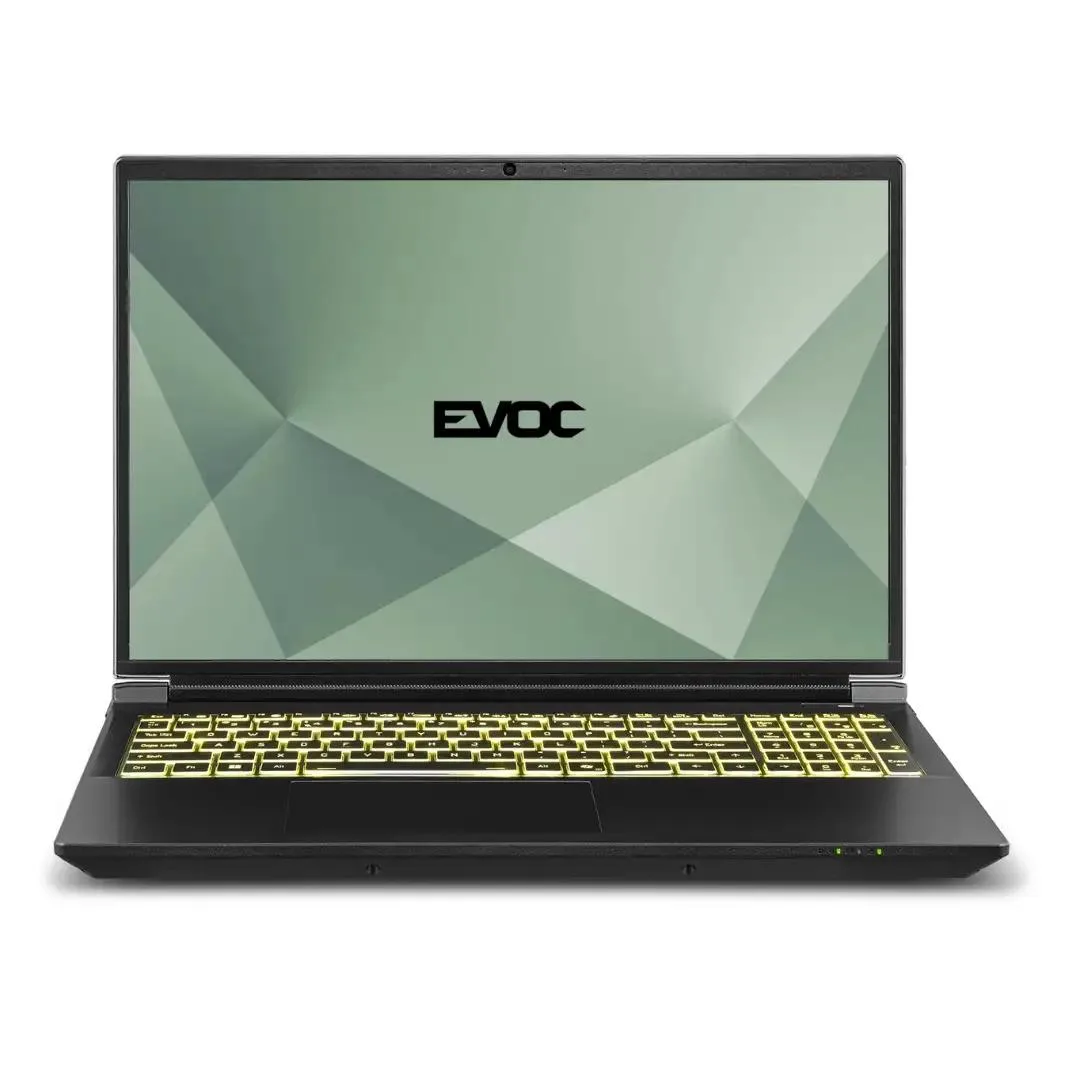

16-inch QHD+ gaming laptop
The Evoc V3601B pairs a 16-inch 2560x1600 300Hz panel with an Intel Core Ultra 9 290HX Plus 24-core processor and NVIDIA RTX 5060 graphics. It ships with 128GB of DDR5 5600MHz memory in dual-channel configuration and 16TB of PCIe 4.0 x4 NVMe storage. Windows 11 Pro is pre-installed for immediate use.
Upgrade path and value

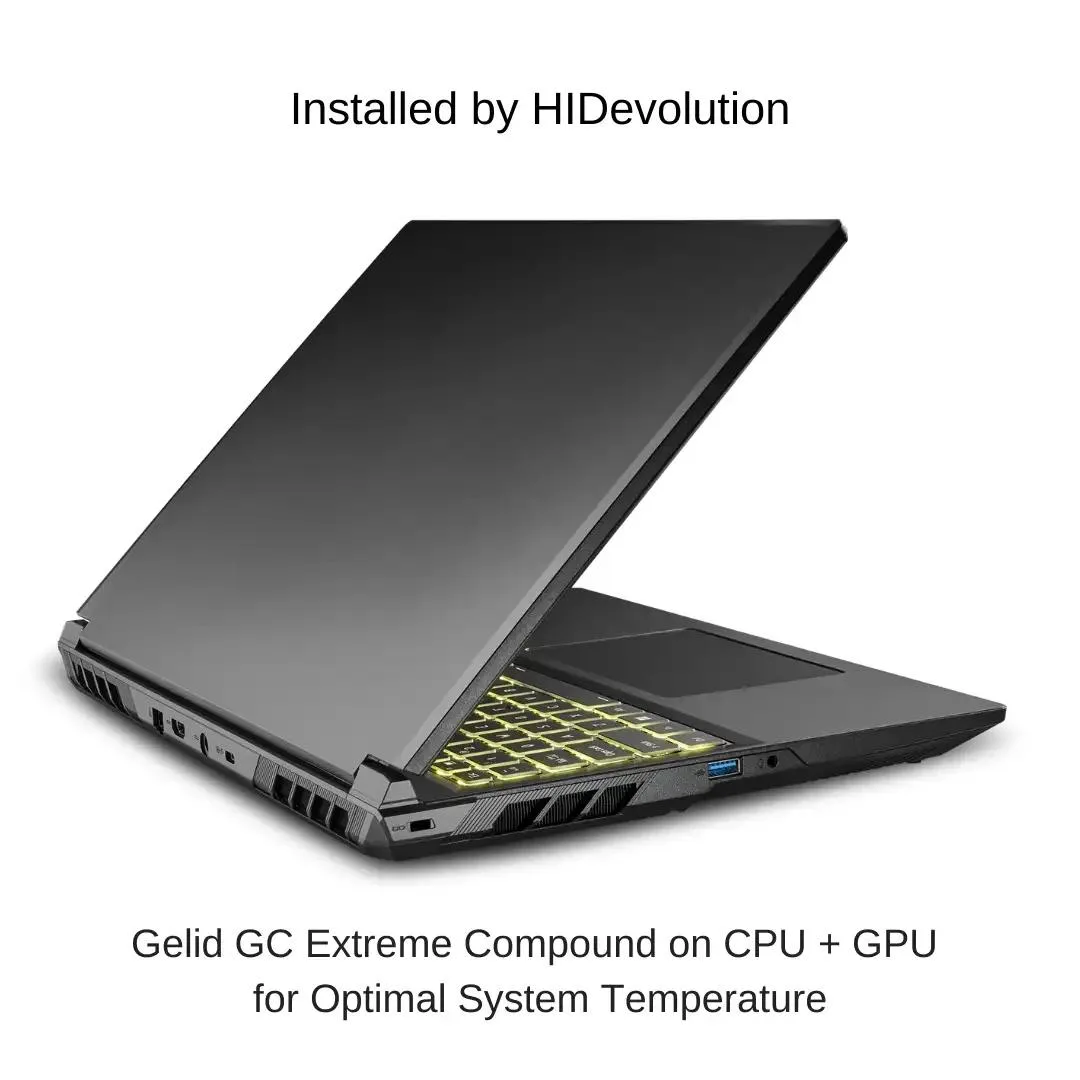

The system replaces earlier configurations limited to lower memory ceilings and smaller solid-state volumes. The jump is worth it when workloads demand 128GB of RAM for virtual machines, heavy rendering or large dataset manipulation alongside the 16TB capacity for local asset libraries. Factory-applied Gelid GC Extreme thermal compound targets sustained clock speeds under load.
Installation and common issues
Memory and storage upgrades are already completed by the builder before shipment, so the laptop arrives ready to run. The main friction point is the 2-5 working day lead time required for the custom build and quality-control cycle. Buyers should verify BIOS version and driver stability on first boot, as the unit undergoes stress testing prior to dispatch.
Highlights
- 24-core Arrow Lake Ultra 9 processor reaches 5.5 GHz turbo for heavy workloads
- 16-inch QHD+ 300 Hz panel at 2560 x 1600 resolution delivers smooth visuals
- RTX 5060 graphics with 8 GB GDDR7 memory powers modern titles
- 128 GB DDR5 5600 MHz dual-channel RAM handles multitasking with ease
- 16 TB PCIe 4.0 x4 NVMe SSD provides vast high-speed storage
Specifications
| Brand | EVOC |
|---|---|
| Series | V360WNNQ |
| Model | EVOC V3601B (V360WNNQ) |
| Part Number | EV-V3601B-HID29 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 16" QHD+ |
| Memory | 128GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.21" (w) x 10.20" (d) x 1" ~ 1.22" (h) |
| Weight | 5.53 lbs. |
| Other Features | FlexiCharger, Intel DTT (Dynamic Tuning Technology) |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 64 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C), 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in, 1x USB 3.2 Gen 2 Port (Type A), 1x USB 3.2 Gen 1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 4 cells Polymer battery pack 73WH |
Questions about this item
What are the exact width, depth and height of the 16 inch chassis?
The laptop measures 14.21 inches wide, 10.20 inches deep and 1 inch to 1.22 inches high.
How do I apply the Gelid GC Extreme thermal compound during installation?
Clean the CPU and GPU dies, apply a thin even layer of the pre‑installed Gelid GC Extreme, then reseat the heatsink with even pressure.
Can the two 8 TB M.2 PCIe 4.0 x4 NVMe drives be swapped for larger modules later?
Yes, both M.2 slots support PCIe 4.0 x4 NVMe SSDs and can be replaced with higher‑capacity modules when needed.
