Evoc
Evoc V3601B (V360WNNQ) gaming laptop 16" QHD+ 300Hz Ultra 9-290HX Plus RTX 5060 16 GB DDR5 16
16-inch QHD+ 300 Hz display driven by a 24-core Ultra 9-290HX Plus and RTX 5060 with 8 GB GDDR7, plus 16 GB DDR5 and 16 TB NVMe storage
- ColorBlack
- Operating SystemWindows 11 Pro
- CPUIntel® Core Ultra 9-290HX Plus
- Screen16" QHD+
- Memory16GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 24-core Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 16" QHD+ 2560x1600 panel runs at 300 Hz for fluid motion
- RTX 5060 with 8 GB GDDR7 drives modern graphics performance
- 16 TB dual NVMe storage on PCIe 4.0 x4 loads games in seconds
- Gelid GC Extreme paste lowers CPU and GPU temperatures under load
Core Ultra 9-290HX Plus Gaming Laptop

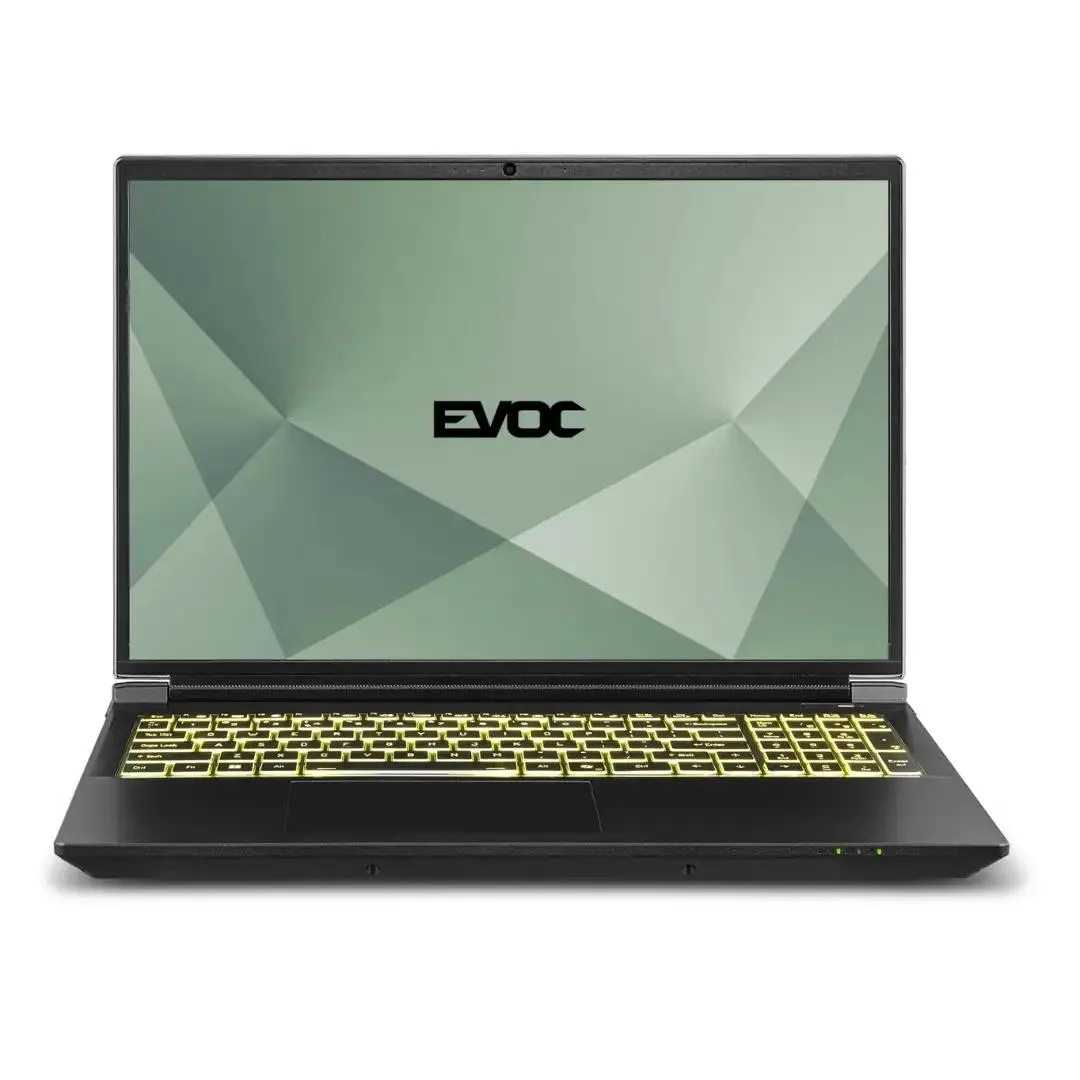

The Evoc V3601B (V360WNNQ) is a 16-inch Windows 11 Pro gaming laptop powered by an Intel Core Ultra 9-290HX Plus processor with 24 cores and a maximum turbo frequency of 5.5 GHz. It features an NVIDIA GeForce RTX 5060 graphics card with 8 GB of GDDR7 video memory. The system includes 16 GB of DDR5 5600 MHz memory and 16 TB of PCIe 4.0 x4 NVMe SSD storage. A 300 Hz QHD+ display completes the high-performance specification.

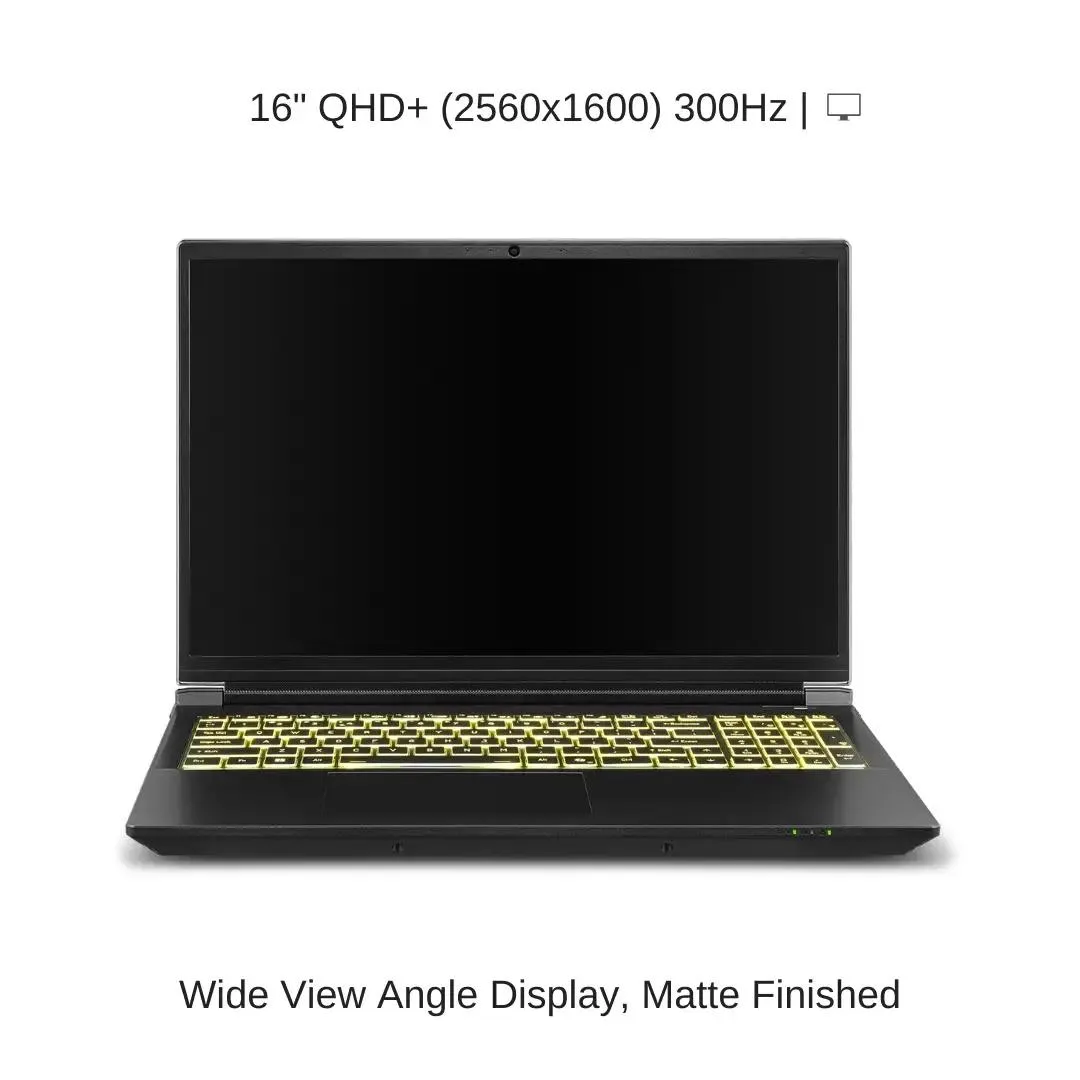

300 Hz QHD+ Display and Thermals

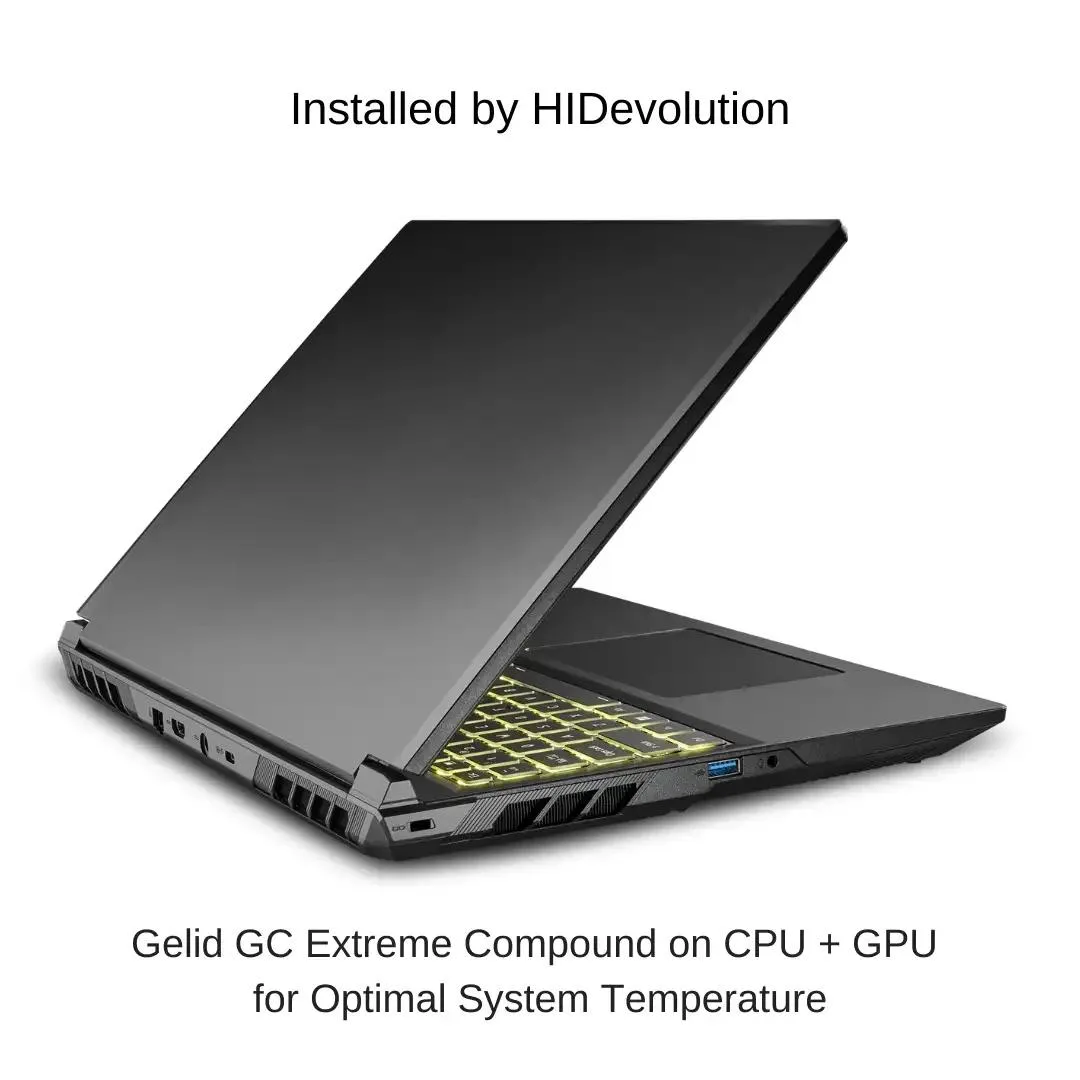

This configuration suits competitive gamers and content creators who need high frame rates on a 2560 x 1600 panel with a 300 Hz refresh rate. The Gelid GC Extreme thermal interface material on the CPU and GPU targets lower operating temperatures under sustained loads. Buyers who prioritise maximum portability or battery longevity over raw desktop-class performance in a 5.53 lb chassis should consider alternative form factors.
16 TB PCIe 4.0 NVMe Storage
The defining specification is the 16 TB M.2 PCIe 4.0 x4 NVMe SSD array configured as two 8 TB drives. This capacity eliminates storage management overhead for large game libraries, raw video footage and machine-learning datasets. If the workflow does not demand multi-terabyte local storage, a smaller drive configuration would reduce cost without affecting compute or graphics throughput.
Highlights
- 24-core Ultra 9-290HX Plus hits 5.5 GHz turbo for heavy workloads
- 16" QHD+ 2560x1600 panel runs at 300 Hz for fluid motion
- RTX 5060 with 8 GB GDDR7 drives modern graphics performance
- 16 TB dual NVMe storage on PCIe 4.0 x4 loads games in seconds
- Gelid GC Extreme paste lowers CPU and GPU temperatures under load
Specifications
| Brand | EVOC |
|---|---|
| Series | V360WNNQ |
| Model | EVOC V3601B (V360WNNQ) |
| Part Number | EV-V3601B-HID5 |
| Color | Black |
| Operating System | Windows 11 Pro |
| CPU | Intel® Core Ultra 9-290HX Plus |
| Screen | 16" QHD+ |
| Memory | 16GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.21" (w) x 10.20" (d) x 1" ~ 1.22" (h) |
| Weight | 5.53 lbs. |
| Other Features | FlexiCharger, Intel DTT (Dynamic Tuning Technology) |
| CPU Type | Intel Core Ultra 9 (Series 2) |
| Processor Name | Intel Core Ultra 9 290HX Plus |
| Number of Cores | 24-core Processor |
| Core Name | Arrow Lake |
| Turbo Frequency | Max Turbo Frequency 5.5 GHz |
| CPU L3 Cache | 36 MB |
| Chipset | Intel® |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 8 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Wireless Wi-Fi 7 BE200 |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Yes |
| USB | 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C), 1x DisplayPort 2.1 over USB 3.2 Gen 2 port (Type C) with Power Delivery DC-in, 1x USB 3.2 Gen 2 Port (Type A), 1x USB 3.2 Gen 1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 230W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 11.5A |
| Battery | Embedded 4 cells Polymer battery pack 73WH |
Questions about this item
How do I install the second 8 TB M.2 PCIe 4.0 x4 NVMe SSD, and which step do people miss?
The laptop ships with two 8 TB drives already installed in the M.2 slots; there is no empty slot for a third drive, so the step people miss is checking that both drives are detected in BIOS before adding more storage.
What maintenance or replacement will the Gelid GC Extreme thermal interface material need later?
The Gelid GC Extreme TIM applied to the CPU and GPU is a long-life compound; under normal gaming loads it typically lasts several years before re-pasting is considered, and no scheduled replacement interval is required.
What limit appears first during sustained gaming on the 300 Hz QHD+ display?
The 300 Hz panel can show every frame the RTX 5060 produces, so the first limit under sustained load is the GPU’s 8 GB GDDR7 memory and thermal ceiling, not the display refresh rate.
